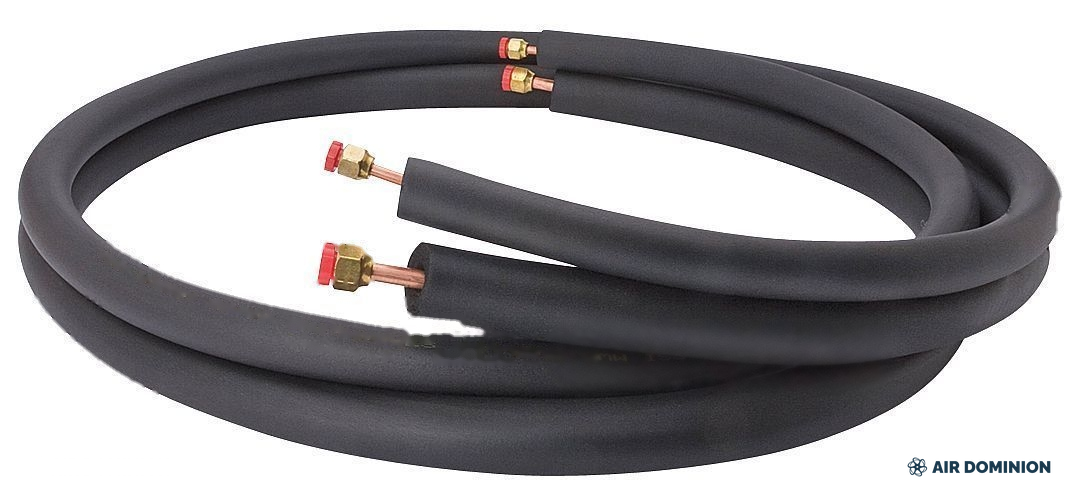

Air Dominion 1/4 in. x 3/8 in. Insulated Mini Split Line Set
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
Air Dominion 1/4 in. x 3/8 in. Insulated Mini Split Line Set is the field-installed copper line pair used to connect a mini split indoor unit to its outdoor condenser when the run is longer than the boxed kit, when the boxed line set is replaced, or when a second zone is piped. It pairs a 1/4 in. liquid line with a 3/8 in. suction line, both insulated, with flared ends ready for standard flare service valves. This Air Dominion quoting record is presented as a reviewed accessory configuration, with final configuration confirmed during quote review before release.
Highlights
- 1/4 in. O.D. liquid line and 3/8 in. O.D. suction line, sold as a matched pair
- 1/2 in. insulation on the line pair for condensation control and efficiency
- Flared ends with flare nuts fitted, ready for standard mini split service valve connections
- Length options of 15, 25, 30, 35, and 50 ft to match the routed run
- Line size matches Air Dominion 9K and 12K class connections
Specification Table
| Liquid line | 1/4 in. O.D. |
| Suction line | 3/8 in. O.D. |
| Insulation | 1/2 in. wall |
| Connection | Flared, both ends |
| Available lengths | 15 / 25 / 30 / 35 / 50 ft |
| Sold as | Matched liquid + suction pair |
Included Equipment
- Insulated 1/4 in. liquid line with flare nuts
- Insulated 3/8 in. suction line with flare nuts
Installation Notes
- Confirm the connection sizes on the indoor and outdoor unit rating plates before ordering; line size is set by the equipment, not the run length.
- Keep the total run and vertical rise within the limits published for the connected system; long runs can require additional refrigerant charge, confirmed during quote review.
- Refrigerant-side work including flaring, evacuation, and charging verification should be completed by a qualified HVAC professional.
Warranty and Support
- Prepared for Air Dominion quote review. Final accessory configuration, coverage terms, and installation documents are confirmed before release.
- Accessory coverage follows the published Air Dominion accessory support terms confirmed during quote review.
Frequently Asked Questions
Which Air Dominion systems use this line size?
This 1/4 x 3/8 pairing matches Air Dominion single-zone systems in the 9K and 12K classes using 1/4 x 3/8 line connections. Confirm the labeled connection sizes on your unit during quote review.
Is the line set insulated?
Yes. The pair carries 1/2 in. insulation.
Are the ends flared?
Yes. Both lines arrive flared with flare nuts fitted for standard mini split service valves.
What if my wall-to-pad run is between lengths?
Select the next length up and coil the modest excess with a wide bend radius, or note the exact routed length in the quote request for review.
Documents
- Type Mini Split Accessory
- SKU AD-HVAC-ACC-MS-LINESET-1438-15
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
