Air Dominion 13,500 BTU RV Rooftop Air Conditioner, Cool-Only
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

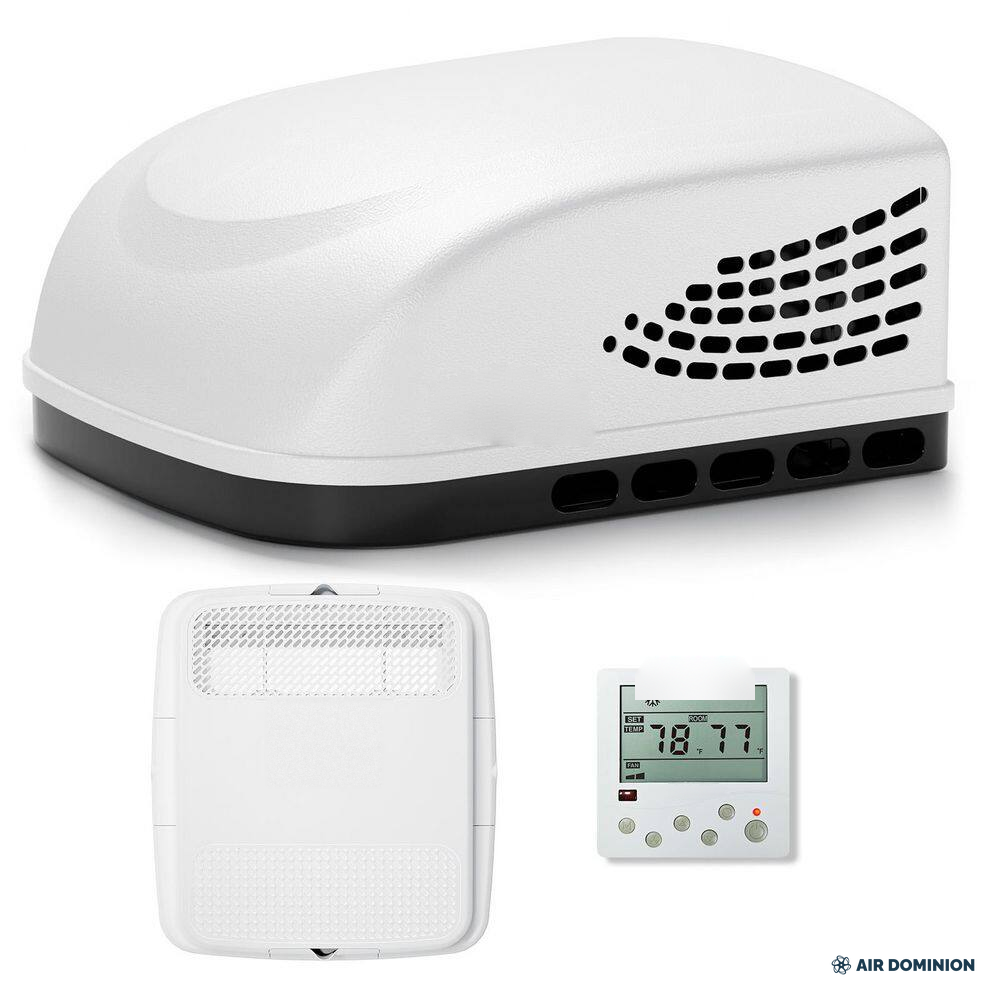

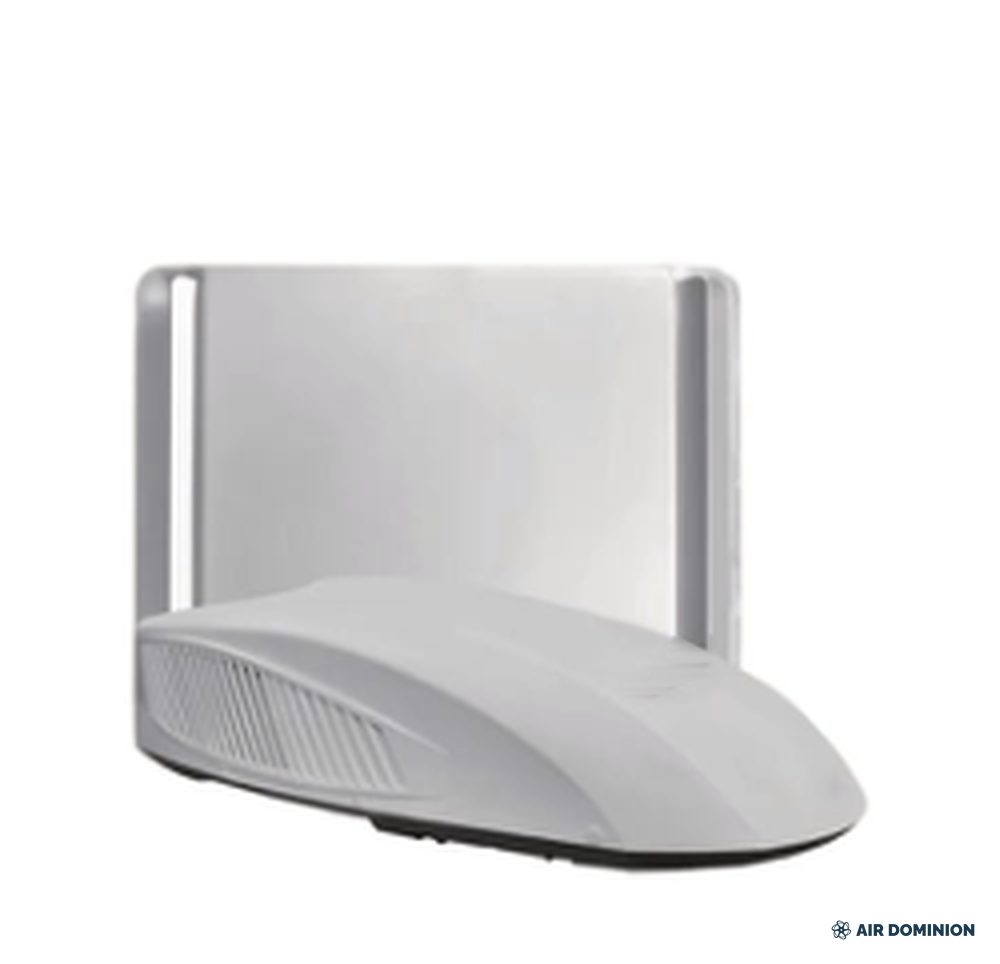

Air Dominion 13,500 BTU RV Rooftop Air Conditioner, Cool-Only is a straightforward high-airflow cooling package for RVs, campers, trailers, and food-service vehicles that already have a furnace or do not need rooftop heating. The dual-compressor design moves 470 CFM through an adjustable four-way air distribution box, and a wired thermostat controller mounts at the wall for clean cab control. This Air Dominion quoting record is presented as a reviewed product configuration, with final equipment configuration confirmed during quote review before release.
Highlights
- 13,500 BTU/h cooling with dual high-efficiency compressors
- 470 CFM four-way adjustable air distribution box included
- Wired wall thermostat controller included
- 115V, 60Hz operation for common RV shore power and generator setups
- Fits the standard 14.25 x 14.25 in. RV roof opening
- 59 dB operation with dehumidification mode
Specification Table
| Cooling capacity | 13,500 BTU/h |
| Heating | None (cool-only configuration) |
| Power supply | 115V, 60Hz, 1-phase |
| Rated current | 15.5 A (published) |
| Airflow | 470 CFM |
| Refrigerant | R-32 |
| Configuration | Non-ducted rooftop with air distribution box |
| Rooftop unit dimensions | 27.61 W x 14.2 H x 29.5 D in. |
| Rooftop unit weight | 65 lb |
| Air distribution box | 21.1 x 22.8 x 2.7 in. |
| Roof opening | 14.25 x 14.25 in. |
| Set temperature range | 64.4 F to 86 F |
| Sound level | 59 dB |
Included Equipment
- Rooftop unit, white shroud
- Adjustable air distribution box (ADB) with washable filter
- Wired thermostat controller kit
- Mounting hardware and sealing gasket
Installation Notes
- Fits standard 14.25 x 14.25 in. roof openings; air distribution box suits roofs approximately 1.5-5 in. thick.
- Cool-only configuration: plan cabin heating separately.
- Confirm the 14-1/4 in. x 14-1/4 in. roof opening, roof structural support, and sealing plan before release.
- Confirm the 115V branch circuit, breaker sizing, and generator or shore-power capacity against the published amperage before release.
- Roof-mounted installation and electrical connection should be completed by a qualified RV service technician.
- Images are representative of product class and included accessory configuration. Final model, electrical requirements, and included components are confirmed during quote review.
Warranty and Support
- Prepared for Air Dominion quote review. Final model, electrical requirements, accessories, warranty coverage, and installation documents are confirmed before release.
- Published warranty terms are issued with the final quote packet.
Frequently Asked Questions
Does this model heat?
No. This is the cool-only configuration. If you need rooftop heating, the 13,500 BTU heat pump configuration covers it and is quoted the same way.

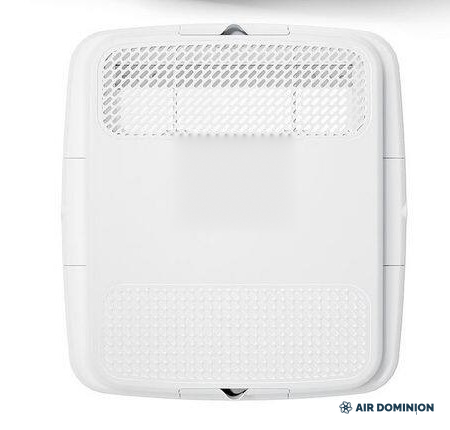

What is the air distribution box?
It is the interior ceiling unit that spreads airflow four ways, holds the filter, and connects the wired thermostat controller. It is included.
Can the thermostat mount on a wall?
Yes. The included wired controller mounts at the wall for fixed cab control instead of a ceiling-only panel.
What power does it need?
115V, 60Hz single-phase, with a published 15.5 A rated current. Circuit and generator sizing are confirmed during quote review.
Documents
- Type RV Air Conditioner
- SKU AD-HVAC-RV-13K-115-COOL-ND
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
