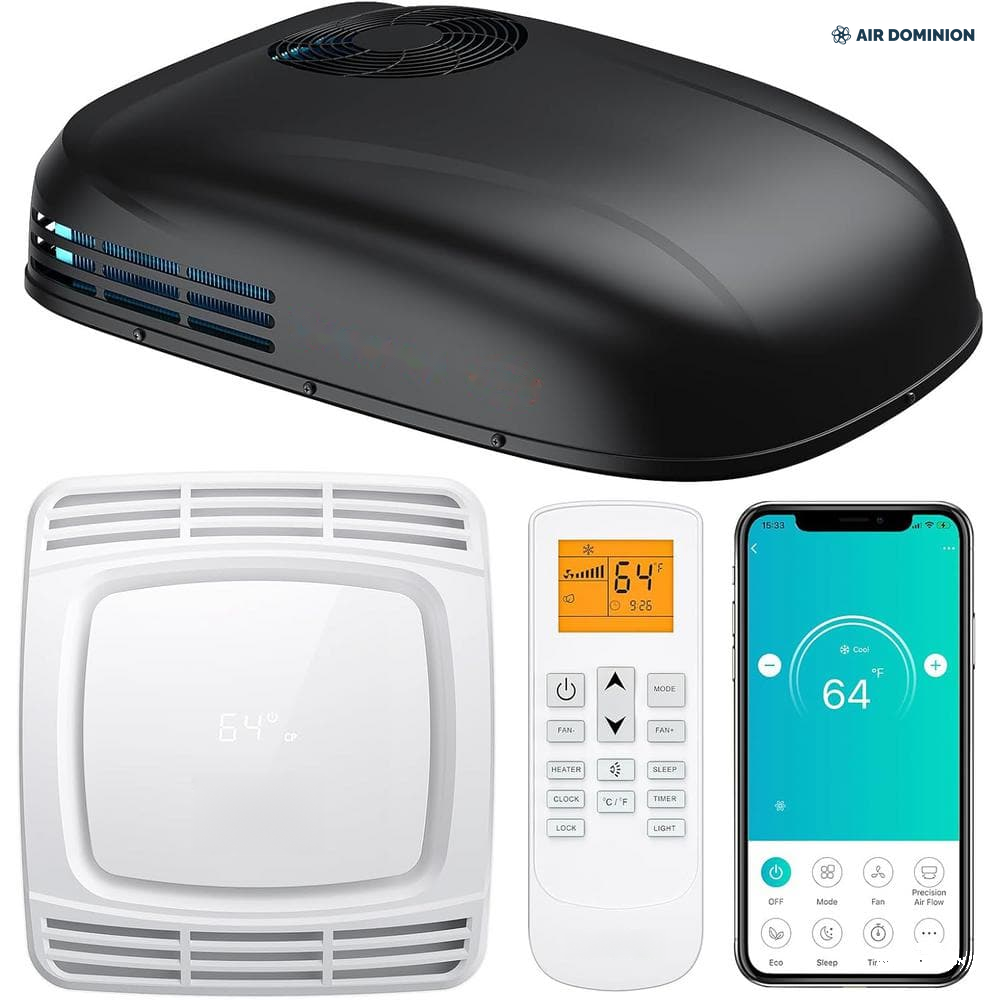

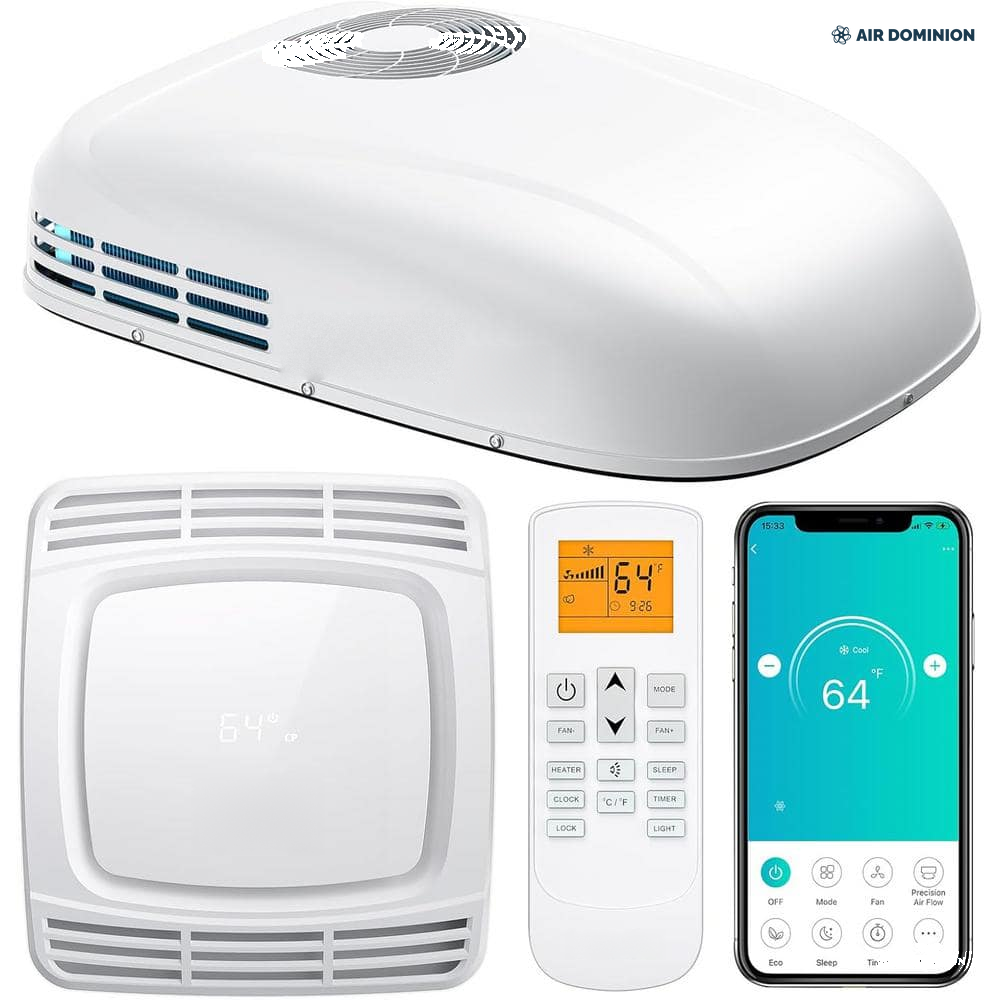

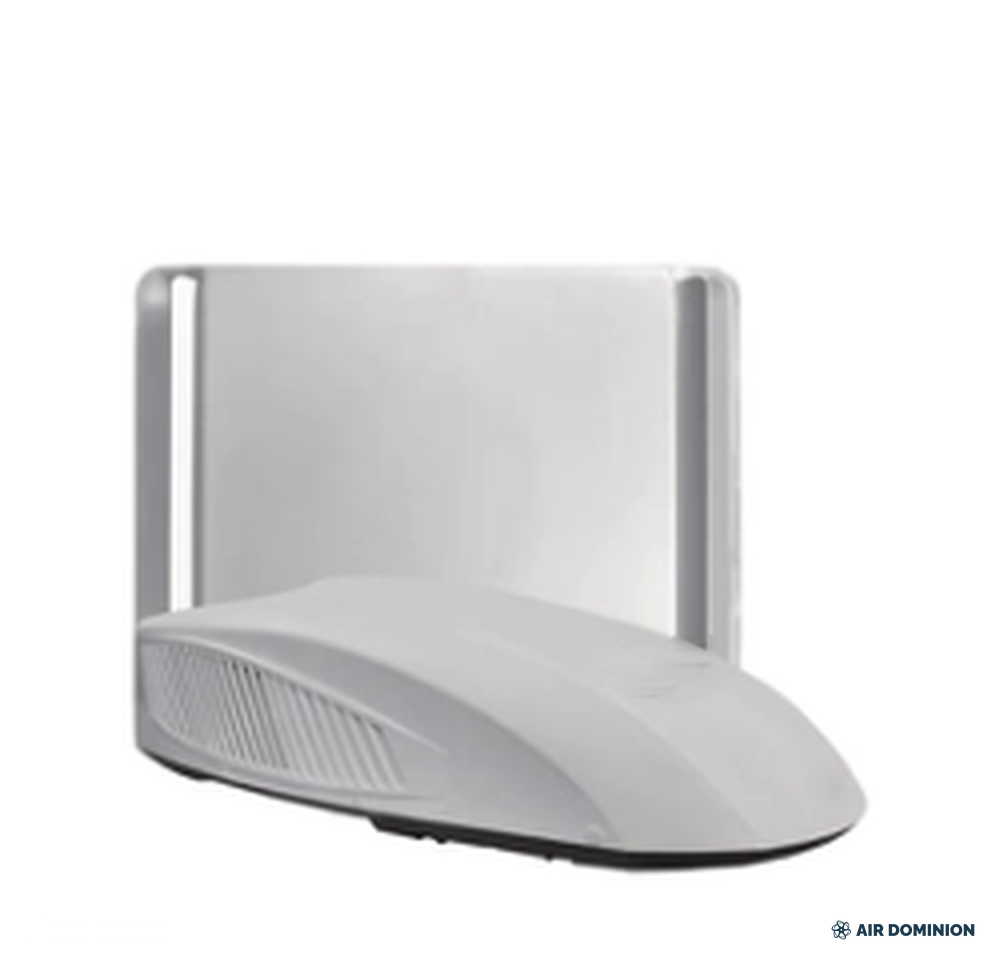

Air Dominion 13,500 BTU RV Rooftop Air Conditioner with Heat Pump

Air Dominion 13,500 BTU RV Rooftop Air Conditioner with Heat Pump is a low-profile, non-ducted rooftop comfort system for RVs, campers, trailers, and mobile workspaces that need year-round cooling and heating from a single roof-mounted unit. The inverter compressor varies output to hold temperature with less noise and lower power draw than fixed-speed rooftop units, which matters on generator and shore-power budgets. This Air Dominion quoting record is presented as a reviewed product configuration, with final equipment configuration confirmed during quote review before release.

Highlights

• 13,500 BTU/h class inverter cooling with variable 7,500-13,500 BTU/h output
• Heat pump heating rated for ambient temperatures from 19.4 F to 109.4 F
• Slim low-profile shell about 10 in. tall reduces drag and clearance height
• 115V, 60Hz operation sized for common RV shore power and generator setups
• Non-ducted ceiling assembly with washable filtration and interior controls included
• Handheld remote and Wi-Fi app control with quiet 52 dB operation
• White or black shroud finish selected at order

Specification Table

Included Equipment

• Rooftop unit with selected shroud color

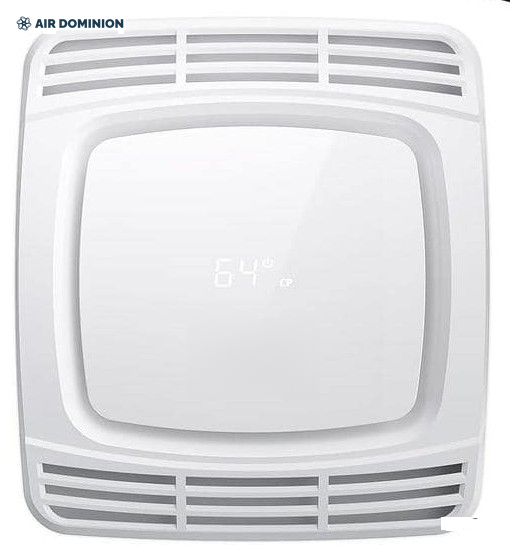

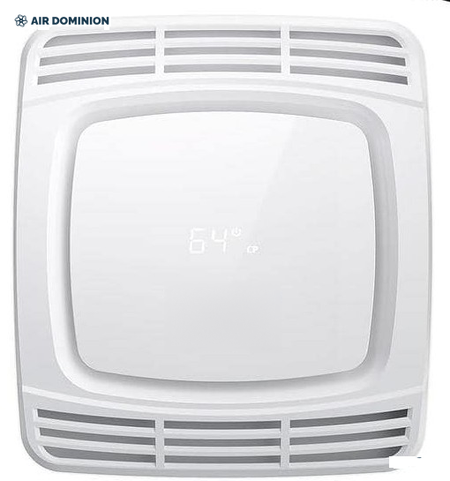

• Non-ducted interior ceiling assembly with washable filter
• Handheld remote control
• Mounting gasket and installation hardware

Installation Notes

• Fits a standard 14.25 x 14.25 in. roof vent opening on roofs 1.02-3.93 in. thick; thinner roofs need a field-supplied spacer.
• Roof must support approximately 150 lb at the mounting location.
• Allow at least 18 in. of clearance behind the unit before other rooftop equipment.
• Confirm the 14-1/4 in. x 14-1/4 in. roof opening, roof structural support, and sealing plan before release.
• Confirm the 115V branch circuit, breaker sizing, and generator or shore-power capacity against the published amperage before release.
• Roof-mounted installation and electrical connection should be completed by a qualified RV service technician.
• Images are representative of product class and included accessory configuration. Final model, electrical requirements, and included components are confirmed during quote review.

Warranty and Support

• Prepared for Air Dominion quote review. Final model, electrical requirements, accessories, warranty coverage, and installation documents are confirmed before release.
• Published warranty terms are issued with the final quote packet.
• Wi-Fi app, remote, timer, sleep, and dry modes are part of the published control feature set.

Frequently Asked Questions

Does this unit both cool and heat?
Yes. It is an inverter heat pump rated to heat in ambient temperatures from 19.4 F to 109.4 F, with cooling up to 109.4 F. Below the rated range, a separate heat source is recommended.

Will it fit my existing roof vent opening?
It mounts in the standard 14.25 x 14.25 in. RV vent opening used by most rooftop units. Openings that vary from this size need gaskets or minor enlargement, confirmed during quote review.

Is it compatible with ducted RV systems?
No. This configuration is a non-ducted unit with an interior ceiling assembly. Ducted-system requirements are routed to a different configuration during quote review.

Can it run on a generator?
The published draw is 9.8-16.9 A at 115V in cooling with a 16 A minimum circuit ampacity. Generator sizing is confirmed against your electrical setup during quote review.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
