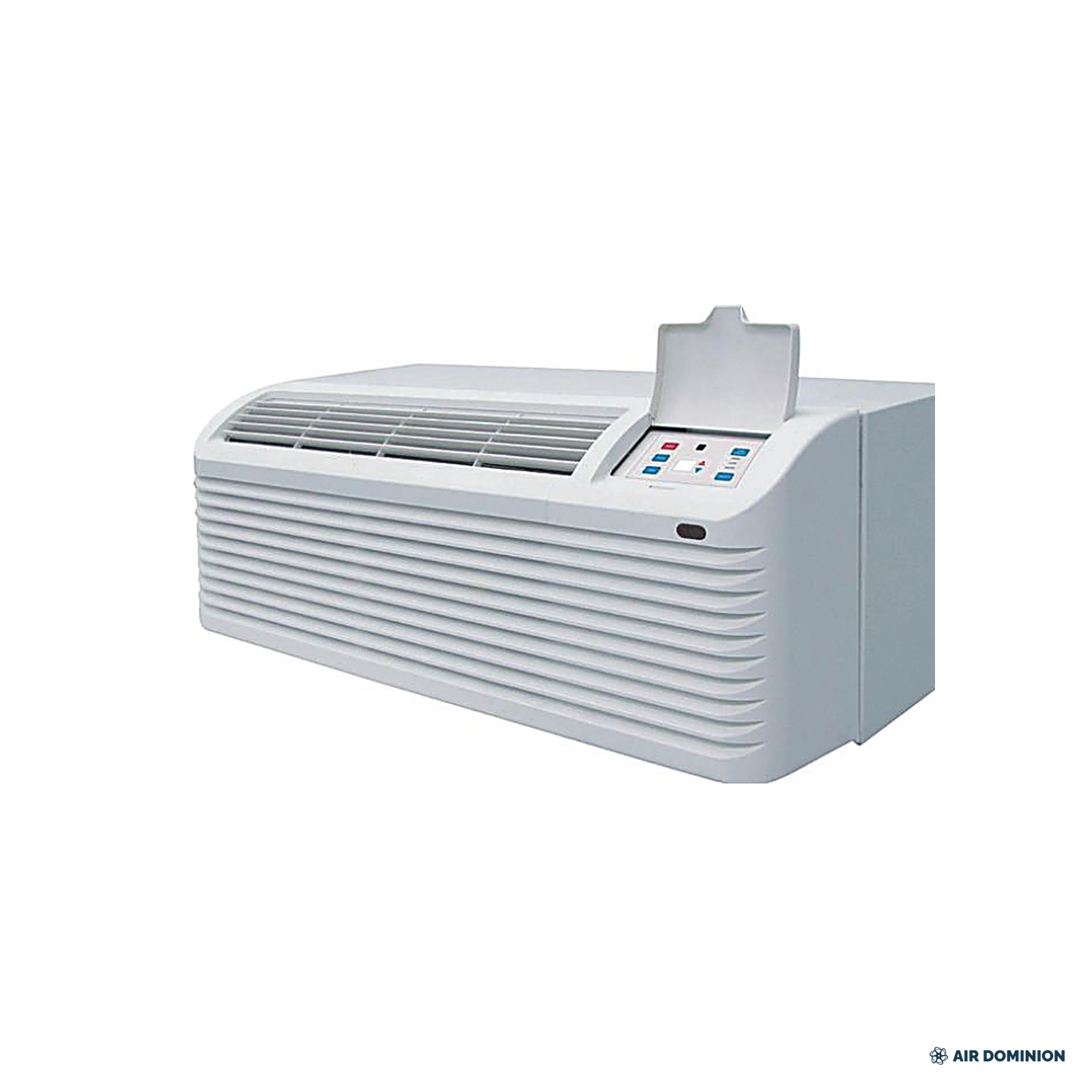

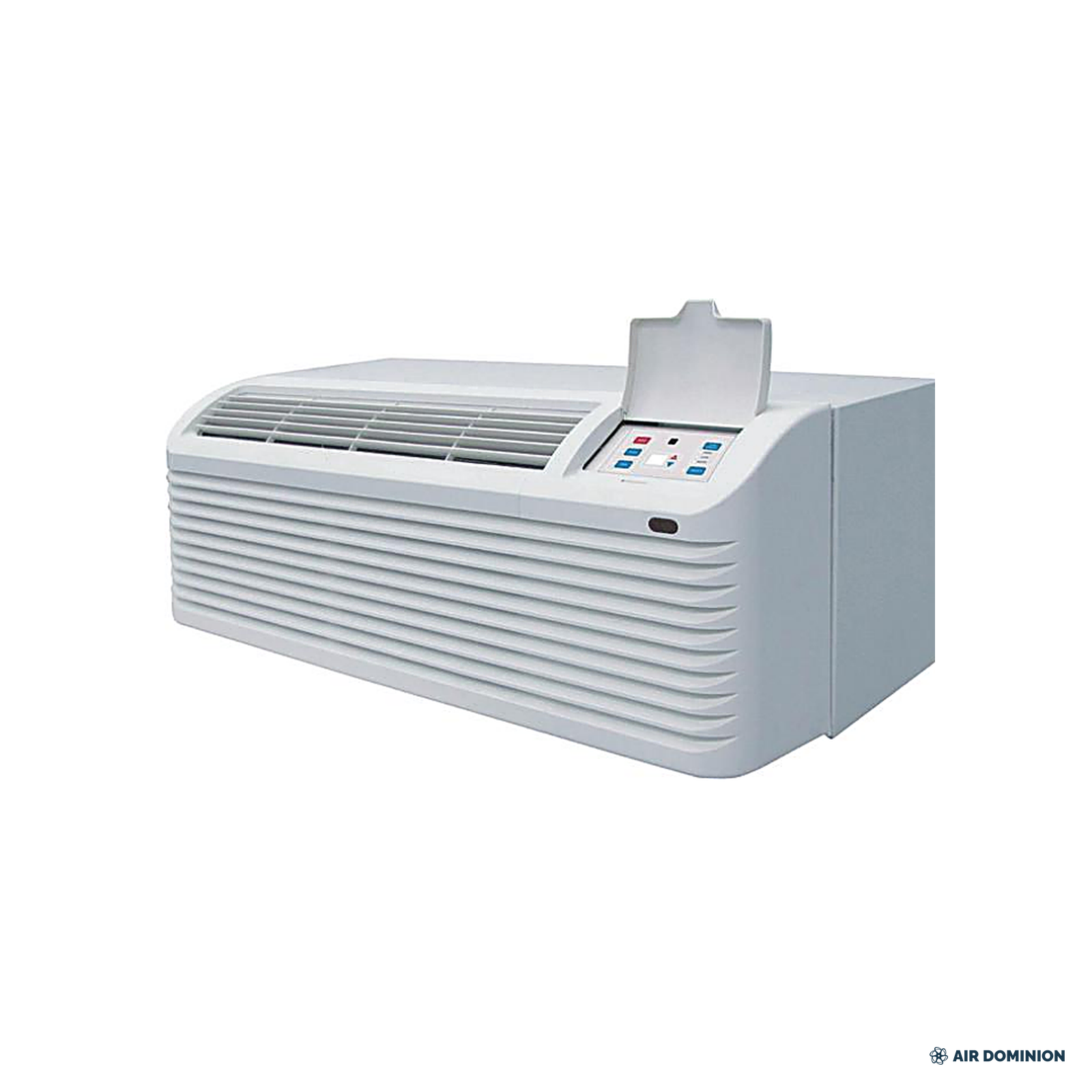

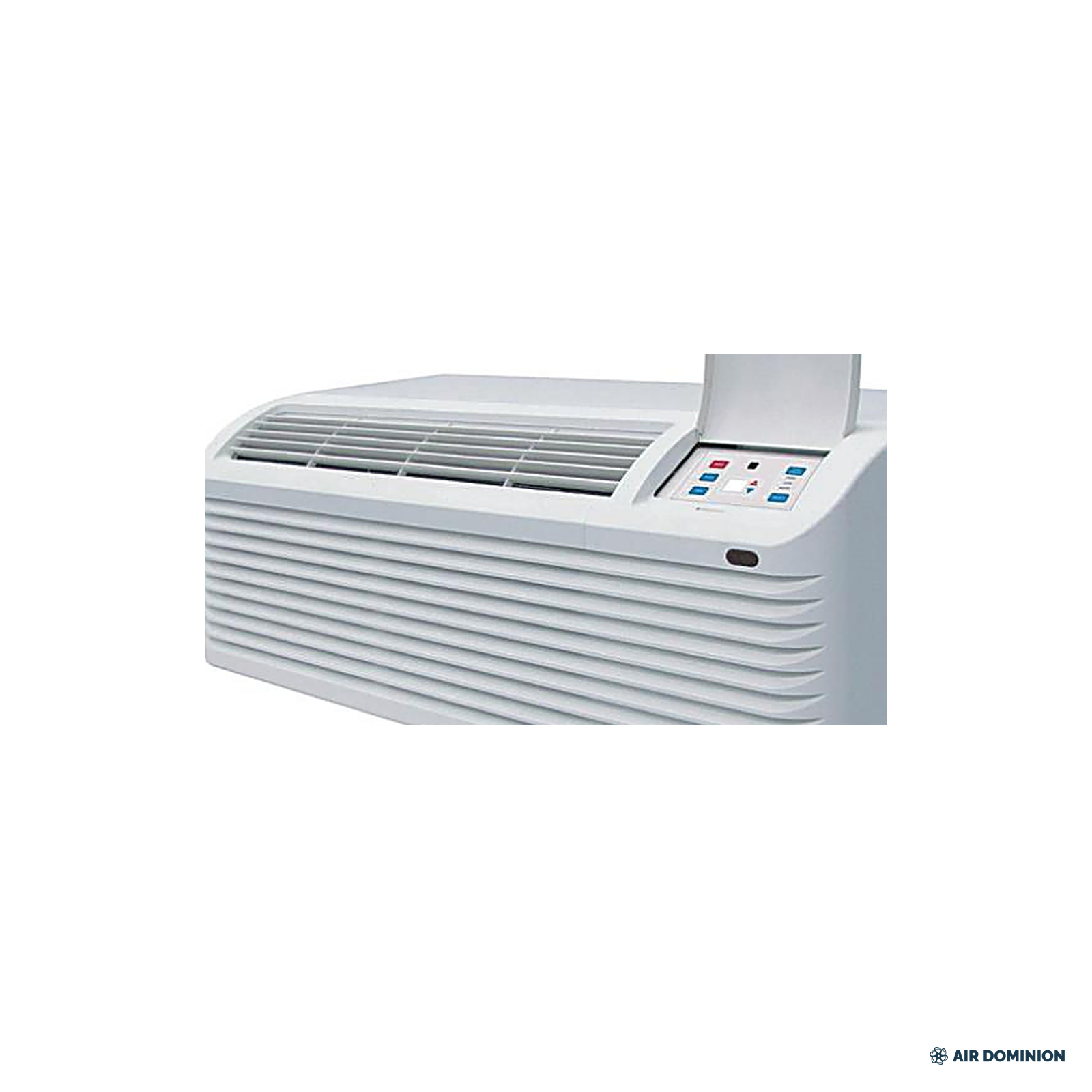

Air Dominion 15,000 BTU Inverter PTAC Heat Pump with Electric Heat, 208/230V
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
Air Dominion 15,000 BTU Inverter PTAC Heat Pump with Electric Heat is built for hospitality, multifamily, office, care, and add-on room projects that need inverter terminal heating and cooling in a standard wall-sleeve footprint. This Air Dominion quoting record is presented as a reviewed product configuration, with final equipment configuration confirmed during quote review before release. This inverter packaged terminal platform combines 15,000 BTU-class cooling, heat-pump operation, and 3.5 kW electric backup heat in a standard 42 x 16 in. terminal cabinet built for wall sleeves and 24V wall-thermostat control. Inverter compressor control holds tighter room temperatures and reduces energy use versus fixed-speed terminal units.
Highlights
- 15,000 BTU inverter PTAC cooling class with heat-pump operation
- 3.5 kW electric backup heater with installer-selectable heating mode
- 10.7 EER published efficiency
- 208/230V single-phase power with LCDI cord connection
- 24V wall-thermostat compatible terminal control platform
- Standard 42 x 16 in. cabinet for packaged terminal wall sleeves
- Fresh-air ventilation and dehumidify modes
Specification Table
| Cooling capacity | 15,000 BTU |
| Electric backup heat | 3.5 kW |
| Efficiency | 10.7 EER |
| Voltage | 208/230V, 1 Phase, 60Hz |
| Electrical | 9.0 A rated cooling; 20 A LCDI cord circuit |
| Power connection | NEMA 6-20P LCDI power cord |
| Refrigerant | R-32 |
| Unit dimensions | 42.0 W x 16.0 H x 21.5 D in. overall (13.75 in. into sleeve) |
| Required sleeve | 42 x 16 in., 14 in. depth |
| Weight | 112.4 lb |
| Sound level | 53 dB(A) |
| Operating range | 20 F to 115 F |
| Heating (heat pump) | 13,500 BTU |
| Warranty | Confirmed during quote review |
Included Equipment
- Packaged terminal chassis with heat pump and electric backup heater

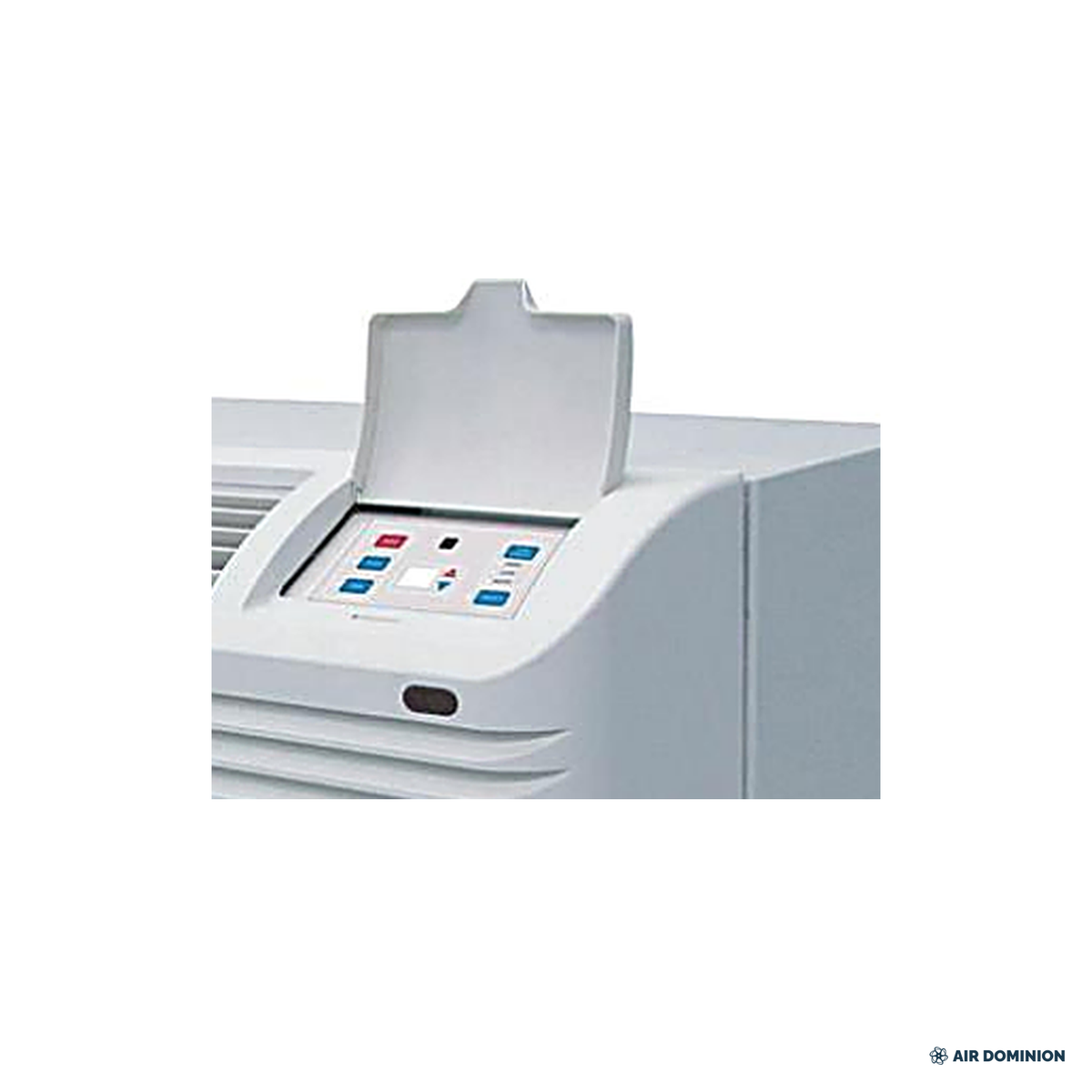

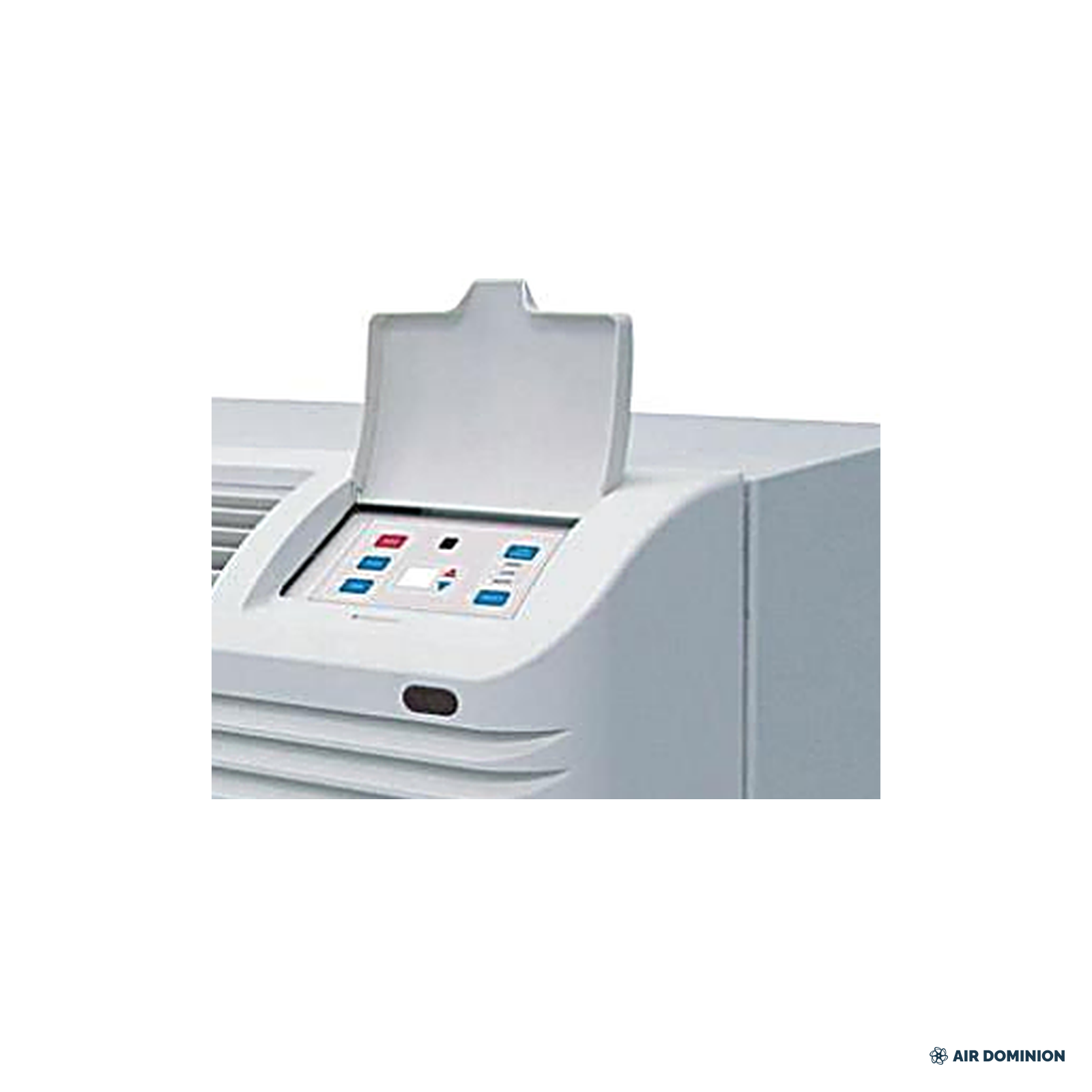

- Onboard control panel
- LCDI power cord

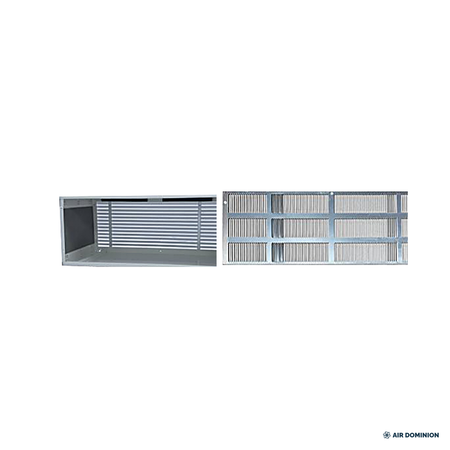

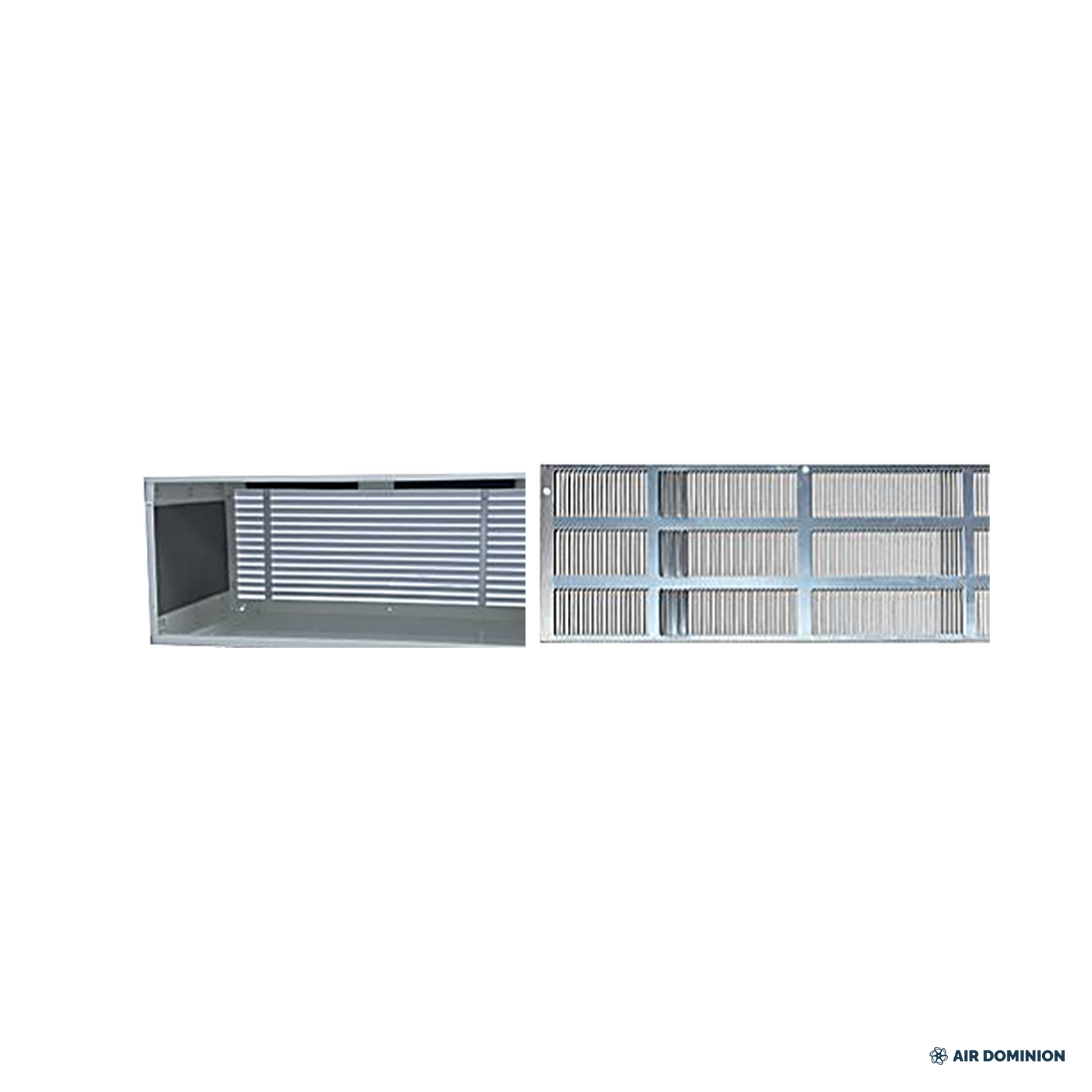

- Wall sleeve and rear grille when the sleeve-and-grille configuration is selected
Installation Notes
- Confirm sleeve condition, power supply, circuit protection, thermostat plan, and condensate management before release.
- New installations require a 42 x 16 in. wall sleeve (14 in. depth) and an exterior grille; both are available as Air Dominion accessories and confirmed during quote review.
- Provide a dedicated circuit and receptacle matching the LCDI cord rating shown in the specification table.
- Electrical hookup and final installation should be completed by qualified trade personnel familiar with PTAC service requirements.
Warranty and Support
- Final warranty packet and accessory scope are confirmed during quote review before release.
- Use the Air Dominion installation and warranty reference to align sleeve, grille, electrical, and thermostat scope before ordering.
- Registered-coverage options are reviewed with the final quote.
Frequently Asked Questions
Does it fit standard 42 x 16 in. PTAC sleeves?
Yes. The chassis is built to the industry-standard 42 x 16 in. wall-sleeve footprint (14 in. sleeve depth). Matching Air Dominion sleeves and grilles are available as accessories.
What kind of projects is this built for?
Hospitality, multifamily, office, care, and residential add-on applications where a packaged terminal unit is preferred for room-by-room comfort.
Does it support wall thermostats?
Yes. The control platform supports 24V wall thermostats; wired and wireless Air Dominion thermostats are available as accessories.
What should be confirmed before ordering?
Voltage, breaker and receptacle requirements, sleeve and grille scope, thermostat plan, and condensate path - all confirmed during quote review.
Documents
- Type PTAC
- SKU AD-HVAC-PTAC-15K-230-1Z-INVBASE
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
