Air Dominion 15,000 BTU RV Rooftop Air Conditioner with Heat Pump

Air Dominion 15,000 BTU RV Rooftop Air Conditioner with Heat Pump is the higher-capacity rooftop package for large travel trailers, fifth wheels, motorhomes, and mobile workspaces that need faster pulldown and heat-pump heating from one roof-mounted unit. A smooth low-profile shell keeps height and drag down while the non-ducted ceiling assembly delivers air directly to the cabin. This Air Dominion quoting record is presented as a reviewed product configuration, with final equipment configuration confirmed during quote review before release.

Highlights

• 15,000 BTU/h cooling with 12,000 BTU/h heat pump heating
• Published 8.5 EER efficiency with 1,550 W rated input
• 115V, 60Hz operation with 12.5 A rated current fits common RV electrical setups
• Quiet operation down to 43 dB on low fan speed
• Non-ducted ceiling assembly with washable filtration and interior controls included
• Handheld remote and Wi-Fi app control
• Sized for coaches and trailers up to approximately 650 sq. ft.

Specification Table

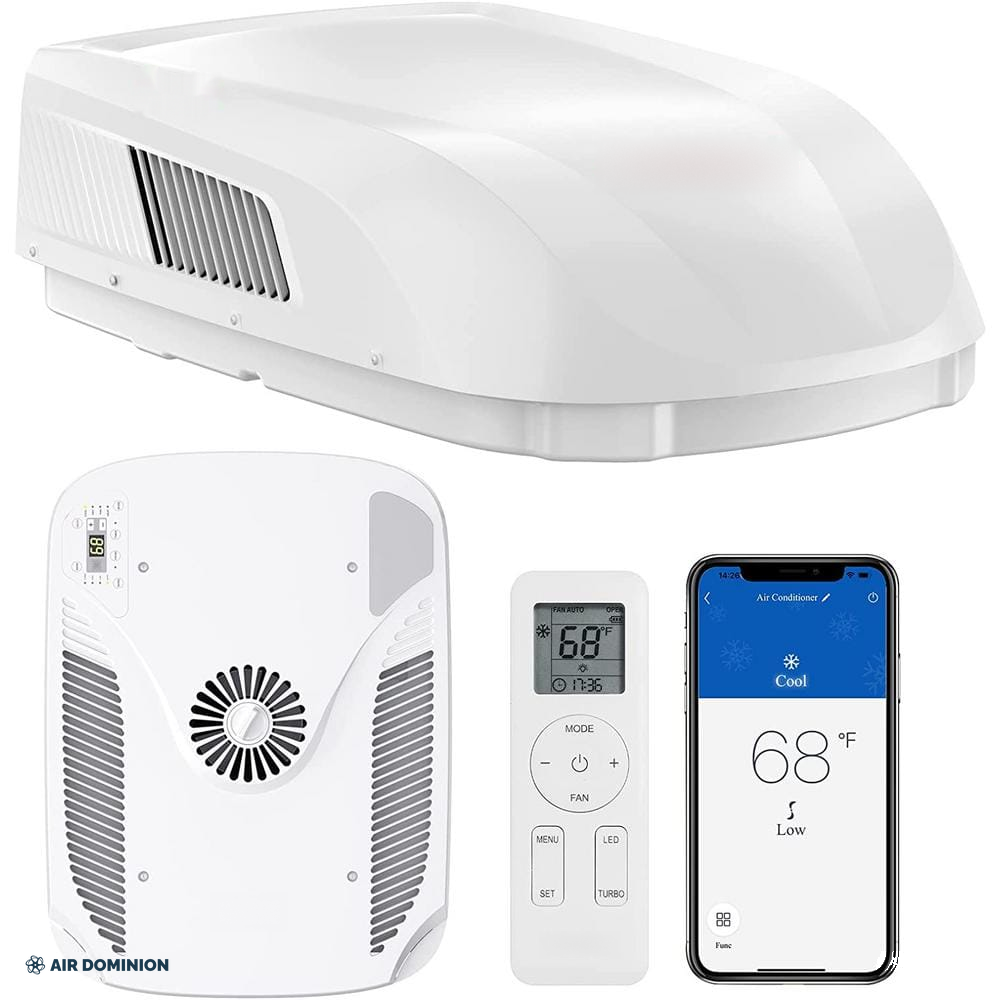

Included Equipment

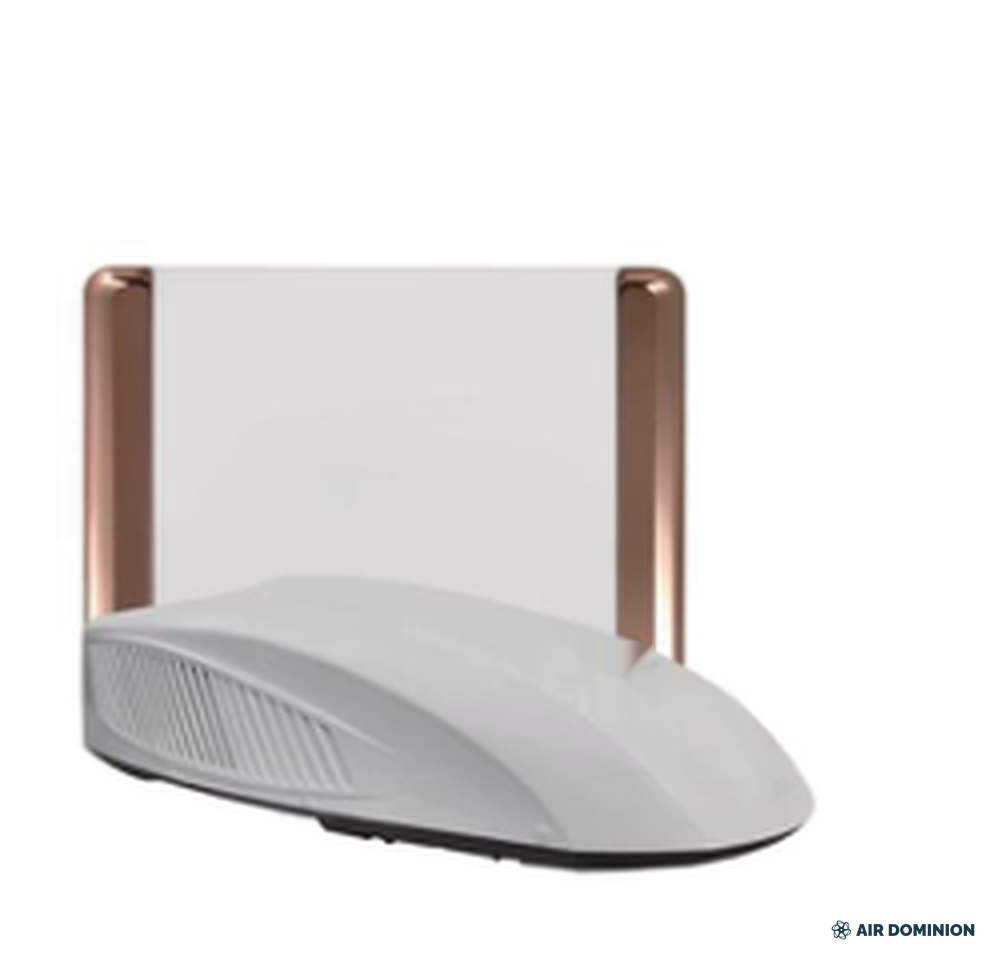

• Rooftop unit, white shroud

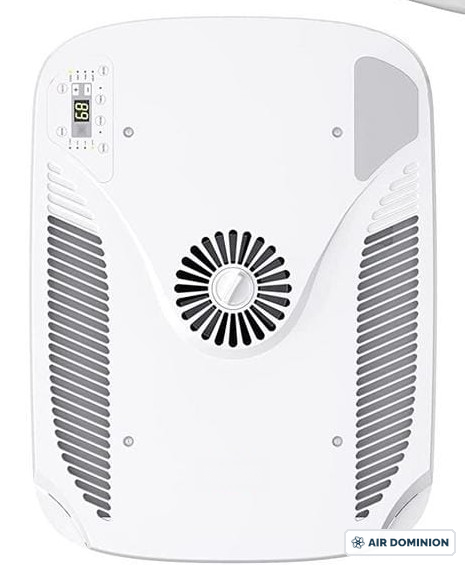

• Non-ducted interior ceiling assembly with washable filter
• Handheld remote control
• Mounting gasket and installation hardware

Installation Notes

• Fits the standard 14.25 x 14.25 in. RV vent opening; ceiling assembly bolts suit roof thicknesses of roughly 1.2-3.1 in.
• Confirm roof structure can carry the 100 lb class rooftop unit at the opening.
• Confirm the 14-1/4 in. x 14-1/4 in. roof opening, roof structural support, and sealing plan before release.
• Confirm the 115V branch circuit, breaker sizing, and generator or shore-power capacity against the published amperage before release.
• Roof-mounted installation and electrical connection should be completed by a qualified RV service technician.
• Images are representative of product class and included accessory configuration. Final model, electrical requirements, and included components are confirmed during quote review.

Warranty and Support

• Prepared for Air Dominion quote review. Final model, electrical requirements, accessories, warranty coverage, and installation documents are confirmed before release.
• Published warranty terms are issued with the final quote packet.
• Wi-Fi app control, remote, and multi-speed fan operation are part of the published control feature set.

Frequently Asked Questions

How much heating does the heat pump provide?
The published heating capacity is 12,000 BTU/h in heat pump mode. Heat pumps lose capacity in deep cold, so a separate furnace remains the primary heat source for winter camping.

What breaker size does it need?
The published rating is a 15-20 A breaker on a 115V circuit with 12.5 A rated current. Final electrical requirements are confirmed during quote review.

Does it replace a standard 14 x 14 vent unit?
Yes. It mounts in the standard 14.25 x 14.25 in. opening used by most RV rooftop units.

Is a wall thermostat included?
Control is through the included ceiling assembly panel, handheld remote, and Wi-Fi app. Wall-thermostat control schemes are reviewed as a project option during quote review.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
