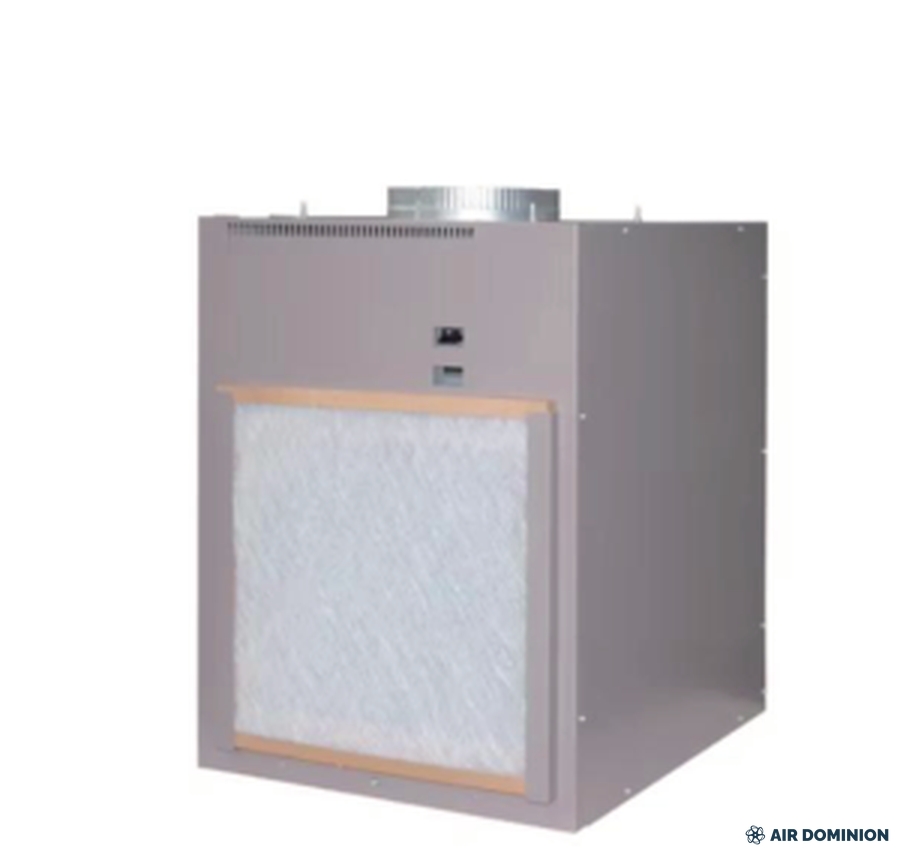

Air Dominion 18,000 BTU VTAC Vertical Terminal Heat Pump, 208/230V - front view

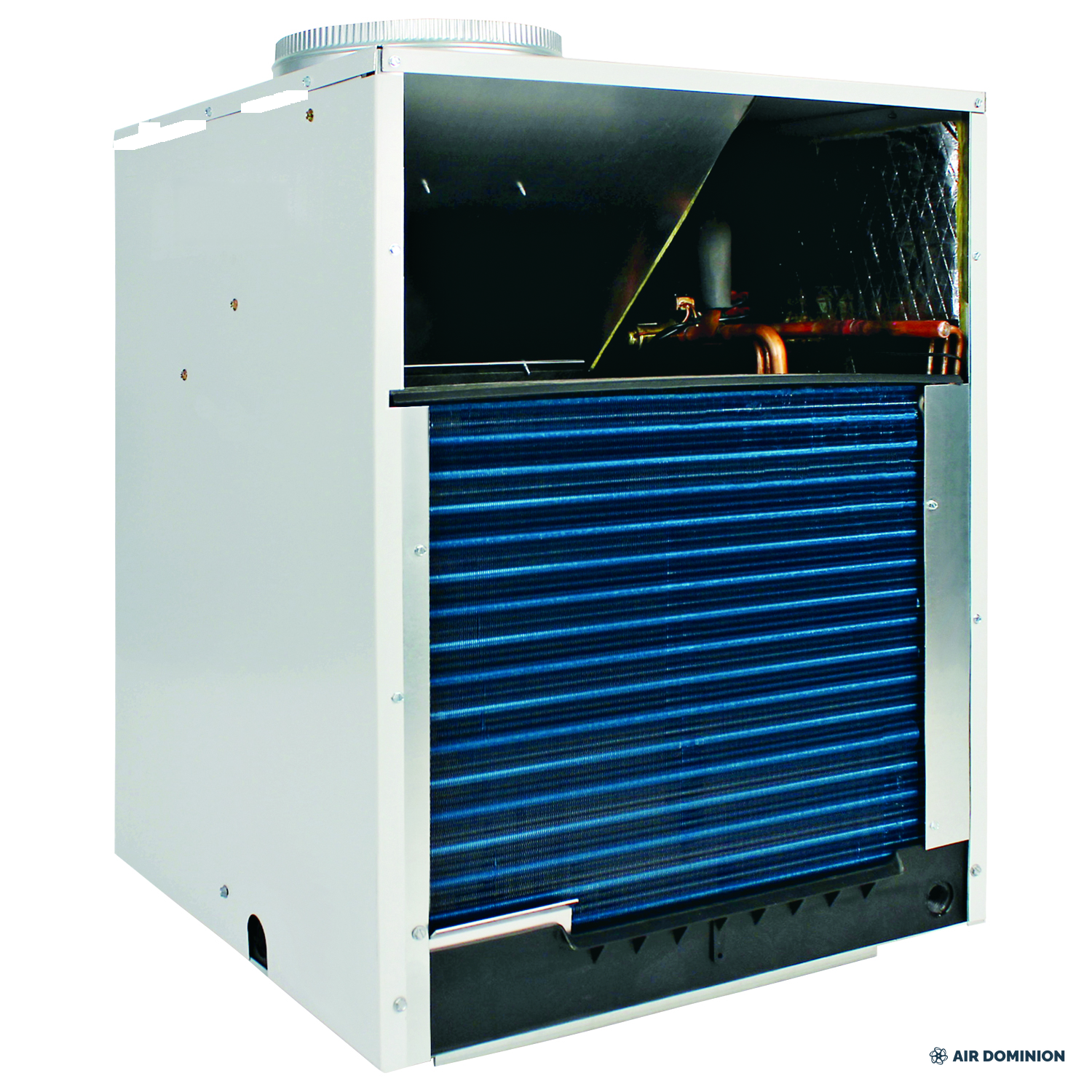

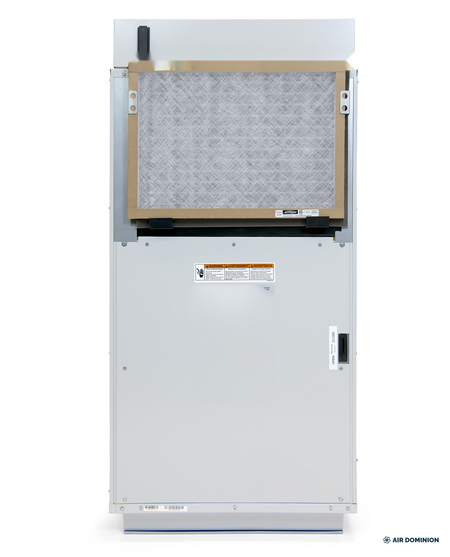

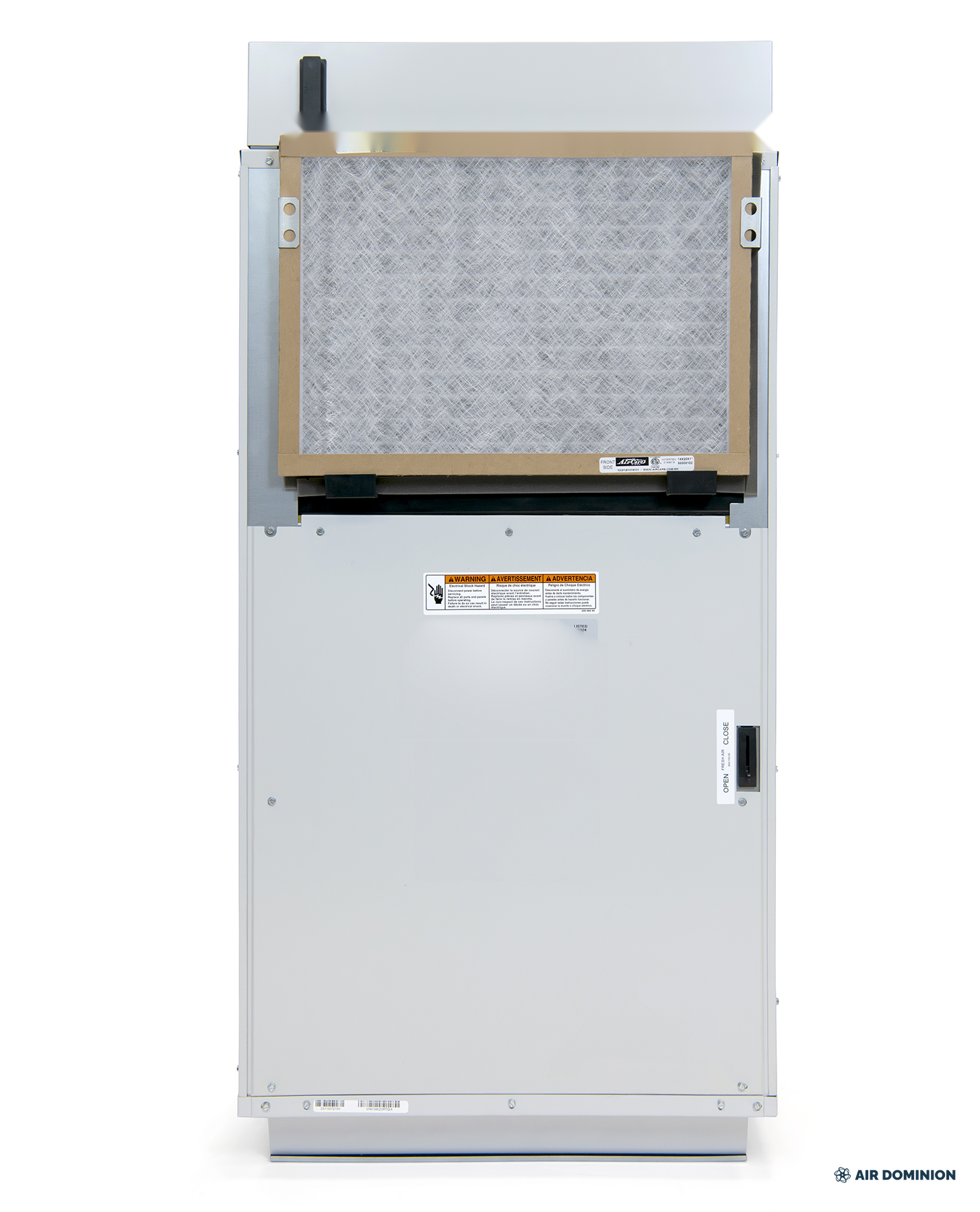

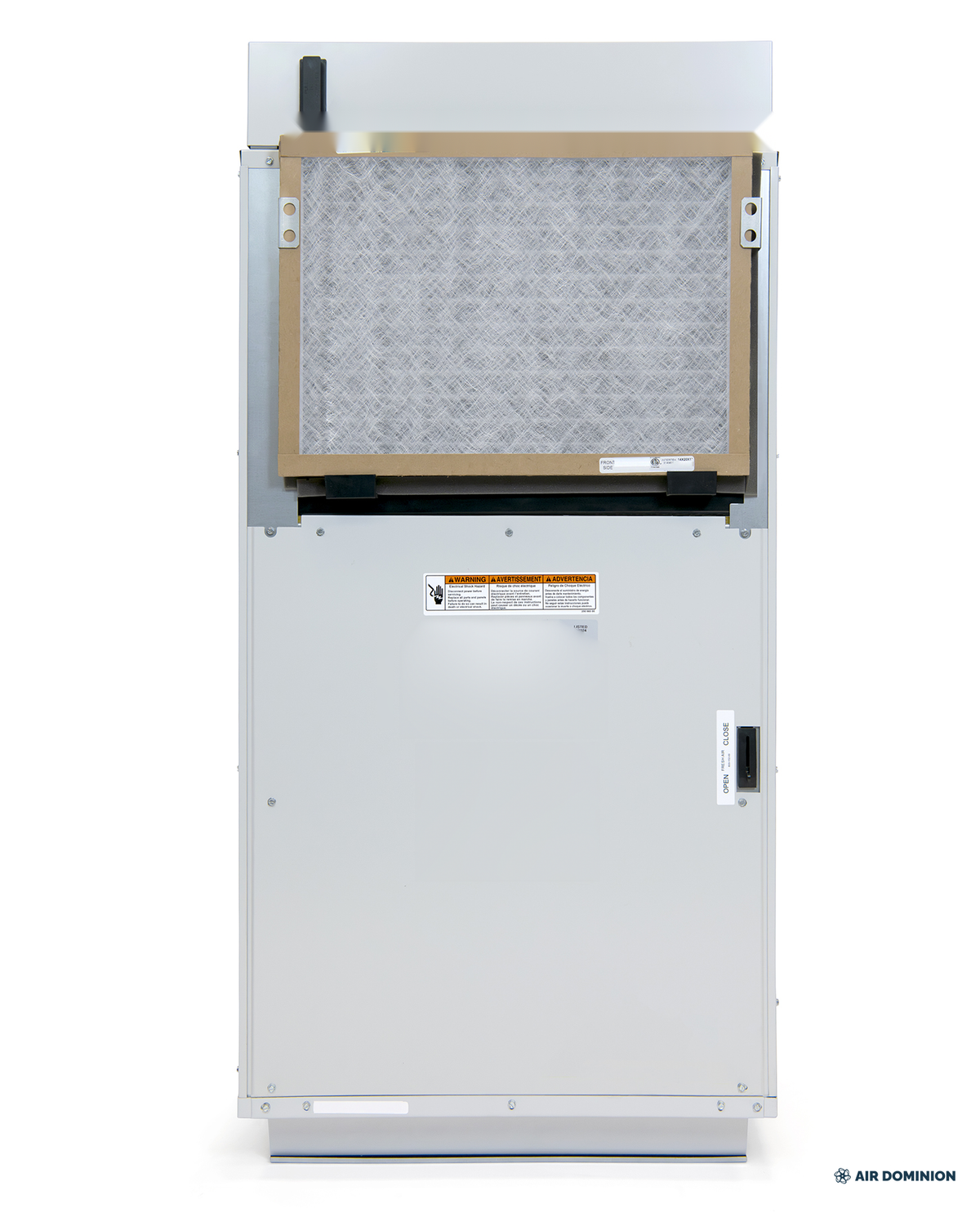

Air Dominion 18,000 BTU VTAC Vertical Terminal Heat Pump, 208/230V - alternate view

Product image note: Images are representative of product class and included accessory configuration. Final model, electrical requirements, and included components are confirmed during quote review before release.

Air Dominion

Air Dominion 18,000 BTU VTAC Vertical Terminal Heat Pump, 208/230V

Name: Air Dominion 18,000 BTU VTAC Vertical Terminal Heat Pump, 208/230V
Brand: Air Dominion
SKU: AD-HVAC-VTAC-18K-23025KW

SKU: AD-HVAC-VTAC-18K-23025KW

Electric Heat

2.5 kW 3.4 kW 5.0 kW 7.5 kW

Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

Air Dominion 18,000 BTU VTAC Vertical Terminal Heat Pump is built for extended-stay hospitality, multifamily, student housing, and assisted-living projects that want concealed closet-mounted comfort equipment. This Air Dominion quoting record is presented as a reviewed product configuration, with final equipment configuration confirmed during quote review before release. This vertical terminal air conditioner (VTAC) installs in a mechanical closet on an outside wall and ducts conditioned air into the living space, delivering 17,800 BTU @ 95 F cooling and heat-pump heating with selectable electric backup heat (2.5 kW / 3.4 kW / 5.0 kW / 7.5 kW). The 23 x 23 in. footprint keeps equipment out of sight for a quieter, more homelike room.

Highlights

17,800 BTU @ 95 F vertical terminal cooling
16,200 BTU @ 47 F / 9,800 BTU @ 17 F (heat pump)
Selectable electric backup heat: 2.5 kW / 3.4 kW / 5.0 kW / 7.5 kW
12.1 SEER2 / 10.6 EER2 published efficiency
Concealed closet installation with top-discharge ducting
Free-floating chassis and gasketed wall plenum for quiet operation
24V wall-thermostat control (thermostat quoted separately)

Specification Table

Cooling capacity	17,800 BTU @ 95 F
Heating (heat pump)	16,200 BTU @ 47 F / 9,800 BTU @ 17 F (heat pump)
Electric backup heat options	2.5 kW / 3.4 kW / 5.0 kW / 7.5 kW
Efficiency	10.6 EER2
Voltage	208/230V, 1 Phase, 60Hz
Electrical	2.5 kW: 15 A; 3.4 kW: 20 A; 5.0 kW: 30 A; 7.5 kW: 45 A circuit
Power connection	Field electrical connection per selected heater size
Refrigerant	R-32
Unit dimensions	23 W x 23 D x 47 H in.
SEER2	12.1
HSPF2	6.7
Airflow	560 CFM
Ventilation air	up to 60 CFM
Low-ambient heat pump operation	down to 10 F, then electric backup
Secondary drain	gravity-fed secondary drain used on 18K/24K class
Warranty	Confirmed during quote review

Included Equipment

Vertical terminal unit (VTAC), pre-charged and pre-wired
Selected electric backup heater (per configuration)
Installation and service documentation

Installation Notes

Installs in a closet-style enclosure on an outside wall; unit slides into the wall plenum and seals with a gasket.
Architectural exterior louver, return-air grille, supply duct transition, and support platform are project-side items confirmed during quote review.
Provide a dedicated circuit sized to the selected electric heater; wall thermostat (24V single-stage) is required and quoted separately.
Confirm condensate routing (including secondary drain on larger cabinets) before release.

Warranty and Support

Final warranty packet and accessory scope are confirmed during quote review before release.
Use the Air Dominion installation and warranty reference to align sleeve, grille, electrical, and thermostat scope before ordering.
Registered-coverage options are reviewed with the final quote.

Frequently Asked Questions

Does this fit a standard 42 x 16 in. PTAC wall sleeve?
No. VTAC equipment installs vertically in a closet enclosure on an outside wall with a gasketed wall plenum and ducted discharge - it does not use the horizontal 42 x 16 in. PTAC sleeve.

What kind of projects is this built for?
Extended-stay hospitality, multifamily, student housing, and assisted-living projects that want concealed, room-by-room packaged comfort with a homelike interior appearance.

Does it need a wall thermostat?
Yes. A single-stage 24V wall thermostat is required and is not included; it is confirmed during quote review.

What should be confirmed before ordering?
Closet dimensions and platform, exterior louver and return-air grille selection, electric heater size and circuit, condensate routing, and voltage - all confirmed during quote review.
