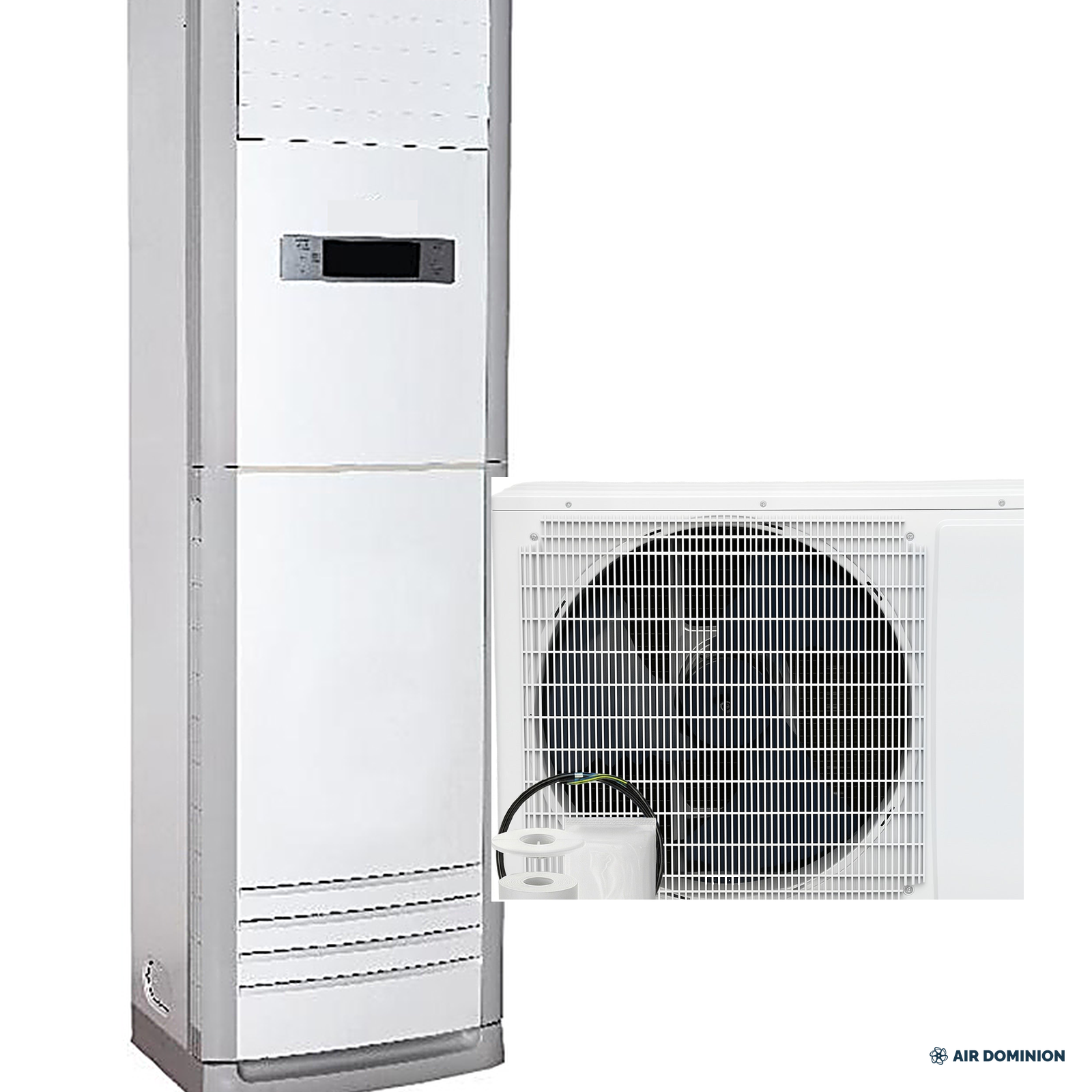

Air Dominion 24,000 BTU Floor-Standing Mini Split Heat Pump System
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
Air Dominion 24,000 BTU Floor-Standing Mini Split Heat Pump System is built for open rooms and light commercial spaces that benefit from floor-console delivery, flexible perimeter-wall placement, and ductless heat-pump comfort without wall or ceiling mounting. The vertical tower form stands at the wall line and throws air across the room from floor level. This Air Dominion quoting record is presented as a reviewed product configuration, with final equipment configuration confirmed during quote review before release.
Highlights
- 24,000 BTU floor-standing heat-pump system class
- Published 20 SEER2 class efficiency
- 208-230V single-phase platform with R454B refrigerant
- Tower console delivery for perimeter-wall and open-room layouts
- Matched outdoor condenser and installation-ready accessory class
- Inverter-driven heat-pump operation for year-round single-zone comfort
Specification Table
| Cooling capacity | 24,000 BTU |
| System type | Floor-standing mini split heat pump |
| Efficiency | 20 SEER2 class |
| Voltage | 208-230V, 60Hz, 1 phase |
| Indoor type | Floor console tower |
| Tonnage | 2 tons |
| Refrigerant | R454B |
| Line set | 16 ft insulated kit class |
| Zone capacity | 1 zone |

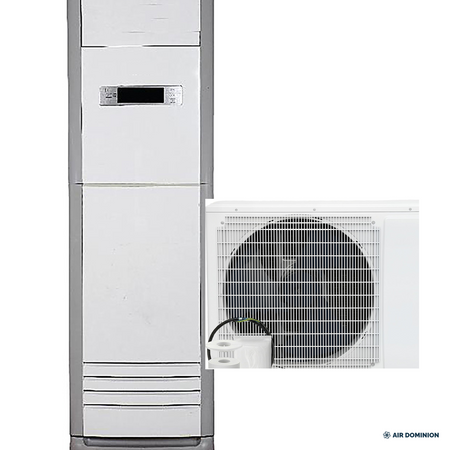

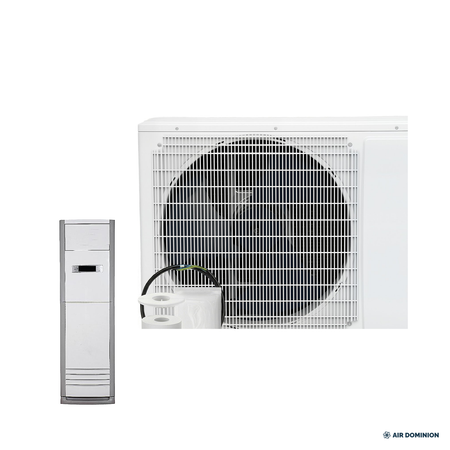

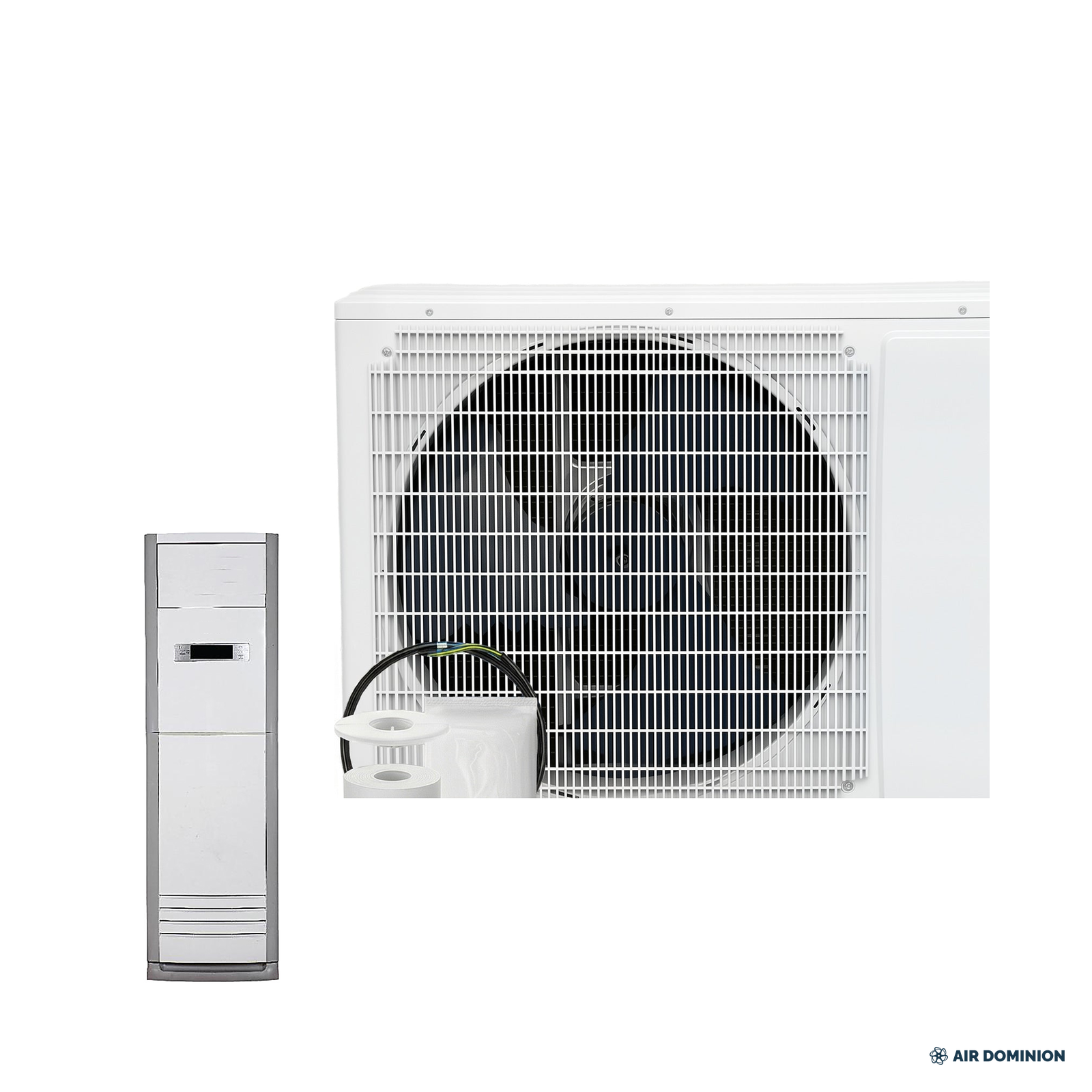

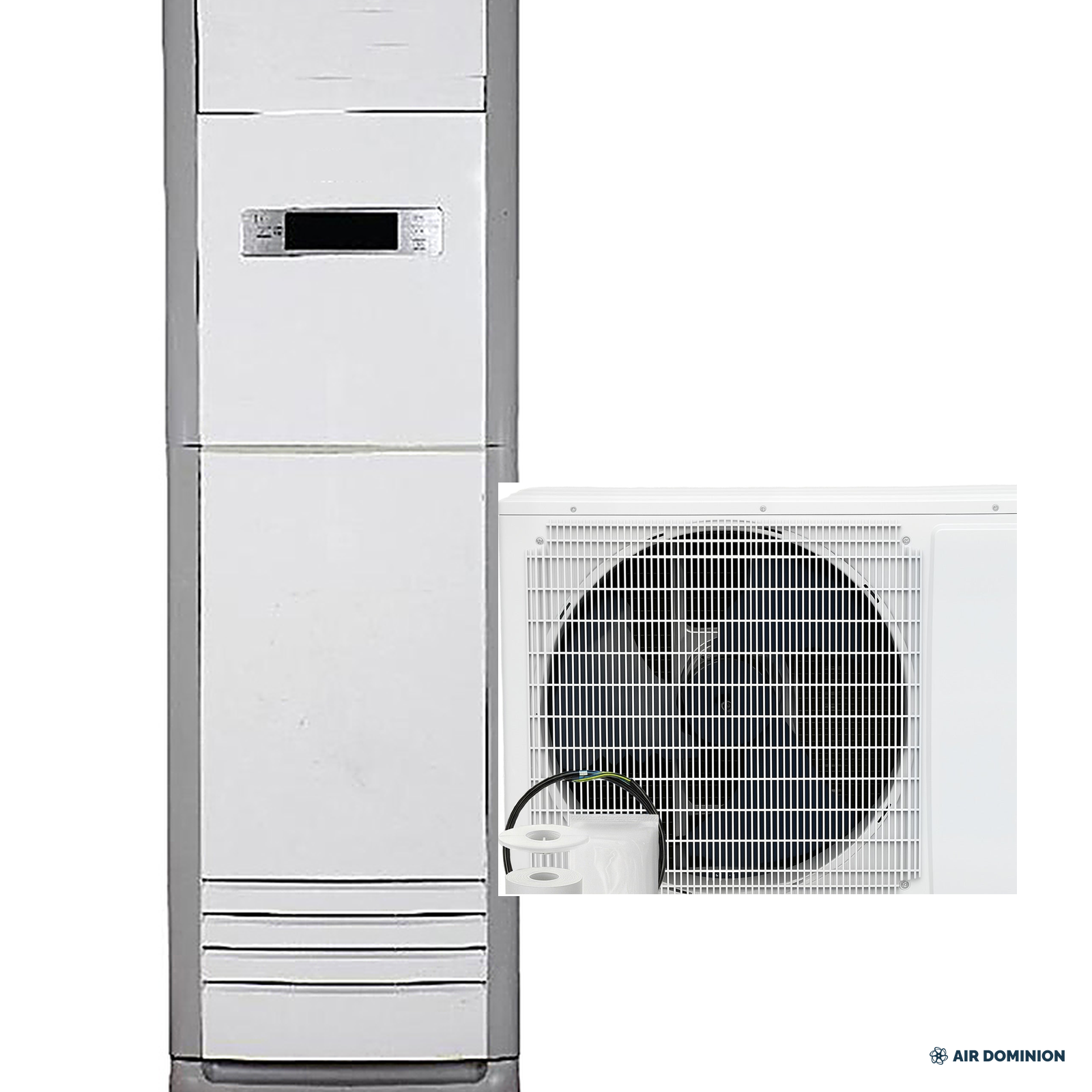

Included Equipment

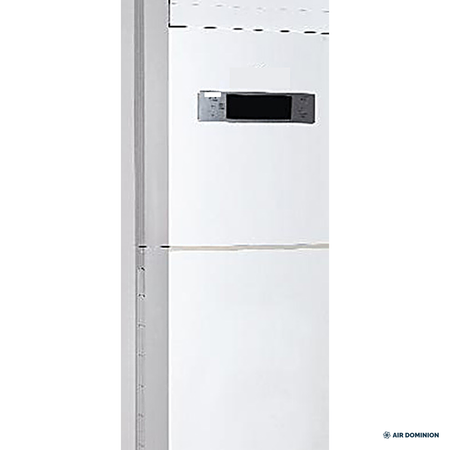

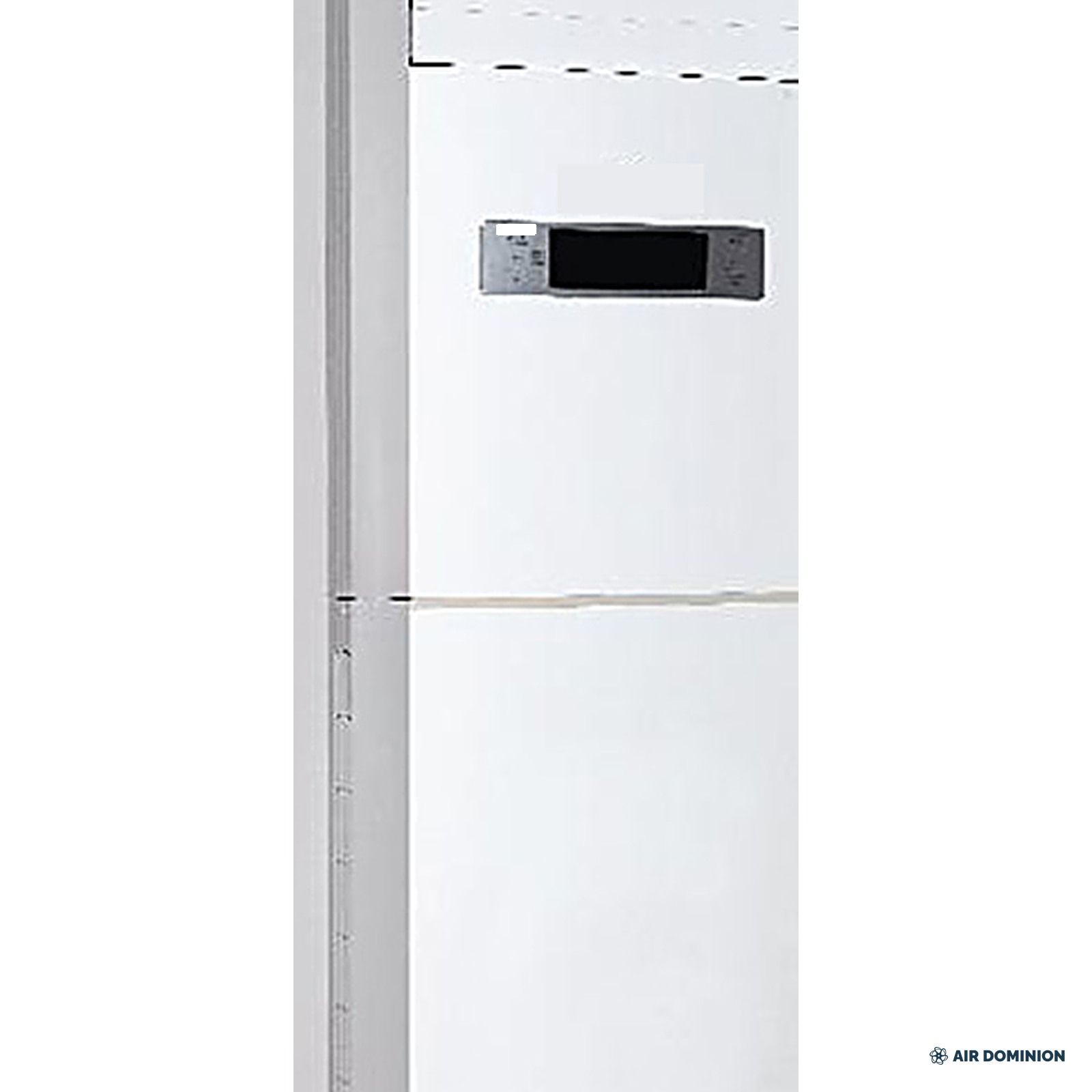

- Floor-standing indoor tower console
- Matched outdoor condenser
- Remote-control support
- 16 ft class line-set and installation accessory support
Installation Notes
- Confirm room load, floor-console clearances (12 in. around the tower), line-set routing, and condensate strategy before release.
- Confirm the dedicated 208-230V circuit and breaker sizing against the published electrical data before release.
- Installation, evacuation, refrigerant verification, electrical connection, and commissioning should be completed by a qualified HVAC professional.
- Images are representative of product class and included accessory configuration. Final model, electrical requirements, and included components are confirmed during quote review.
Warranty and Support
- Prepared for Air Dominion quote review. Final model, electrical requirements, accessories, warranty coverage, and installation documents are confirmed before release.
- Published warranty terms are issued with the final quote packet.
Frequently Asked Questions
Is this a complete system?
Yes. The quoting record covers the floor-standing indoor tower, the matched outdoor condenser, and the standard accessory class, with the final accessory stack confirmed during quote review.
Where do floor-standing towers work best?
Open rooms and light commercial spaces with floor space at a perimeter wall - lobbies, showrooms, offices, sunrooms, and large living areas where wall or ceiling mounting is impractical.
What refrigerant does it use?
The current-production configuration is published on the R454B platform; refrigerant and charge documentation are confirmed in the quote packet.
Can the line set be longer than 16 ft?
Yes. The 16 ft insulated kit is the standard class; longer routed runs and any additional charge requirements are configured during quote review.
Documents
- Type Floor-Standing Mini Split
- SKU AD-HVAC-FS-24K-230-1Z-20S2
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
