Air Dominion 24,000 BTU 15 SEER Multi-Position Air Handler System
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

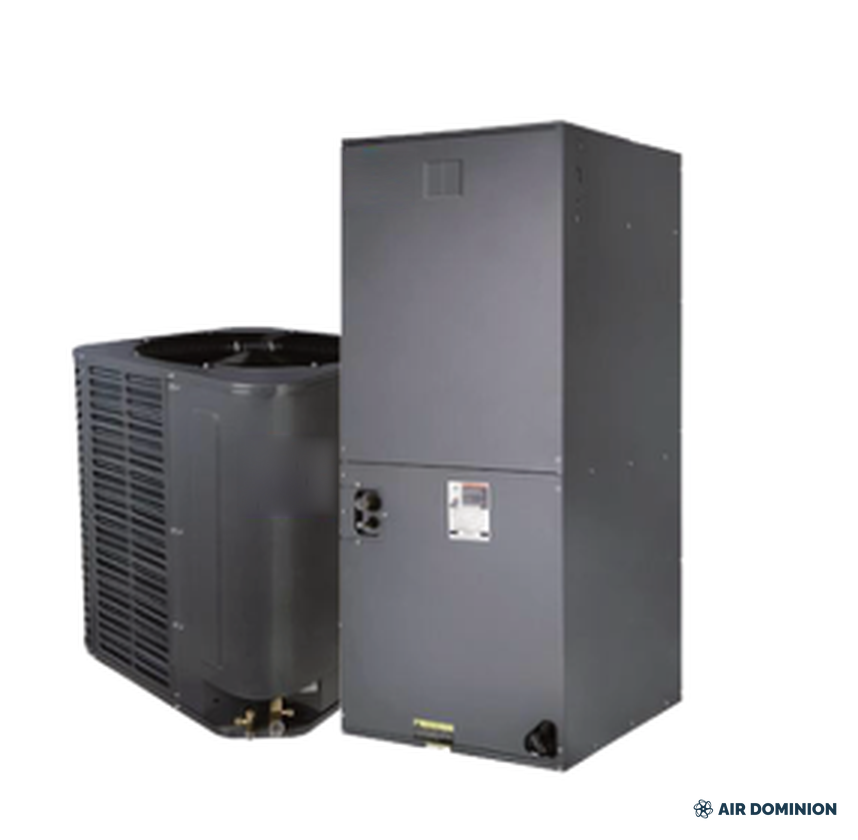

Air Dominion 24,000 BTU 15 SEER Multi-Position Air Handler System is a ducted central heating and cooling system pairing a 15 SEER class single-stage scroll condenser with a multi-tap 5-speed ECM blower air handler. The air handler installs in vertical up, vertical down, or horizontal orientations, so it fits closets, attics, garages, and mechanical rooms without a special cabinet, and optional electric heat strips add staged backup heat. This Air Dominion quoting record is presented as a reviewed product configuration, with final equipment configuration confirmed during quote review before release.
Highlights
- 24,000 BTU (2 ton class) all-electric split system with matched condenser
- 15 SEER efficiency tier - 15.2 SEER2 system rating at this size
- 4-way multi-position cabinet: upflow, downflow, horizontal left or right

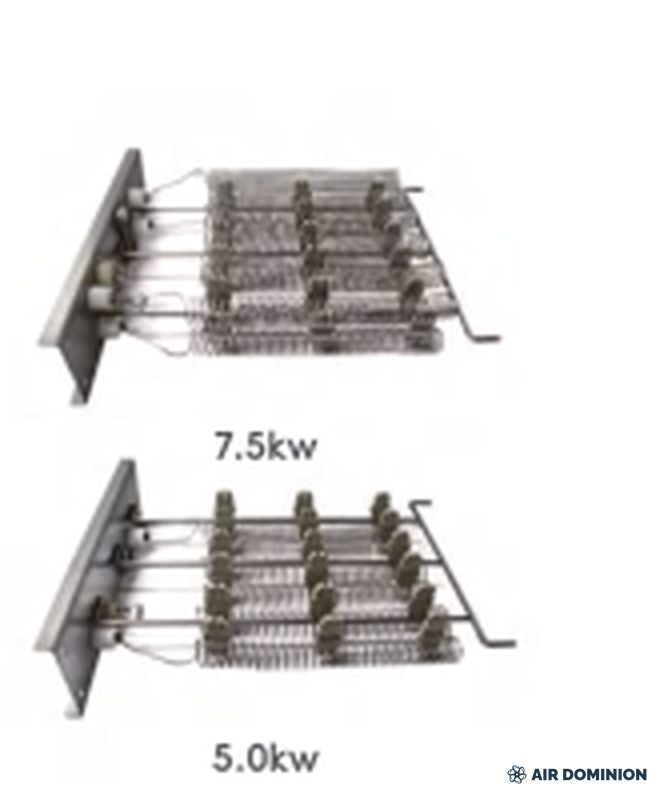

- Optional field-installed electric heat: 5 kW, 7.5 kW, 10 kW
- Insulated galvanized-steel cabinet controls heat loss and condensation

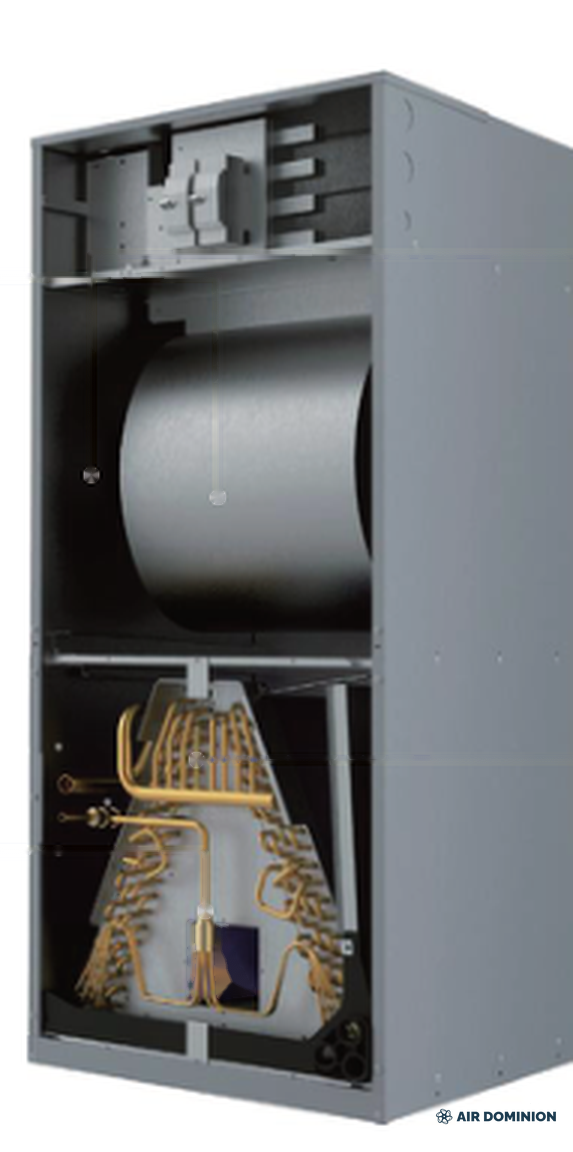

- A-shape coil with inner-groove copper tube and hydrophilic aluminum fins
- R454B current-production refrigerant platform
Specification Table
| Nominal capacity | 24,000 BTU (2 ton class) |
| Efficiency tier | 15 SEER (15.2 SEER2 system rating) |
| Configuration | Multi-position: upflow, downflow, horizontal left/right |
| Expansion device | Piston |
| Blower | Multi-tap 5-speed ECM direct-drive blower |
| Electric heat options | 5 kW, 7.5 kW, 10 kW (field-installed) |
| Voltage | 208-230V, 60Hz, 1 phase |
| Refrigerant | R454B |
| Cabinet | Insulated galvanized steel |
| Air handler dimensions | 49-5/8 H x 17-5/8 W x 22-1/16 D in. |
| Air handler weight | 131 lb |
| Maximum airflow | 700 CFM |
Included Equipment
- Multi-position air handler cabinet
- Matched outdoor condenser
- Piston expansion device (factory-fitted)
- Electric heat strip kit only when selected as an option
Installation Notes
- Confirm orientation (upflow, downflow, horizontal), return/supply duct transitions, and condensate routing before release.
- Selected electric heat kits are field-installed; breaker and wire sizing depend on the kit kW and are confirmed during quote review.
- Line-set length, matched-condenser placement, and charge verification are confirmed during quote review.
- Installation and commissioning should be completed by a qualified HVAC professional.
- Images are representative of product class and included accessory configuration. Final model, electrical requirements, and included components are confirmed during quote review.
Warranty and Support
- Prepared for Air Dominion quote review. Final model, electrical requirements, accessories, warranty coverage, and installation documents are confirmed before release.
- Published warranty terms are issued with the final quote packet.
Frequently Asked Questions
Does the system include the outdoor condenser?
Yes. This quoting record is a matched system: multi-position air handler plus outdoor condenser, with pairing finalized during quote review.
Which electric heat sizes fit this unit?
This size accepts 5 kW, 7.5 kW, 10 kW kits. Factory electric-heat fit table: 5.0, 7.5, and 10.0 kW kits fit 18K-60K air handlers; 15.0 and 20.0 kW kits fit 36K-60K air handlers.
Can it be installed horizontally in an attic?
Yes. The cabinet is 4-way convertible for vertical up, vertical down, and horizontal left or right installations.
What thermostat does it use?
Standard 24V thermostat control; controls scope is confirmed during quote review.
Documents
- Type Air Handler System
- SKU AD-HVAC-AH-15S-24K-230-NOHEAT
