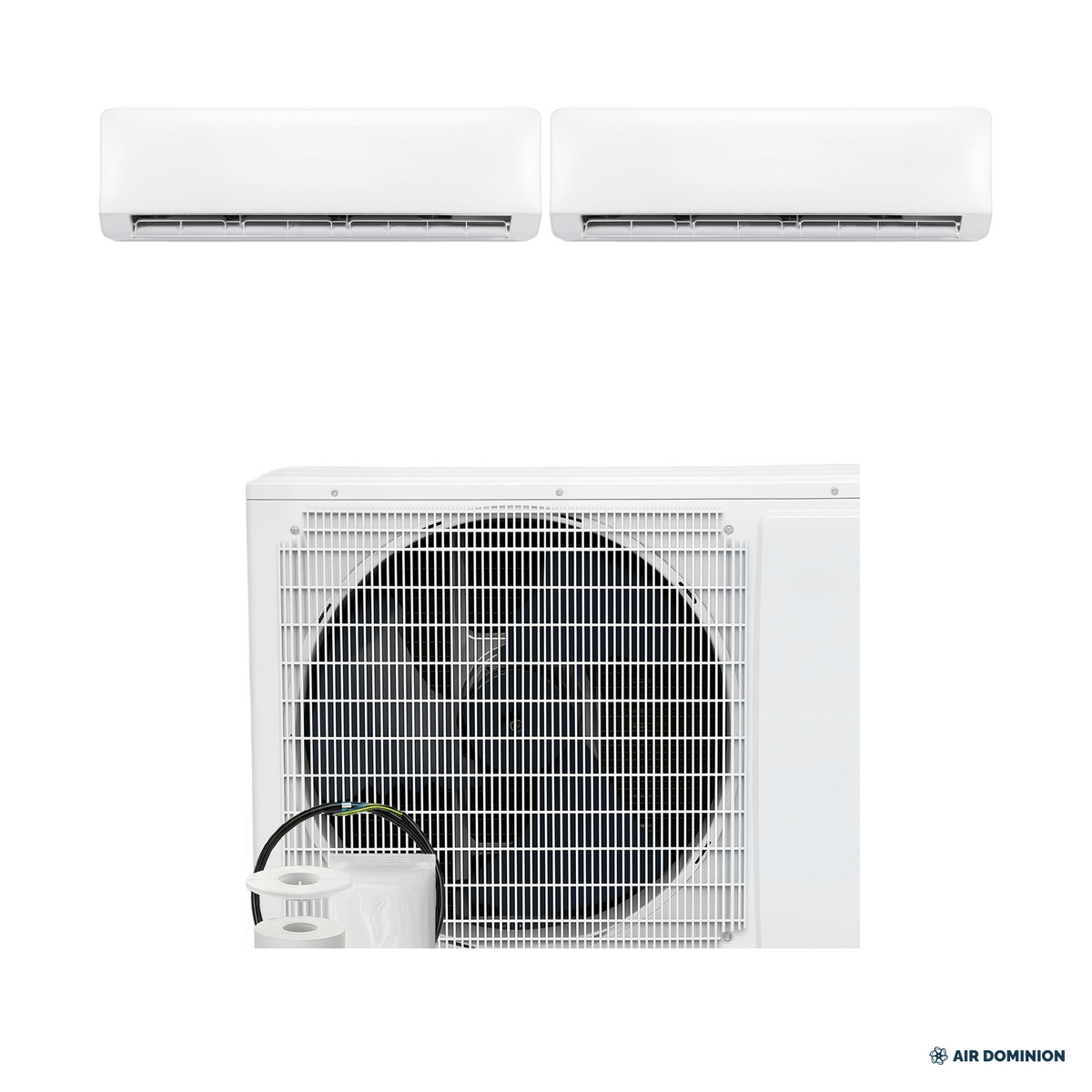

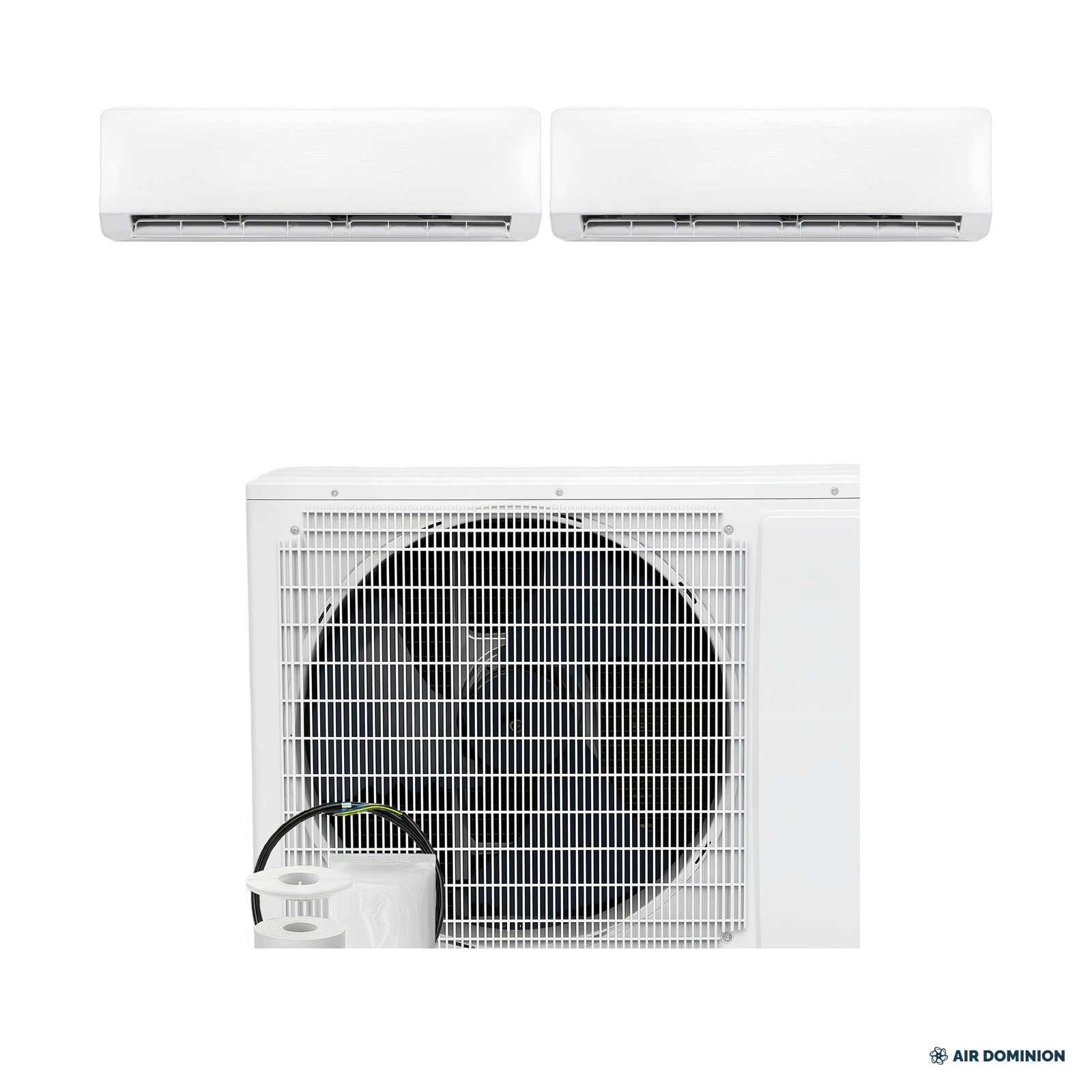

Air Dominion 27,000 BTU 2-Zone Mini Split Heat Pump System

Air Dominion 27,000 BTU 2-Zone Mini Split Heat Pump System is a multi-zone ductless package built around one inverter outdoor condenser driving two independently controlled indoor zones, for two-room layouts such as a primary suite plus home office, back-to-back bedrooms, or a storefront with a back office. Each zone keeps its own set point, so unoccupied rooms can idle while occupied rooms stay comfortable. This Air Dominion quoting record is presented as a reviewed product configuration, with final equipment configuration confirmed during quote review before release.

Highlights

• 27,000 BTU rated cooling and 27,000 BTU rated heating from one outdoor condenser
• 25.0 SEER2 / 9.5 HSPF2 listed efficiency
• One condenser drives 2 independently controlled indoor zones
• 208/230V single-phase inverter platform with R454B refrigerant
• Cooling support -13F to 122F and heating support -13F to 75F
• Up to 131 ft total line length with 49 ft maximum height difference
• Wi-Fi-ready wall-mounted indoor units with wireless remote controls

Specification Table

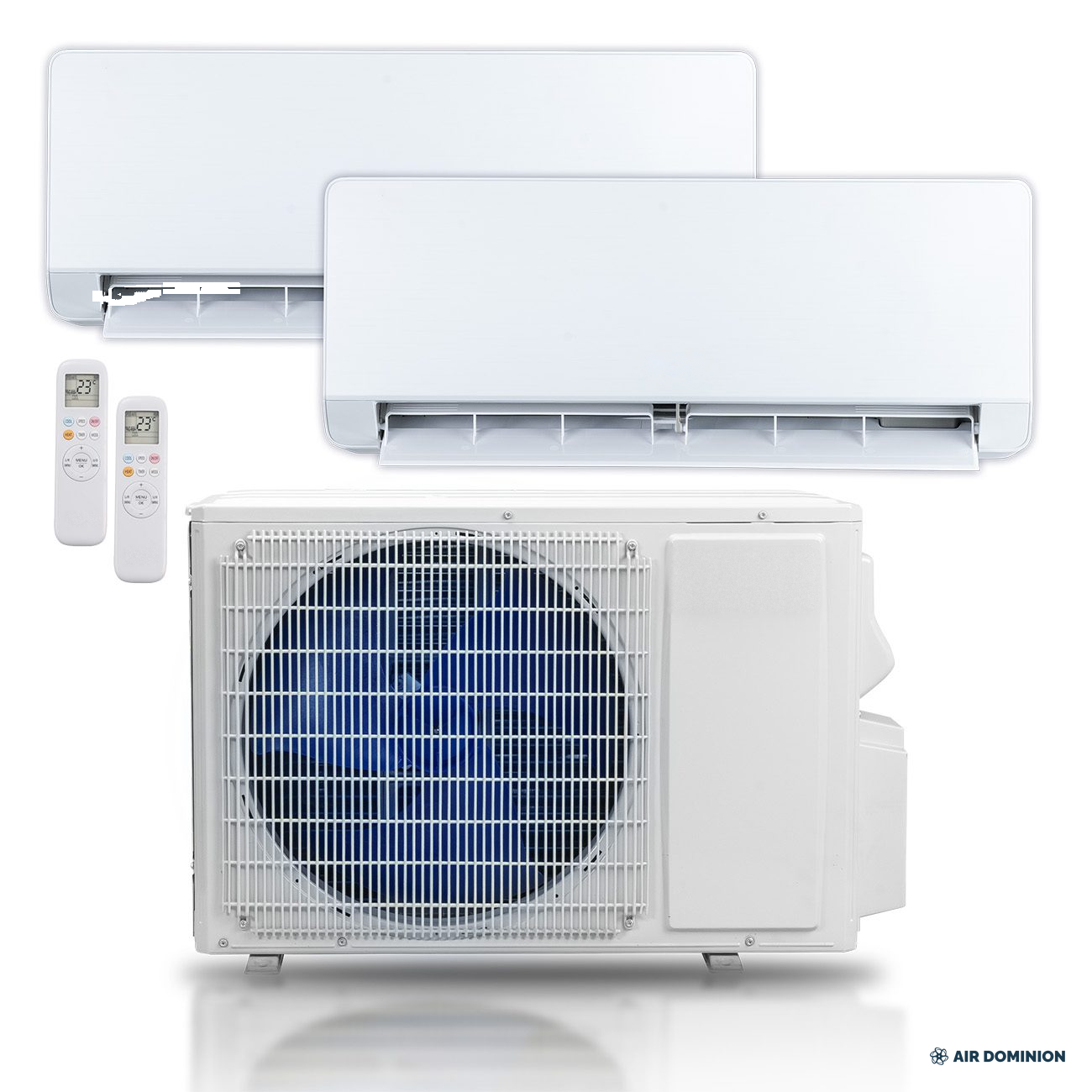

Included Equipment

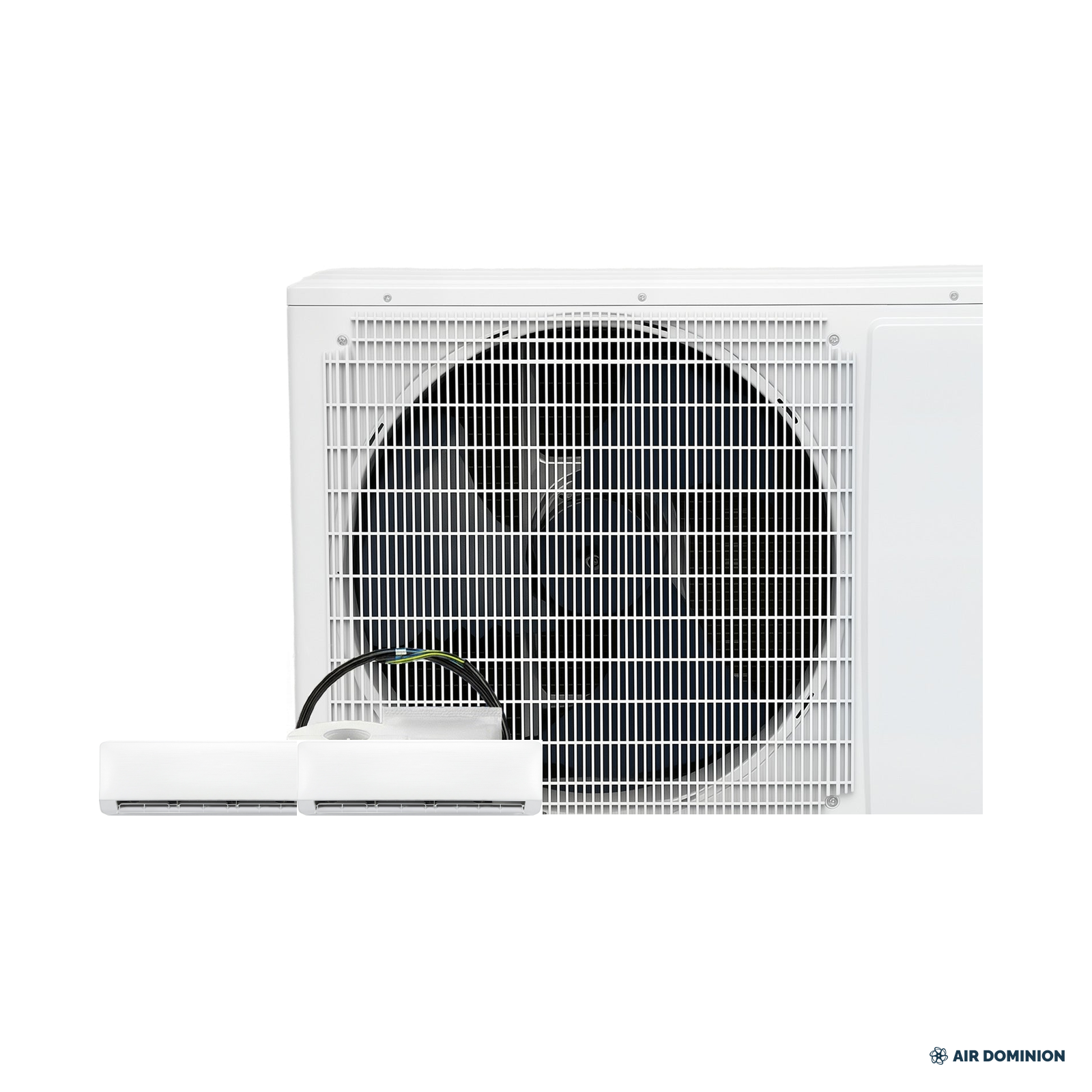

• 27,000 BTU inverter multi-zone outdoor condenser

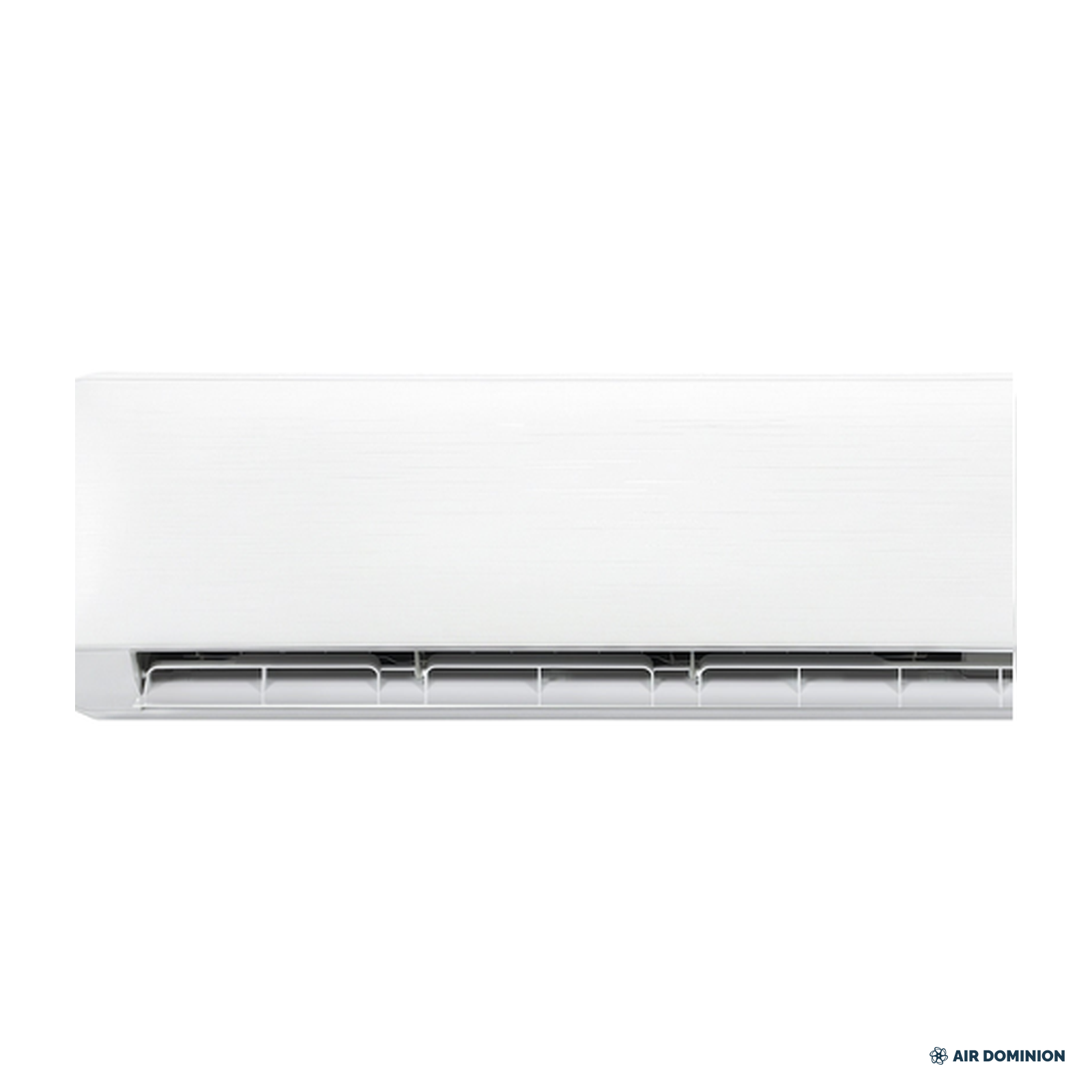

• 2 wall-mounted indoor units per the selected Zone Configuration
• 2 wireless remote controls (one per indoor unit)
• 2 insulated copper line sets in the selected per-zone length
• Mounting hardware for each indoor unit

Installation Notes

• Confirm a dedicated 208/230V single-phase circuit with breaker sized to the listed maximum (25 A max, 23 A minimum circuit ampacity) and an outdoor-rated disconnect before release.
• Plan line-set routing within 131 ft total, 82 ft per zone, and 49 ft height difference between indoor and outdoor units; mixed line-set lengths are finalized during quote review.
• Route condensate from each indoor unit by gravity or condensate pump, and confirm wall, pad, or bracket mounting for the outdoor unit.
• A minimum of two connected indoor units is required for multi-zone operation; system sizing, evacuation, charging verification, and commissioning should be completed by a qualified HVAC professional.

Warranty and Support

• Prepared for Air Dominion quote review. Final model, electrical requirements, accessories, warranty coverage, and installation documents are confirmed before release.
• Registration-based compressor and parts coverage terms are provided with the final quote packet.
• Independent per-zone control, self-diagnostics, and Wi-Fi-ready operation are part of the control feature set.

Frequently Asked Questions

Can I mix console, cassette, or concealed-duct indoor units on this system?
Yes. The chassis supports wall-mounted, console, compact cassette, and low-ESP concealed duct indoor units. Mixed indoor-unit types are configured during quote review so each zone's style and capacity are matched to the room before release.

Is this a complete matched system?
Yes. Each configuration pairs one 27,000 BTU outdoor condenser with two matched indoor units, remotes, and line sets as listed, structured as a reviewed product configuration.

How do I choose the zone configuration?
Pick the combination that matches your room sizes; smaller heads suit bedrooms and offices while larger heads cover living areas. Combinations beyond the listed options are available - note your room list at quote review and the configuration is validated against the factory matching tables.

What should be confirmed before ordering?
Verify breaker and disconnect sizing, line-set routing lengths per zone, condensate paths, and mounting locations. Final configuration, electrical scope, and included components are confirmed during quote review.
