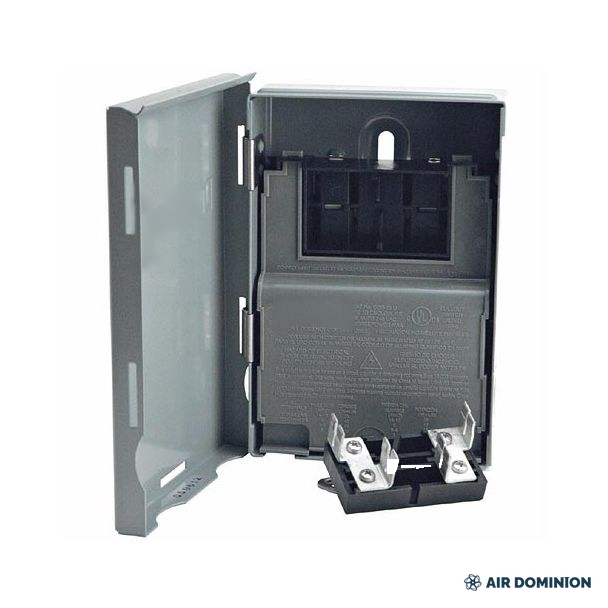

Air Dominion 60A Non-Fused Outdoor AC Disconnect
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
Air Dominion 60A Non-Fused Outdoor AC Disconnect provides the code-required service disconnecting means at the condenser. The NEMA 3R rainproof steel box mounts within sight of the unit and the pull-out head cuts power for service; non-fused format suits systems protected by the panel breaker. This Air Dominion quoting record is presented as a reviewed accessory configuration, with final configuration confirmed during quote review before release.
Highlights
- 60 A, 240 V single-phase switch rating
- Non-fused pull-out design for systems protected at the panel
- NEMA 3R rainproof steel enclosure, UL listed
- 1/2 / 3/4 / 1 in. knockouts for whip and supply connections
- Covers every Air Dominion mini split (published maximum breaker sizes run 15-30 A)
Specification Table
| Amperage | 60 A |
| Voltage | 240 V |
| Type | Non-fused, pull-out |
| Enclosure | NEMA 3R rainproof, steel |
| Frequency | 50/60 Hz |
| Listing | UL |
| Knockouts | 1/2 x 3/4 x 1 in. |
| Dimensions | 5 W x 7.25 L x 2.13 D in. |
Included Equipment
- Disconnect enclosure with pull-out head
Installation Notes
- Install per NEC and local code by a qualified electrician.
- Mount within sight of and readily accessible from the condenser, per code.
- Non-fused disconnects rely on the branch breaker for overcurrent protection; confirm breaker sizing against the connected system's published minimum and maximum breaker values during quote review.
Warranty and Support
- Prepared for Air Dominion quote review. Final accessory configuration, coverage terms, and installation documents are confirmed before release.
- Accessory coverage follows the published Air Dominion accessory support terms confirmed during quote review.
Frequently Asked Questions
Does a 60 A disconnect work with a 9K-24K Air Dominion system?
Yes. The disconnect is a switch rating, not overcurrent protection; Air Dominion mini splits publish maximum breaker sizes of 15-30 A, all within this 60 A switch's range.
Fused or non-fused - which do I need?
Non-fused is standard when the panel breaker provides the overcurrent protection. Choose the fusible disconnect when local practice or the inspector requires fusing at the unit.
Is it outdoor rated?
Yes. The steel enclosure is NEMA 3R rainproof and UL listed.
Documents
- Type Mini Split Accessory
- SKU AD-HVAC-ACC-MS-DISC-60A
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
