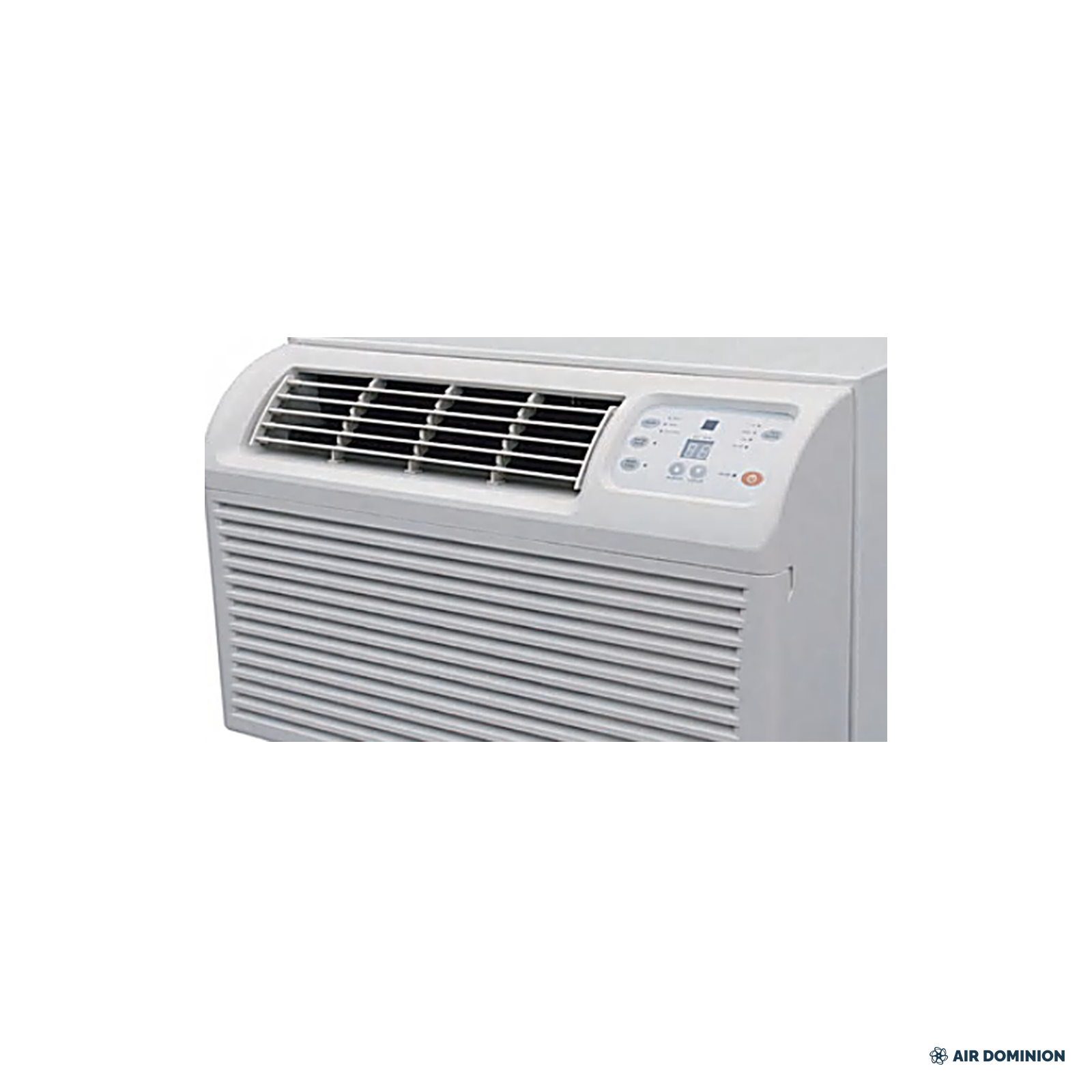

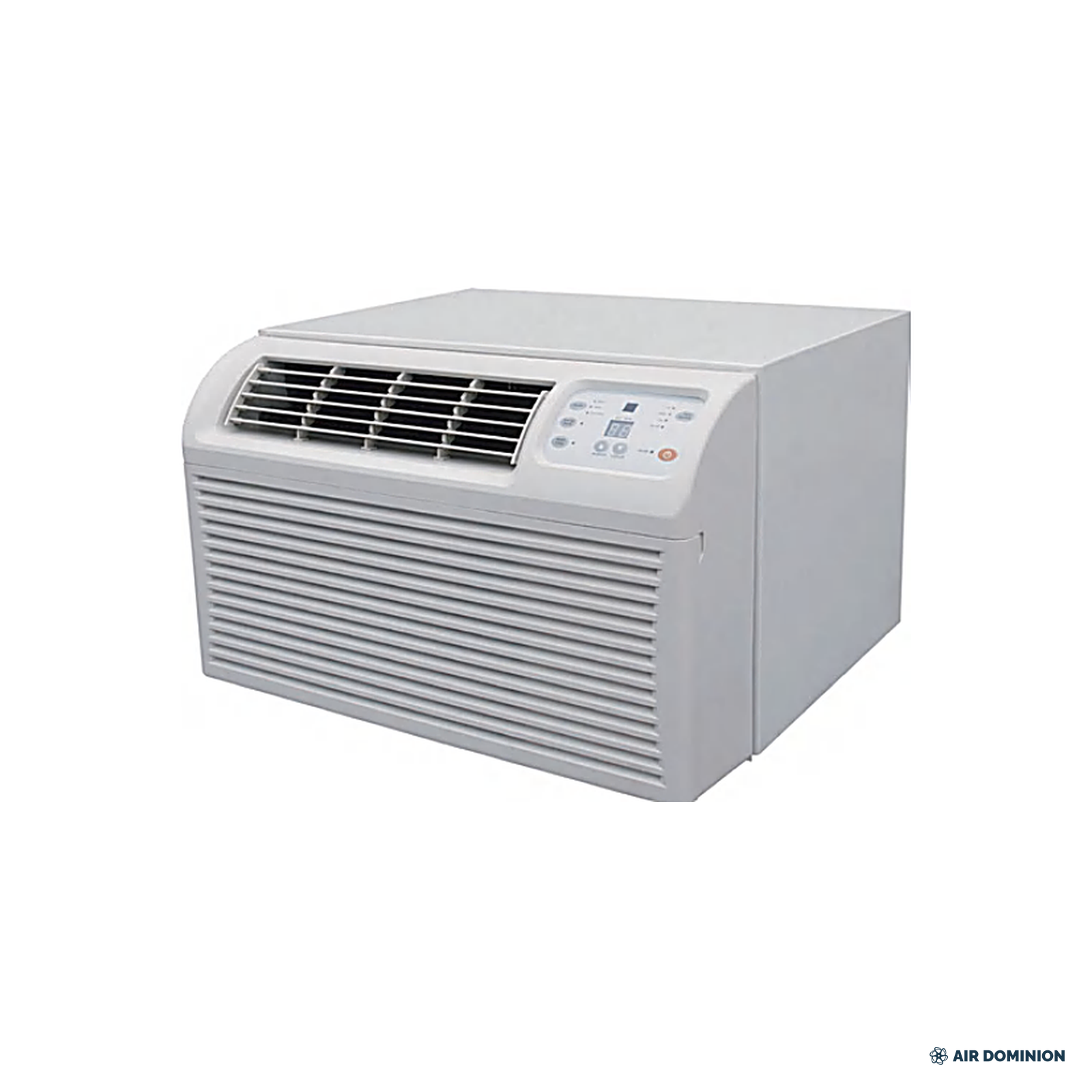

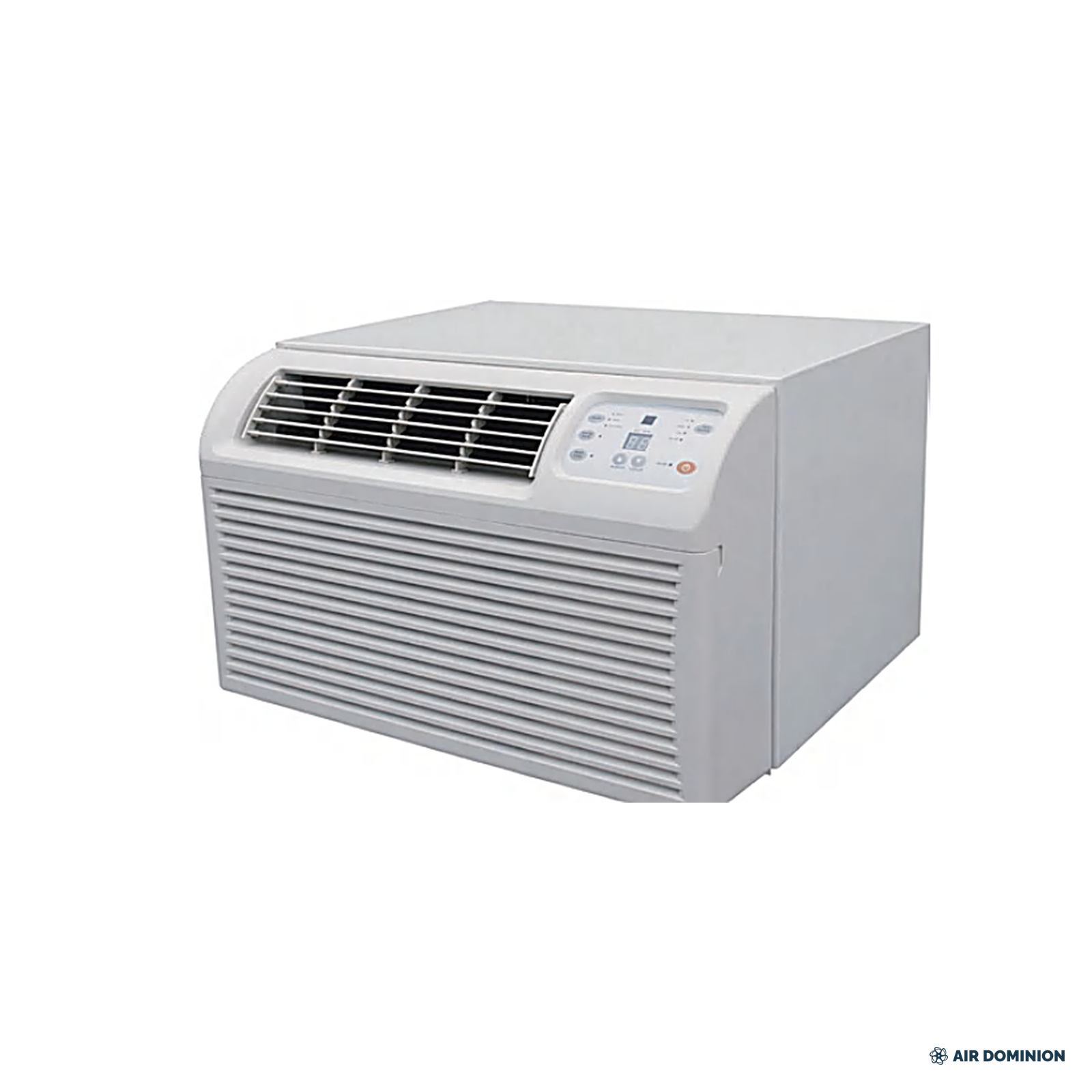

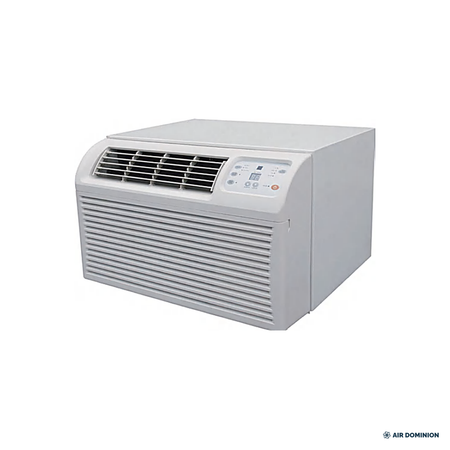

Air Dominion 7,000 BTU Through-the-Wall Heat Pump Air Conditioner, 208/230V
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
Air Dominion 7,000 BTU Through-the-Wall Heat Pump Air Conditioner is built for hospitality, multifamily, and add-on room projects that need year-round packaged comfort in a compact wall chassis. This Air Dominion quoting record is presented as a reviewed product configuration, with final equipment configuration confirmed during quote review before release. This through-the-wall heat pump delivers 7,200 / 7,400 BTU (208/230V) cooling and 6,600 / 6,800 BTU (208/230V) with electric backup, in the compact 26 x 15-5/8 in. through-the-wall chassis used for replacement and new-construction wall openings. It slides into common 26-in. through-the-wall sleeves.
Highlights
- 7,200 / 7,400 BTU (208/230V) cooling with heat-pump operation
- 6,600 / 6,800 BTU (208/230V) plus electric backup heating
- 10.6 EER published efficiency
- 208/230V power with LCDI cord
- Compact 26 x 15-5/8 in. through-the-wall chassis

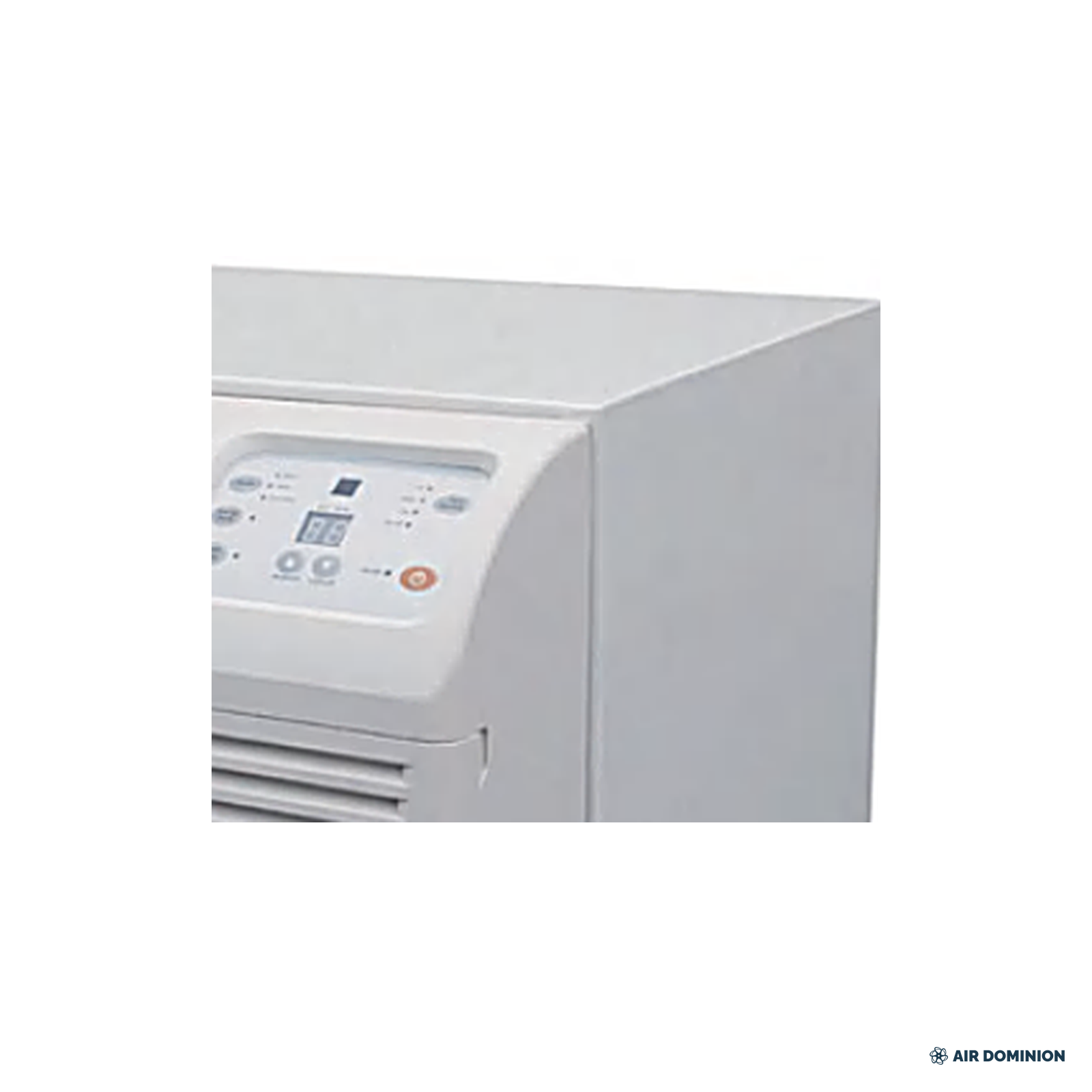

- Electronic touchpad with infrared remote control
- Retrofits common 26-in. through-the-wall sleeves
Specification Table
| Cooling capacity | 7,200 / 7,400 BTU (208/230V) |
| Heating (heat pump) | 6,600 / 6,800 BTU (208/230V) |
| Electric backup heat | 3.5 kW |
| Efficiency | 10.6 EER |
| Voltage | 208/230V, 1 Phase, 60Hz |
| Electrical | 3.5 / 3.2 A cooling; 20 A branch circuit |
| Power connection | NEMA 6-20P LCDI power cord (72 in.) |
| Refrigerant | R-410A |
| Unit dimensions | 26 W x 15.625 H x 21.1875 D in. |
| Required sleeve | 26 x 15-5/8 in. through-the-wall sleeve (16-7/8 in. depth class) |
| Weight | 76 lb |
| COP (heat pump) | 3.1 |
| Airflow | 270 / 247 / 223 CFM |
| Cooling range | 64 F to 109 F |
| Heating range | 19 F to 86 F |
| Warranty | Confirmed during quote review |
Included Equipment
- Through-the-wall heat pump chassis
- Infrared remote control
- LCDI power cord
- Washable filter
Installation Notes
- Fits the compact 26 x 15-5/8 in. through-the-wall sleeve class; confirm existing sleeve dimensions and condition before release.
- Provide a dedicated circuit and matching receptacle for the LCDI cord (see electrical row).
- Confirm condensate handling; this chassis uses slinger-ring disposal with optional drain accessories.
- Installation should be completed by qualified trade personnel familiar with through-the-wall packaged equipment.
Warranty and Support
- Final warranty packet and accessory scope are confirmed during quote review before release.
- Use the Air Dominion installation and warranty reference to align sleeve, grille, electrical, and thermostat scope before ordering.
- Registered-coverage options are reviewed with the final quote.
Frequently Asked Questions
Does it fit standard 42 x 16 in. PTAC sleeves?
This model uses the compact 26 x 15-5/8 in. through-the-wall sleeve class, not the 42 x 16 in. PTAC sleeve. It retrofits common 26-in. sleeve families; confirm your sleeve during quote review.
What kind of projects is this built for?
Hospitality, multifamily, care, office, and residential add-on rooms that need packaged through-the-wall comfort.
Is this a heat-pump unit?
Yes. It heats by reverse-cycle heat pump with electric backup for colder weather.
What should be confirmed before ordering?
Sleeve dimensions and condition, electrical service and receptacle, condensate handling, and accessory scope - all confirmed during quote review.
Documents
- Type Through-the-Wall
- SKU AD-HVAC-TTW-7K-230-1Z-HP
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
