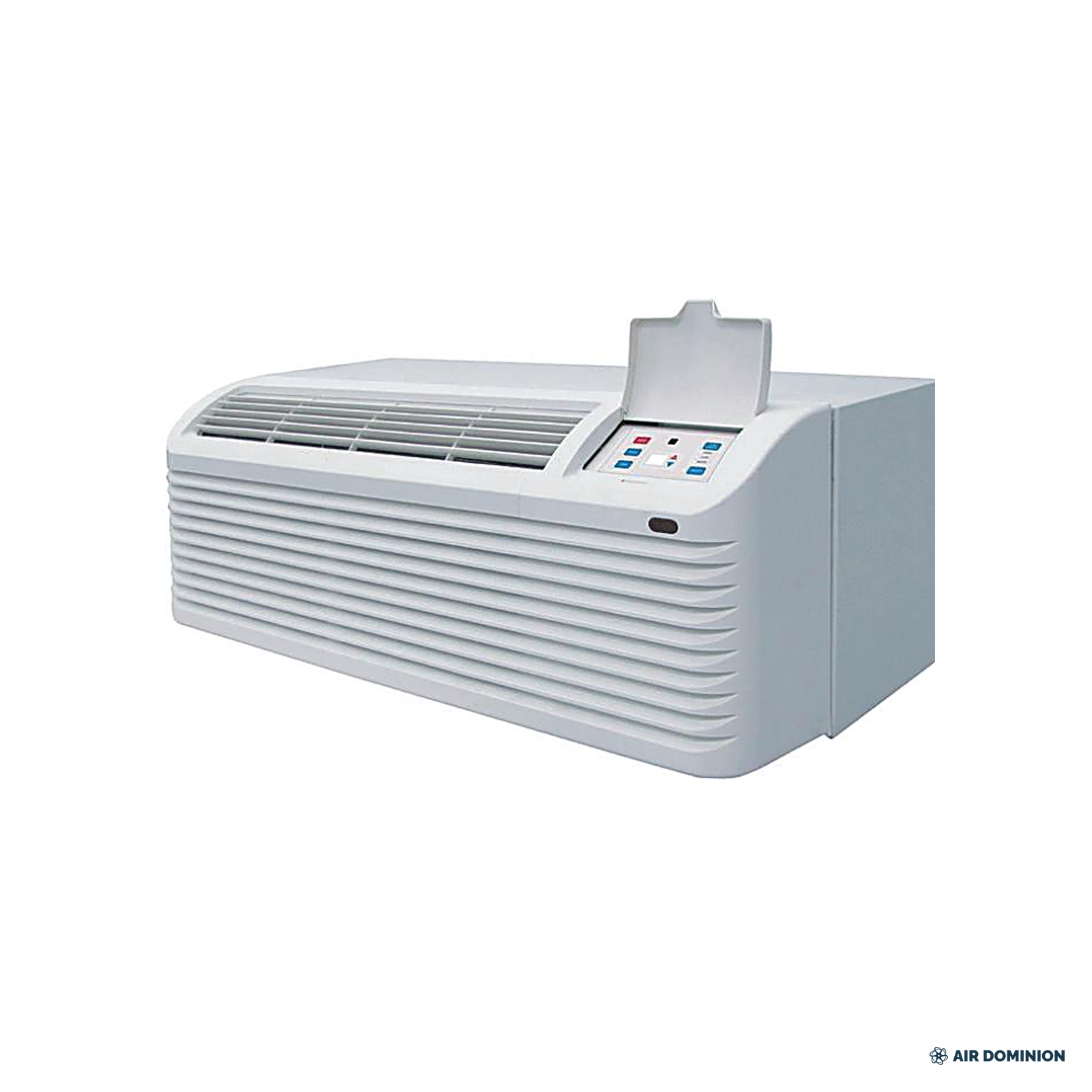

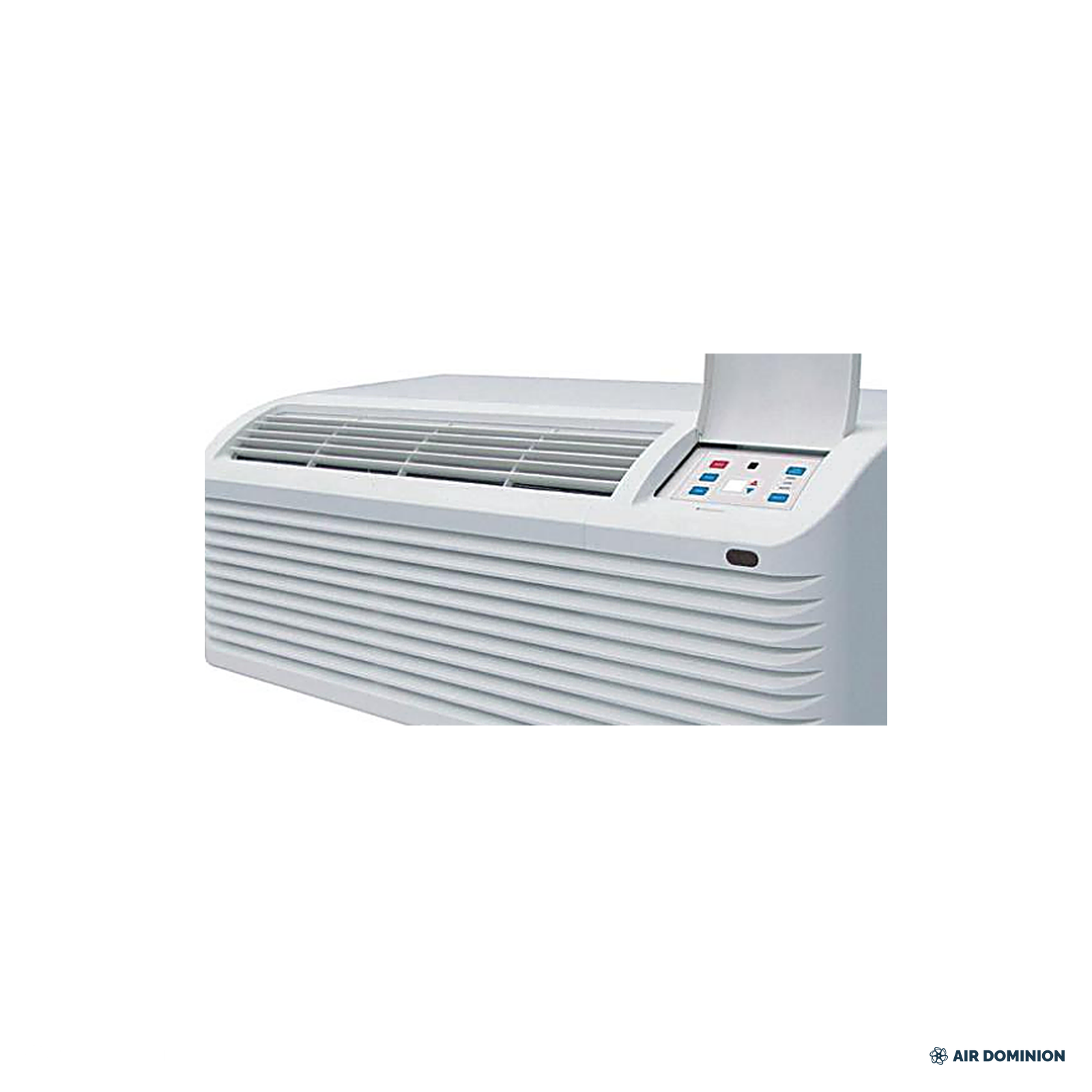

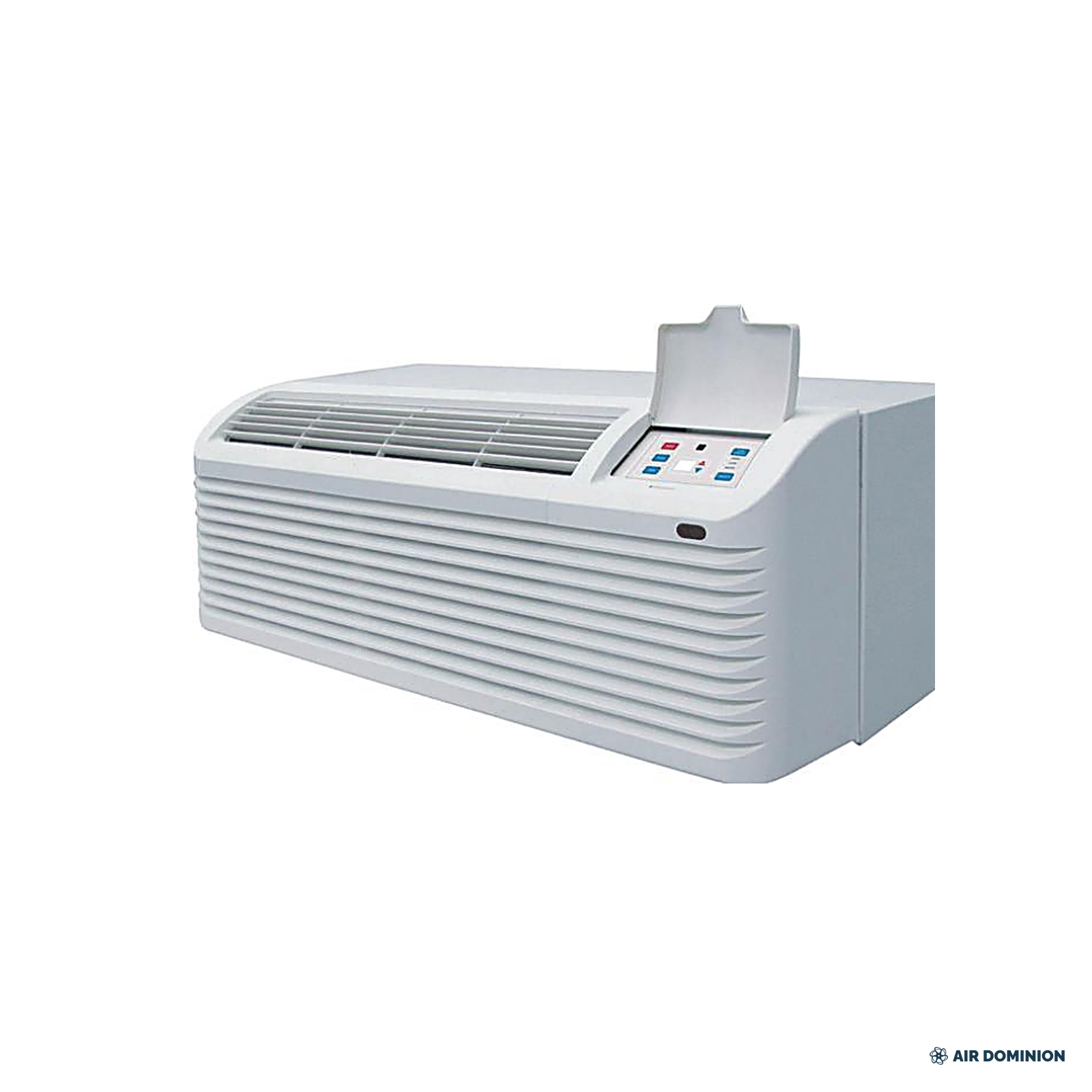

Air Dominion 9,000 BTU PTAC Heat Pump with 3.5 kW Electric Heat, 208/230V
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
Air Dominion 9,000 BTU PTAC Heat Pump with Electric Heat is built for hospitality, multifamily, and add-on room projects that need packaged through-the-wall heating and cooling in a standard sleeve footprint. This Air Dominion quoting record is presented as a reviewed product configuration, with final equipment configuration confirmed during quote review before release. This packaged terminal heat pump pairs 9,000 BTU-class cooling with reverse-cycle heating and a 3.5 kW electric backup heat strip in the industry-standard 42 x 16 in. terminal format. Heat-pump operation carries the load in moderate weather; the electric heater covers cold snaps.
Highlights
- 9,000 BTU packaged terminal heat-pump cooling class
- Heat pump plus 3.5 kW electric backup heat strip
- 11.4 EER published efficiency
- 208/230V power class with LCDI cord connection
- Standard 42 x 16 in. cabinet for packaged terminal wall sleeves
- Washable filtration and service-friendly terminal layout
Specification Table
| Cooling capacity | 9,000 BTU |
| Electric backup heat | 3.5 kW |
| Efficiency | 11.4 EER |
| Voltage | 208/230V, 1 Phase, 60Hz |
| Electrical | 15.3 A with electric heat; 20 A maximum breaker |
| Power connection | NEMA 6-20P LCDI power cord |
| Refrigerant | R-32 |
| Unit dimensions | 42.01 W x 15.98 H x 20.94 D in. overall |
| Required sleeve | 42 x 16 in., 14 in. depth |
| Weight | 108.3 lb |
| Sound level | 52.5 dB(A) |
| Electric heat output | 10,900 BTU |
| Maximum airflow | 387 CFM |
| Warranty | Confirmed during quote review |
Included Equipment
- Packaged terminal chassis with heat pump and electric backup heater

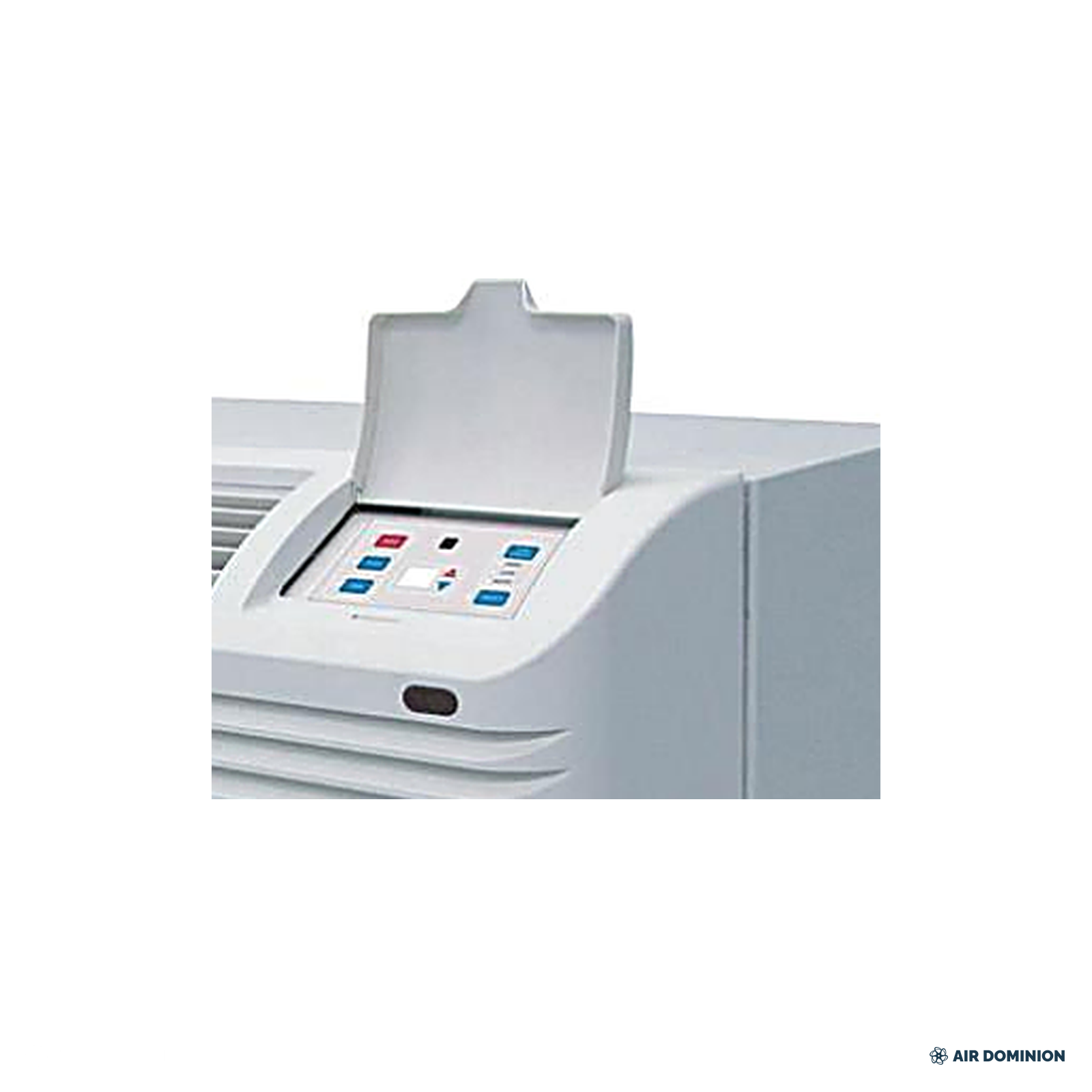

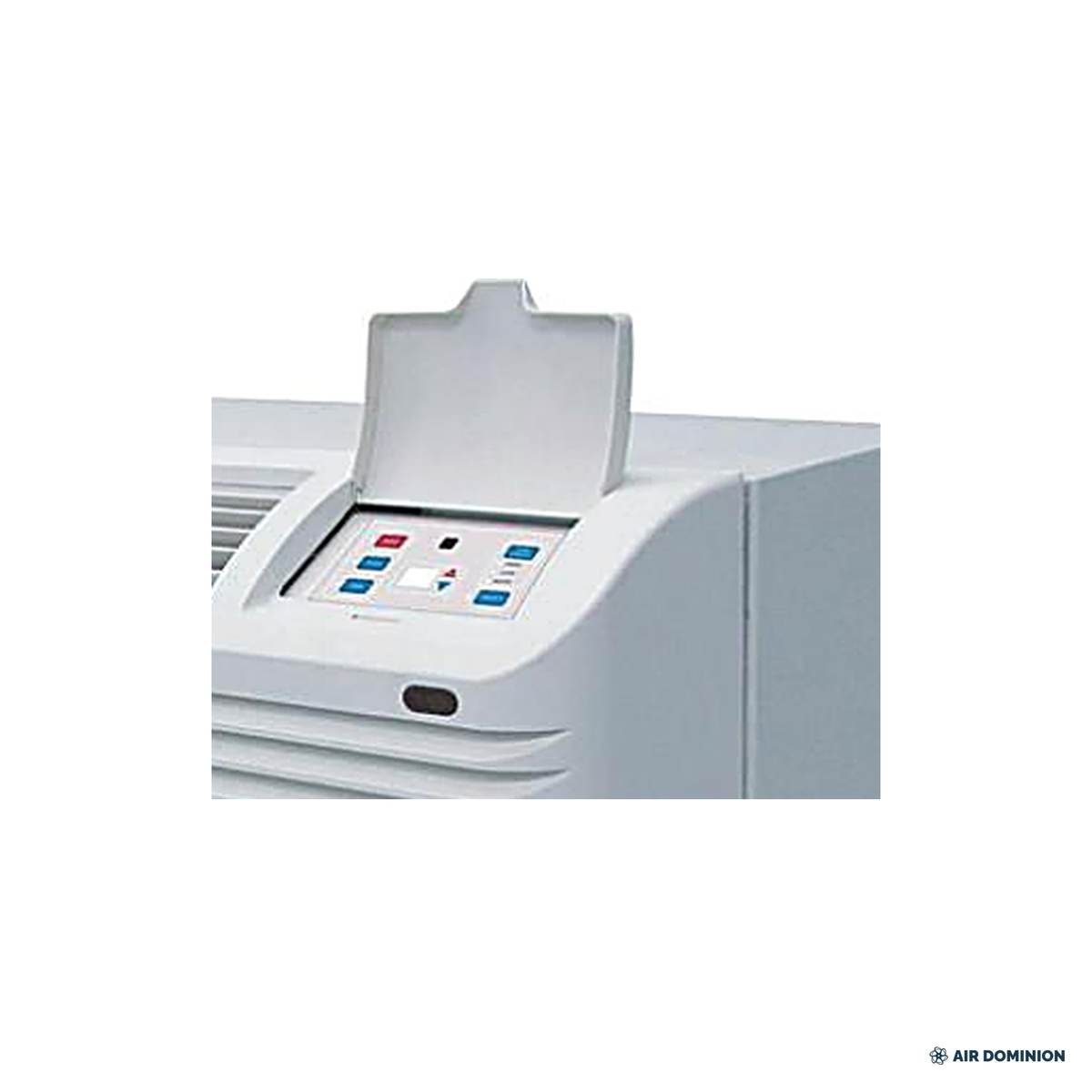

- Onboard control panel
- LCDI power cord
- Washable air filters
Installation Notes
- Confirm sleeve condition, power supply, circuit protection, thermostat plan, and condensate management before release.
- New installations require a 42 x 16 in. wall sleeve (14 in. depth) and an exterior grille; both are available as Air Dominion accessories and confirmed during quote review.
- Provide a dedicated circuit and receptacle matching the LCDI cord rating shown in the specification table.
- Electrical hookup and final installation should be completed by qualified trade personnel familiar with PTAC service requirements.
Warranty and Support
- Final warranty packet and accessory scope are confirmed during quote review before release.
- Use the Air Dominion installation and warranty reference to align sleeve, grille, electrical, and thermostat scope before ordering.
- Registered-coverage options are reviewed with the final quote.
Frequently Asked Questions
Does it fit standard 42 x 16 in. PTAC sleeves?
Yes. The chassis is built to the industry-standard 42 x 16 in. wall-sleeve footprint (14 in. sleeve depth). Matching Air Dominion sleeves and grilles are available as accessories.
What kind of projects is this built for?
Hospitality, multifamily, office, care, and residential add-on applications where a packaged terminal unit is preferred for room-by-room comfort.
Does it support wall thermostats?
Yes. The control platform supports 24V wall thermostats; wired and wireless Air Dominion thermostats are available as accessories.
What should be confirmed before ordering?
Voltage, breaker and receptacle requirements, sleeve and grille scope, thermostat plan, and condensate path - all confirmed during quote review.
Documents
- Type PTHP
- SKU AD-HVAC-PTAC-9K-230-1Z-STD
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
