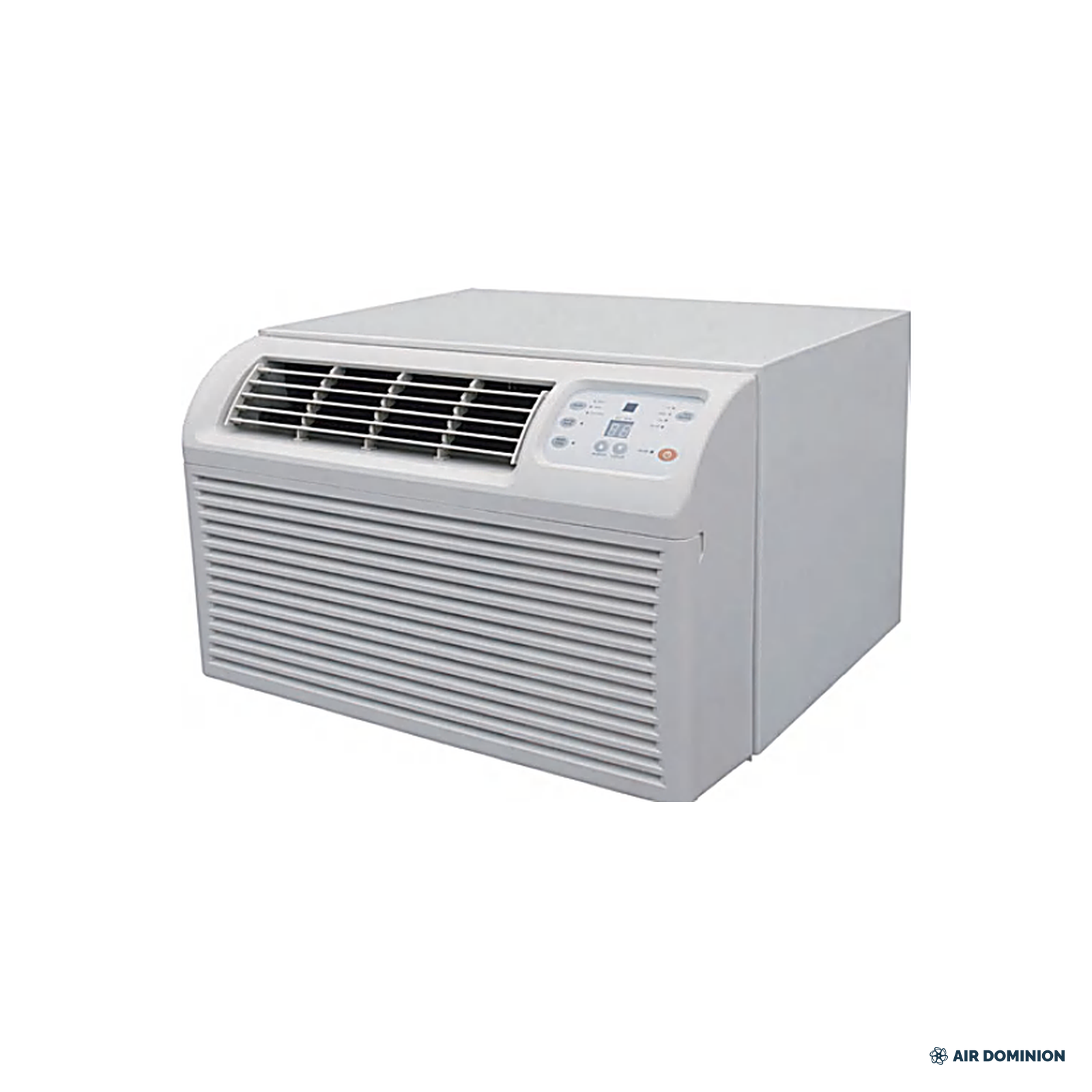

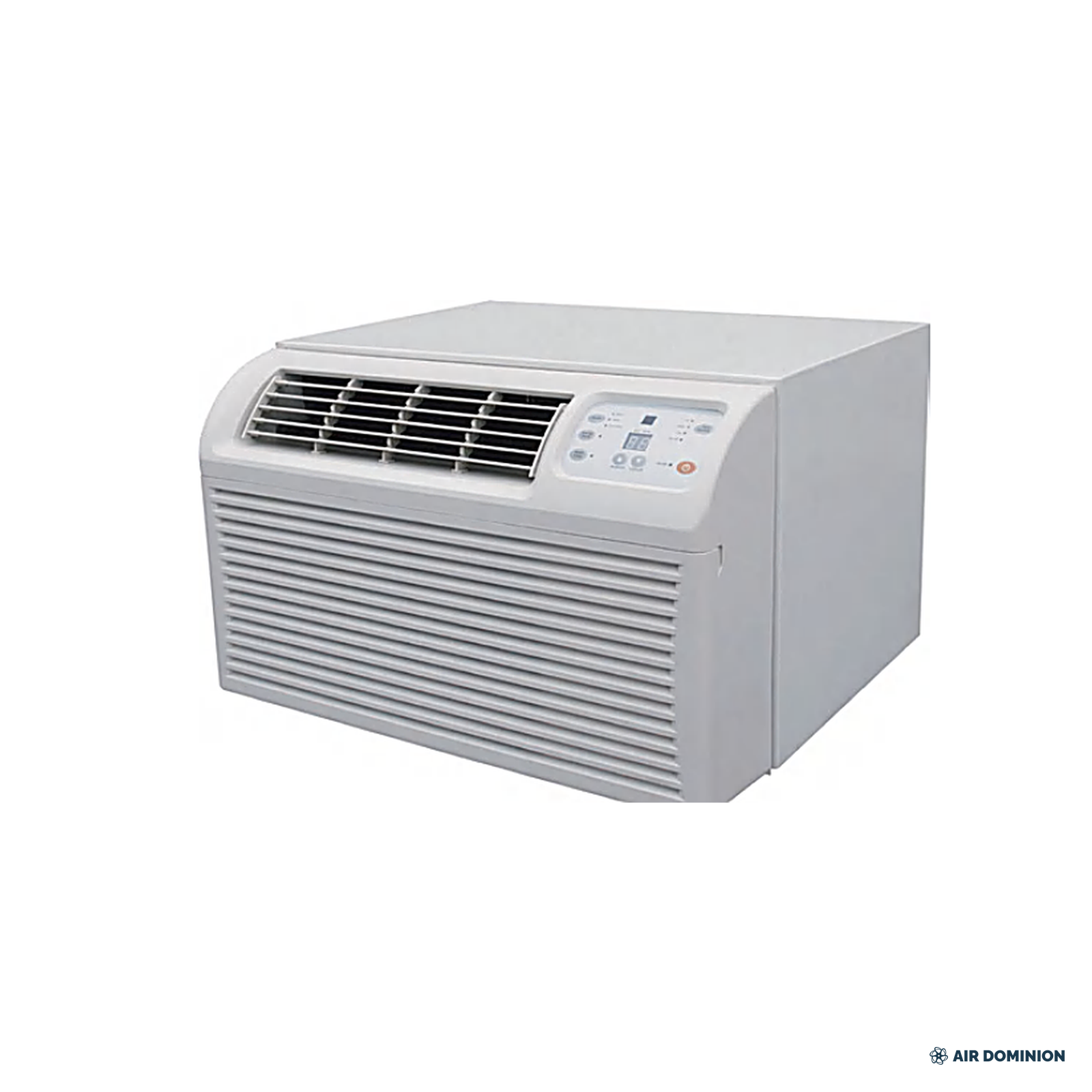

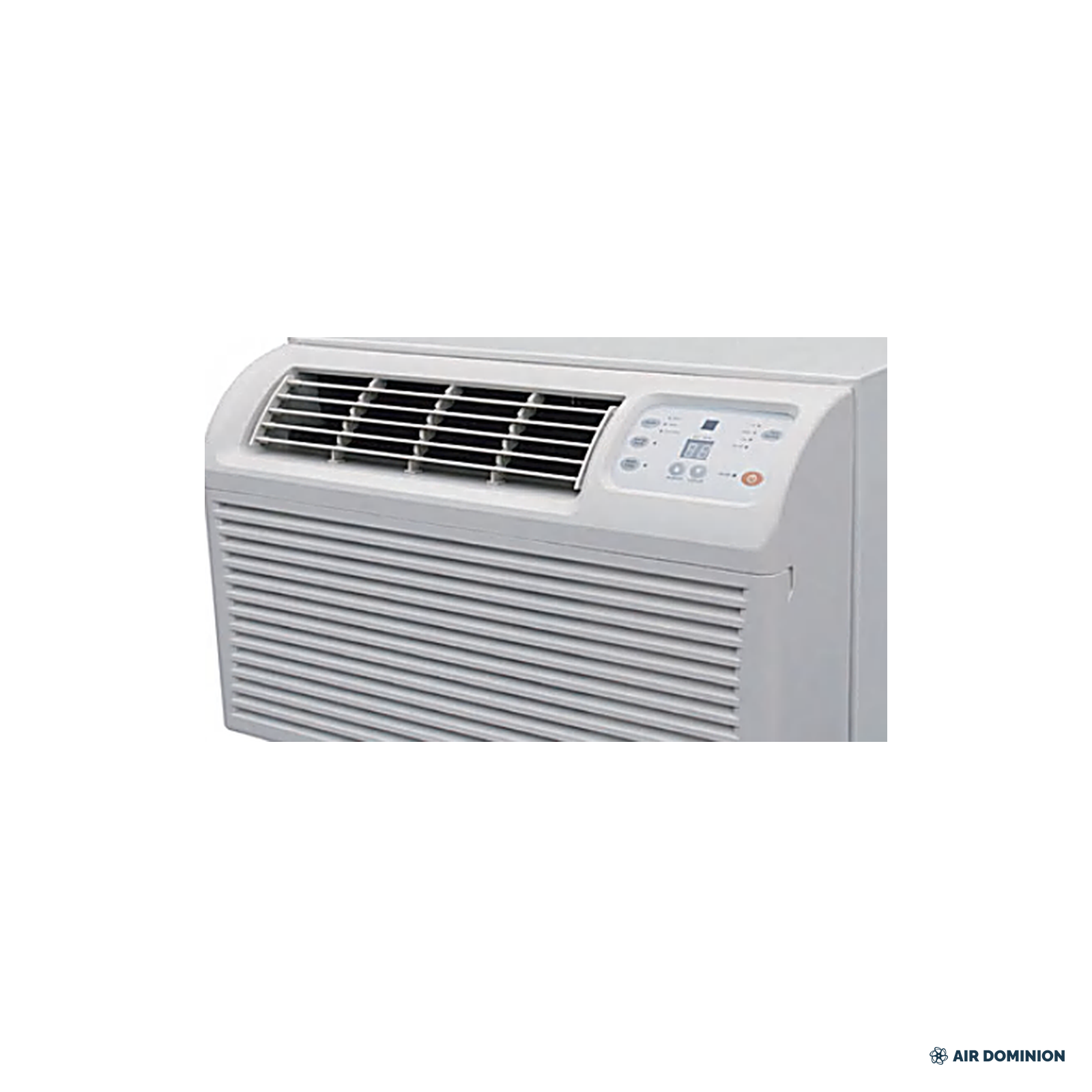

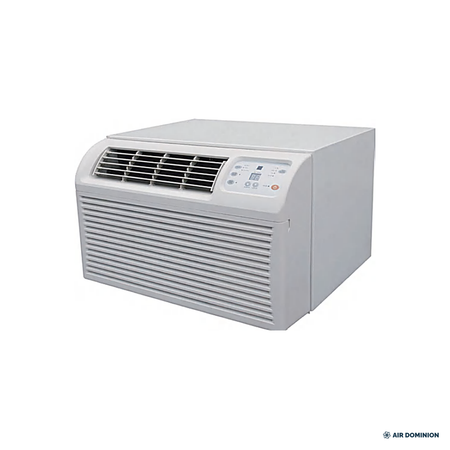

Air Dominion 9,000 BTU Through-the-Wall Heat Pump Air Conditioner, 208/230V
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
Air Dominion 9,000 BTU Through-the-Wall Heat Pump Air Conditioner is built for hospitality, multifamily, and add-on room projects that need year-round packaged comfort in a compact wall chassis. This Air Dominion quoting record is presented as a reviewed product configuration, with final equipment configuration confirmed during quote review before release. This through-the-wall heat pump delivers 9,100 / 9,300 BTU (208/230V) cooling and 8,600 / 8,800 BTU (208/230V) with electric backup, in the compact 26 x 15-5/8 in. through-the-wall chassis used for replacement and new-construction wall openings. It slides into common 26-in. through-the-wall sleeves.
Highlights
- 9,100 / 9,300 BTU (208/230V) cooling with heat-pump operation
- 8,600 / 8,800 BTU (208/230V) plus electric backup heating
- 9.7 EER published efficiency
- 208/230V power with LCDI cord
- Compact 26 x 15-5/8 in. through-the-wall chassis

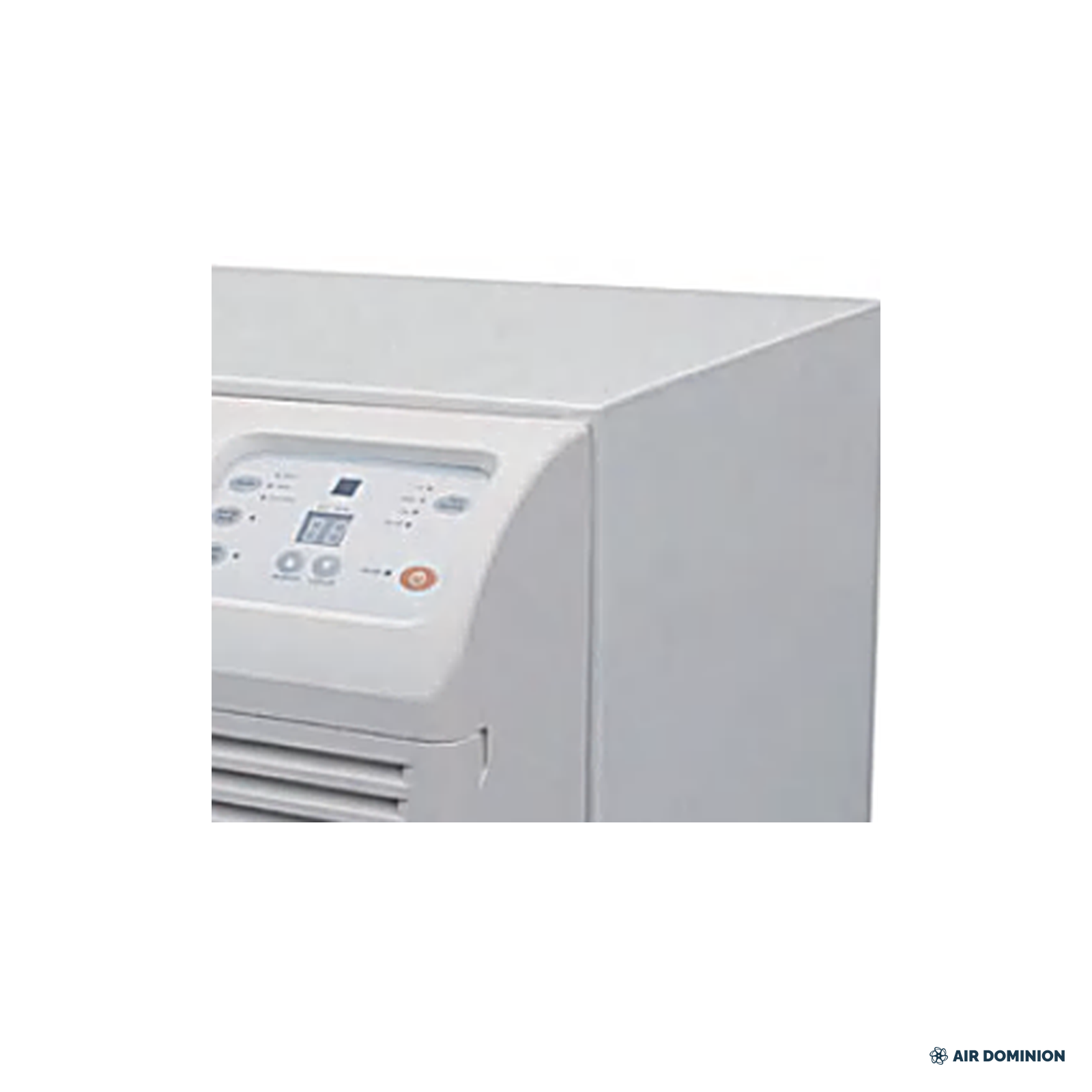

- Electronic touchpad with infrared remote control
- Retrofits common 26-in. through-the-wall sleeves
Specification Table
| Cooling capacity | 9,100 / 9,300 BTU (208/230V) |
| Heating (heat pump) | 8,600 / 8,800 BTU (208/230V) |
| Electric backup heat | 3.5 kW |
| Efficiency | 9.7 EER |
| Voltage | 208/230V, 1 Phase, 60Hz |
| Electrical | 4.8 / 4.4 A cooling; 20 A branch circuit |
| Power connection | NEMA 6-20P LCDI power cord (72 in.) |
| Refrigerant | R-410A |
| Unit dimensions | 26 W x 15.625 H x 21.1875 D in. |
| Required sleeve | 26 x 15-5/8 in. through-the-wall sleeve (16-7/8 in. depth class) |
| Weight | 83 lb |
| COP (heat pump) | 3.0 |
| Dehumidification | 2.32 pt/h |
| Airflow | 270 / 247 / 223 CFM |
| Warranty | Confirmed during quote review |
Included Equipment
- Through-the-wall heat pump chassis
- Infrared remote control
- LCDI power cord
- Washable filter
Installation Notes
- Fits the compact 26 x 15-5/8 in. through-the-wall sleeve class; confirm existing sleeve dimensions and condition before release.
- Provide a dedicated circuit and matching receptacle for the LCDI cord (see electrical row).
- Confirm condensate handling; this chassis uses slinger-ring disposal with optional drain accessories.
- Installation should be completed by qualified trade personnel familiar with through-the-wall packaged equipment.
Warranty and Support
- Final warranty packet and accessory scope are confirmed during quote review before release.
- Use the Air Dominion installation and warranty reference to align sleeve, grille, electrical, and thermostat scope before ordering.
- Registered-coverage options are reviewed with the final quote.
Frequently Asked Questions
Does it fit standard 42 x 16 in. PTAC sleeves?
This model uses the compact 26 x 15-5/8 in. through-the-wall sleeve class, not the 42 x 16 in. PTAC sleeve. It retrofits common 26-in. sleeve families; confirm your sleeve during quote review.
What kind of projects is this built for?
Hospitality, multifamily, care, office, and residential add-on rooms that need packaged through-the-wall comfort.
Is this a heat-pump unit?
Yes. It heats by reverse-cycle heat pump with electric backup for colder weather.
What should be confirmed before ordering?
Sleeve dimensions and condition, electrical service and receptacle, condensate handling, and accessory scope - all confirmed during quote review.
Documents
- Type Through-the-Wall
- SKU AD-HVAC-TTW-9K-230-1Z-HP
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
