Air Dominion AC Electrical Whip
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

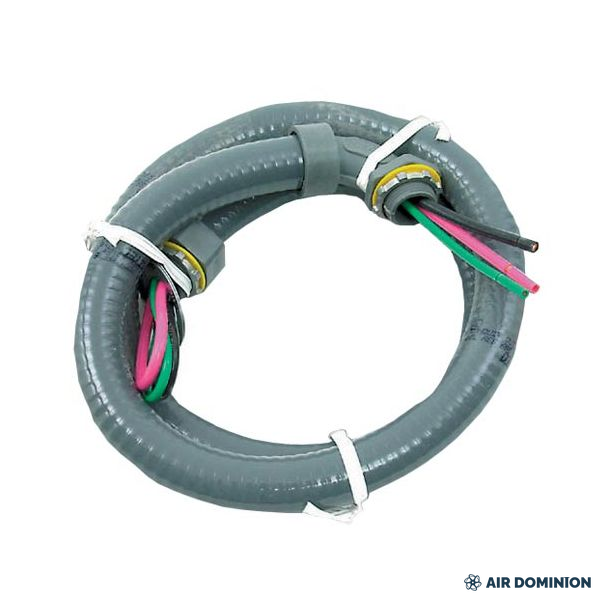

Air Dominion AC Electrical Whip is the flexible conduit assembly that carries line-voltage power from the disconnect to the condenser. Pre-assembled with conductors and fittings, it lands in the disconnect knockout on one end and the unit's wiring compartment on the other. Choose conduit size and conductor gauge to match the circuit, in 4 ft or 6 ft lengths. This Air Dominion quoting record is presented as a reviewed accessory configuration, with final configuration confirmed during quote review before release.
Highlights
- Pre-assembled whip with conductors and end fittings
- 1/2 in. conduit with 10 AWG conductors or 3/4 in. conduit with 8 AWG conductors
- 4 ft and 6 ft lengths
- Jacket type varies by size and length exactly as listed (metallic or non-metallic)
Specification Table
| Options | 1/2 in. - 10 AWG or 3/4 in. - 8 AWG |
| Lengths | 4 ft / 6 ft |
| 1/2 in. x 4 ft | 10 AWG, metallic jacket |
| 1/2 in. x 6 ft | 10 AWG, non-metallic jacket |
| 3/4 in. x 4 ft | 8 AWG, non-metallic jacket |
| 3/4 in. x 6 ft | 8 AWG, metallic jacket |
Included Equipment
- Flexible conduit whip with pre-installed conductors and fittings
Installation Notes
- Install per NEC and local code by a qualified electrician.
- Match conductor gauge to the branch circuit ampacity: 10 AWG suits the 15-30 A circuits published for Air Dominion mini splits; 8 AWG suits larger circuits.
- Confirm the disconnect knockout size (1/2, 3/4, or 1 in.) against the whip conduit size before ordering.
Warranty and Support
- Prepared for Air Dominion quote review. Final accessory configuration, coverage terms, and installation documents are confirmed before release.
- Accessory coverage follows the published Air Dominion accessory support terms confirmed during quote review.
Frequently Asked Questions
Which whip matches my Air Dominion system?
For single-zone systems 9K-24K, whose published maximum breakers run 15-30 A, the 1/2 in. 10 AWG whip is the standard choice. Use the 3/4 in. 8 AWG whip for larger multi-zone circuits, confirmed during quote review.
Metallic or non-metallic jacket?
Jacket type is fixed per size/length combination exactly as listed in the specification table; both are outdoor-suitable liquid-tight styles.
What length should I order?
Measure disconnect-to-unit routing; 6 ft covers most installs with the disconnect adjacent to the condenser.
Documents
- Type Mini Split Accessory
- SKU AD-HVAC-ACC-MS-WHIP-1210-4
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
