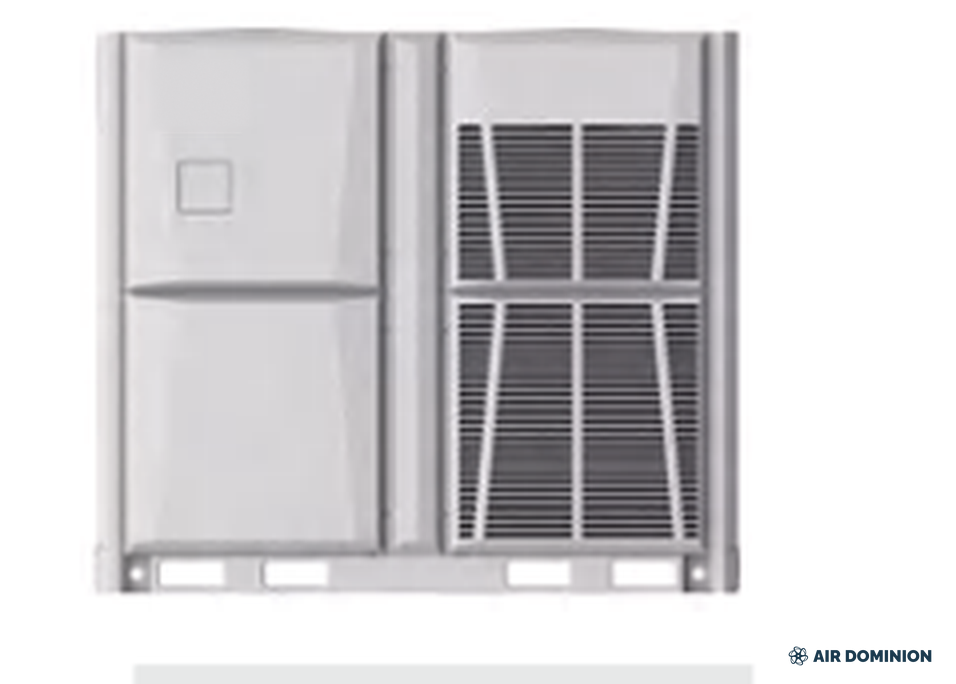

Air Dominion CHV Pro VRF Outdoor Unit Platform, 26/28/30/32 HP
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
Air Dominion CHV Pro VRF Outdoor Unit Platform, 26/28/30/32 HP anchors the Air Dominion CHV Pro variable refrigerant flow line for multi-story, hospitality, retail, and office projects in the 26/28/30/32 HP block. Full DC inverter compressors modulate to load, modules combine for larger systems, and one refrigerant network feeds dozens of indoor units of mixed types. This is a quote-first engineering platform page, not an off-the-shelf item: every CHV Pro system is configured per project during quote review.
Highlights
- 26/28/30/32 HP outdoor tier of the CHV Pro full DC inverter VRF platform
- Modules combine up to 96 HP per system (maximum 3 freely combined modules)
- Supports up to 100 connected indoor units, configuration-dependent
- Dual electrical platforms: 208-230V/3N/60Hz and 380-415V/3N/50-60Hz
- Refrigerant-cooled inverter board rated to 131 F ambient
- 7-level power limit control from 40 to 100 percent for demand management
Specification Table
| Outdoor tier | 26/28/30/32 HP |
| Platform | CHV Pro full DC inverter VRF |
| Module combination | Up to 3 modules, 96 HP system maximum |
| Indoor unit count | Up to 100 (configuration-dependent) |
| Power options | 208-230V/3N/60Hz or 380-415V/3N/50-60Hz |
| Inverter board cooling | Refrigerant-cooled, rated to 131 F ambient |
| Power saving | 7-level power limit (40-100 percent) |
| Refrigerant | Confirmed during quote review |
Included Equipment
- Scope is configured per project: outdoor modules for the selected tier plus project-specified accessories
Installation Notes
- VRF systems are engineered projects: module siting, piping design, branch selectors, controls, and commissioning are defined in the quote packet.
- Electrical service (208-230V/3N/60Hz or 380-415V/3N/50-60Hz) is selected per project during quote review.
- Design, installation, and commissioning by qualified VRF-certified professionals.
- Images are representative of product class and included accessory configuration. Final model, electrical requirements, and included components are confirmed during quote review.
Warranty and Support
- Prepared for Air Dominion quote review. Final equipment schedule, warranty coverage, and engineering documents are confirmed before release.
Frequently Asked Questions
Is this a purchasable stock item?
No. This is a platform page for quote-first configuration. Submit it to your quote list and the system is engineered per project during quote review.
What does the quote cover?
Project load calculation review and outdoor-module tier selection; Outdoor module combination plan (up to 3 modules, to 96 HP); Indoor unit mix and count (up to 100 indoor units per system, configuration-dependent); Electrical service selection: 208-230V/3N/60Hz or 380-415V/3N/50-60Hz; Refrigerant piping design, controls and zoning scheme, and commissioning documentation.
Can outdoor modules be combined?
Yes. Up to 3 modules combine freely into one system of up to 96 HP; 4-module combinations are limited to 24 HP per module per the factory rule.
How many indoor units can one system serve?
Up to 100 indoor units depending on assembled capacity and configuration; smaller assemblies support up to 64. The exact count is fixed during quote review.
Documents
- Type VRF Platform
- SKU AD-HVAC-VRF-ODU-26-32HP
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
