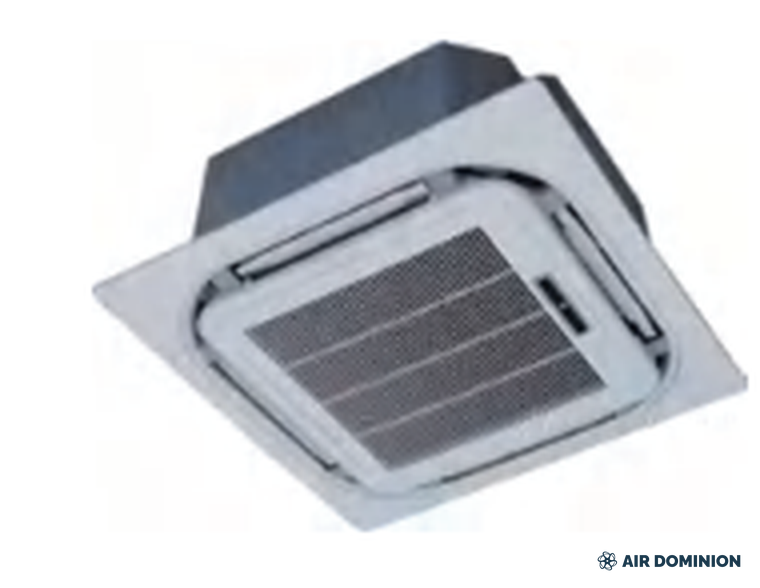

Air Dominion CHV Pro VRF Round-Flow Cassette Indoor Unit Platform
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
Air Dominion CHV Pro VRF Round-Flow Cassette Indoor Unit Platform covers the round-flow cassette family of the CHV Pro VRF line: ceiling-recessed round-flow cassette with 360-degree discharge for open areas. Factory capacity steps span 5.6-16.0 kW (approximately 19,100 to 54,600 BTU/h). This is a quote-first engineering platform page, not an off-the-shelf item: every CHV Pro system is configured per project during quote review.
Highlights
- Round-Flow Cassette indoor family for CHV Pro VRF systems
- Capacity steps across 5.6-16.0 kW (approximately 19,100-54,600 BTU/h)
- Mixes freely with other CHV Pro indoor types on one refrigerant system
- Selected, sized, and zoned per project during quote review
- Part of systems serving up to 100 indoor units
Specification Table
| Indoor type | Round-Flow Cassette |
| Capacity range | 5.6-16.0 kW (19,100-54,600 BTU/h approx.) |
| Platform | CHV Pro full DC inverter VRF |
| Configuration | Per project during quote review |
| Refrigerant | Confirmed during quote review |
Included Equipment
- Scope is configured per project: indoor units of this family at the capacities scheduled in the quote packet
Installation Notes
- Unit count, capacity steps, placement, controls, and condensate design are defined in the project quote packet.
- Requires a CHV Pro VRF outdoor platform sized during quote review.
- Design, installation, and commissioning by qualified VRF-certified professionals.
- Images are representative of product class and included accessory configuration. Final model, electrical requirements, and included components are confirmed during quote review.
Warranty and Support
- Prepared for Air Dominion quote review. Final equipment schedule, warranty coverage, and engineering documents are confirmed before release.
Frequently Asked Questions
Can I order this indoor unit by itself?
Indoor units are quoted as part of a CHV Pro VRF system. Add the platform to your quote list and the schedule is engineered during quote review.
What does the quote cover?
Project load calculation review and outdoor-module tier selection; Outdoor module combination plan (up to 3 modules, to 96 HP); Indoor unit mix and count (up to 100 indoor units per system, configuration-dependent); Electrical service selection: 208-230V/3N/60Hz or 380-415V/3N/50-60Hz; Refrigerant piping design, controls and zoning scheme, and commissioning documentation.
What sizes exist in this family?
Factory steps span 5.6-16.0 kW - approximately 19,100 to 54,600 BTU/h. Exact steps are scheduled during quote review.
Can different indoor types mix on one system?
Yes. CHV Pro systems mix cassette, ducted, wall, floor-ceiling, and fresh-air units on one refrigerant network, subject to engineering limits.
Documents
- Type VRF Platform
- SKU AD-HVAC-VRF-IDU-ROUND-CASSETTE
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
