Air Dominion Condenser Electrical Accessory Kit
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

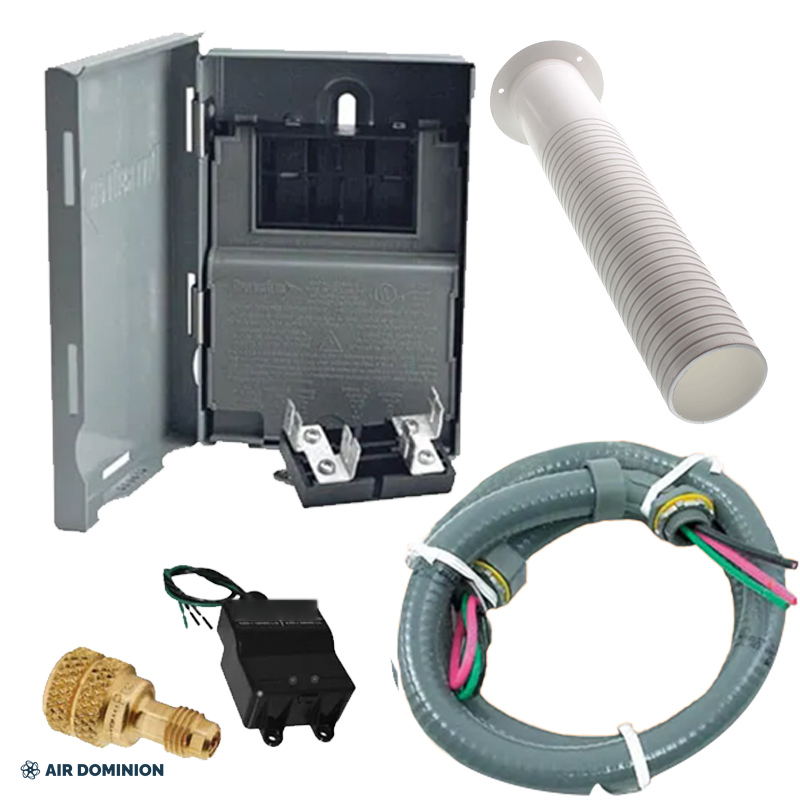

Air Dominion Condenser Electrical Accessory Kit covers the outdoor-unit side of the install when the line set is already handled: 60 A non-fused disconnect, 3/4 in. x 6 ft whip, surge protector, service-port charging adapter, and a 3 in. telescoping wall sleeve. It is the standard add-on when a condenser is replaced or a system is quoted without a full installation kit. This Air Dominion quoting record is presented as a reviewed accessory configuration, with final configuration confirmed during quote review before release.
Highlights
- 60 A non-fused outdoor disconnect included
- 3/4 in. x 6 ft electrical whip with fittings
- 100,000 A class surge protector for the inverter electronics
- 5/16 in. to 1/4 in. charging port adapter for service connections
- 3 in. telescoping wall sleeve finishes the penetration
Specification Table
| Disconnect | 60 A non-fused, outdoor rated |
| Whip | 3/4 in. x 6 ft |
| Surge protector | 100,000 A class |
| Charging adapter | 5/16 in. F x 1/4 in. M |
| Wall sleeve | 3 in. telescoping |
Included Equipment
- 60 A non-fused disconnect box
- 3/4 in. x 6 ft electrical whip
- Surge protector
- 5/16 in. female to 1/4 in. male charging port adapter
- 3 in. telescoping wall sleeve
Installation Notes
- Install per NEC and local code by a qualified electrician.
- Mount the disconnect within sight of the condenser and route the whip to the unit's wiring compartment.
- Confirm breaker sizing against the connected system's published values during quote review.
Warranty and Support
- Prepared for Air Dominion quote review. Final accessory configuration, coverage terms, and installation documents are confirmed before release.
- Accessory coverage follows the published Air Dominion accessory support terms confirmed during quote review.
Frequently Asked Questions
Does this kit fit every Air Dominion mini split?
Yes. The 60 A disconnect and 3/4 in. whip cover all published Air Dominion mini split circuit sizes (maximum breakers 15-30 A across 9K-24K), and the sleeve and adapter are universal.
What is not in this kit?
The line set, control wire, and drain line - those are in the Line Set Installation Kit, or choose the Single-Zone Complete Installation Kit for everything together.
Why include a surge protector?
Inverter-driven condensers carry sensitive electronics; the surge protector clamps spikes at the disconnect for inexpensive protection.
Documents
- Type Mini Split Accessory
- SKU AD-HVAC-ACC-MS-KIT-COND
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
