Air Dominion Condenser Equipment Pad with Risers, 18 x 38 x 3 in.
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

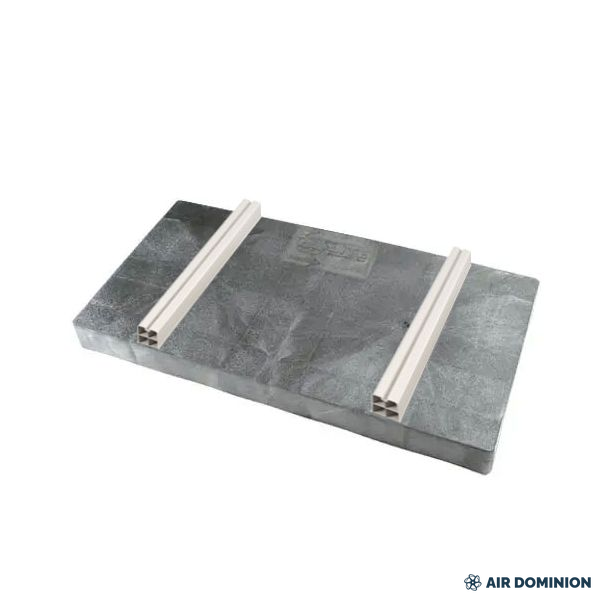

Air Dominion supplies this 18 x 38 x 3 in. composite equipment pad with riser kit as the ground-mount base for mini split condensers. The polypropylene pad gives the unit a level, weather-resistant footing without poured concrete, and the PVC risers lift the chassis for condensate drainage and coil clearance. This Air Dominion quoting record is presented as a reviewed accessory configuration, with final configuration confirmed during quote review before release.
Highlights

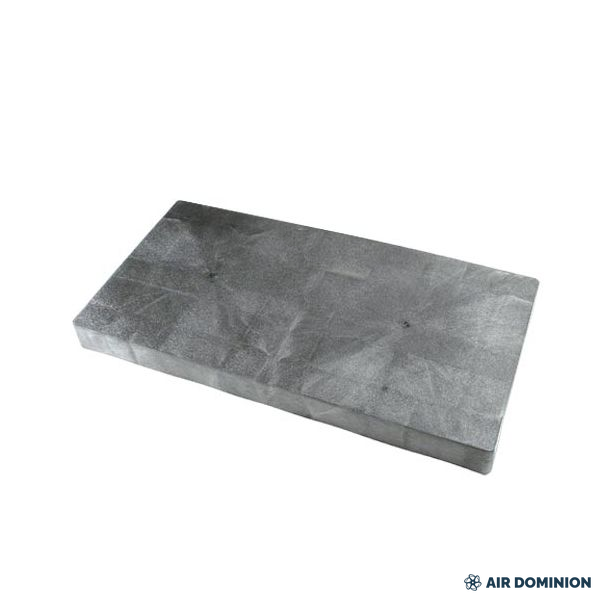

- 18 x 38 x 3 in. molded polypropylene pad - no poured slab needed

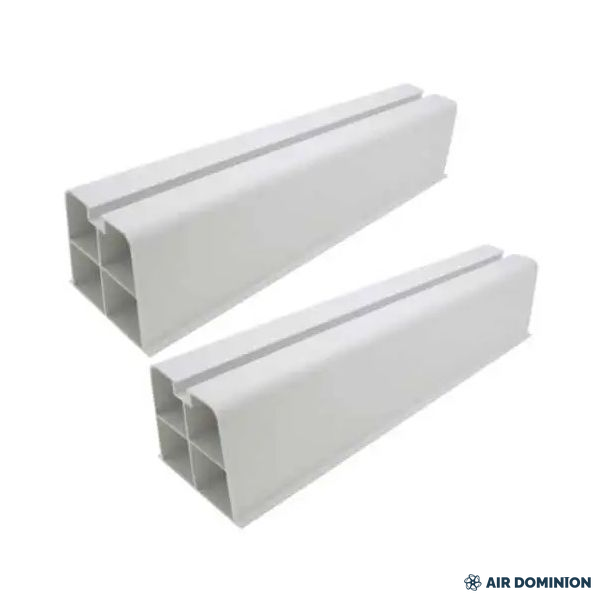

- Riser set included, made from weather-resistant PVC with bolt track and two bolts per set
- Supports loads up to 397 lbs as listed
- Covers Air Dominion single-zone condenser footprints through the 24K class
Specification Table
| Pad size | 18 x 38 x 3 in. |
| Pad material | Polypropylene |
| Risers | Weather-resistant PVC, bolts included |
| Load rating | Up to 397 lbs |
| Kit weight | 25 lbs |
Included Equipment
- Molded equipment pad 18 x 38 x 3 in.
- PVC riser set with bolt track and two bolts
Installation Notes
- Set the pad on tamped, level ground with drainage away from the structure.
- Confirm the condenser footprint fits the 18 x 38 in. pad; the largest Air Dominion single-zone chassis measures about 37.3 in. wide by 16.1 in. deep.
- Use the risers to keep the base pan above expected snow or standing water where required by local practice.
Warranty and Support
- Prepared for Air Dominion quote review. Final accessory configuration, coverage terms, and installation documents are confirmed before release.
- Accessory coverage follows the published Air Dominion accessory support terms confirmed during quote review.
Frequently Asked Questions
Which Air Dominion condensers fit this pad?
Single-zone condensers from the 9K class (about 30 x 12 in. footprint) through the 24K class (about 37.3 x 16.1 in.) fit within the 38 x 18 in. pad. Confirm the footprint of larger multi-zone chassis during quote review.
Is this pad manufactured by Air Dominion?
It is an Air Dominion supplied installation accessory sourced for the line, and it is quoted and supported through Air Dominion like every catalog accessory.
Do I need the risers?
Risers are recommended for heat pump service so defrost condensate drains clear of the base pan; they install on the pad with the included bolt track hardware.
Documents
- Type Mini Split Accessory
- SKU AD-HVAC-ACC-MS-PAD-1838
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
