Air Dominion Condenser Wall Mounting Bracket
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

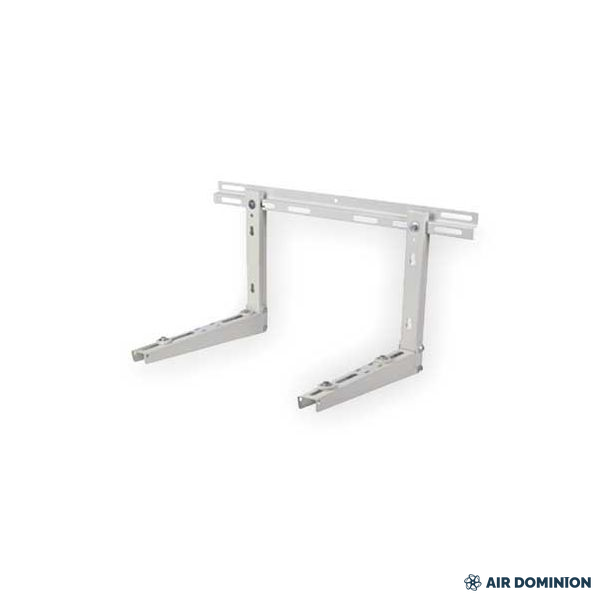

Air Dominion Condenser Wall Mounting Bracket lifts the outdoor condenser off the ground onto the wall - the standard approach where grade-level placement risks snow burial, flooding, or landscaping conflicts, and for multi-story installs. The condenser sits on two L-shaped arms tied by a wall rail and is fastened with the included bolts and anti-vibration washers. This Air Dominion quoting record is presented as a reviewed accessory configuration, with final configuration confirmed during quote review before release.
Highlights
- Rated 220 lbs per arm as listed - covers Air Dominion single-zone condensers through the 24K class
- Arm length options of 17 in. and 21 in. to suit condenser depth
- Mounting bolts and anti-vibration washers included
- Keeps the condenser above snow, runoff, and debris with clear service access below
Specification Table
| Load rating | 220 lbs per arm |
| Arm length options | 17 in. / 21 in. |
| Included hardware | Bolts and anti-vibration washers |
| Application | Outdoor mini split condensers |
Included Equipment
- Wall rail and two support arms
- Mounting bolts
- Anti-vibration washers
Installation Notes
- Anchor to structure (studs, masonry, or engineered anchors) - never to sheathing alone; verify the wall can carry the condenser weight plus service loads.
- Choose the arm length so the condenser feet land fully on the arms; check the unit's depth against the arm before ordering.
- Maintain the clearances around the condenser published for the connected system.
Warranty and Support
- Prepared for Air Dominion quote review. Final accessory configuration, coverage terms, and installation documents are confirmed before release.
- Accessory coverage follows the published Air Dominion accessory support terms confirmed during quote review.
Frequently Asked Questions
Which Air Dominion condensers does this bracket carry?
At 220 lbs per arm it covers Air Dominion single-zone condensers from the 9K class (about 62 lbs) through the 24K class (about 132 lbs) with margin. Confirm unit weight during quote review.
Which arm length should I pick?
Match arm length to condenser depth: compact 9K-12K chassis (about 12 in. deep) fit the 17 in. arms; deeper 18K-24K chassis (about 13.5-16 in.) should use the 21 in. arms.
Is vibration isolation included?
Yes. Anti-vibration washers and mounting bolts ship with the bracket.
Documents
- Type Mini Split Accessory
- SKU AD-HVAC-ACC-MS-BRACKET-STD-17
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
