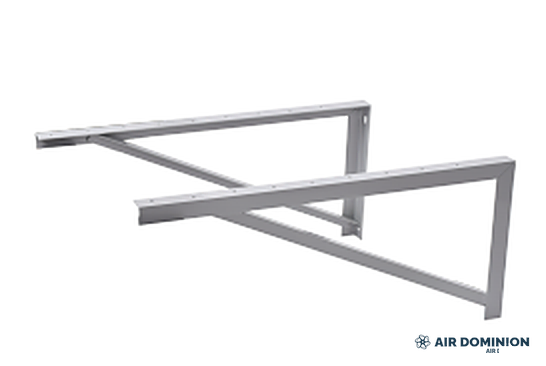

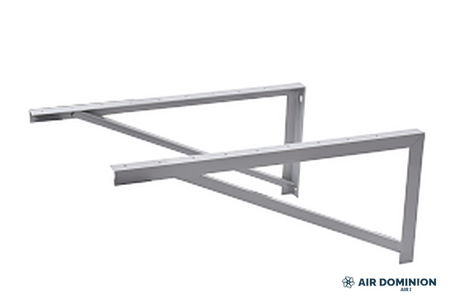

Air Dominion Heavy-Duty Condenser Wall Bracket Set
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
Air Dominion Heavy-Duty Condenser Wall Bracket Set is a pair of 10-gauge steel angle-iron brackets for hanging larger condensers and heat pumps on the wall, rated 600 lbs per pair. The longer 30 to 48 in. arms suit wide multi-zone and high-capacity chassis, and the pre-punched holes take 3/8 in. wall anchors. This Air Dominion quoting record is presented as a reviewed accessory configuration, with final configuration confirmed during quote review before release.
Highlights
- 600 lbs per pair load rating as listed
- 10 GA steel with powder-coated grey finish
- Arm length options of 30, 36, 42, and 48 in. for wide chassis
- Pre-punched holes for 3/8 in. wall anchors and equipment bolts
- Listed as approved for High Velocity Hurricane Zone applications
Specification Table
| Load rating | 600 lbs per pair |
| Material | 10 GA steel, powder-coated grey |
| Arm length options | 30 / 36 / 42 / 48 in. |
| Wall holes | Pre-punched for 3/8 in. anchors |
| Sold as | Pair |
Included Equipment
- Two angle-iron wall brackets (anchors and equipment bolts field-supplied)
Installation Notes
- Mounting hardware is field-supplied; use 3/8 in. anchors rated for the wall construction and the full equipment weight.
- Set bracket spacing to the condenser foot pattern and confirm the arms extend past the unit depth before ordering.
- Mount at a height that allows service access below the unit and keeps coils clear of snow depth.
Warranty and Support
- Prepared for Air Dominion quote review. Final accessory configuration, coverage terms, and installation documents are confirmed before release.
- Accessory coverage follows the published Air Dominion accessory support terms confirmed during quote review.
Frequently Asked Questions
Which systems need the heavy-duty set instead of the standard bracket?
Use this set for multi-zone condensers and any chassis wider or heavier than the single-zone 24K class; at 600 lbs per pair it carries every Air Dominion mini split condenser. The standard bracket covers single-zone 9K-24K units.
Are bolts and washers included?
No. This angle-iron set uses field-supplied anchors and equipment bolts sized to the wall construction.
Which arm length should I order?
Pick the shortest arm that extends past the condenser depth with the foot pattern landing on the arms; 30 in. suits most chassis, with 36-48 in. for the widest footprints.
Documents
- Type Mini Split Accessory
- SKU AD-HVAC-ACC-MS-BRACKET-HD-30
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
