Air Dominion Mini Split Condensate Pump
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

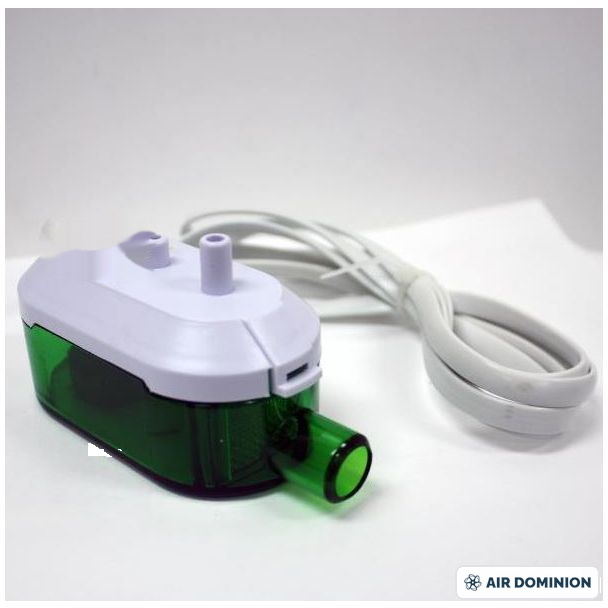

Air Dominion supplies this mini condensate pump for installs where the indoor head cannot gravity-drain - below-grade rooms, interior walls, or long horizontal routes. The compact pump and reservoir hide in or beside the line-hide duct, lifting condensate up and out at 10.5 GPH with under-18 dB operation that keeps bedrooms quiet. This Air Dominion quoting record is presented as a reviewed accessory configuration, with final configuration confirmed during quote review before release.
Highlights
- 10.5 GPH condensate removal with 6.5 ft suction lift, as listed
- Very quiet operation, listed under 18 dB
- Works on 115 V and 208/230 V supplies

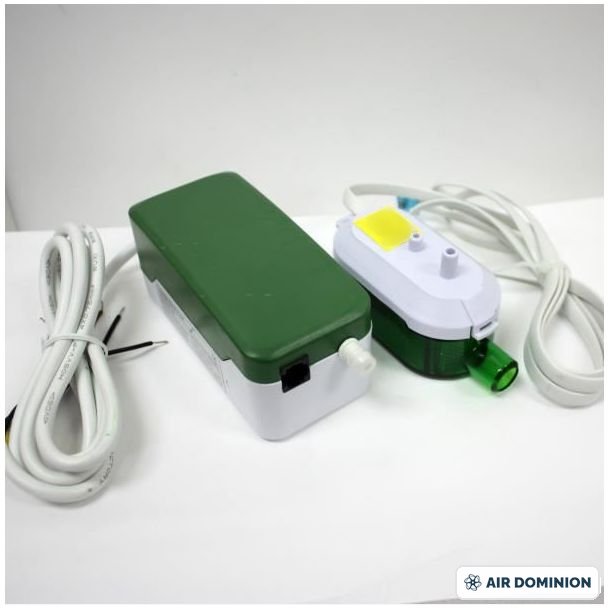

- Compact separated pump and reservoir modules tuck into line-hide duct or above the head
Specification Table
| Flow rate | 10.5 GPH |
| Suction lift | 6.5 ft |
| Sound level | Under 18 dB |
| Supply voltage | 115 V or 208/230 V |
| Pump body | 4.6 x 1.9 x 2.1 in. |
Included Equipment

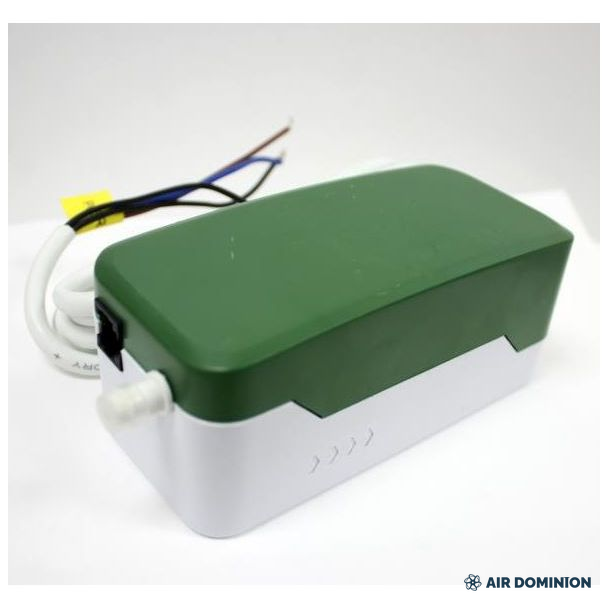

- Condensate pump module
- Reservoir/float module

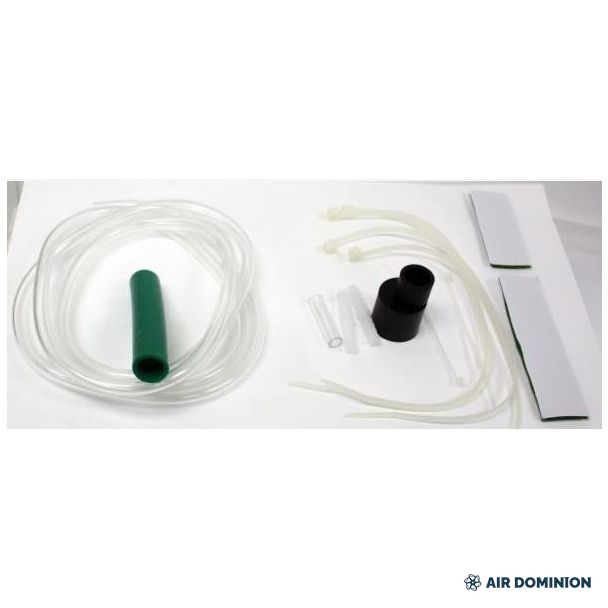

- Connection tubing set
- Power leads
Installation Notes
- Mount the reservoir below the head's drain stub so condensate gravity-feeds into the float chamber.
- Keep the discharge rise within the pump's published lift and slope the discharge line after the high point.
- Install per NEC and local code by a qualified electrician.
Warranty and Support
- Prepared for Air Dominion quote review. Final accessory configuration, coverage terms, and installation documents are confirmed before release.
- Accessory coverage follows the published Air Dominion accessory support terms confirmed during quote review.
Frequently Asked Questions
Which Air Dominion systems can use this pump?
Any wall-mounted head in the 9K-24K classes that cannot gravity-drain; capacity-wise the 10.5 GPH rating covers the condensate volume of the full single-zone lineup.
Is it quiet enough for a bedroom?
The listed sound level is under 18 dB - below the indoor head's own minimum fan sound.
Is this an Air Dominion manufactured part?
It is an Air Dominion supplied installation accessory sourced for the line and supported through the same quote review process as every catalog item.
Documents
- Type Mini Split Accessory
- SKU AD-HVAC-ACC-MS-PUMP-MINI
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
