Air Dominion Mini Split Line Set Installation Kit
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
Air Dominion Mini Split Line Set Installation Kit bundles the three run-length items every mini split install consumes together: the insulated flared line set, control wire cut to the same length, and a 20 ft condensate drain line. Pick the line size that matches the system's labeled connections and the length that matches the route - one kit replaces three separate line items on the quote. This Air Dominion quoting record is presented as a reviewed accessory configuration, with final configuration confirmed during quote review before release.
Highlights
- Insulated flared line set in the ordered size and length
- 14/4 control wire matched to the line set length
- 20 ft of 5/8 in. condensate drain line included
- Line sizes for every Air Dominion single-zone class: 1/4 x 3/8 (9K-12K), 1/4 x 1/2 (18K), 3/8 x 5/8 (24K)
- Lengths from 15 to 50 ft to match the routed run
Specification Table
| Line set | Insulated pair, flared ends, ordered size and length |
| Line size options | 1/4 x 3/8 / 1/4 x 1/2 / 3/8 x 5/8 in. |
| Length options | 15 / 25 / 30 / 35 / 50 ft |
| Control wire | 14/4 stranded, matches line set length |
| Drain line | 5/8 in. x 20 ft |

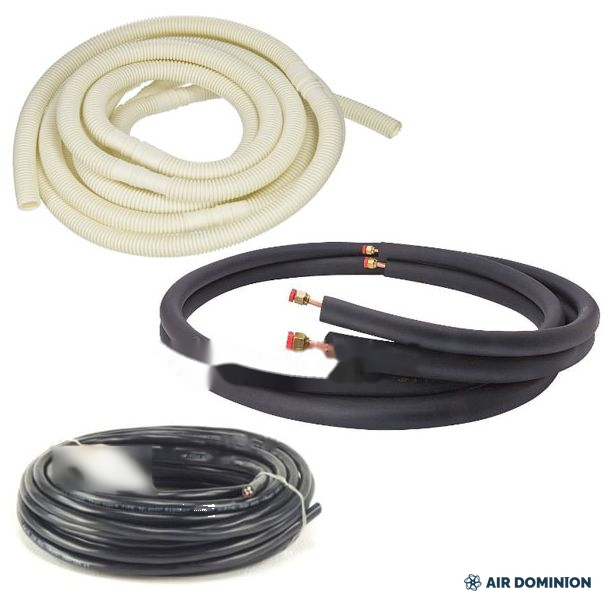

Included Equipment

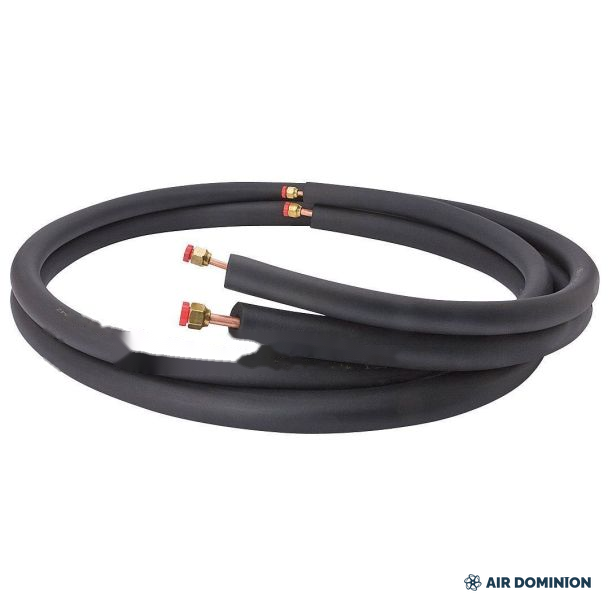

- Insulated line set (liquid + suction pair, flared)

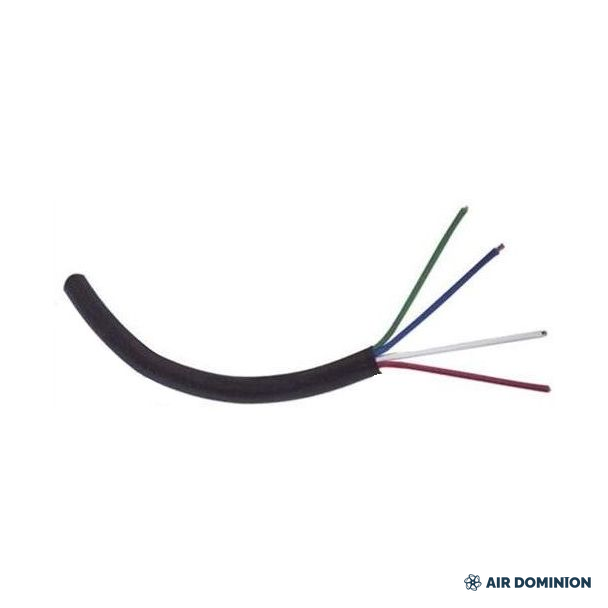

- Control wire, same length as line set

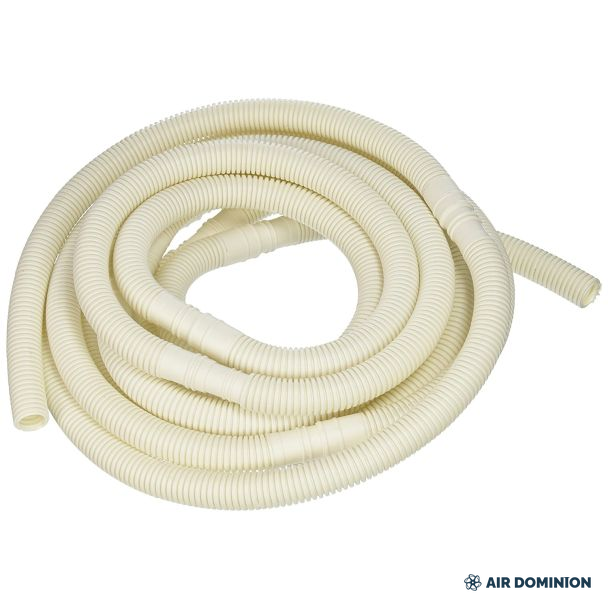

- 20 ft condensate drain line
Installation Notes
- Choose line size from the unit's labeled connections: 1/4 x 3/8 for 9K-12K, 1/4 x 1/2 for 18K, 3/8 x 5/8 for 24K standard chassis - confirmed during quote review.
- Keep total run and rise within the connected system's published piping limits.
- Refrigerant-side work including flaring, evacuation, and charging verification should be completed by a qualified HVAC professional.
Warranty and Support
- Prepared for Air Dominion quote review. Final accessory configuration, coverage terms, and installation documents are confirmed before release.
- Accessory coverage follows the published Air Dominion accessory support terms confirmed during quote review.
Frequently Asked Questions
How do I pick the right kit for my system?
Match line size to capacity class - 1/4 x 3/8 for Air Dominion 9K and 12K, 1/4 x 1/2 for 18K, and 3/8 x 5/8 for 24K standard chassis - then pick the length that covers the routed run. Sizes are confirmed against the unit label during quote review.
What is in the kit besides the line set?
Control wire cut to the same length as the line set and a 20 ft condensate drain line - the two other run-length consumables of a standard install.
Does it include the disconnect and whip?
No - electrical-side items are in the Condenser Electrical Accessory Kit or the Single-Zone Complete Installation Kit.
Documents
- Type Mini Split Accessory
- SKU AD-HVAC-ACC-MS-INSTALLKIT-IND-1438-15
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
