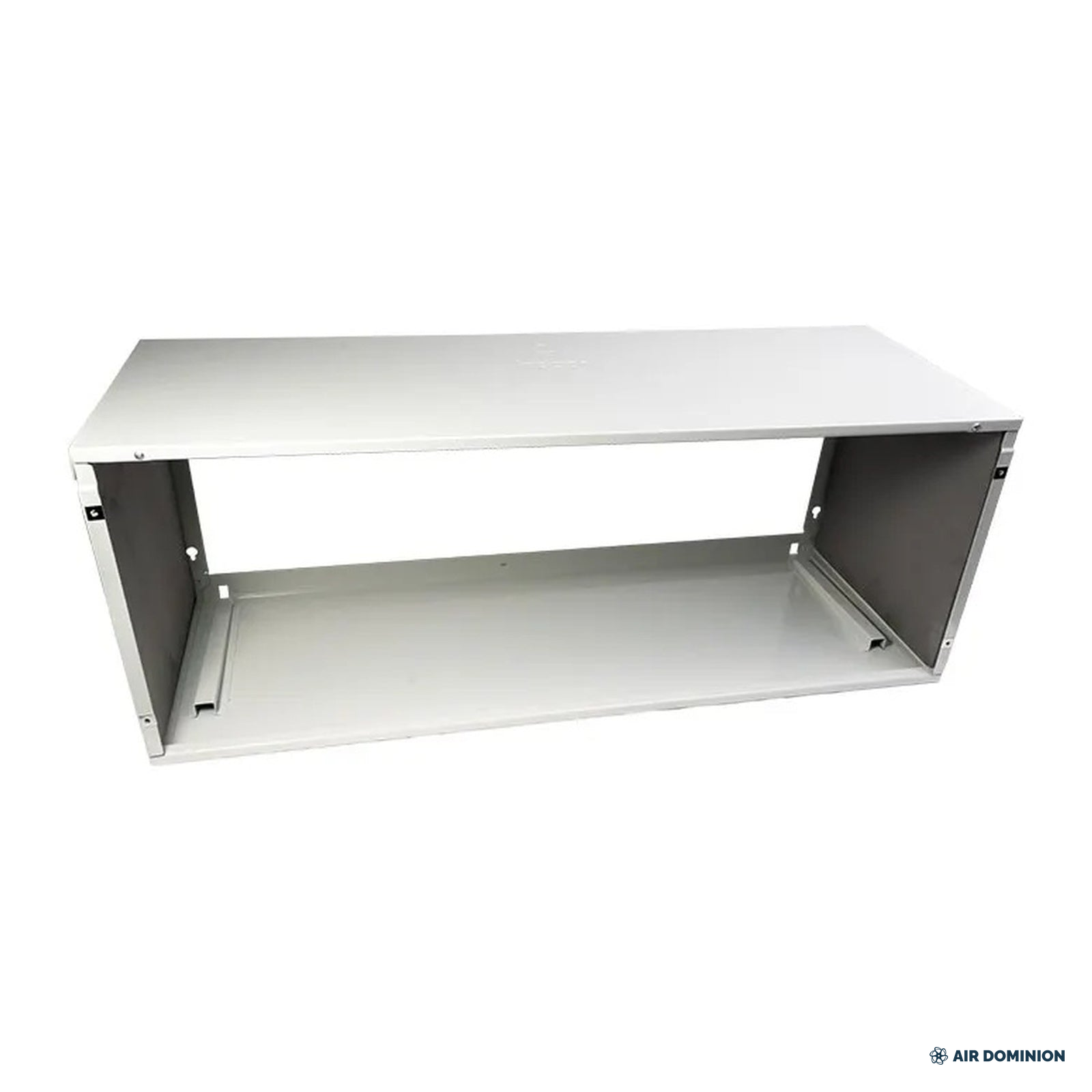

Air Dominion PTAC Wall Sleeve, 42 x 16 in.
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
Air Dominion PTAC Wall Sleeve, 42 x 16 in. supports hospitality, multifamily, and add-on room packaged-terminal projects. This Air Dominion quoting record is presented as a reviewed product configuration, with final equipment configuration confirmed during quote review before release. This wall sleeve is the structural rough-in for every standard packaged terminal installation: it lines the 42 x 16 in. wall opening at the industry-standard 14 in. depth, carries the chassis weight, and weather-seals the opening. Foldable construction keeps freight compact; sleeves can ship ahead of the units so framing and masonry crews can rough in before equipment delivery.
Highlights
- Industry-standard 42 x 16 in. terminal sleeve, 14 in. depth
- Universal fit for Air Dominion PTAC and PTHP chassis and common 42 in. replacements
- Galvanized steel with foldable, field-assembled design
- Supports rear grille attachment and condensate drain kit
- Can ship separately for rough-in during construction
Specification Table
| Sleeve exterior in | 42.25 W x 16.25 H x 14.80 D |
| Wall cutout in | 42 x 16 in. opening, 14 in. depth (industry standard) |
| Material | Galvanized steel, foldable design (light assembly) |
| Weight lb | 26 |
| Compatibility | Universal fit for 42 x 16 in. packaged terminal units, including Air Dominion PTAC and PTHP chassis |
| Shipping note | May be shipped separately to allow rough-in during construction |
| Pricing | Quote-first; confirmed during quote review |
Included Equipment
- Wall sleeve (folded) with assembly hardware
Installation Notes
- Rough in a 42.25 x 16.25 in. wall opening; set the sleeve with a slight outward tilt for drainage.

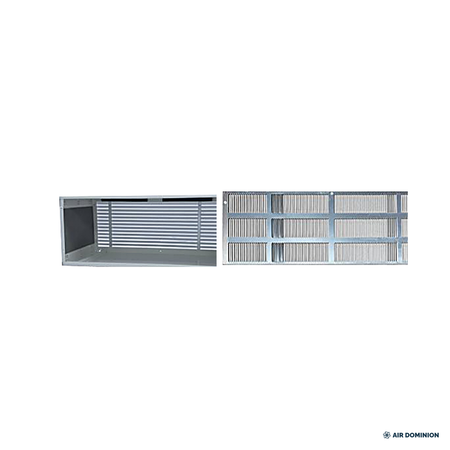

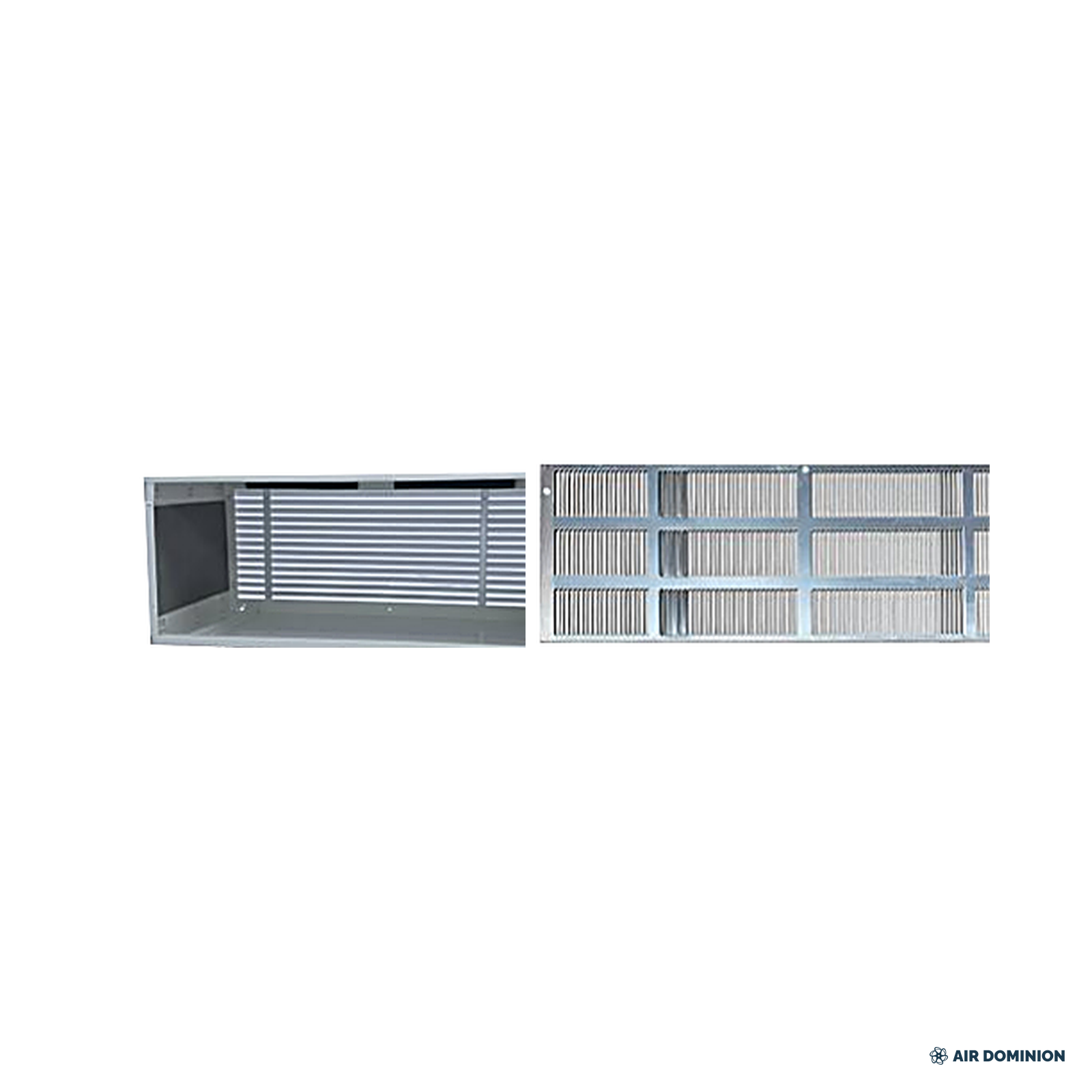

- Pair with a stamped or extruded architectural exterior grille (sold separately).
- Confirm wall depth and trim scope during quote review.
Warranty and Support
- Final warranty packet and accessory scope are confirmed during quote review before release.
- Include quantity, jobsite ZIP, and any finish or voltage notes with the quote request.
Frequently Asked Questions
Does it fit standard 42 x 16 in. PTAC units?
Yes. This is the industry-standard 42 x 16 in. sleeve at 14 in. depth used by Air Dominion PTAC and PTHP chassis and most 42 in. terminal units.
Is the exterior grille included?
No. Stamped aluminum and extruded architectural grilles are separate Air Dominion accessories so projects can match the building facade.
Can sleeves ship before the units?
Yes. Sleeves may ship separately so wall rough-in can be completed during construction, with chassis delivery scheduled later.
What projects is this used on?
Hospitality, multifamily, and commercial packaged-terminal installations - new construction and replacement.
Documents
- Type PTAC Accessory
- SKU AD-HVAC-ACC-PT-SLEEVE-42x16
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
