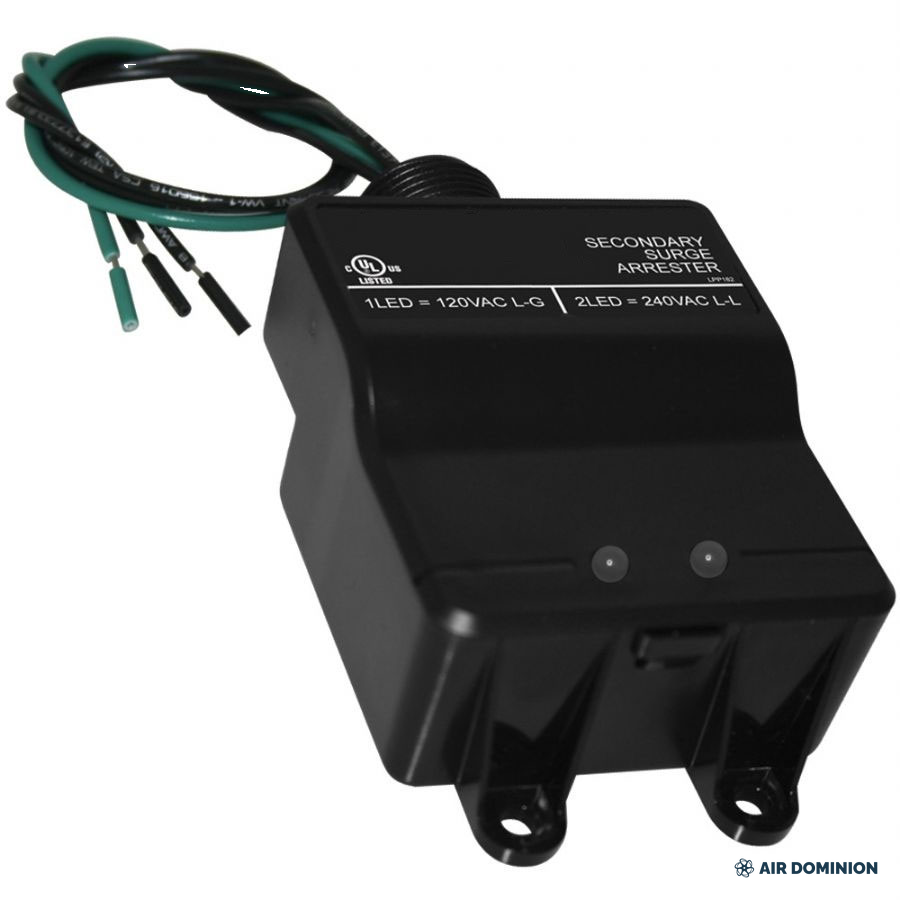

Air Dominion Single-Phase HVAC Surge Protector
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
Air Dominion Single-Phase HVAC Surge Protector clamps voltage spikes before they reach the condenser's inverter board - inexpensive insurance for electronics-heavy mini split systems in lightning-prone or utility-switching areas. It wires at the disconnect or unit and protects 120/240 VAC single-phase equipment. This Air Dominion quoting record is presented as a reviewed accessory configuration, with final configuration confirmed during quote review before release.
Highlights
- 120/240 VAC single-phase protection - matches both 115 V and 230 V Air Dominion systems
- 100,000 A maximum surge current, 1020 Joules maximum energy, as listed
- Status LEDs confirm protection is active
- Compact surface-mount body wires in at the disconnect
Specification Table
| Voltage | 120/240 VAC, single phase |
| Max surge current | 100,000 A |
| Max energy | 1020 Joules |
| Indicators | Protection status LEDs |
Included Equipment
- Surge protective device with wiring leads
Installation Notes
- Install per NEC and local code by a qualified electrician.
- Typically installed at the disconnect enclosure on the load side, with leads kept as short and straight as practical.
- Verify LED status after energizing; replace the device after a major surge event per the service documents.
Warranty and Support
- Prepared for Air Dominion quote review. Final accessory configuration, coverage terms, and installation documents are confirmed before release.
- Accessory coverage follows the published Air Dominion accessory support terms confirmed during quote review.
Frequently Asked Questions
Does this work with both 115 V and 230 V Air Dominion mini splits?
Yes. The device is rated 120/240 VAC single phase, covering both voltage classes across the 9K-24K lineup.
Where does it install?
At the outdoor disconnect or the unit's electrical compartment, wired by a qualified electrician per NEC and local code.
How do I know it is still protecting?
The labeled status LEDs indicate active protection - one LED for 120 VAC line-to-ground, two for 240 VAC line-to-line, as printed on the device.
Documents
- Type Mini Split Accessory
- SKU AD-HVAC-ACC-MS-SURGE
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
