Air Dominion Single-Zone Mini Split Complete Installation Kit
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

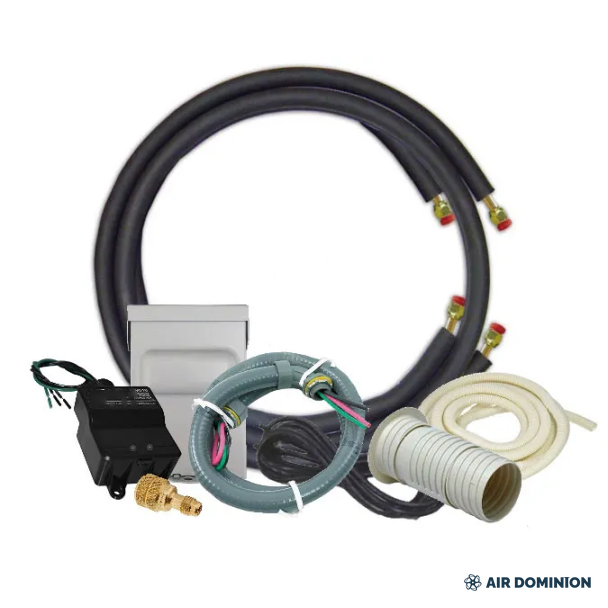

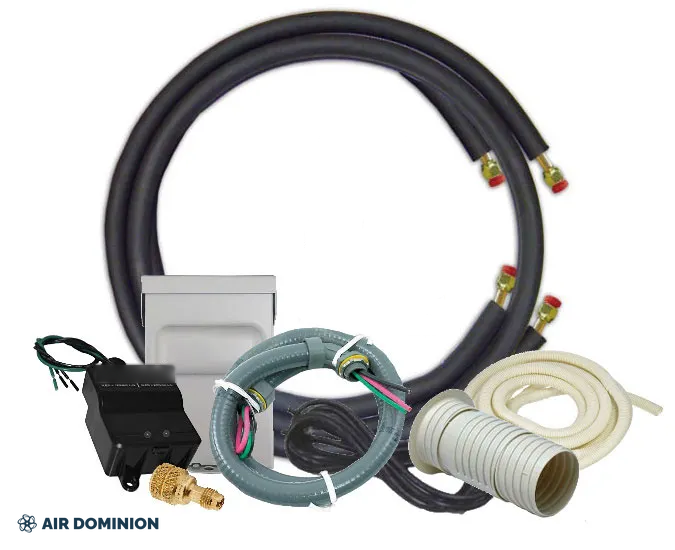

Air Dominion Single-Zone Mini Split Complete Installation Kit is the everything-but-the-equipment bundle: line set, matching control wire, drain line, wall sleeve, electrical whip, 60 A non-fused disconnect, surge protector, and a service port charging adapter. One kit closes the accessory scope gap for a standard single-zone install - choose the line size that matches the system and the length that matches the route. This Air Dominion quoting record is presented as a reviewed accessory configuration, with final configuration confirmed during quote review before release.
Highlights
- Insulated flared line set in the ordered size and length with matching-length 14/4 control wire
- 20 ft condensate drain line and 3 in. wall sleeve for the penetration
- Electrical rough-in included: 1/2 in. x 6 ft whip and 60 A non-fusible disconnect
- 100,000 A class surge protector guards the inverter electronics
- 5/16 in. to 1/4 in. charging port adapter for service connections
Specification Table
| Line set | Insulated pair, flared ends, ordered size and length |
| Line size options | 1/4 x 3/8 / 1/4 x 1/2 / 3/8 x 5/8 in. |
| Length options | 15 / 25 / 30 / 35 / 50 ft |
| Control wire | 14/4 stranded, matches line set length |
| Drain line | 5/8 in. x 20 ft |
| Wall sleeve | 3 in. telescoping |
| Whip | 1/2 in. x 6 ft |
| Disconnect | 60 A non-fusible |
| Surge protector | 100,000 A class |
| Charging adapter | 5/16 in. F x 1/4 in. M |
Included Equipment
- Insulated line set (liquid + suction pair, flared)
- Control wire, same length as line set
- 20 ft condensate drain line
- 3 in. telescoping wall sleeve
- 1/2 in. x 6 ft electrical whip
- 60 A non-fusible disconnect box
- 100,000 A surge protector
- 5/16 in. female to 1/4 in. male charging port adapter
Installation Notes
- Choose line size from the unit's labeled connections: 1/4 x 3/8 for 9K-12K, 1/4 x 1/2 for 18K, 3/8 x 5/8 for 24K standard chassis - confirmed during quote review.
- Install per NEC and local code by a qualified electrician.
- Refrigerant-side work including flaring, evacuation, and charging verification should be completed by a qualified HVAC professional.
Warranty and Support
- Prepared for Air Dominion quote review. Final accessory configuration, coverage terms, and installation documents are confirmed before release.
- Accessory coverage follows the published Air Dominion accessory support terms confirmed during quote review.
Frequently Asked Questions
Which kit matches my Air Dominion system?
Select by line size: 1/4 x 3/8 for 9K and 12K classes, 1/4 x 1/2 for 18K, 3/8 x 5/8 for 24K standard chassis, then pick the run length. The pairing is confirmed against the unit label during quote review.
What does the kit leave out?
Only the equipment itself and jobsite consumables. Mounting hardware (bracket or pad) is quoted separately based on ground or wall placement.
Is the disconnect fused?
The included disconnect is the 60 A non-fusible type, standard where the panel breaker provides overcurrent protection; a fusible disconnect can be substituted during quote review.
Why is there a charging adapter in the kit?
It adapts the service port for standard gauge connections during evacuation and charge verification.
Documents
- Type Mini Split Accessory
- SKU AD-HVAC-ACC-MS-INSTALLKIT-FULL-1438-15
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
