Air Dominion Telescoping Line Set Wall Sleeve, 3 in.
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

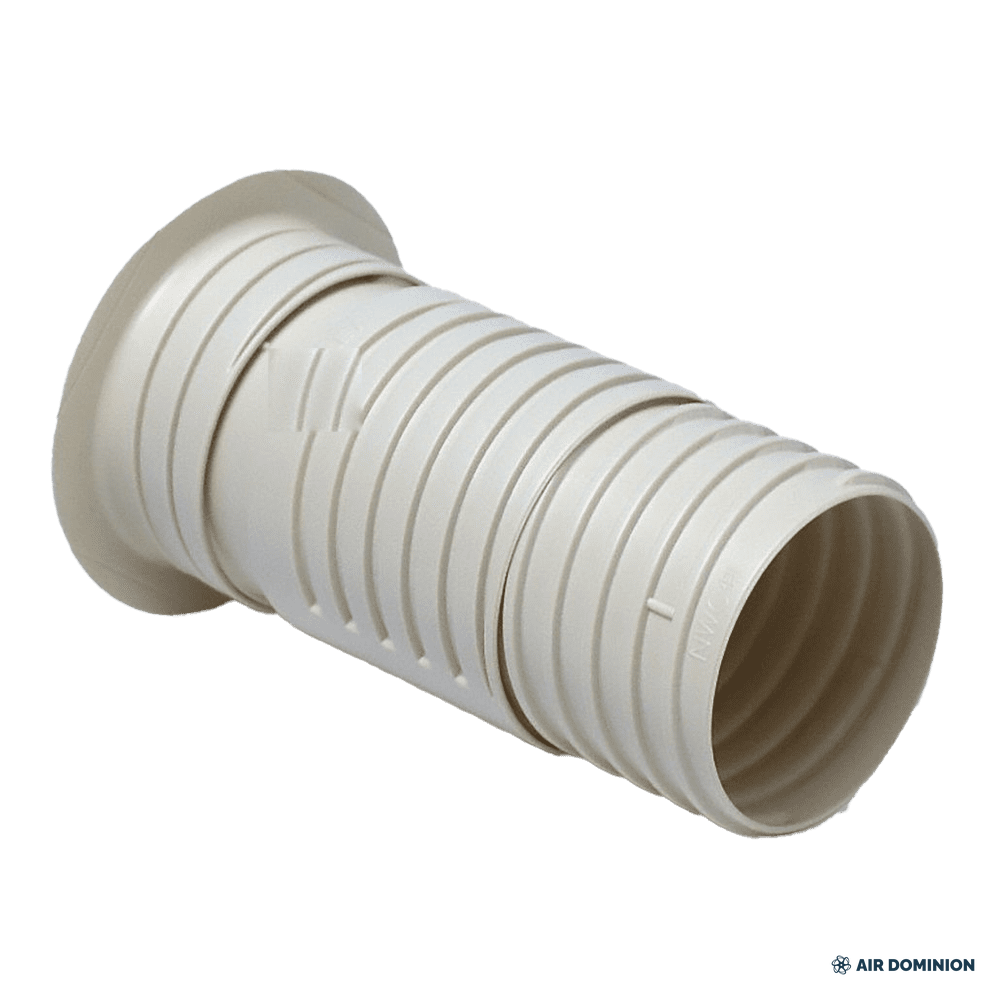

Air Dominion Telescoping Line Set Wall Sleeve lines the 3 in. wall penetration behind the indoor head, giving the line set, control wire, and drain a clean sealed pass-through instead of a raw hole. Three polyethylene sections telescope from 4 to 7.5 in. to match the wall thickness; two sleeves join for thicker walls. This Air Dominion quoting record is presented as a reviewed accessory configuration, with final configuration confirmed during quote review before release.
Highlights
- 3 in. diameter matches the standard mini split wall penetration
- Telescopes from 4 to 7.5 in.; two sleeves combine for thicker walls
- Three-section polyethylene build with interior flange
- Seals and protects the penetration for a cleaner, more efficient install
Specification Table
| Diameter | 3 in. |
| Telescoping range | 4 - 7.5 in. |
| Sections | 3 |
| Material | Polyethylene |
Included Equipment
- One telescoping wall sleeve assembly
Installation Notes
- Drill the 3 in. penetration with a slight downward pitch to the exterior, set the sleeve flush to the interior wall with sealant at the flange.
- Seal around the exterior edge and the lines after routing; loose insulation can be added inside the sleeve.
- Systems ship with a starter wall sleeve; this listing covers replacements, thicker walls, and additional zones.
Warranty and Support
- Prepared for Air Dominion quote review. Final accessory configuration, coverage terms, and installation documents are confirmed before release.
- Accessory coverage follows the published Air Dominion accessory support terms confirmed during quote review.
Frequently Asked Questions
Does one sleeve fit all Air Dominion mini splits?
Yes - every wall-mounted head in the line routes its line set, control wire, and drain through a standard 3 in. penetration; capacity class does not change the sleeve.
What wall thicknesses does it cover?
4 to 7.5 in. with one sleeve; join a second sleeve for thicker walls.
Is a sleeve really necessary?
It protects the lines from abrasion at the wall edge, keeps the penetration sealed against air and pests, and leaves a serviceable pass-through for future work.
Documents
- Type Mini Split Accessory
- SKU AD-HVAC-ACC-MS-SLEEVE-3IN
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
