Cabinet Forge Cabinet Filler Strips
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

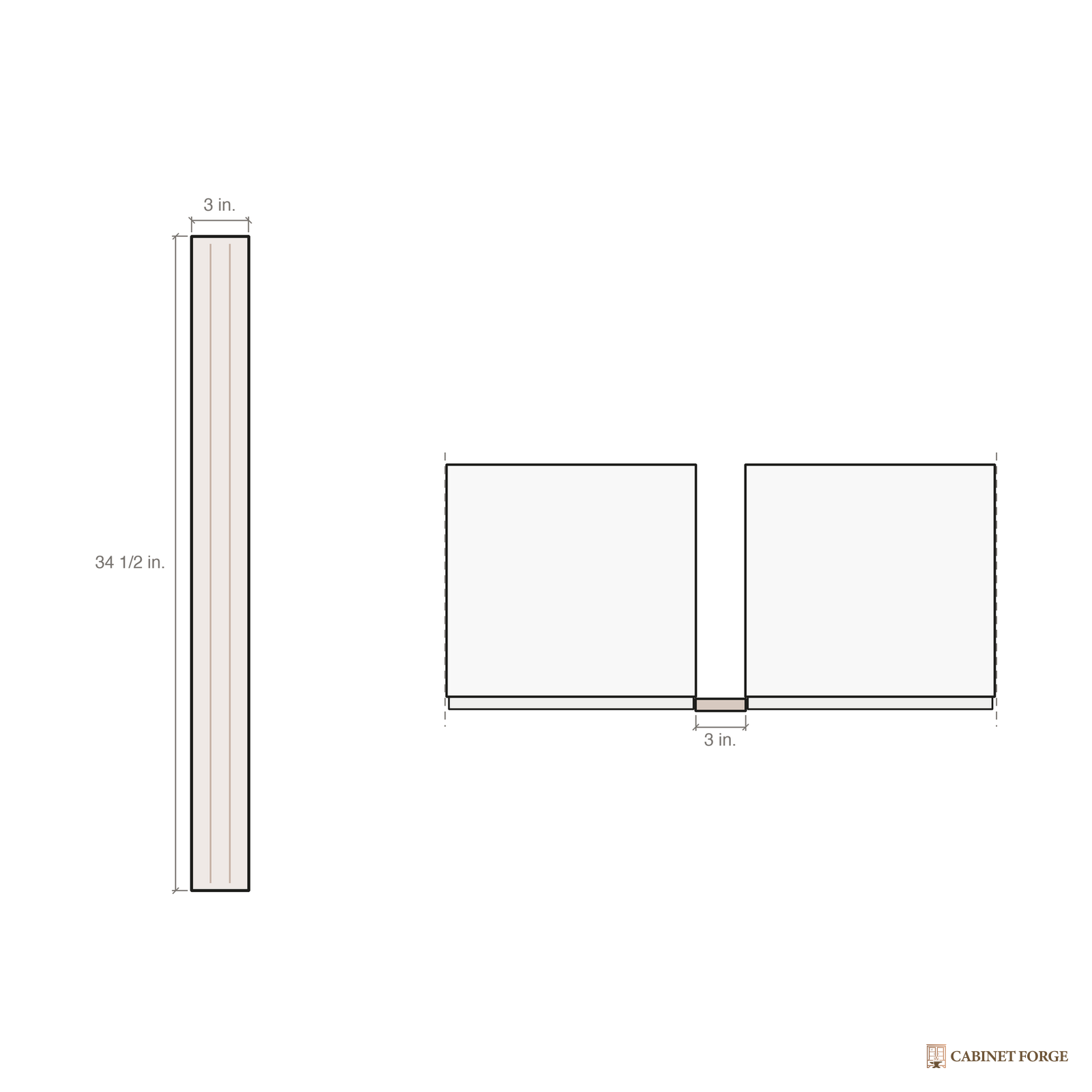

Base fillers run 34 1/2 in. tall to match base cabinet sides; wall fillers are offered in 30, 36, and 42 in. heights plus full 96 in. lengths for tall and pantry runs. Widths are 3 in. and 6 in., trimmed on site for a scribed fit against walls that are out of plumb. Finished to match the Cabinet Forge door style program; the exact colorway is confirmed during quote review.
Highlights
- 3/4 in. thick solid stock, rigid enough to scribe and plane without breakout
- Heights matched to the Cabinet Forge base, wall, and tall cabinet program
- Finish applied with the same coating process as the door program for a uniform color read
- 3 in. and 6 in. widths cover corner pulls, wall scribes, and appliance clearances
Specification Table
| Thickness | 3/4 in. |
| Widths | 3 in. and 6 in. |
| Heights | 30, 34 1/2, 36, 42, and 96 in. |
| Material finish | Matched to the selected door style at quote |
| Trimming | Site-scribed; cut to fit during installation |
Size Run
| Code | Width | Height | Thickness |
|---|---|---|---|
| BF3 | 3 in. | 34 1/2 in. | 3/4 in. |
| BF6 | 6 in. | 34 1/2 in. | 3/4 in. |
| WF3 30 | 3 in. | 30 in. | 3/4 in. |
| WF3 36 | 3 in. | 36 in. | 3/4 in. |
| WF3 42 | 3 in. | 42 in. | 3/4 in. |
| WF3 96 | 3 in. | 96 in. | 3/4 in. |
| WF6 96 | 6 in. | 96 in. | 3/4 in. |
| Filler | 4 1/2 in. | 96 in. | 3/4 in. |
What Is Included
- Filler strip in the selected size and finish
Installation and Assembly Notes
- Measure the gap at top, middle, and bottom; walls are rarely plumb, so scribe the strip to the widest reading.
- Cut with a fine-tooth blade with the finished face up to avoid chip-out.
- Fasten through the adjacent cabinet side with trim screws, or attach to a cleat when spanning to a wall.
Warranty and Support
- Warranty terms are confirmed during quote review.
- Cabinet Forge trade support assists with sizing, finish matching, and freight planning during quote review.
Frequently Asked Questions
Which filler do I order for a corner run?
Use a 3 in. base or wall filler at each leg of the corner so doors and drawers clear their neighbors. Quote review confirms the recommended allowance for your layout.
Can fillers be cut to width on site?
Yes. Strips are supplied at 3 in., 4 1/2 in., or 6 in. and are intended to be ripped and scribed to the site condition.
Will the finish match my cabinet doors?
Fillers are finished in the door style program you select, and the match is confirmed during quote review.
Documents
- Type Cabinet Filler
- SKU CF-CAB-ACC-FIL-BF3
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
