Cabinet Forge End and Skin Panels
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

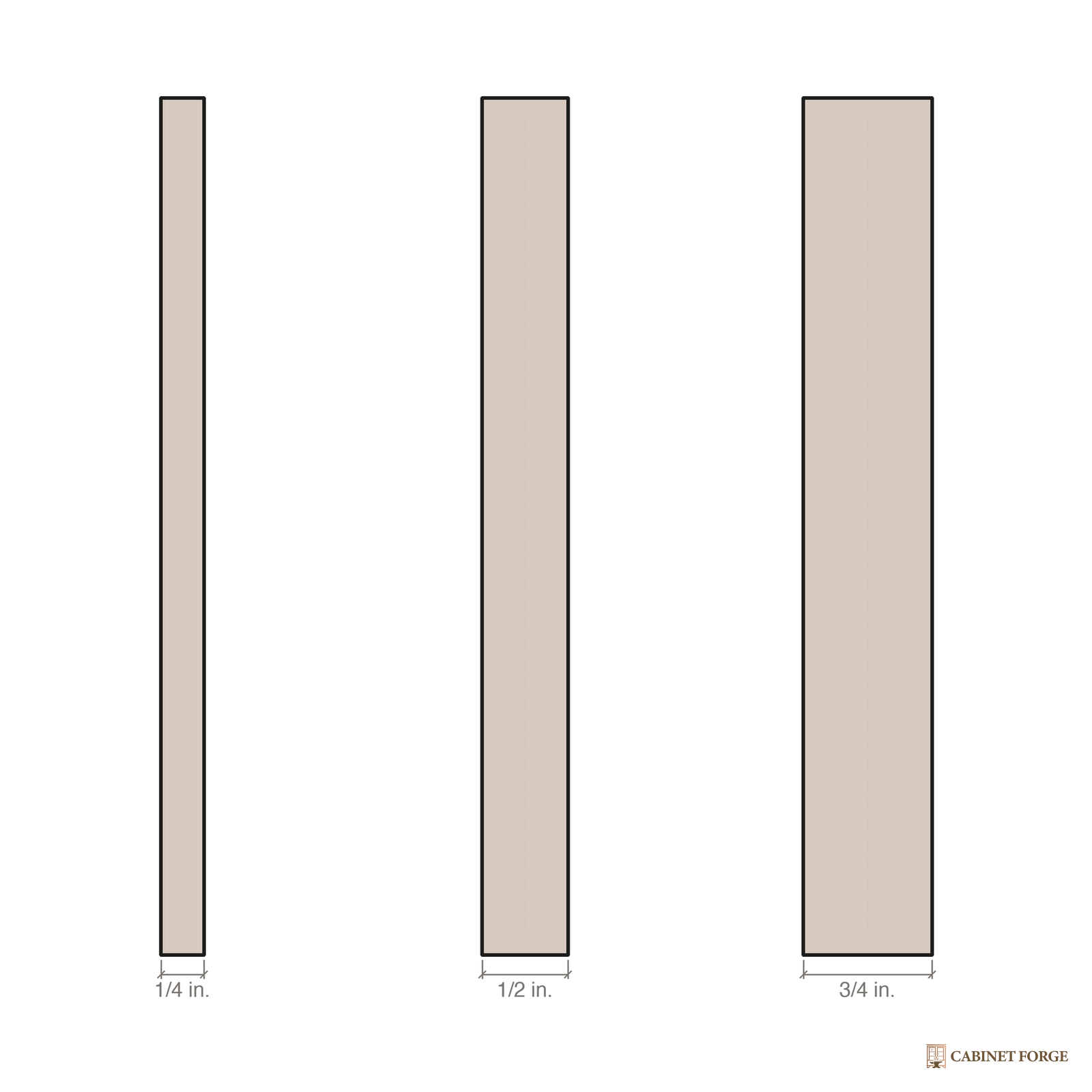

Skin panels are 1/4 in. thick overlays for pantry and tall runs up to 36 x 96 in. Appliance panels are 1/2 in. thick for refrigerator and dishwasher returns. Decorative panels are 3/4 in. thick dimensional stock for island backs, seating returns, and closet builds, in widths from 18 to 90 in. Wall end panel thickness is confirmed during quote review. Finished to match the Cabinet Forge door style program; the exact colorway is confirmed during quote review.
Highlights
- 1/4 in. skin panels wrap tall and pantry cabinet sides without changing the run depth
- 1/2 in. appliance panels stand proud as refrigerator and dishwasher returns
- 3/4 in. decorative panels carry structural fastening for islands and seating overhangs
- Every panel ships finished on the show face with the door style coating process
Specification Table
| Skin panel thickness | 1/4 in. |
| Appliance panel thickness | 1/2 in. |
| Decorative panel thickness | 3/4 in. |
| Wall end panel thickness | Confirmed during quote review |
| Tallest panel | 96 in. |
| Widest panel | 90 in. |
Size Run
| Code | Width | Height | Thickness |
|---|---|---|---|

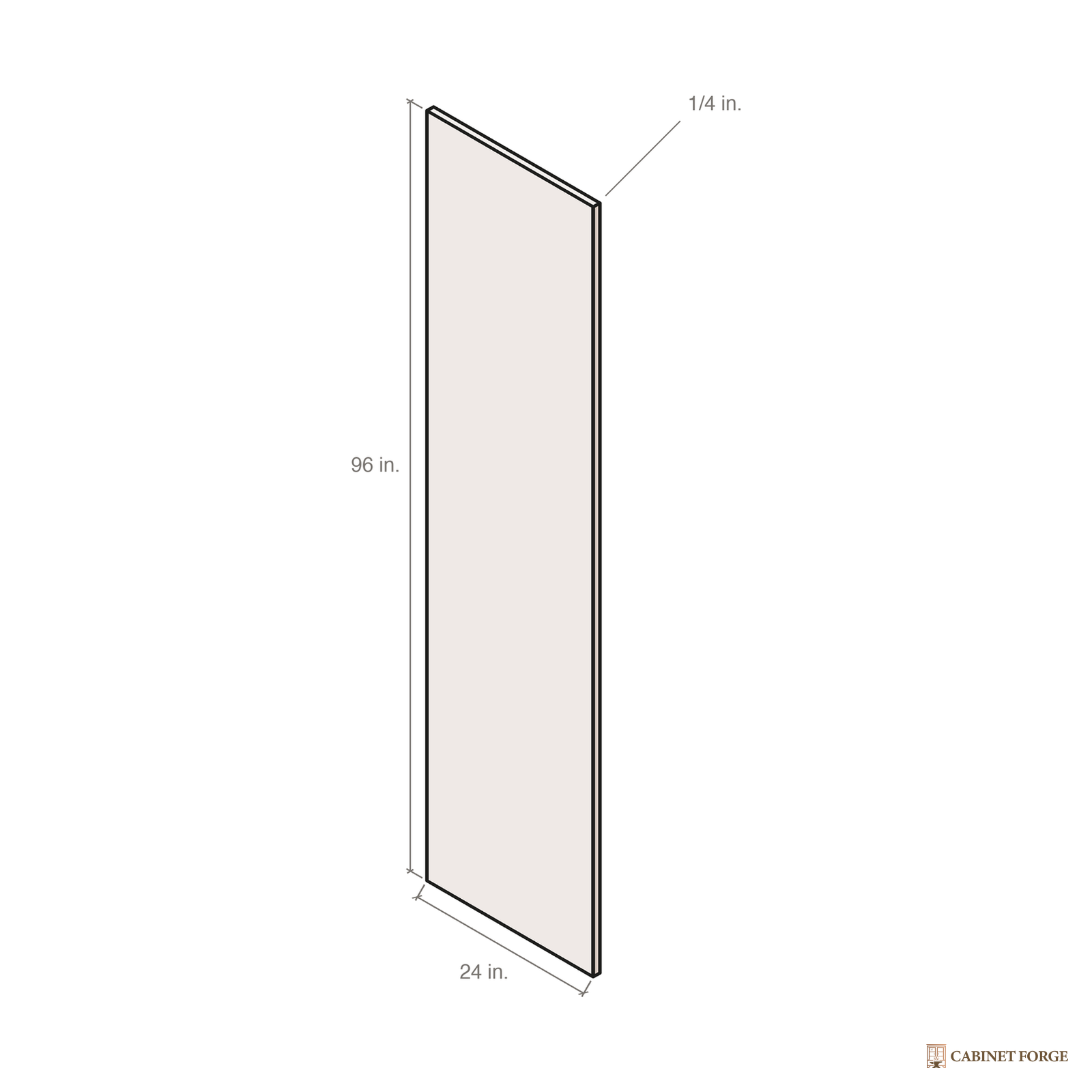

| SP2496 | 24 in. | 96 in. | 1/4 in. |
| SKIN PANEL 3696 | 36 in. | 96 in. | 1/4 in. |
| FP24 | 24 in. | 96 in. | 1/2 in. |
| BEP | 24 in. | 34 1/2 in. | 1/2 in. |
| WEP1230 | 11 1/2 in. | 28 1/2 in. | Confirmed during quote review |
| WEP1236 | 11 1/2 in. | 34 1/2 in. | Confirmed during quote review |
| WEP1242 | 11 1/2 in. | 40 1/2 in. | Confirmed during quote review |
| Panel 18x15 | 18 in. | 15 in. | 3/4 in. |
| Panel 36x15 | 36 in. | 15 in. | 3/4 in. |
| Panel 54x15 | 54 in. | 15 in. | 3/4 in. |
| Panel 72x15 | 72 in. | 15 in. | 3/4 in. |
| Panel 90x15 | 90 in. | 15 in. | 3/4 in. |
| Panel 30x21 | 30 in. | 21 in. | 3/4 in. |
| Panel 51x21 | 51 in. | 21 in. | 3/4 in. |
| Panel 72x21 | 72 in. | 21 in. | 3/4 in. |
What Is Included
- Panel in the selected size and finish
Installation and Assembly Notes
- Dry-fit the panel and mark scribe lines before adhesive or fasteners; site walls and floors are rarely square.
- Skin panels bond with panel adhesive plus pins along concealed edges; appliance and decorative panels fasten through adjacent cabinet sides from inside the box.
- Leave a 1/16 in. reveal at floors and use the matching toe kick or shoe molding to close the joint.
Warranty and Support
- Warranty terms are confirmed during quote review.
- Cabinet Forge trade support assists with sizing, finish matching, and freight planning during quote review.
Frequently Asked Questions
What is the difference between a skin panel and an end panel?
A skin panel is a 1/4 in. overlay glued to a cabinet side. End and appliance panels are thicker dimensional panels that stand on their own edge, typically at refrigerators and dishwashers.
Why is the wall end panel thickness listed as confirmed at quote?
The published thickness for the WEP series is under engineering review, so we confirm it on the quote sheet rather than print an unverified number.
Can panels be cut on site?
Yes. Panels trim with standard carbide tooling. Cut with the finished face up and support the offcut to prevent tear-out.
Documents
- Type Cabinet Panel
- SKU CF-CAB-ACC-PNL-SP2496
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
