Cabinet Forge Glass Cabinet Doors
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
Nine standard sizes fit 12, 15, and 18 in. wide wall cabinets at 30, 36, and 42 in. heights, and three diagonal-corner sizes fit the 24 in. wall diagonal cabinet series. Frames arrive finished and pre-bored for the concealed hinge program. Glass specification is confirmed during quote review. Finished to match the Cabinet Forge door style program; the exact colorway is confirmed during quote review.
Highlights
- Framed 3/4 in. doors match the rail and stile lines of the solid door program
- Covers 30, 36, and 42 in. wall cabinet heights, plus diagonal corner cabinets
- Pre-bored for concealed soft-close hinges from our premium soft-close hardware program
- Glass specification and mullion options are confirmed during quote review
Specification Table
| Door thickness | 3/4 in. |

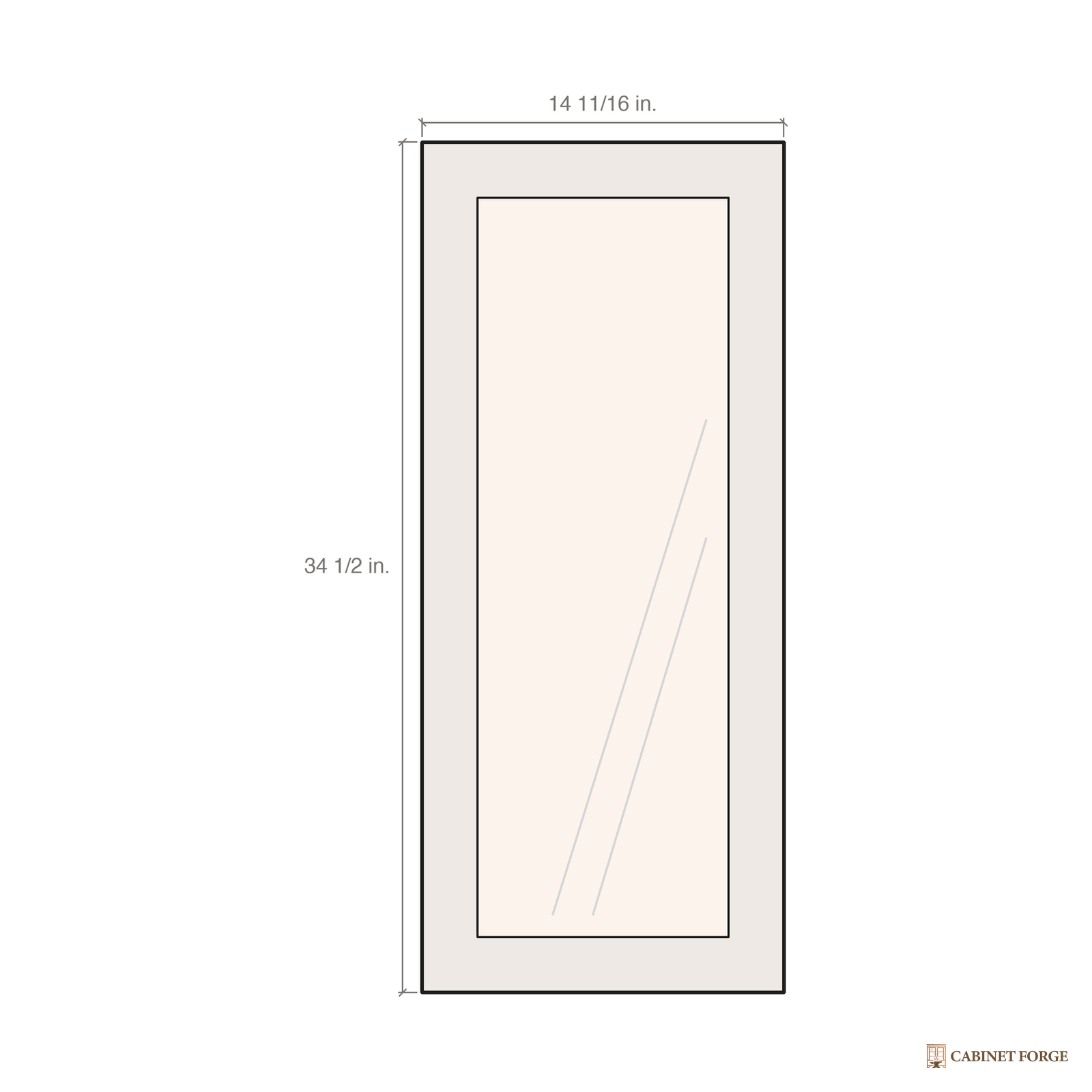

| Widths | 11 11/16, 14 11/16, and 17 11/16 in. |

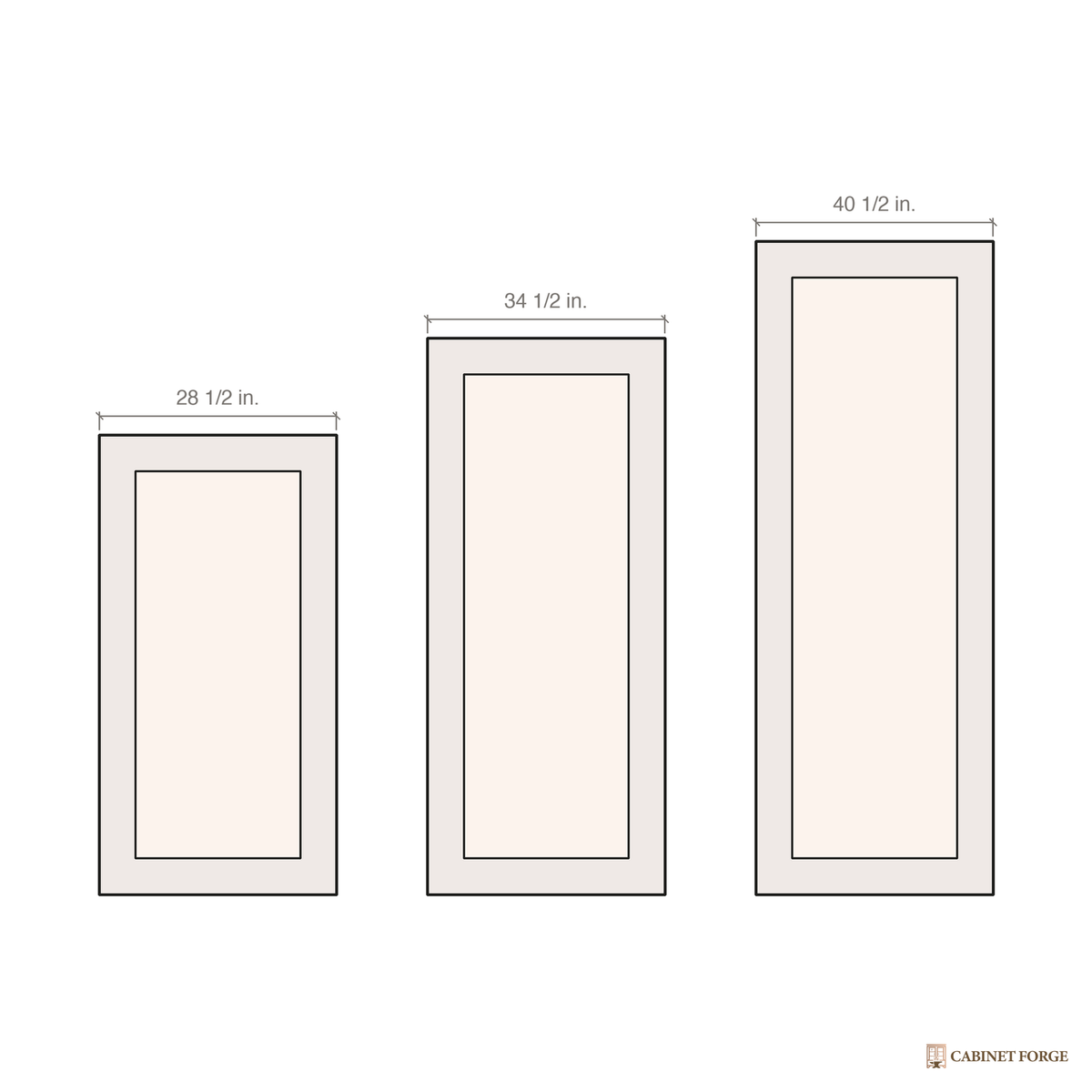

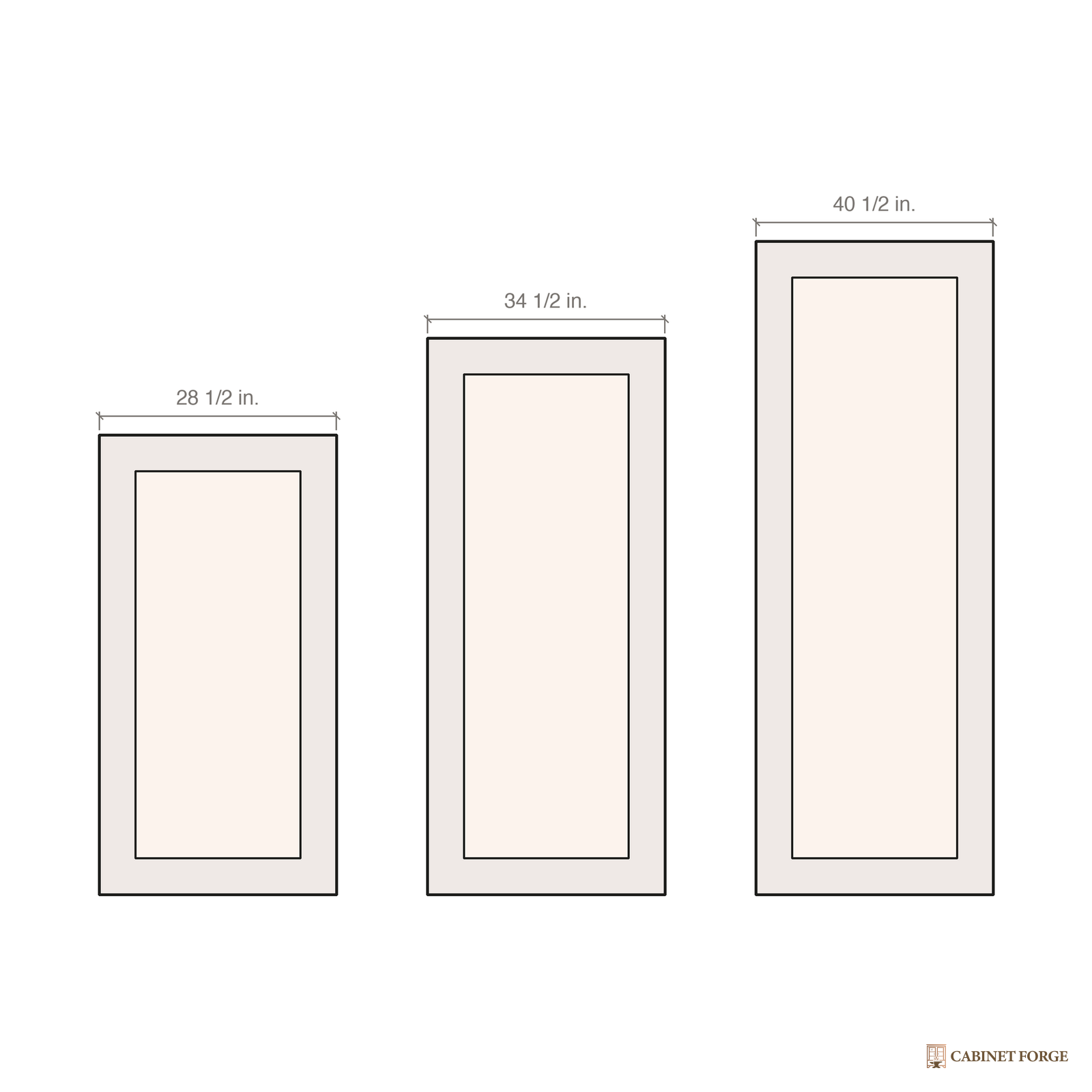

| Heights | 28 1/2, 34 1/2, and 40 1/2 in. |
| Corner series | WDCG for 24 in. wall diagonal cabinets |
| Glass | Confirmed during quote review |
| Finish | Matched to the selected door style at quote |
Size Run
| Code | Width | Height | Thickness |
|---|---|---|---|
| WG1230 | 11 11/16 in. | 28 1/2 in. | 3/4 in. |
| WG1530 | 14 11/16 in. | 28 1/2 in. | 3/4 in. |
| WG1830 | 17 11/16 in. | 28 1/2 in. | 3/4 in. |
| WG1236 | 11 11/16 in. | 34 1/2 in. | 3/4 in. |
| WG1536 | 14 11/16 in. | 34 1/2 in. | 3/4 in. |
| WG1836 | 17 11/16 in. | 34 1/2 in. | 3/4 in. |
| WG1242 | 11 11/16 in. | 40 1/2 in. | 3/4 in. |
| WG1542 | 14 11/16 in. | 40 1/2 in. | 3/4 in. |
| WG1842 | 17 11/16 in. | 40 1/2 in. | 3/4 in. |
| WDCG2430 | 14 11/16 in. | 28 1/2 in. | 3/4 in. |
| WDCG2436 | 14 11/16 in. | 34 1/2 in. | 3/4 in. |
| WDCG2442 | 14 11/16 in. | 40 1/2 in. | 3/4 in. |
What Is Included
- Glass door in the selected size and finish
Installation and Assembly Notes
- Match the door code to the host cabinet code before ordering; WG1236 fits a W1236 wall cabinet, and the WDCG series fits the 24 in. diagonal corner cabinet.
- Transfer the hinge plates from the solid door, or order hinges with the door on the same quote.
- Handle by the frame, not the lite, until the door is hung.
Warranty and Support
- Warranty terms are confirmed during quote review.
- Cabinet Forge trade support assists with sizing, finish matching, and freight planning during quote review.
Frequently Asked Questions
Do these doors fit my existing wall cabinets?
They are sized for the Cabinet Forge frameless wall cabinet program. Send your cabinet codes with the quote and we confirm each pairing.
What glass is supplied?
Glass specification is confirmed during quote review so the lite matches your display and safety requirements.
Are hinges included?
Doors arrive pre-bored for the concealed hinge program; hinges are quoted alongside the door when needed.
Documents
- Type Cabinet Glass Door
- SKU CF-CAB-ACC-GLD-WG1230
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
