Cabinet Forge Pull-Out Trays
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

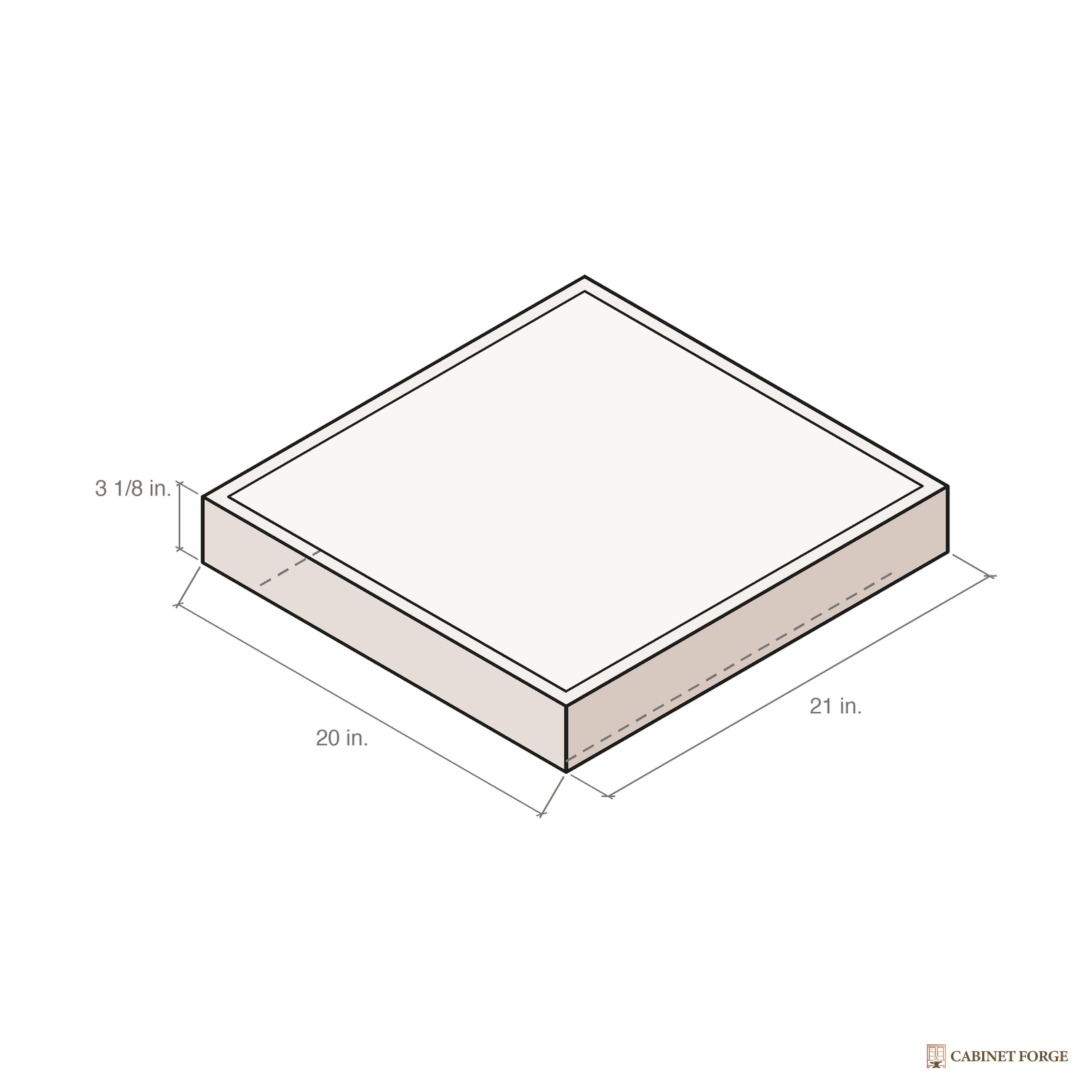

Trays run 3 1/8 in. tall and 21 in. deep, in seven widths that pair with base cabinet codes B18 through B36. Each unit is quoted with full-extension runners from our premium soft-close hardware program so the tray clears the door opening at full travel. Finished to match the Cabinet Forge door style program; the exact colorway is confirmed during quote review.
Highlights
- Rolling trays bring deep-cabinet contents fully into reach
- 3 1/8 in. sides keep tall items visible while containing spills and slides

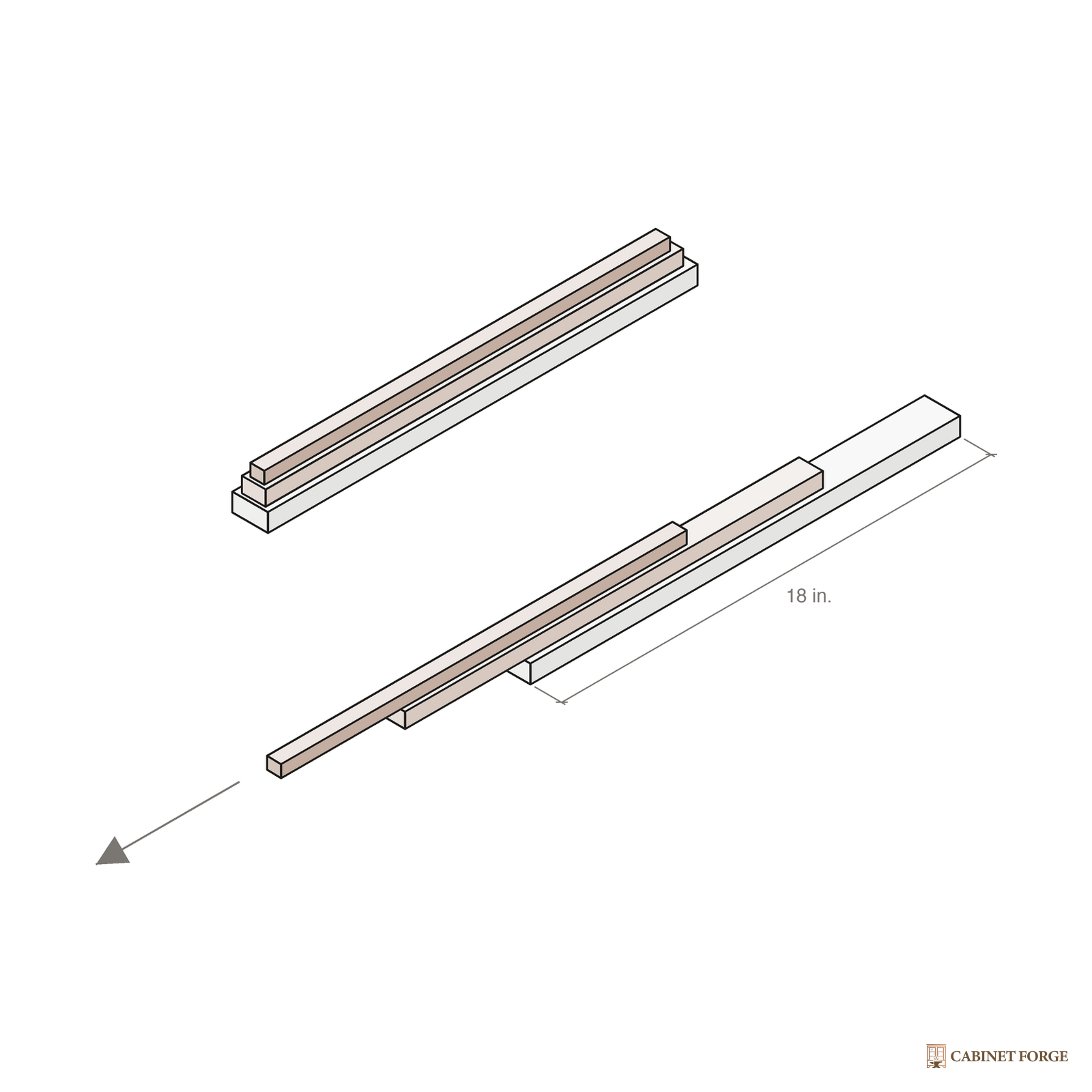

- Quoted with full-extension soft-close runners; hardware is confirmed during quote review
- Seven widths pair one-for-one with 18 to 36 in. base cabinets
Specification Table
| Tray height | 3 1/8 in. |
| Tray depth | 21 in. |
| Widths | 14 to 32 in., for 18 to 36 in. base cabinets |
| Runners | Full-extension, confirmed during quote review |
| Finish | Matched interior-grade finish |
Size Run
| Code | Width | Height | Depth |
|---|---|---|---|
| ROLL-OUT18 | 14 in. | 3 1/8 in. | 21 in. |
| ROLL-OUT21 | 17 in. | 3 1/8 in. | 21 in. |
| ROLL-OUT24 | 20 in. | 3 1/8 in. | 21 in. |
| ROLL-OUT27 | 23 in. | 3 1/8 in. | 21 in. |
| ROLL-OUT30 | 26 in. | 3 1/8 in. | 21 in. |
| ROLL-OUT33 | 29 in. | 3 1/8 in. | 21 in. |
| ROLL-OUT36 | 32 in. | 3 1/8 in. | 21 in. |
What Is Included
- Pull-out tray in the selected width
- Runner set and mounting screws
Installation and Assembly Notes
- Order by host cabinet code: a ROLL-OUT24 fits a 24 in. base cabinet with the door open through a full 90 degrees.
- Mount runners level and square to the cabinet front, then set the tray and confirm full travel before loading.
- Keep heavier items centered so the runners wear evenly.
Warranty and Support
- Warranty terms are confirmed during quote review.
- Cabinet Forge trade support assists with sizing, finish matching, and freight planning during quote review.
Frequently Asked Questions
Which tray fits my cabinet?
The code matches the host base cabinet width: ROLL-OUT18 for an 18 in. cabinet, up to ROLL-OUT36 for a 36 in. cabinet. We confirm pairings during quote review.
Do trays clear hinges and door edges?
Tray widths are undersized from the cabinet code to clear the door and hinge zone at full extension.
Can I add trays to an existing pantry?
Yes. The same trays serve base and tall pantry boxes; send interior clear widths with your quote request.
Documents
- Type Pull-Out Tray
- SKU CF-CAB-ACC-POT-RO18
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
