Cabinet Forge Toe Kicks and Moldings
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

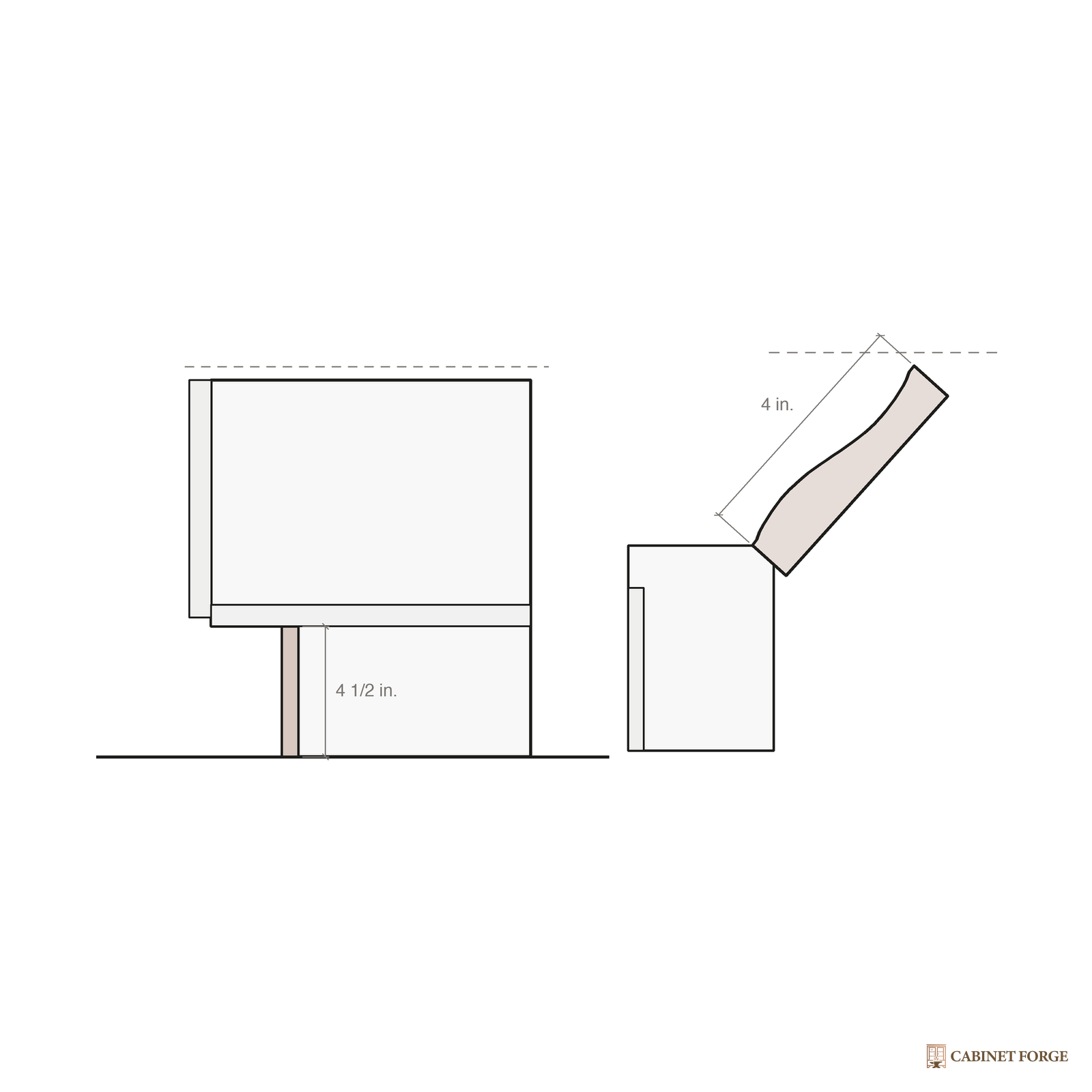

The program covers 4 1/2 in. toe kick in a thin 3/16 in. skin and a 3/4 in. dimensional version, crown molding in 2 in. and 4 in. face widths, 1 1/2 in. traditional light rail, plus outside corner, shoe, and scribe profiles for closing joints at walls and floors. Finished to match the Cabinet Forge door style program; the exact colorway is confirmed during quote review.
Highlights
- 96 in. continuous lengths keep splices out of sight lines
- 2 in. and 4 in. crown profiles scale from flat-top wall cabinets to full ceiling-height stacks
- Traditional light rail hides under-cabinet lighting behind a 1 1/2 in. face
- Scribe and shoe profiles close out-of-square walls and floors with a finished line
Specification Table
| Toe kick | 4 1/2 in. x 96 in. x 3/16 in. |
| Toe kick, dimensional | 4 1/2 in. x 96 in. x 3/4 in. |
| Crown molding | 2 in. and 4 in. face widths, 96 in. lengths |
| Light rail | 1 1/2 in. x 96 in. x 2 1/4 in. |

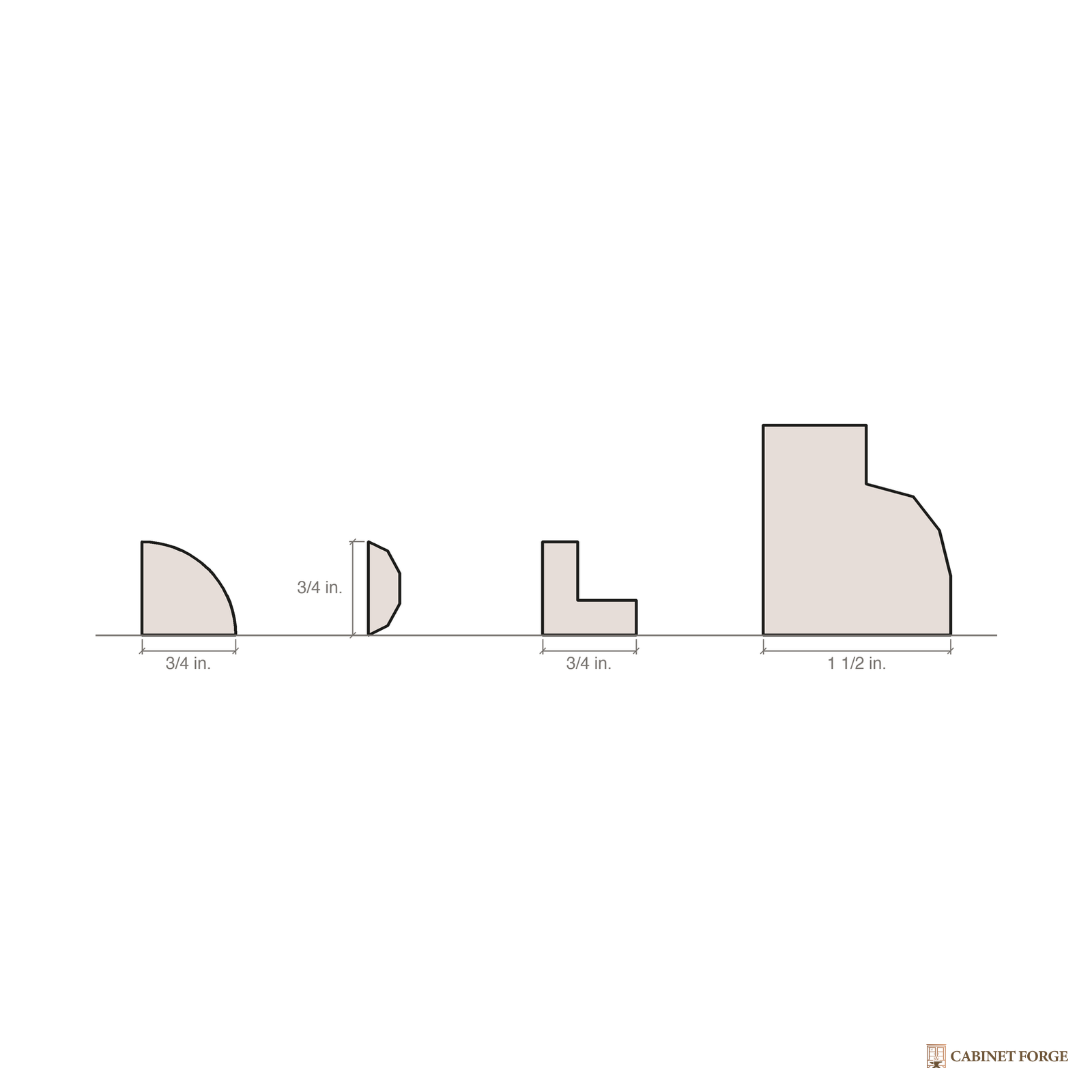

| Corner, shoe, scribe | 3/4 in. profiles, 96 in. lengths |
| Finish | Matched to the selected door style at quote |
Size Run
| Code | Width | Length | Thickness |
|---|---|---|---|
| TK8 | 4 1/2 in. | 96 in. | 3/16 in. |
| OCM8 | 3/4 in. | 96 in. | 3/4 in. |
| SHOE | 3/4 in. | 96 in. | 3/4 in. |
| TLR8 | 1 1/2 in. | 96 in. | 2 1/4 in. |
| CM 2 | 2 in. | 96 in. | 3/4 in. |
| CM 4 | 4 in. | 96 in. | 3/4 in. |
| SM8 | 3/4 in. | 96 in. | 1/4 in. |
| Molding | 4 1/2 in. | 96 in. | 3/4 in. |
| Toe Kick | 4 1/2 in. | 96 in. | 3/4 in. |
What Is Included
- Trim length in the selected profile and finish
Installation and Assembly Notes
- Cut crown and light rail with a miter saw set to the spring angle; test the angle on offcuts before committing finished stock.
- Fasten toe kick to the cabinet levelers or subbase with brads; keep fasteners low where the shoe molding will cover them.
- Cope inside corners on crown for a tight joint that stays closed through seasonal movement.
Warranty and Support
- Warranty terms are confirmed during quote review.
- Cabinet Forge trade support assists with sizing, finish matching, and freight planning during quote review.
Frequently Asked Questions
How much trim should I order?
Measure each run and round up to whole 96 in. sticks, then add one stick per profile for miter waste. Quote review includes a trim takeoff check.
Which crown size should I use?
The 2 in. profile suits standard wall cabinets with a small reveal to the ceiling; the 4 in. profile carries taller stacks and full-height built-ins.
Is the toe kick pre-finished?
Yes. Both toe kick versions arrive finished to the door style selected on your quote.
Documents
- Type Cabinet Trim
- SKU CF-CAB-ACC-TKM-TK8
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
