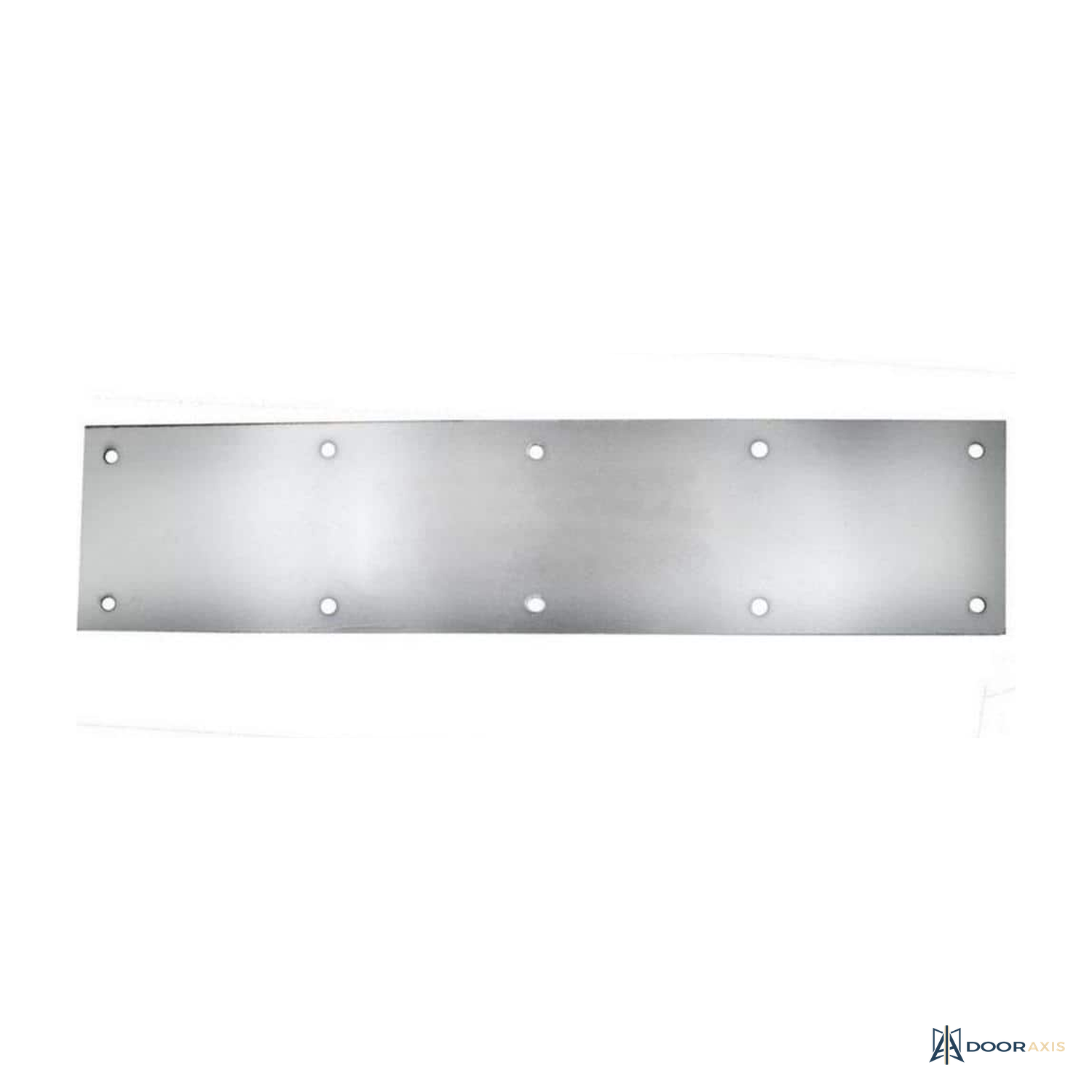

Door Axis 10 in x 34 in Aluminum Commercial Kick Plate
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
The Door Axis 10 in x 34 in Commercial Kick Plate shields the lower face of high-traffic doors with a aluminum panel sized for 36 in commercial openings. It serves offices, schools, and storefronts that need code-conscious door protection with a finished look.
The plate is cut from 16 gauge stock with a aluminum face and square-cut, non-beveled edges for a clean commercial line. Mounting is surface-applied with the included sheet metal screws, and the pattern conforms to ANSI J405 and A117.3 so it can be specified on accessibility-reviewed openings. At 10 in tall it covers the full kick zone against carts, feet, and floor equipment on a standard commercial door.
Highlights
- 10 in x 34 in coverage for 36 in commercial doors
- Satin aluminum face
- 16 gauge plate stock
- Square-cut edges, not beveled
- Surface mount with included sheet metal screws
Specification Table
| Function | Commercial kick plate |
| Plate size | 10 x 34 in |
| Thickness | 16 gauge |
| Material | Aluminum, 16 gauge |
| Finish | Aluminum |
| Edges | Square cut, not beveled |
| Mounting | Surface mount, screws included |
| Pack | 1 plate |
| Application | Commercial doors |
Included Components
- One aluminum kick plate
- Sheet metal mounting screws
Installation Notes

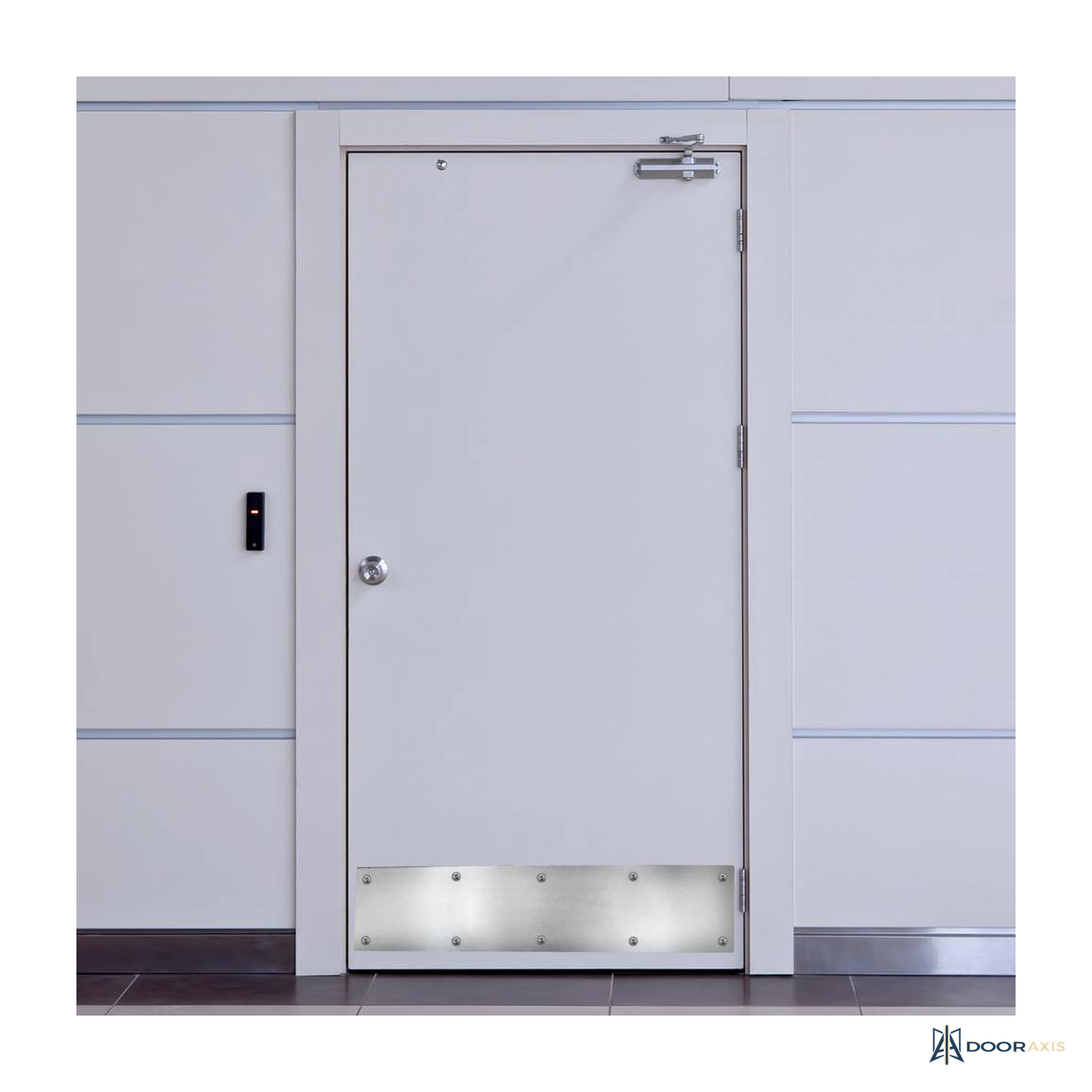

- Center the plate on the push side with equal reveals; keep the bottom edge just above the floor line or door sweep.
- Pre-drill pilot holes in metal-clad doors before driving the sheet metal screws.
- Plate width runs about 2 in less than door width so hinge and latch edges stay clear.
- Verify local accessibility requirements for plate height before installation.
Warranty and Support
- Coverage confirmed during quote review.
Frequently Asked Questions
What door width does the 34 in plate fit?
A 36 in commercial door. Kick plates run about 2 in narrower than the slab so the edges clear the stops; other widths are quoted on request.
Is the plate beveled?
No. The edges are square cut per the commercial pattern, which sits tight to the door face under a surface mount.
Is a brass finish available?
The same plate runs in a brass plated version on the supplying line; it is quoted on request.
Documents
- Type Kick Plate
- SKU DA-DR-HW-KPL-CMB
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
