Name: Door Axis 100 Series Aluminum Swing Entry Door, Divided Lite Glass
Brand: Door Axis
SKU: DA-DR-EXT-ALUSWING100-SD-PW

The Door Axis 100 Series Aluminum Swing Entry Door is a heavy 3.94 in (100 mm) frame swing entrance with divided lite glass for homes, offices, and commercial fronts. It serves projects that need a substantial glazed entry, single or paired, with the strength of thick walled aluminum stock.

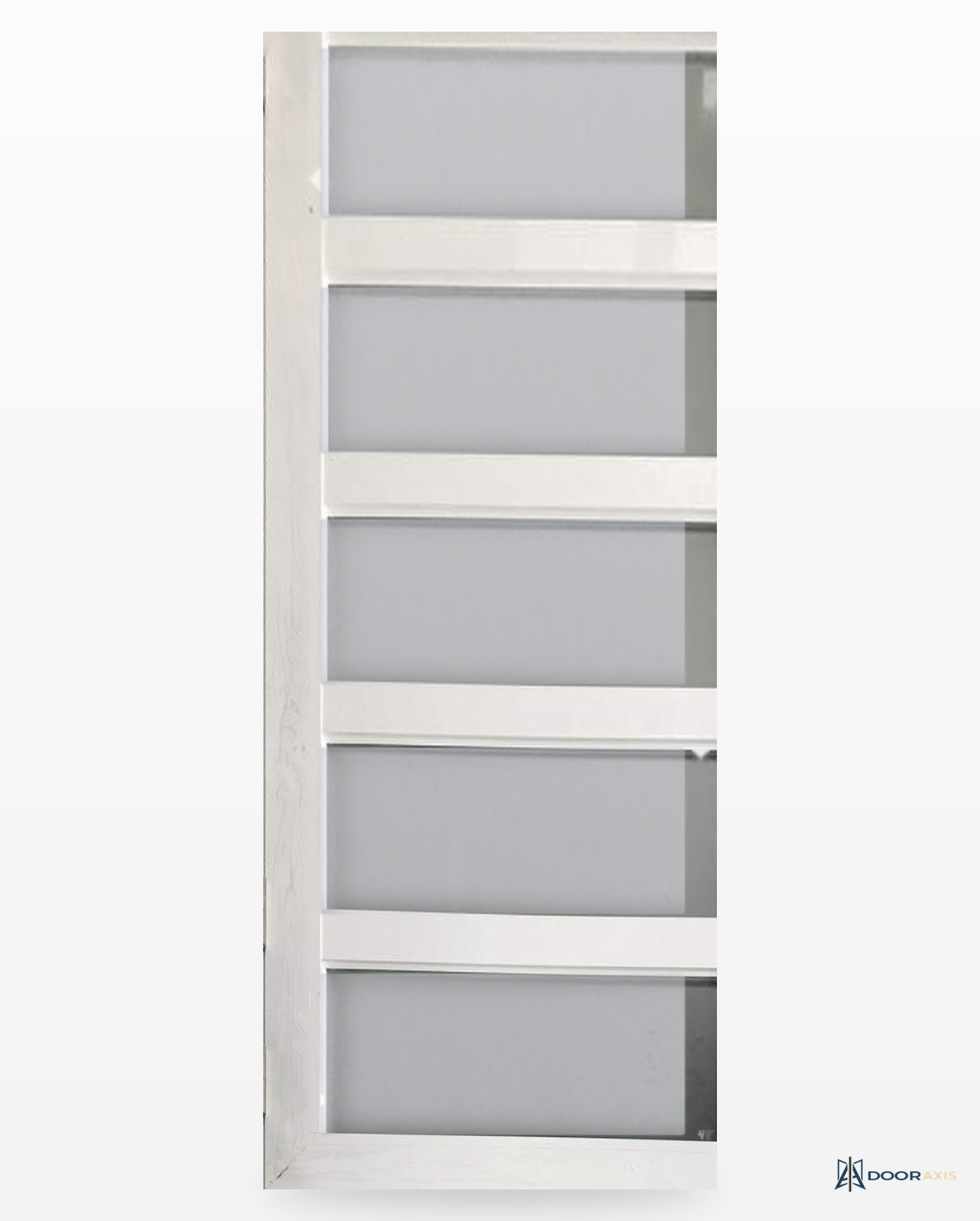

Built from heavy 100 series profile stock, the leaf carries divided lite glazing in a horizontal five lite layout with equal sight lines, hung on adjustable hinges with a mortise lockset and lever hardware. Single doors and double door pairs are both standard, with handing and swing direction confirmed at order. Each entry is fabricated to the opening at factory custom sizes and finished in one of eight standard PVDF fluorocarbon or woodgrain film colors, matching other Door Axis aluminum systems on the same project.

Highlights

Heavy 3.94 in (100 mm) aluminum frame stock
Divided lite glazing with equal sight lines
Single door and double door pair configurations
Mortise lockset with lever handles and keyed cylinder
Inswing or outswing, left or right handing confirmed at order
Factory custom sizing fabricated to the opening
Eight standard PVDF fluorocarbon and woodgrain film finishes

Specification Table

Configuration	Single door or double door pair
Leaf sizing	About 31.5 to 39.4 in (800 to 1000 mm) per leaf, factory custom; heights typically to 98.4 in (2500 mm); fabricated to opening size

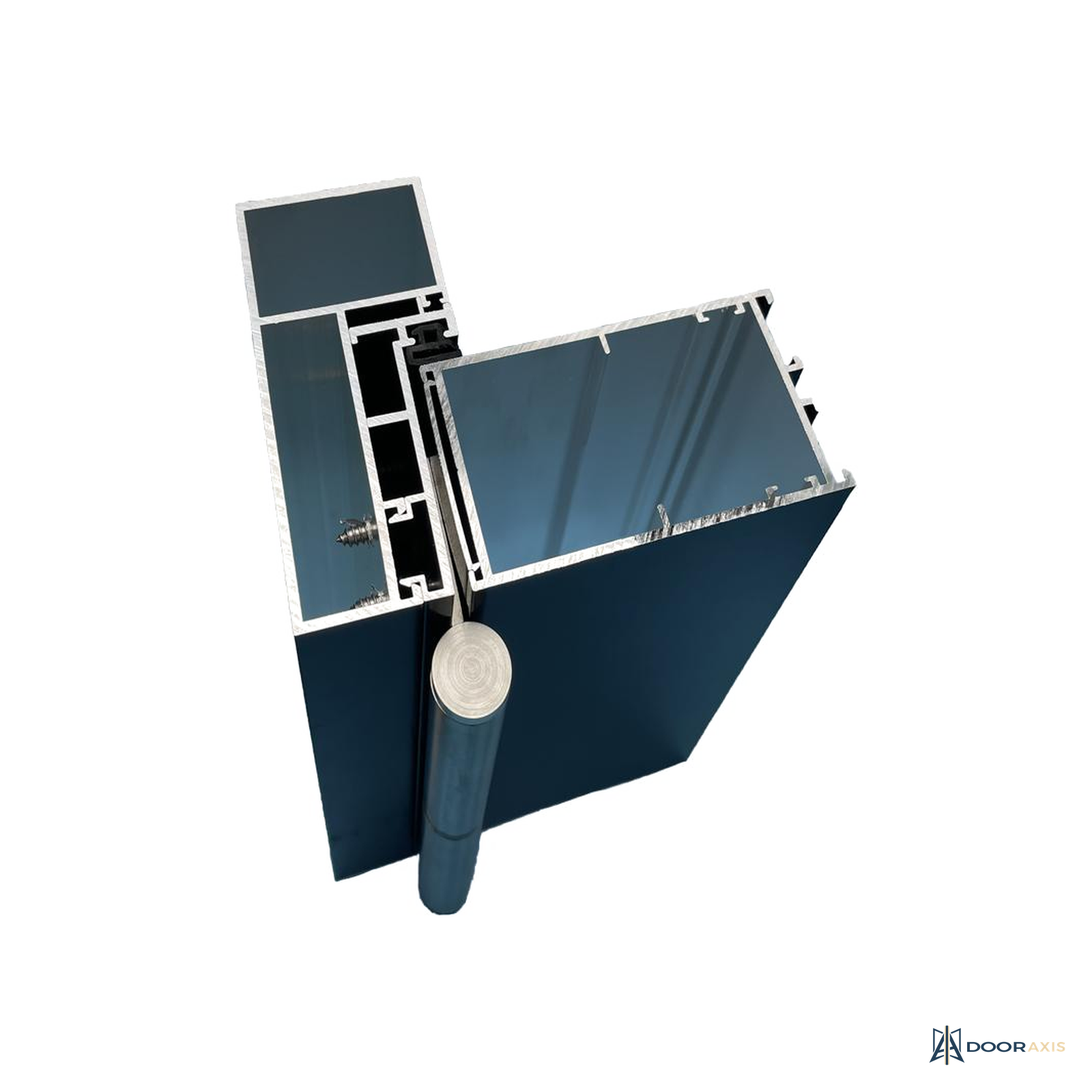

Frame section	3.94 in (100 mm)
Profile wall thickness	0.079 in (2.0 mm) standard configuration, confirmed during quote review
Material	Extruded aluminum, heavy profile stock
Glazing	Divided lite glass panels; tempered and insulated options quoted at review
Lite layout	Horizontal five lite layout shown by the factory; alternate layouts quoted
Handing	Inswing or outswing, left or right, confirmed at order
Hinges	Adjustable heavy duty hinges

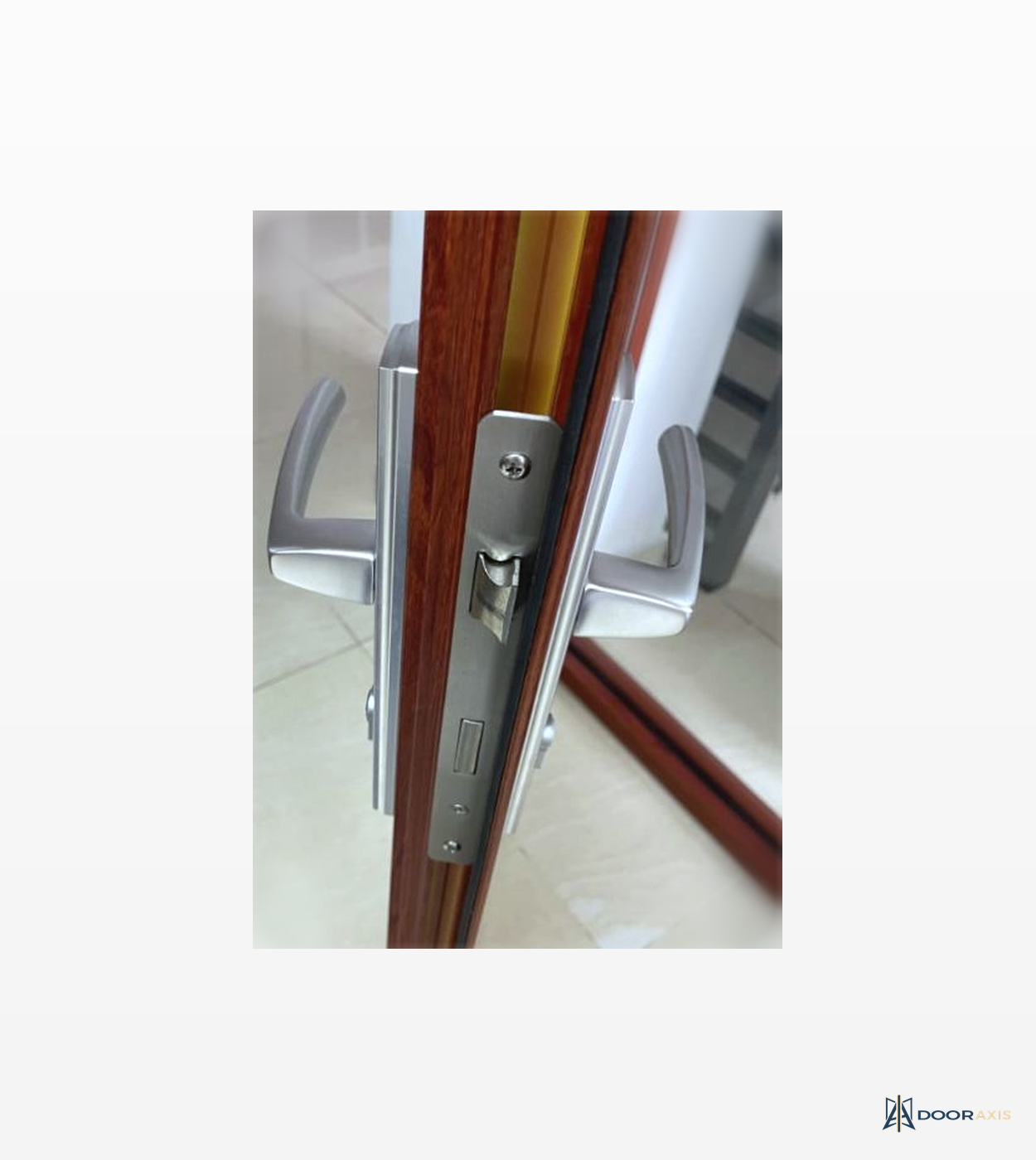

Hardware	Lever handle set, mortise lock body, keyed cylinder
Weatherstripping	Perimeter gaskets and bottom seal
Finish system	PVDF fluorocarbon and woodgrain film finishes in eight standard colors
Representative weight	About 310 lb (140.5 kg) as a single door at 37.4 x 90.6 in (engineering estimate)
Warranty	Confirmed during quote review

Included Components

Heavy aluminum frame set with weatherstripping
Glazed swing leaf or leaf pair, prehung with adjustable hinges
Lever handle set with mortise lock body, cylinder, and keys
Flush bolts for the standing leaf on double door pairs
Perimeter gaskets and bottom seal
Installation fasteners and shim guidance

Installation Notes

Verify the rough opening, header, and sill condition before release, and confirm handing from the push side.
On exterior openings install a sill pan and integrate flashing and waterproofing with the wall assembly.
Set the frame plumb, level, and square, shim at hinge points, and adjust for even reveals; check flush bolt engagement on pairs.
Installation should be completed by a licensed contractor.
Final leaf sizes, handing, and lite layout are confirmed during quote review.

Warranty and Support

Warranty coverage is confirmed during quote review before release.
Quote packages include hardware adjustment guidance and finish care notes.

Frequently Asked Questions

Can I order a pair with one active leaf?
Yes. Double door pairs are typically set up with an active leaf and a standing leaf on flush bolts, and both leaves can open for wide access. The setup is confirmed during quote review.

Is the five lite layout required?
No. The factory shows a horizontal five lite layout, and alternate divided lite layouts are quoted per project.

Which finishes are available?
Eight standard finishes: Sand Black, Sand Gray, Snow Gray, Pure White, Fluorocarbon Champagne, Red Cherry, Golden Oak, and Black Walnut, applied as PVDF fluorocarbon or woodgrain film over extruded aluminum.

Is this suitable for commercial entries?
Yes. The heavy 100 series stock suits commercial and residential entries. Code, accessibility, and glazing requirements for your jurisdiction are reviewed during quote review.
