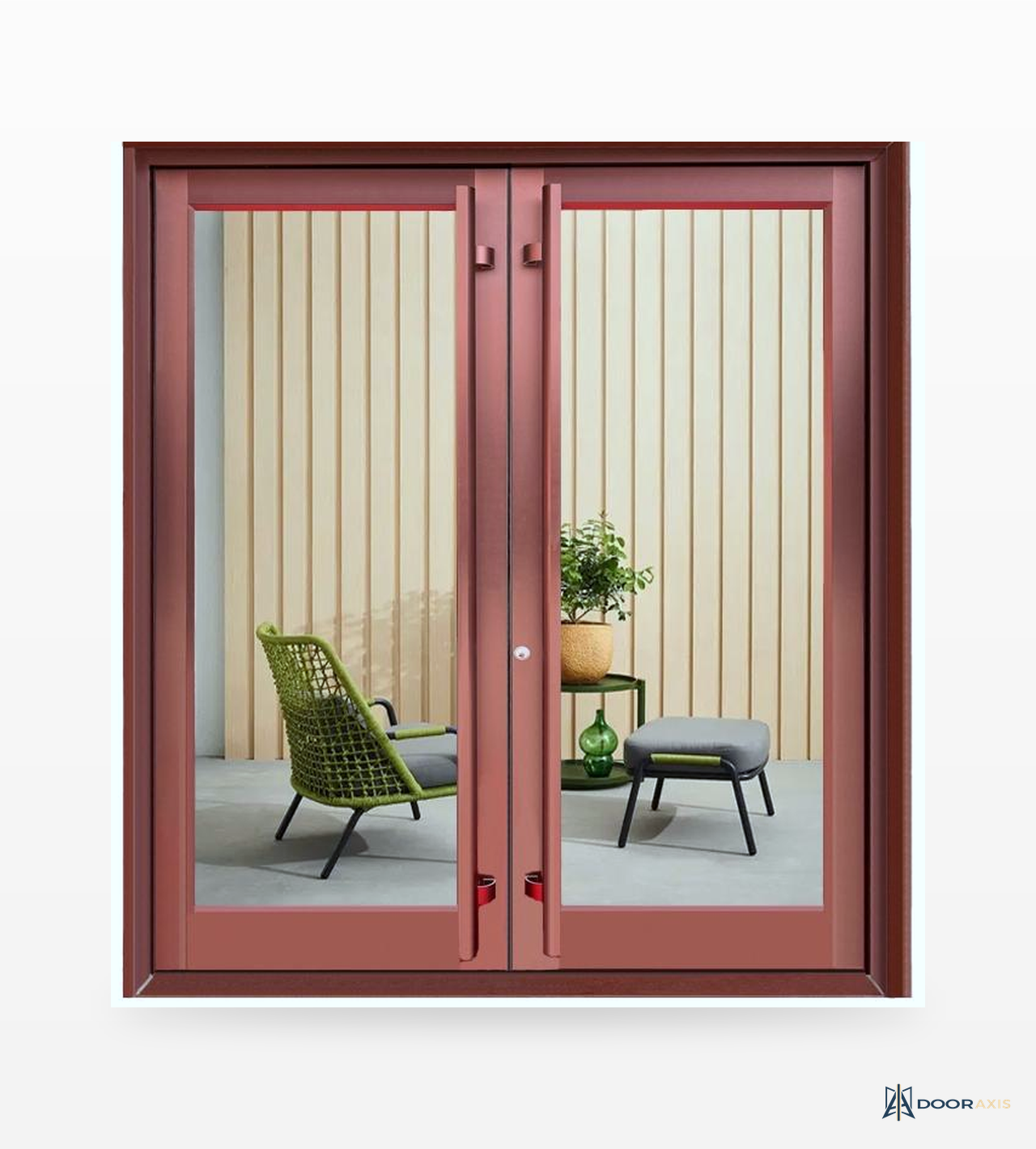

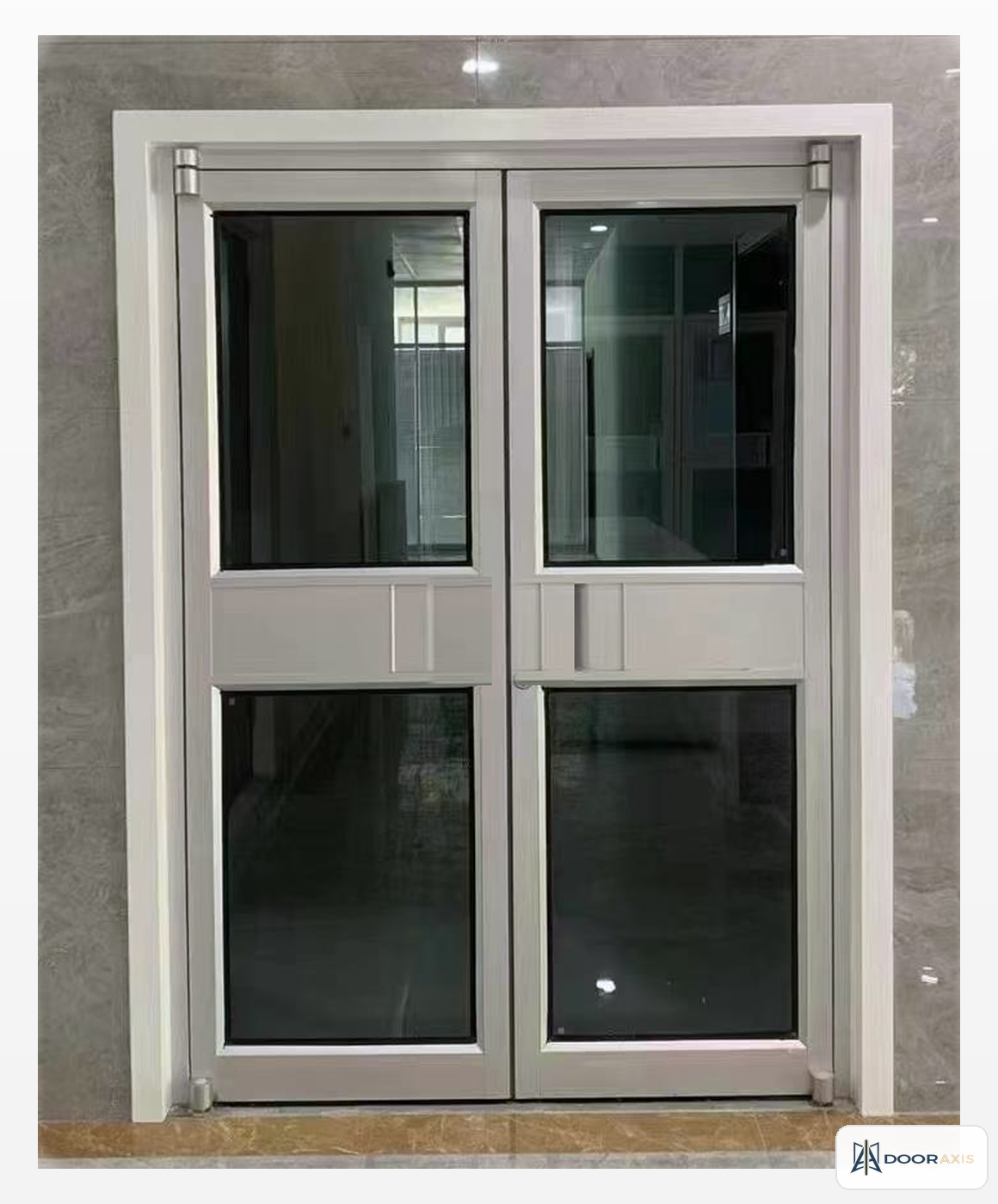

Door Axis 100 Series Commercial Glass Entry Door with Floor Closer

The Door Axis 100 Series Commercial Glass Entry Door with Floor Closer is a storefront entrance that swings on hydraulic floor spring pivots and closes itself with a controlled, adjustable action. It serves shops, offices, lobbies, and restaurants that want a full lite aluminum entry with clean lines and no overhead closer arm.

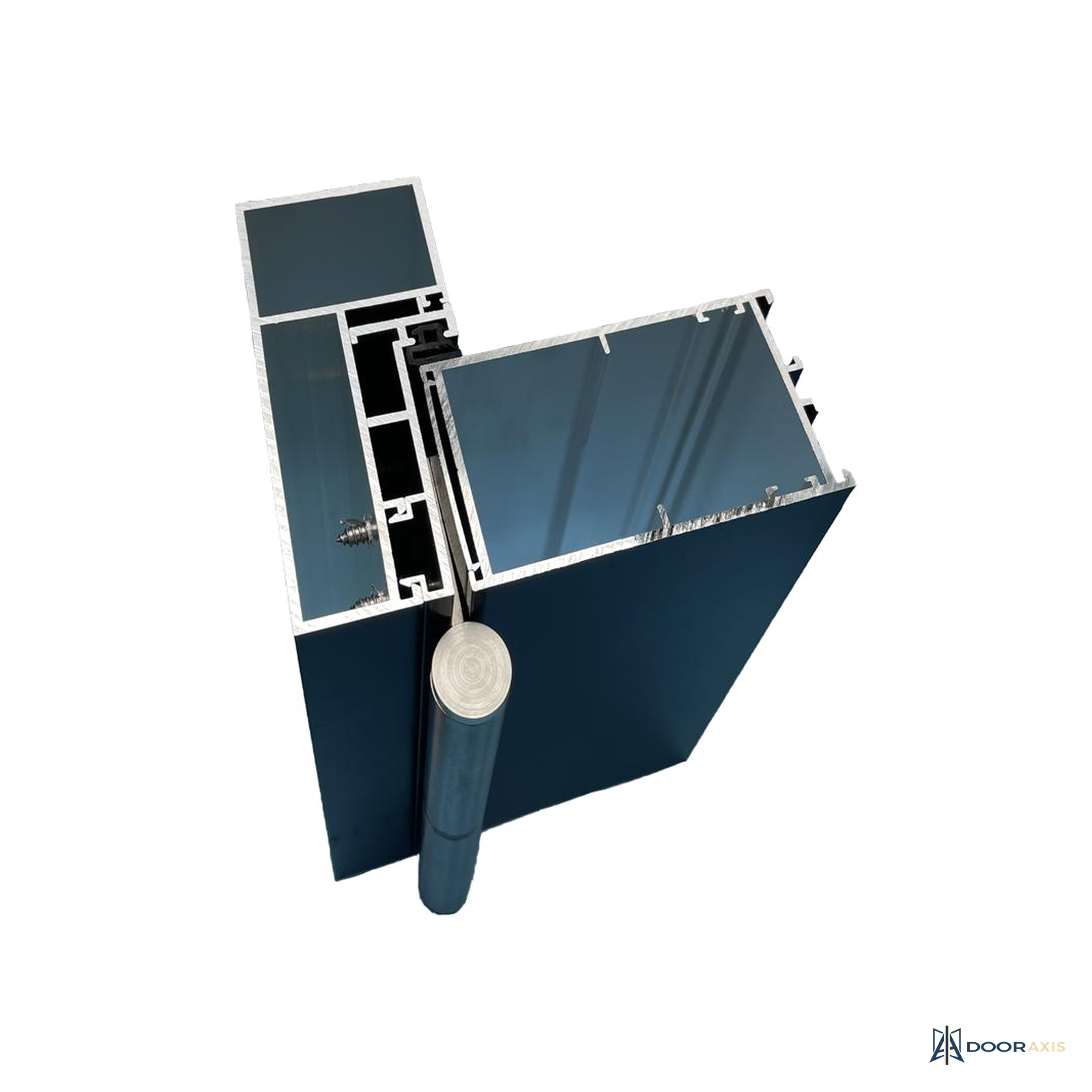

Each leaf is framed in heavy 3.94 in (100 mm) aluminum stock around full lite tempered or insulated glass and pivots on a concealed hydraulic floor spring set into the slab, allowing double acting swing in both directions with hold open positions per the closer setting. Single doors and double door pairs are standard, dressed with pull handles and a floor level lock. Every entrance is fabricated to the opening size and finished in one of eight standard PVDF fluorocarbon or woodgrain film colors.

Highlights

• Hydraulic floor spring pivots with controlled, adjustable closing
• Double acting swing with no overhead closer arm
• Heavy 3.94 in (100 mm) aluminum frame stock
• Full lite tempered or insulated glass
• Single door and double door pair configurations
• Pull handles and floor level lock included
• Eight standard PVDF fluorocarbon and woodgrain film finishes

Specification Table

Included Components

• Aluminum door leaf or leaf pair with full lite glazing
• Hydraulic floor spring pivot set per leaf, with cement case
• Top pivot and cover plates
• Pull handle set and floor level lock
• Perimeter frame with brush seals
• Installation fasteners and setting templates

Installation Notes

• Verify floor construction and flatness before release; the floor spring cement case requires slab depth and a level set at the pivot point.
• Coordinate the floor spring box pour or core drill with the flooring schedule before finished flooring goes down.
• Set frame and top pivots plumb over the floor spring axis, then adjust closing speed and latch action after glazing.
• Integrate waterproofing at the threshold on exterior entrances.
• Installation should be completed by a licensed contractor experienced with floor closer entrances.

Warranty and Support

• Warranty coverage is confirmed during quote review before release.
• Quote packages include hardware adjustment guidance and finish care notes.

Frequently Asked Questions

Why choose a floor closer over an overhead closer?
The closer sits concealed in the floor, so the entrance reads as clean glass and aluminum with no overhead arm, and the door can swing in both directions with a controlled close.

What does the floor need?
The hydraulic spring sets in a cement case in the slab, so the pivot area needs adequate slab depth, level bearing, and coordination with finished flooring. Site conditions are reviewed during quote review.

Can both leaves of a pair be active?
Yes. Pairs ship with a floor spring per leaf so both leaves swing and self close independently.

Which finishes are available?
Eight standard finishes: Sand Black, Sand Gray, Snow Gray, Pure White, Fluorocarbon Champagne, Red Cherry, Golden Oak, and Black Walnut, applied as PVDF fluorocarbon or woodgrain film over extruded aluminum.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
