Door Axis 115 Degree Solid Brass Door Viewer, Bright Brass
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
The Door Axis 115 Degree Door Viewer is a solid brass entry viewer in a bright brass finish for standard residential doors. It adds visitor identification to any entry at the cost of a single half-inch bore.

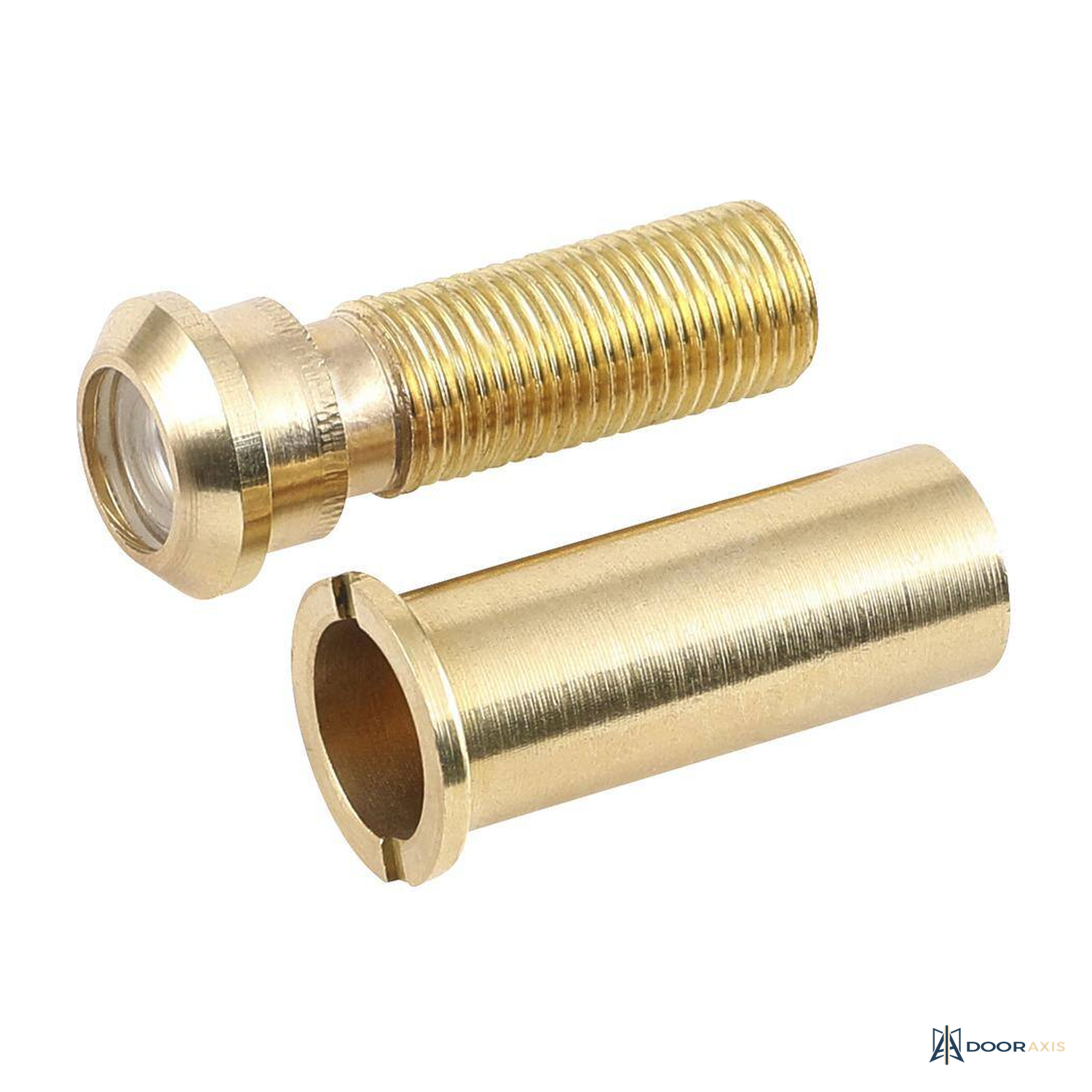

The barrel and trim are solid brass with a 1/2 in diameter housing that installs through a 0.5 in bore. The two-piece body threads together to fit doors from 5/8 in to 1-7/8 in thick, which covers standard entry slabs plus thinner shop and utility doors. The 115 degree field shows the caller and the near landing.
Highlights
- 115 degree viewing field
- Solid brass construction, bright brass finish
- 1/2 in diameter housing
- Fits doors 5/8 in to 1-7/8 in thick
- Fasteners included, two-piece threaded install
Specification Table
| Function | Door viewer |
| Viewing angle | 115 degrees |
| Bore | 0.5 in |
| Housing | 1/2 in diameter |
| Door thickness | 0.625 to 1.875 in |
| Material | Solid brass |
| Finish | Bright Brass |
| Application | Residential entry doors |
Included Components
- One solid brass door viewer
Installation Notes
- Mount at eye height for the primary user.
- Drill the bore straight; a square bore keeps the image centered.
- Snug the two halves by hand from both faces.
Warranty and Support
- Coverage confirmed during quote review.
Frequently Asked Questions
Are other finishes available?
The product line also runs aged bronze and satin nickel, quoted on request; bright brass is stocked.
Documents
- Type Door Viewer
- SKU DA-DR-HW-VWR-STD
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
