Name: Door Axis 120 Series Wide Frame Aluminum Sliding Patio Door, Insulated Glass
Brand: Door Axis
SKU: DA-DR-PAT-SLIDE120-2T-2P-14-GO

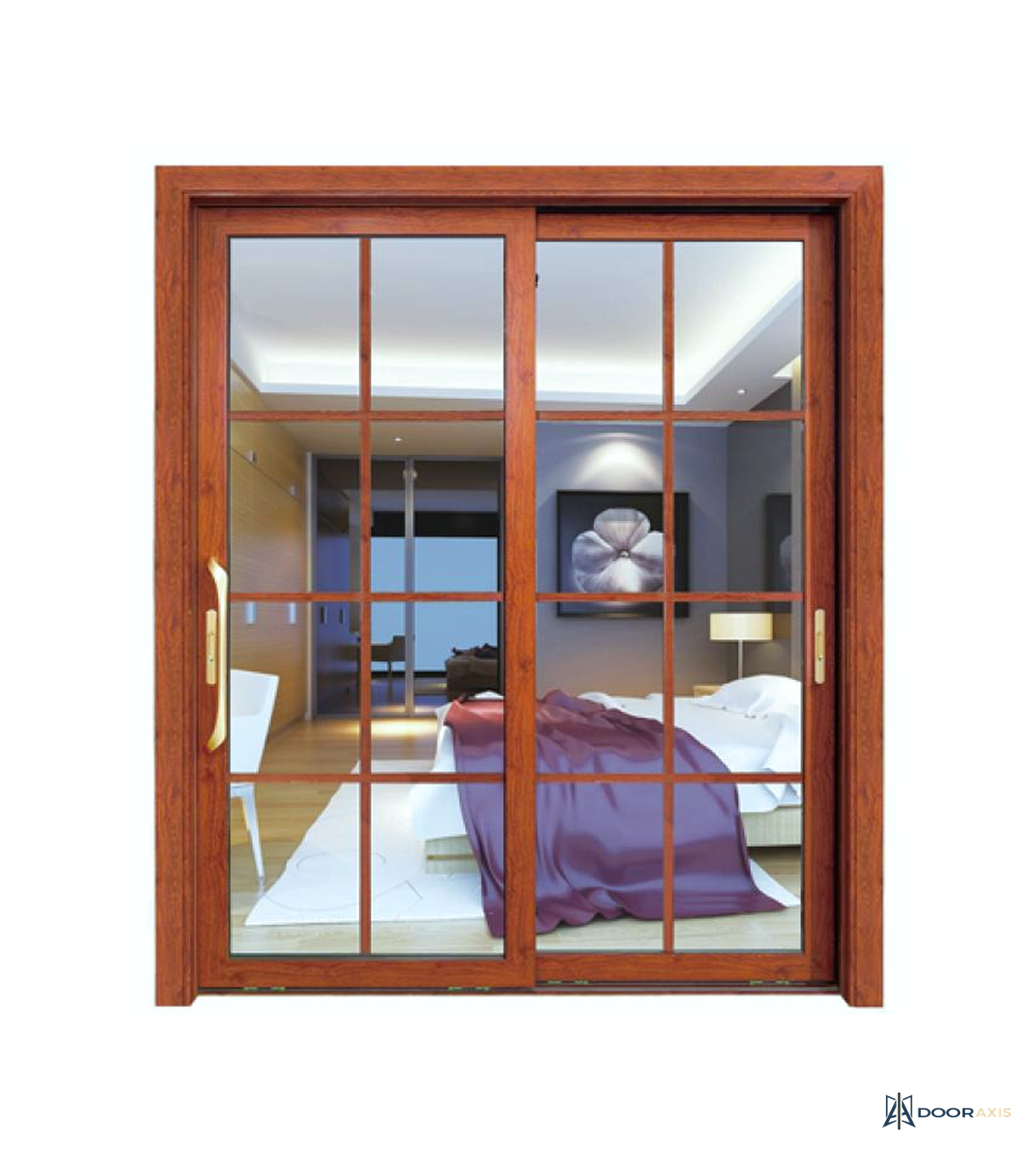

The Door Axis 120 Series Wide Frame Aluminum Sliding Patio Door pairs a deep 4.72 in (120 mm) frame with a 3.23 in (82 mm) panel section for patio spans and wide interior room dividers. It serves projects that want a substantial two track slider with a 25 mm glass groove, woodgrain or solid color finishes, and an optional grille-in-glass look.

The wide frame carries 2-panel, 3-panel, and 4-panel OXXO layouts on stainless tandem rollers with a 1.26 in (32 mm) interlock and a 1.97 in (50 mm) top section. Insulated double glazing seats in a 0.98 in (25 mm) groove, and a grille-in-glass colonial pattern is quoted on request. The same platform works as an exterior patio slider or an interior divider between living and sleeping spaces. Every system is fabricated to the opening size with a 1.4 mm or 1.6 mm profile wall and one of eight standard finishes.

Highlights

Deep 4.72 in (120 mm) frame with 3.23 in (82 mm) panel section
2-panel, 3-panel, and 4-panel OXXO layouts
Profile wall choice of 0.055 in (1.4 mm) or 0.063 in (1.6 mm)
Insulated double glazing in a 0.98 in (25 mm) groove
Grille-in-glass colonial option quoted on request
Works as a patio slider or interior room divider
Eight standard PVDF fluorocarbon and woodgrain film finishes

Specification Table

Configuration	2-panel, 3-panel, or 4-panel OXXO (viewed from exterior)
System sizing	Factory custom to the opening; 4-panel systems around 126 in wide shown; fabricated to opening size
Typical system widths	About 102 in (2-panel), 126 in (4-panel OXXO), and 154 in (3-panel)
Frame section	4.72 in (120 mm), two track

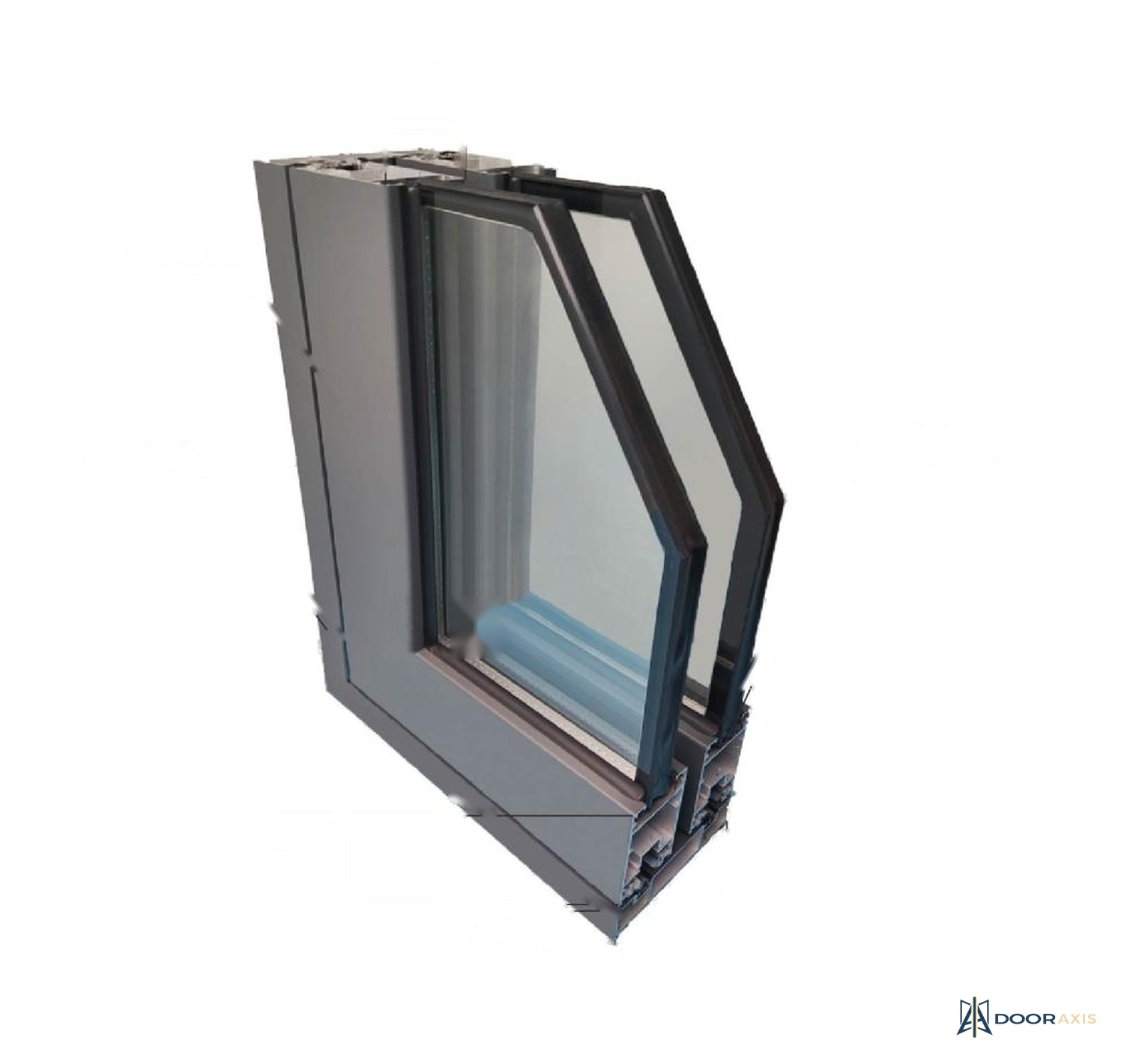

Panel section	3.23 in (82 mm); interlock 1.26 in (32 mm); top section 1.97 in (50 mm)
Profile wall thickness	0.055 in (1.4 mm) or 0.063 in (1.6 mm), selected at order
Material	Extruded aluminum profiles
Glazing	Insulated double glazing, 0.98 in (25 mm) glass groove; Low-E and grille-in-glass options quoted on request
Rollers	Stainless tandem rollers, adjustable
Hardware	Flush sliding locks and pull handles, finished to match
Application	Exterior patio openings and interior room dividers
Finish system	PVDF fluorocarbon and woodgrain film finishes in eight standard colors
Representative weight	About 606 lb (275 kg) as a 2-panel 1.4 mm system at 51.2 x 90.6 in panels (engineering estimate)
Warranty	Confirmed during quote review

Included Components

Wide two track aluminum frame set with sill and head
Sliding and fixed panel set with insulated glazing
Stainless tandem rollers, factory fitted and adjustable
Flush sliding lock and pull hardware
Interlock gaskets, brush seals, and weatherstripping
Installation fasteners and shim guidance

Installation Notes

Verify the rough opening, header deflection, and sill support before release; wide frames need continuous, level bearing.
Install a sill pan and integrate flashing and waterproofing with the wall assembly on exterior openings.
Set the frame plumb, level, and square, then adjust rollers so panels glide and interlocks seat evenly.
Installation should be completed by a licensed contractor.
Confirm layout, grille option, and interior versus exterior use during quote review.

Warranty and Support

Warranty coverage is confirmed during quote review before release.
Quote packages include hardware adjustment guidance and finish care notes.

Frequently Asked Questions

Can this be used as an interior divider?
Yes. The factory shows the platform both as an exterior patio slider and as an interior divider between rooms. Interior use is confirmed during quote review so glazing and sill are matched to the job.

What does the OXXO layout do?

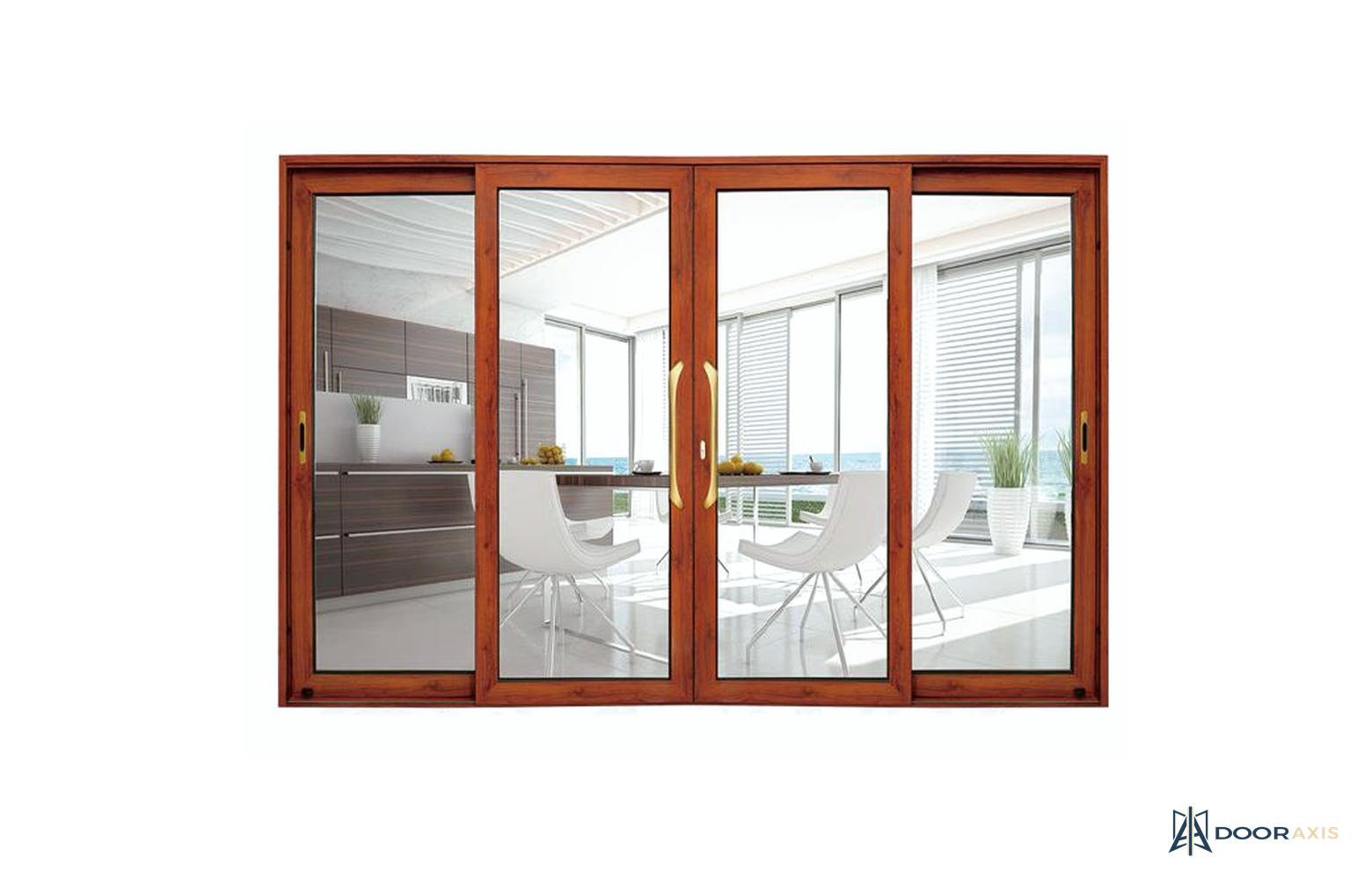

Viewed from outside, the two center panels slide and meet in the middle while the outer panels are fixed, opening the center of the span.

Which finishes are available?
Eight standard finishes: Sand Black, Sand Gray, Snow Gray, Pure White, Fluorocarbon Champagne, Red Cherry, Golden Oak, and Black Walnut, applied as PVDF fluorocarbon or woodgrain film over extruded aluminum.

Is the grille pattern removable?
The colonial pattern is a grille-in-glass option built between the panes, so it never needs cleaning and cannot be removed after fabrication. It is quoted on request.
