Name: Door Axis 190 Series Aluminum Multi-Slide Door Wall System, Insulated Glass
Brand: Door Axis
SKU: DA-DR-PAT-SLIDE190-MS-LF-SB

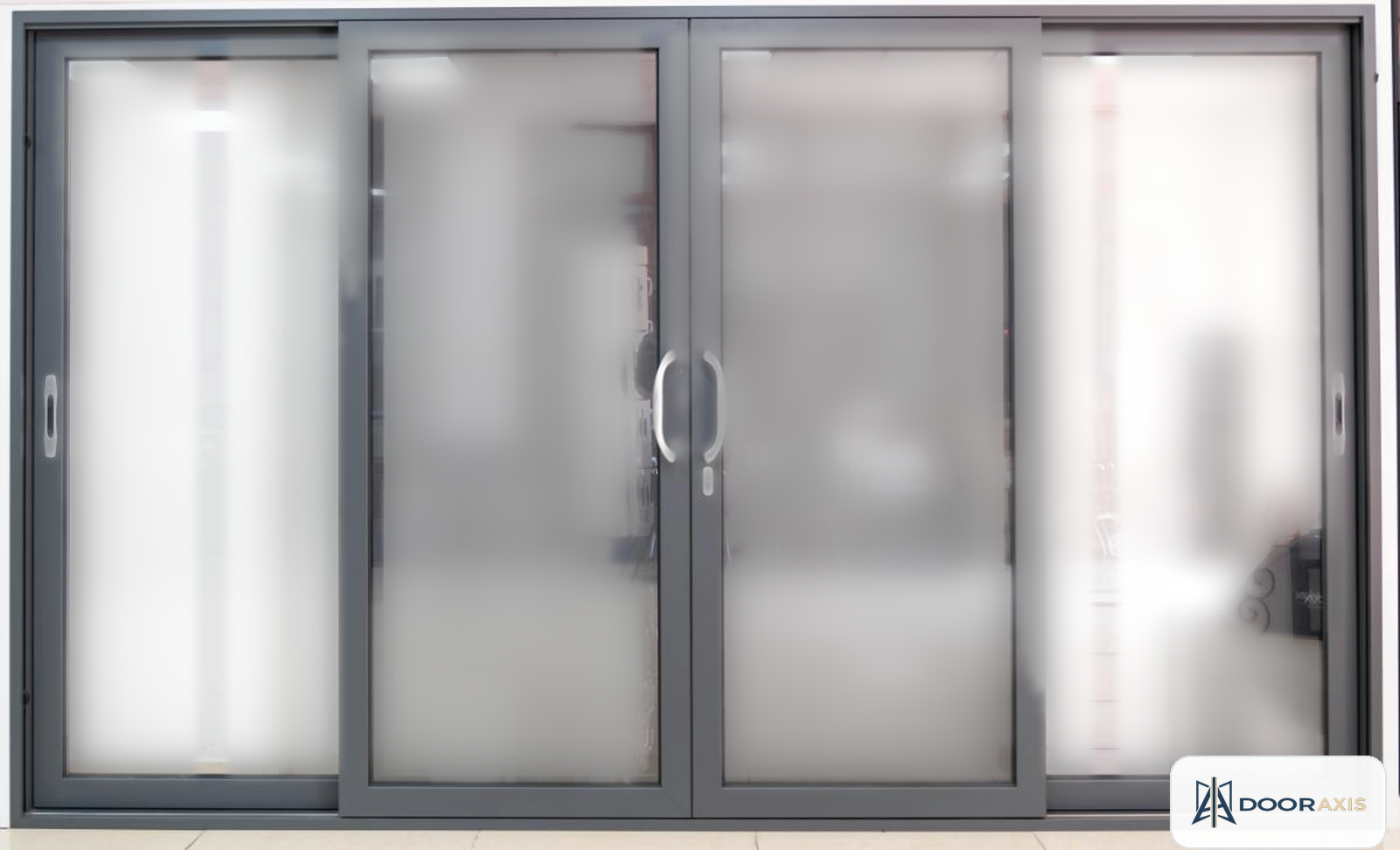

The Door Axis 190 Series Aluminum Multi-Slide Door Wall System is a three track platform for panoramic glass walls, with panels that slide and stack for openings well beyond standard patio doors. It serves custom homes, indoor outdoor living projects, and hospitality spaces that want a configured door wall with a track profile matched to the exposure.

The platform runs on a 7.48 in (190 mm) three track frame with 3.23 in (82 mm) panels riding stainless tandem four wheel bogies (0.85 x 1.56 in, 21.5 x 39.5 mm) for smooth movement at large panel sizes. Three track profiles are offered: a low flat track for the cleanest floor transition, a high flat track for stronger weather separation, and a high flat track with water dam for exposed, rain driven elevations. Panel runs of 3, 4 with screen leaves, and 6 panels are configured per project during quote review, with insulated double glazing in a 25 mm groove and eight standard finishes.

Highlights

7.48 in (190 mm) three track frame for multi-slide door walls
3-panel, 4-panel with screen leaves, and 6-panel runs configured per project
Track options: low flat, high flat, or high flat with water dam
Stainless tandem four wheel bogies, 0.85 x 1.56 in (21.5 x 39.5 mm)

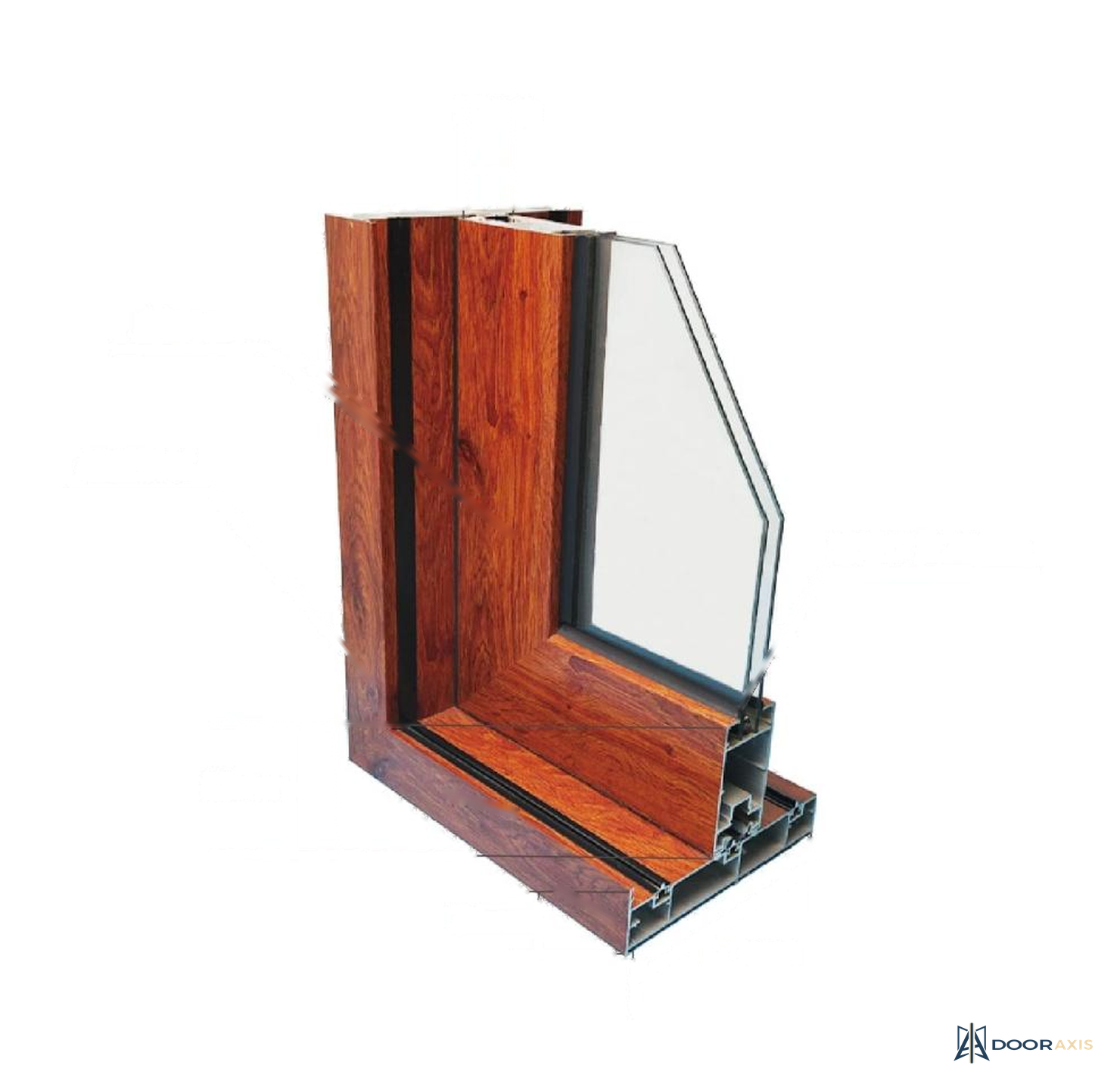

3.23 in (82 mm) panel section with insulated double glazing
Dedicated handle, lock, and track hardware set
Eight standard PVDF fluorocarbon and woodgrain film finishes

Specification Table

Platform	Multi-slide door wall, configured per project during quote review
Configuration runs	3-panel, 4-panel with screen leaves, or 6-panel multi-slide
System sizing	Large openings; typical configured widths of about 142 to 283 in; fabricated to opening size
Frame section	7.48 in (190 mm), three track
Panel section	3.23 in (82 mm)
Profile wall thickness	0.063 in (1.6 mm) or 0.079 in (2.0 mm) standard configuration, confirmed during quote review
Track options	Low flat track; high flat track; high flat track with water dam
Rollers	Stainless tandem four wheel bogies, 0.85 x 1.56 in (21.5 x 39.5 mm)
Material	Extruded aluminum profiles
Glazing	Insulated double glazing, 0.98 in (25 mm) glass groove; Low-E options quoted on request
Hardware	Dedicated multi-slide handle, flush lock, and track accessory set
Finish system	PVDF fluorocarbon and woodgrain film finishes in eight standard colors
Representative weight	About 1032 lb (468 kg) as a 3-panel run at 47.2 x 102.4 in panels (engineering estimate)
Warranty	Confirmed during quote review

Included Components

Three track aluminum frame set with selected track profile
Configured sliding panel run with insulated glazing
Screen leaves where the configured run includes them
Stainless tandem four wheel bogies, factory fitted
Multi-slide handle, flush lock, and track accessory set
Interlock gaskets, brush seals, and weatherstripping
Installation fasteners and shim guidance

Installation Notes

Verify the structural header and continuous sill support before release; door walls of this scale need engineered head deflection limits.
Install a sill pan and integrate flashing and waterproofing with the wall assembly; specify the water dam track on exposed elevations.
Set the frame plumb, level, and square, then adjust bogies so panels glide and interlocks seat across the full run.
Installation should be completed by a licensed contractor experienced with multi-slide door walls.
Panel run, stacking layout, screen leaves, and track profile are configured during quote review.

Warranty and Support

Warranty coverage is confirmed during quote review before release.
Quote packages include hardware adjustment guidance and finish care notes.

Frequently Asked Questions

How do I order a specific panel layout?
This is a configured platform. Share the opening size and how you want panels to stack, and the 3, 4, or 6 panel run is engineered and confirmed during quote review.

Which track should I choose?
The low flat track gives the cleanest floor transition for covered openings. The high flat track improves weather separation, and the water dam version is for exposed, rain driven elevations.

Can it include screens?

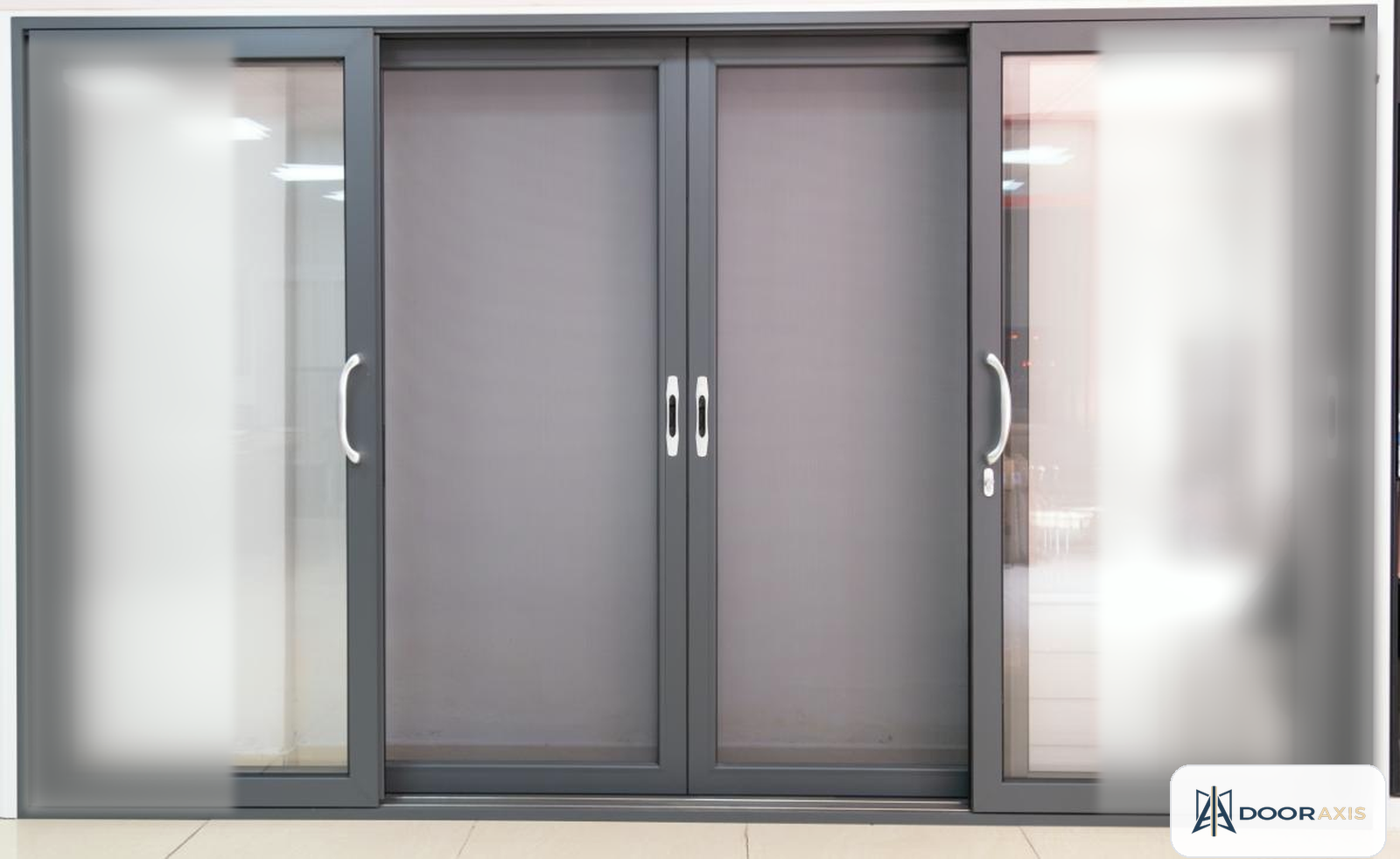

Yes. The factory shows 4-panel runs with dedicated screen leaves, and screen positions are configured with the run during quote review.

Which finishes are available?
Eight standard finishes: Sand Black, Sand Gray, Snow Gray, Pure White, Fluorocarbon Champagne, Red Cherry, Golden Oak, and Black Walnut, applied as PVDF fluorocarbon or woodgrain film over extruded aluminum.
