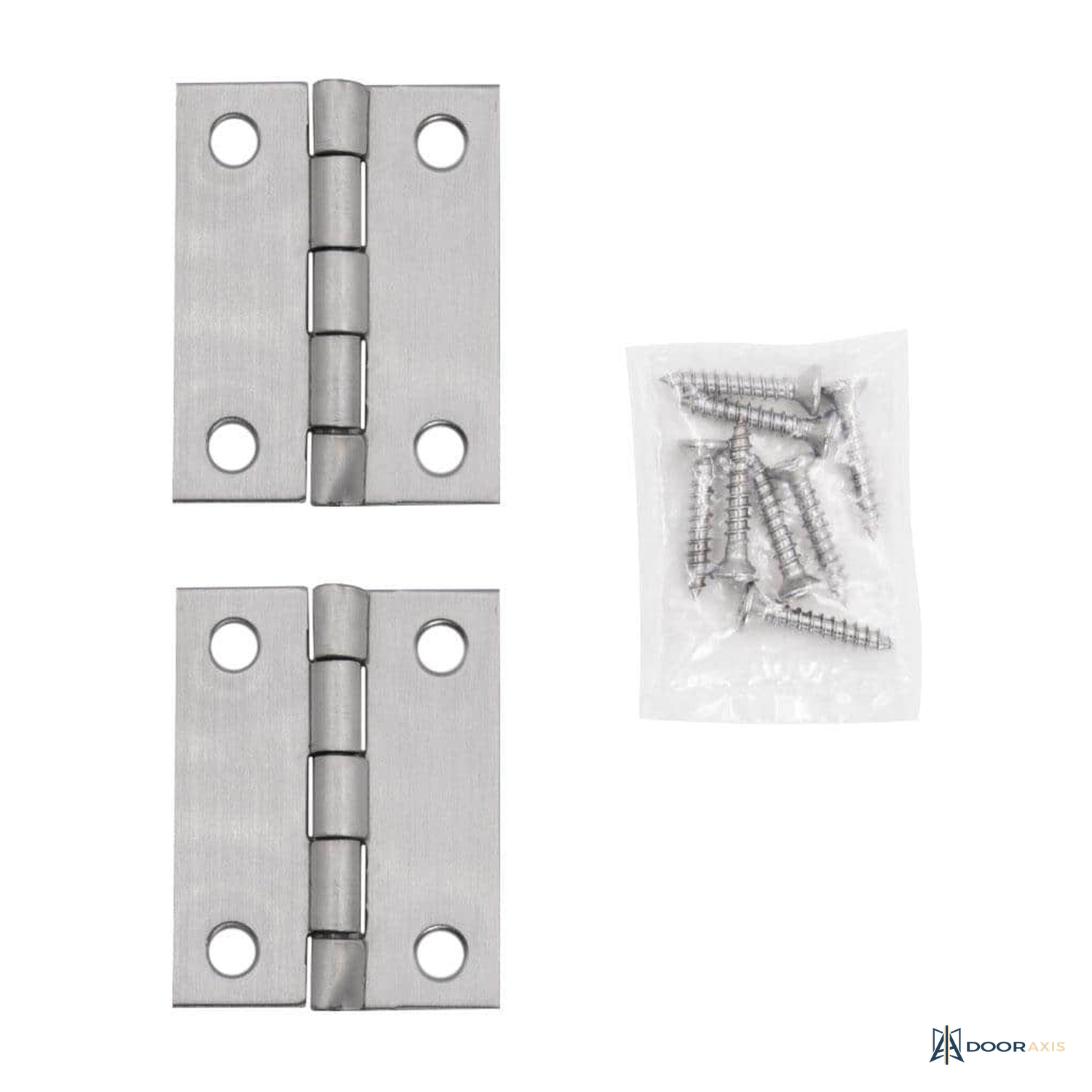

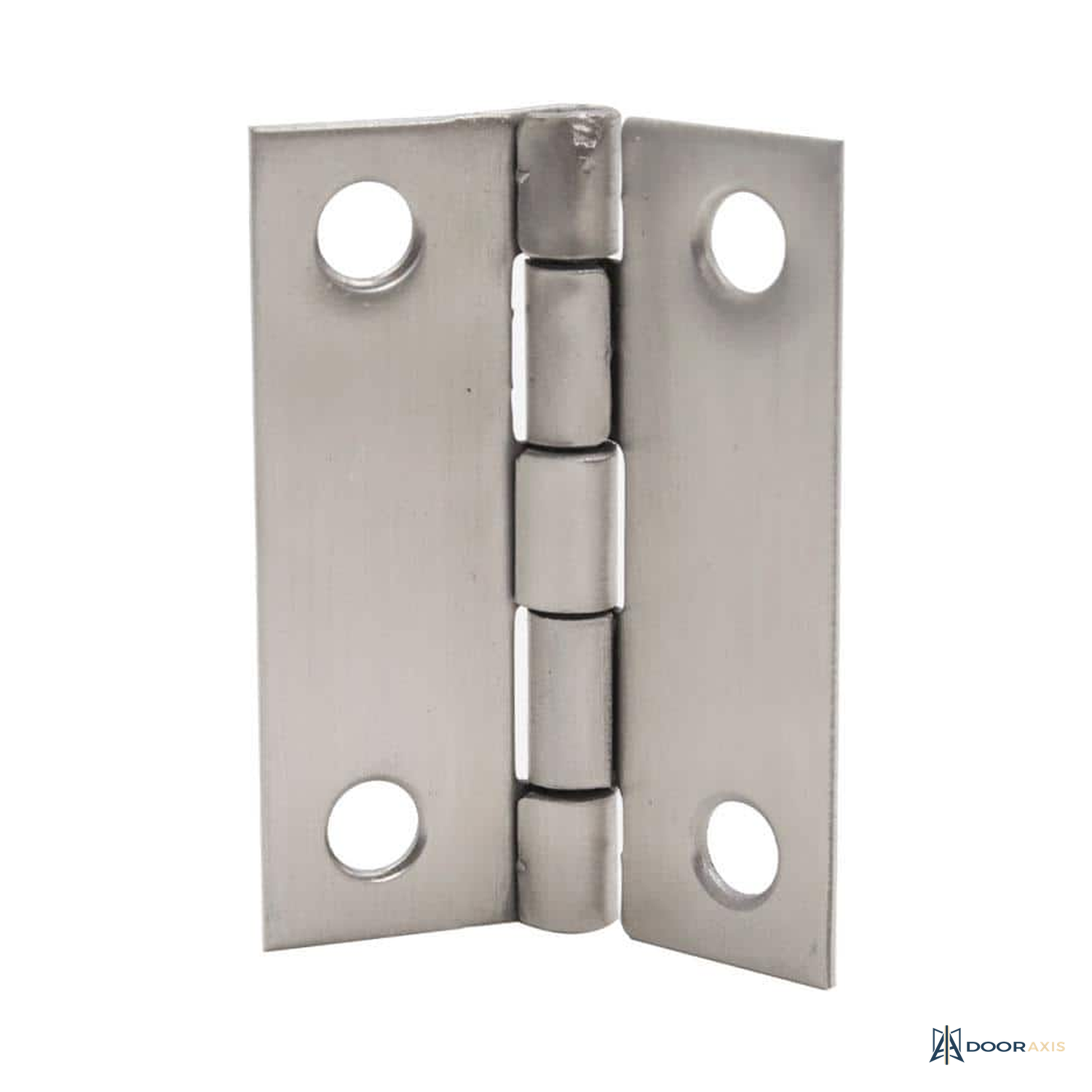

Door Axis 2 in Narrow Butt Hinge, Non-Removable Pin, Stainless Steel, 2-Pack
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
The Door Axis 2 in Narrow Butt Hinge serves cabinet doors, gates, hatches, and utility doors where a compact stainless hinge with a tamper-resistant fixed pin is needed. Sold as a 2-Pack in full stainless steel.
The narrow 1-1/2 in open width fits tight stiles and frames that full-size door hinges overhang. Stainless construction shrugs off exterior exposure, and the non-removable pin keeps the joint captive on outward-facing installations. Square corners drop into chiseled mortises or surface-mount onto flat frames.
Highlights
- Compact 2 x 1-1/2 in leaf for narrow stiles and utility doors
- Full stainless steel for exterior service
- Non-removable pin resists tampering
- Square corners suit chiseled mortises or surface mounting
- Sold as a 2-Pack with fasteners
Specification Table
| Function | Narrow butt hinge, non-removable pin |
| Leaf size | 2 in H x 1-1/2 in W open |
| Corner | Square, no radius |
| Pin | Fixed, non-removable |

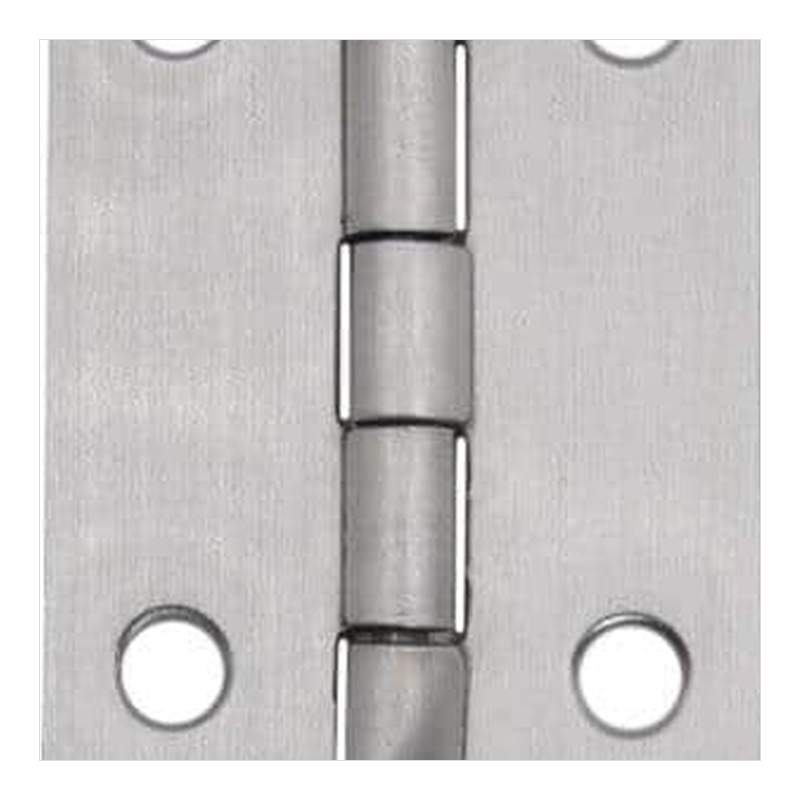

| Material | Stainless steel |
| Pack | 2 hinges with screws |
| Application | Utility doors, gates, cabinets, hatches |
Included Components
- Two stainless narrow butt hinges
- Mounting screws
Installation Notes
- Two hinges carry light utility doors; add a third for doors over 36 in tall.
- Pre-drill hardwood stiles to prevent splitting the narrow leaf margin.
- Surface mounting works where appearance allows; mortise for a flush closed gap.
Warranty and Support
- Coverage confirmed during quote review.
Frequently Asked Questions
Will these carry a full interior passage door?
No. They are utility-scale hinges; passage doors take 3-1/2 in or 4 in butt hinges, which we quote separately.
Are other finishes available?
The product line runs matte black, galvanized, and zinc plate; these are quoted on request while the stainless 2-Pack ships as standard.
Documents
- Type Door Hinge
- SKU DA-DR-HW-HNG-NRP
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
