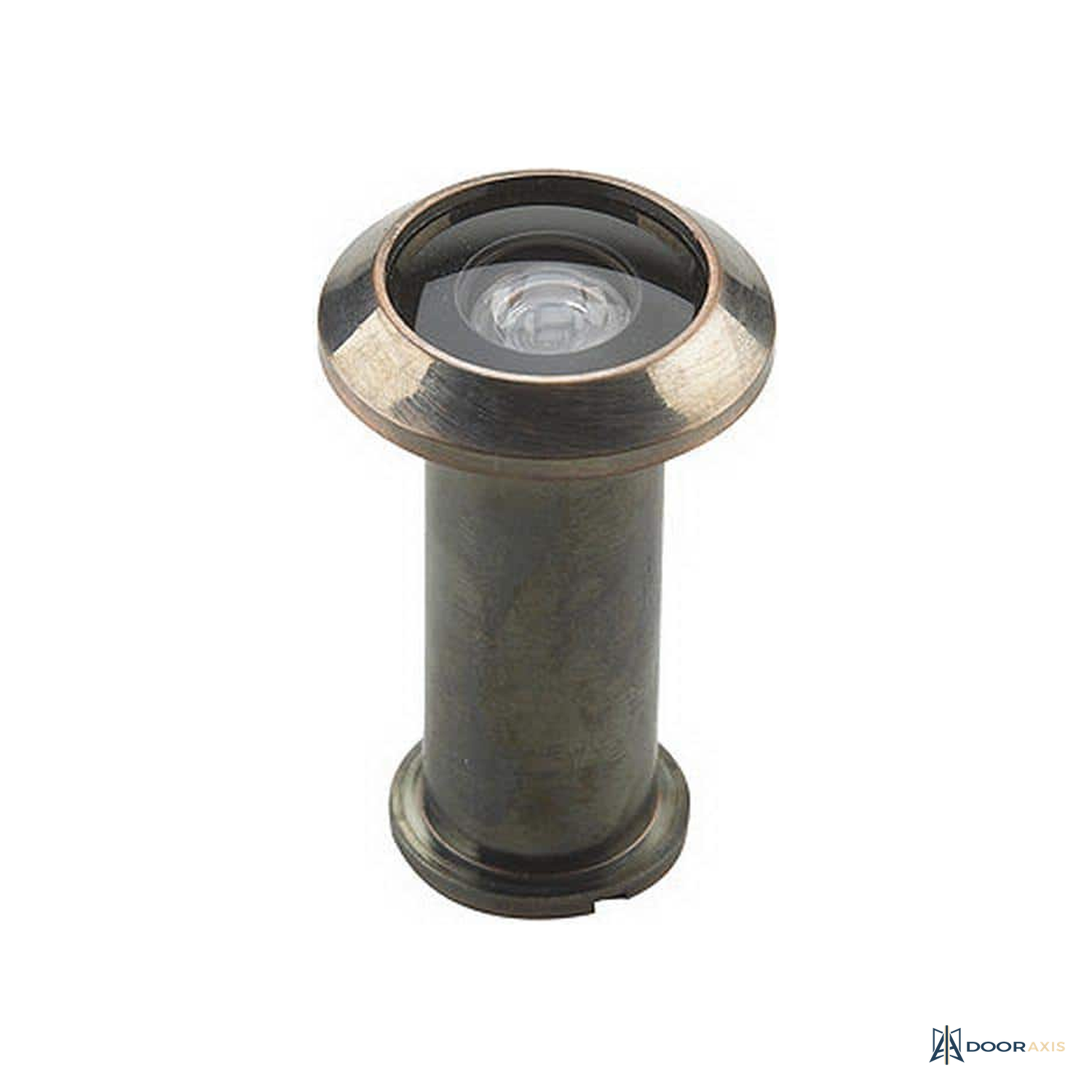

Door Axis 200 Degree Wide Angle Door Viewer, Oil-Rubbed Bronze
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
The Door Axis 200 Degree Door Viewer widens the field past the door plane, closing the blind spots a standard viewer leaves along the wall line. It serves entry doors where callers can stand off to the side of the frame.
The 200 degree optic shows visitors standing to either side of the opening, not just centered on the door. The metal body wears an oil rubbed bronze finish, installs through a 9/16 in bore, and its 1-3/4 in barrel adjusts across door thicknesses from 1-7/16 to 2-1/8 in. Fitting is the standard two-piece threaded installation from both faces.
Highlights
- 200 degree ultra-wide field
- Sees callers standing off to the side of the frame

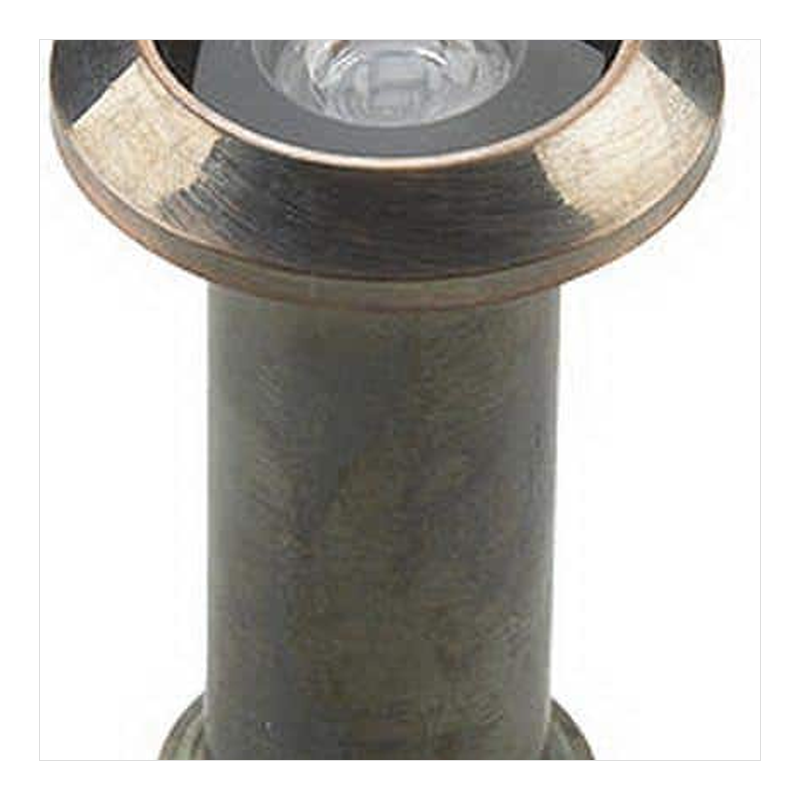

- Oil rubbed bronze finish over a metal body
- 9/16 in bore, 1-3/4 in barrel
- Fits doors 1-7/16 to 2-1/8 in thick
Specification Table
| Function | Wide-angle door viewer |
| Viewing angle | 200 degrees |
| Bore | 0.5625 in |
| Barrel length | 1.75 in |
| Door thickness | 1.44 to 2.13 in |
| Material | Metal |
| Finish | Oil-Rubbed Bronze |
| Application | Residential entry doors |
Included Components
- One door viewer, two-piece threaded barrel
Installation Notes
- Mount at eye height for the primary user.
- Bore square to the door face for a centered image.
- Hand-tighten the halves snug from both faces.
Warranty and Support
- Coverage confirmed during quote review.
Frequently Asked Questions
What does 200 degrees add over a standard viewer?
Coverage past the plane of the door, so a caller pressed against the wall beside the frame is still visible.
Are other finishes available?
The product line also runs antique brass, antique nickel, bright chrome, and satin nickel, quoted on request.
