Door Axis 3-1/4 in Pocket Door Pull with Privacy Lock, Polished Chrome
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
The Door Axis Pocket Door Pull with Privacy Lock combines a recessed pull with a lockable latch for bedroom, bathroom, office, and laundry pocket doors. It serves openings that need real privacy hardware, not just a flush cup.
The steel body mounts in doors from 1-1/4 to 1-1/2 in thick through a 1 in cross bore, with a 3-1/4 in face that gives fingers a full grip on both sides. The privacy latch locks from inside and gives the door a positive close, and the mechanism is reversible for left-hand and right-hand doors. A drilling template, mounting hardware, and instructions come in the box, and the polished chrome finish matches standard bath fittings.
Highlights
- Privacy lock for bedroom, bath, office, and laundry pocket doors
- 3-1/4 in pull face, usable from both sides
- Reversible for left-hand and right-hand doors
- Fits 1-1/4 to 1-1/2 in door thickness
- Steel body, polished chrome finish
- Drilling template and mounting hardware included
Specification Table
| Function | Pocket door pull with privacy lock |
| Face | 3.23 x 2.28 in |
| Cross bore | 1 in |
| Door thickness | 1-1/4 to 1-1/2 in |
| Handing | Universal, reversible |
| Lock | Privacy, unkeyed |
| Material | Steel |
| Finish | Polished Chrome |
| Application | Interior pocket and sliding doors |

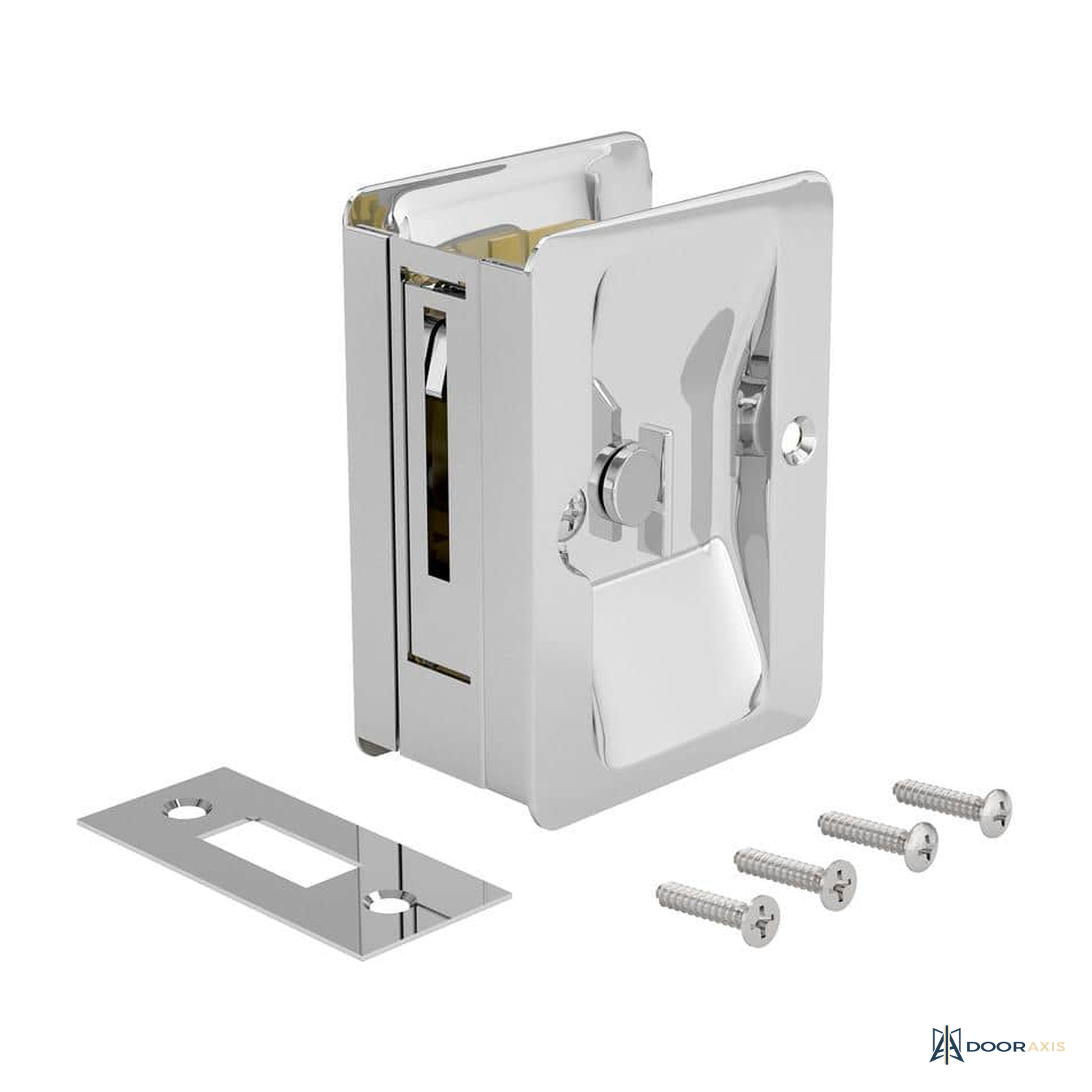

Included Components
- Pocket door pull with privacy lock
- Drilling template
- Mounting hardware
- Installation instructions
Installation Notes
- Bore per the supplied template; the 1 in cross bore must land clear of the door stile edge.
- Mortise the face cups flush so the door clears the split jamb.
- Confirm pocket clearance before hardware selection; some cavities pinch wider pulls.
Warranty and Support
- Coverage confirmed during quote review.
Frequently Asked Questions
Does it work on other sliding doors?
It is designed for pocket doors and most sliding doors; confirm a door thickness of 1-1/4 to 1-1/2 in.
Are other finishes available?
The product line also runs antique brass, antique nickel, and brushed chrome, quoted on request.
Documents
- Type Pocket Door Hardware
- SKU DA-DR-HW-PKT-PULL
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
