Door Axis 30 in x 80 in 6-Panel Hollow Core Composite Door Slab with Satin Nickel Hinge 3-Pack

The Door Axis 6-Panel Composite Door Slab with Hinge 3-Pack puts a door replacement in one order: the primed 6-panel slab plus three matched satin nickel butt hinges with their fasteners. It serves rental turnovers, quick bedroom and closet refreshes, and any job where the old hinges are worn, painted over, or mismatched.

The slab is the proven 6-panel format: textured molded composite skins over an engineered wood frame with a hollow core, raised colonial detailing, and a primed white face ready for paint, with a factory single lockset bore. The hinge pack upgrades the swing itself: three 3-1/2 in x 5/8 in radius steel butt hinges in satin nickel with a squeak-free design, removable pins for easy slab removal later, half moon hole pattern, and all mounting screws in the box. Because new hinges come with the slab, you can mortise fresh locations or reuse the existing ones without matching thirty year old hardware, and the satin nickel finish pairs with the most common lever and knob finishes sold today.

Highlights

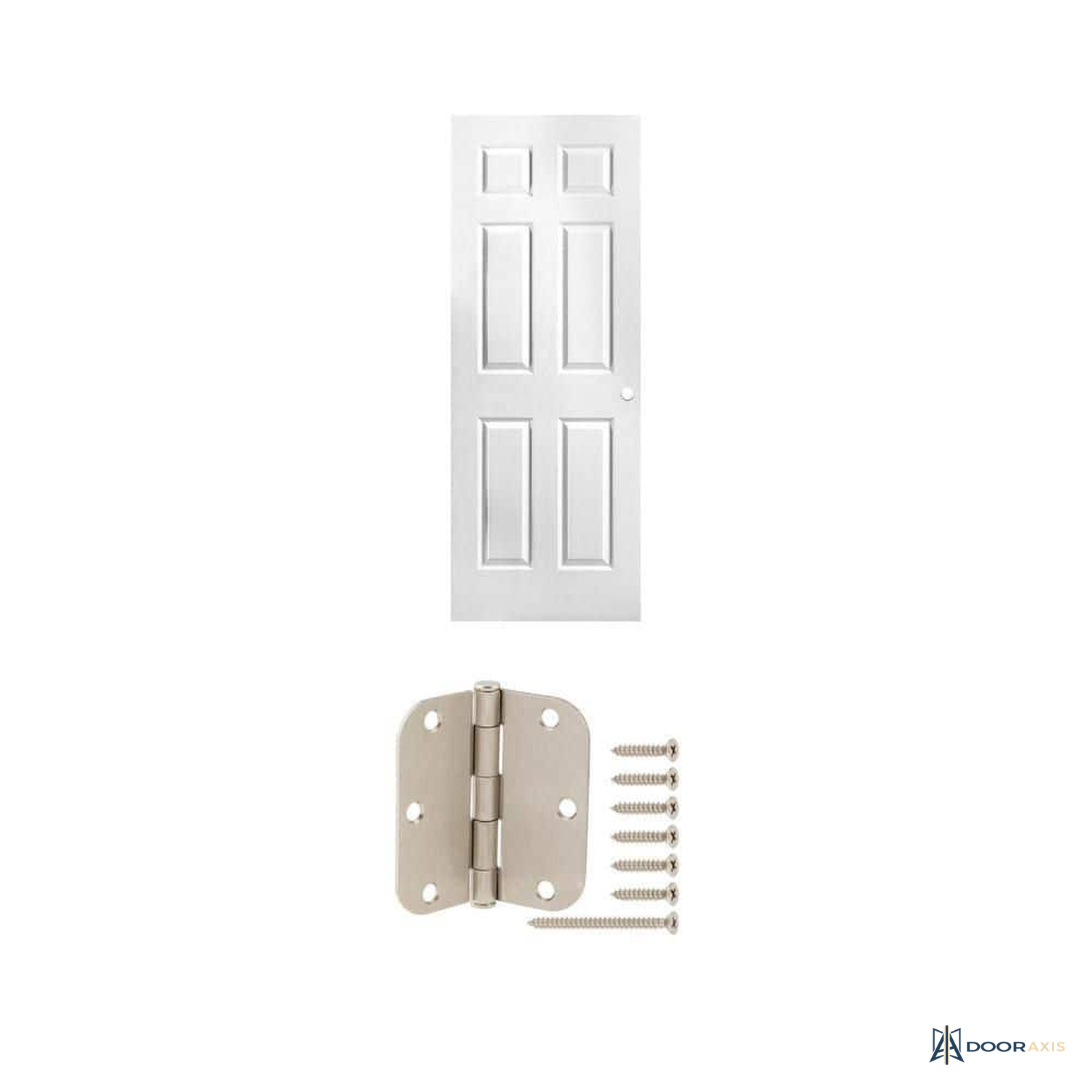

• One-box replacement: 6-panel slab plus 3 matched hinges and fasteners
• 3-1/2 in x 5/8 in radius satin nickel butt hinges, squeak-free design
• Removable hinge pins for easy future slab removal

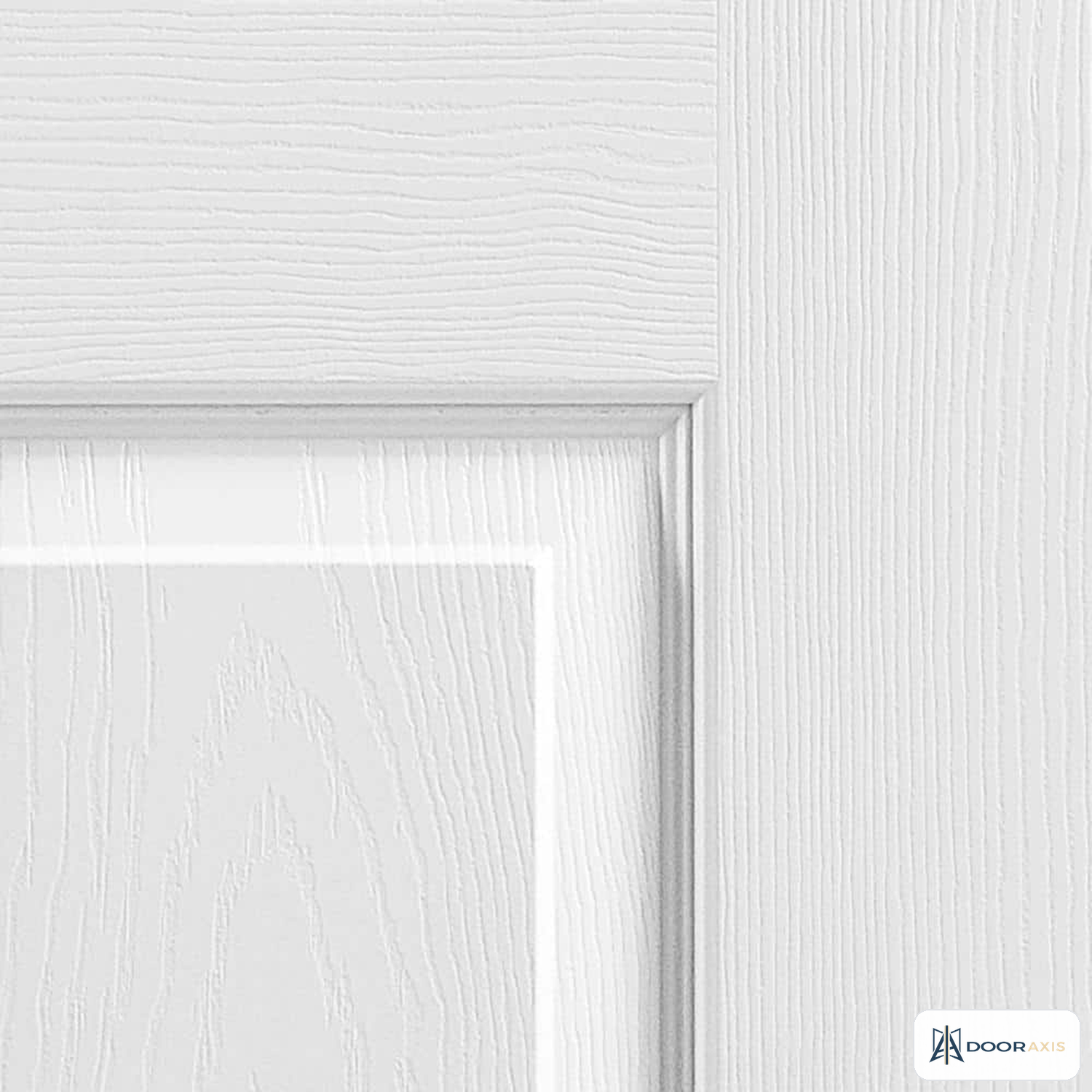

• Raised 6-panel colonial profile in a textured, paint-ready primed skin
• Hollow core composite build keeps the kit light for one-person installs
• Factory single lockset bore, ready for a standard lockset
• Universal reversible slab, handed at installation

Specification Table

Included Components

• 6-Panel textured hollow core composite door slab, primed white, single bore
• 3-pack of 3-1/2 in x 5/8 in radius satin nickel squeak-free butt hinges
• Hinge mounting screws
• Installation instructions
• Lockset sold separately

Installation Notes

• Measure the old slab, not the opening: match width, height, and 1-3/8 in thickness before ordering.
• Transfer hinge mortise locations from the old slab, or lay out fresh mortises at 7 in from the top, 11 in from the bottom, and centered between, using the included hinges as templates.
• Set hinge leaves flush with the slab edge and jamb face; a proud hinge leaf will spring the door and defeat the squeak-free design.
• Maintain about 1/2 in of clearance above the finished floor, more over carpet or thick flooring.
• Paint the slab and seal all six edges, including top and bottom, so the core stays dry and flat.

Warranty and Support

• Limited manufacturer-backed warranty, confirmed during quote review.
• Support includes slab sizing checks against your existing frame measurements before release.

Frequently Asked Questions

Why buy the slab and hinges together?
Replacement doors usually fail at the hardware: worn, painted, or mismatched hinges. The kit delivers three new satin nickel hinges sized for this slab with their screws, so the door and its swing hardware arrive matched.

Do the hinges fit my existing jamb mortises?
The 3-1/2 in x 5/8 in radius size is the most common residential hinge format. If your jamb mortises match that footprint, the new hinges drop in; otherwise deepen or square the mortises with a chisel.

Is a lockset included?
No. The slab ships with a standard single bore and the lockset is sold separately, so you can match your home's existing hardware finish. Satin nickel locksets pair naturally with the included hinges.

Can one person install it?
Yes. The hollow core slab weighs about 25 lb, light enough to clamp, mortise, and hang solo with the included hinges and screws.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
