Door Axis 32 in x 80 in 9-Lite Triple Pane Clear Glass Steel Prehung Front Door with Brickmold
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

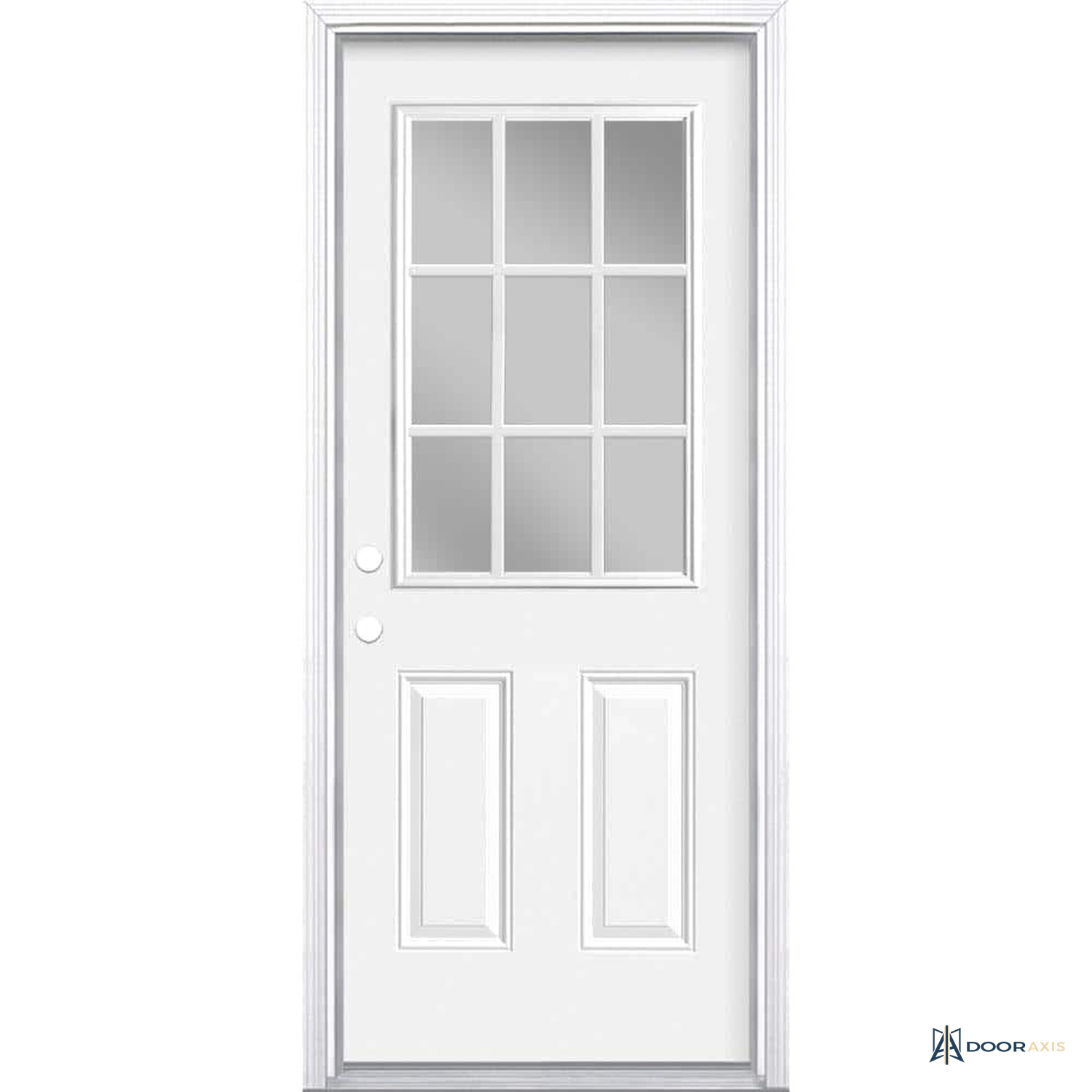

The Door Axis 9-Lite Triple Pane Clear Glass Steel Prehung Front Door combines a reinforced steel slab with a nine-pane insulated glass upper half on a weatherstripped, brickmolded frame. It serves homeowners and builders who want daylight at a front or back entry without giving up the strength and thermal performance of an insulated steel door.
The slab is formed from steel around an energy-saving polyurethane foam core with wood-edge engineered interlocking stiles, grooved for structural rigidity, and a reinforced lock block that gives locksets and deadbolts a solid mounting surface. The upper half carries a nine-lite grid of triple pane tempered clear glass above a two-panel base, so the entry hall gets light while the insulated glass package keeps the opening efficient. Each unit ships fully assembled on a primed wood frame with three nickel-finish hinges, factory brickmold, aluminum sill, and compression weatherstripping, double bored for hardware, in 30, 32, and 36 in widths hung left- or right-hand inswing.
Highlights
- 9-lite clear glass upper half glazed with triple pane insulated tempered glass
- Steel slab with energy-saving polyurethane foam core, 1.75 in thick
- Wood-edge engineered interlocking stiles with grooves for structural rigidity
- Reinforced lock block, double bored for lockset and deadbolt
- Prehung on a 4-9/16 in primed wood frame with factory brickmold and aluminum sill
- Compression weatherstripping seals the perimeter; ENERGY STAR qualified construction
- Primed white face ready for field paint
Specification Table
| Configuration | Single door, prehung with brickmold |
| Nominal slab size | 30, 32, or 36 in x 80 in |
| Slab thickness | 1.75 in |
| Unit dimensions | 33.5 in x 81.5 in overall (32 in x 80 in size) |
| Rough opening | 34.25 x 82 in (32 in); 38.25 x 82 in (typical, 36 in); 32.25 x 82 in (typical, 30 in) |
| Jamb | 4-9/16 in primed wood jamb |
| Material | Steel skin over polyurethane foam core |

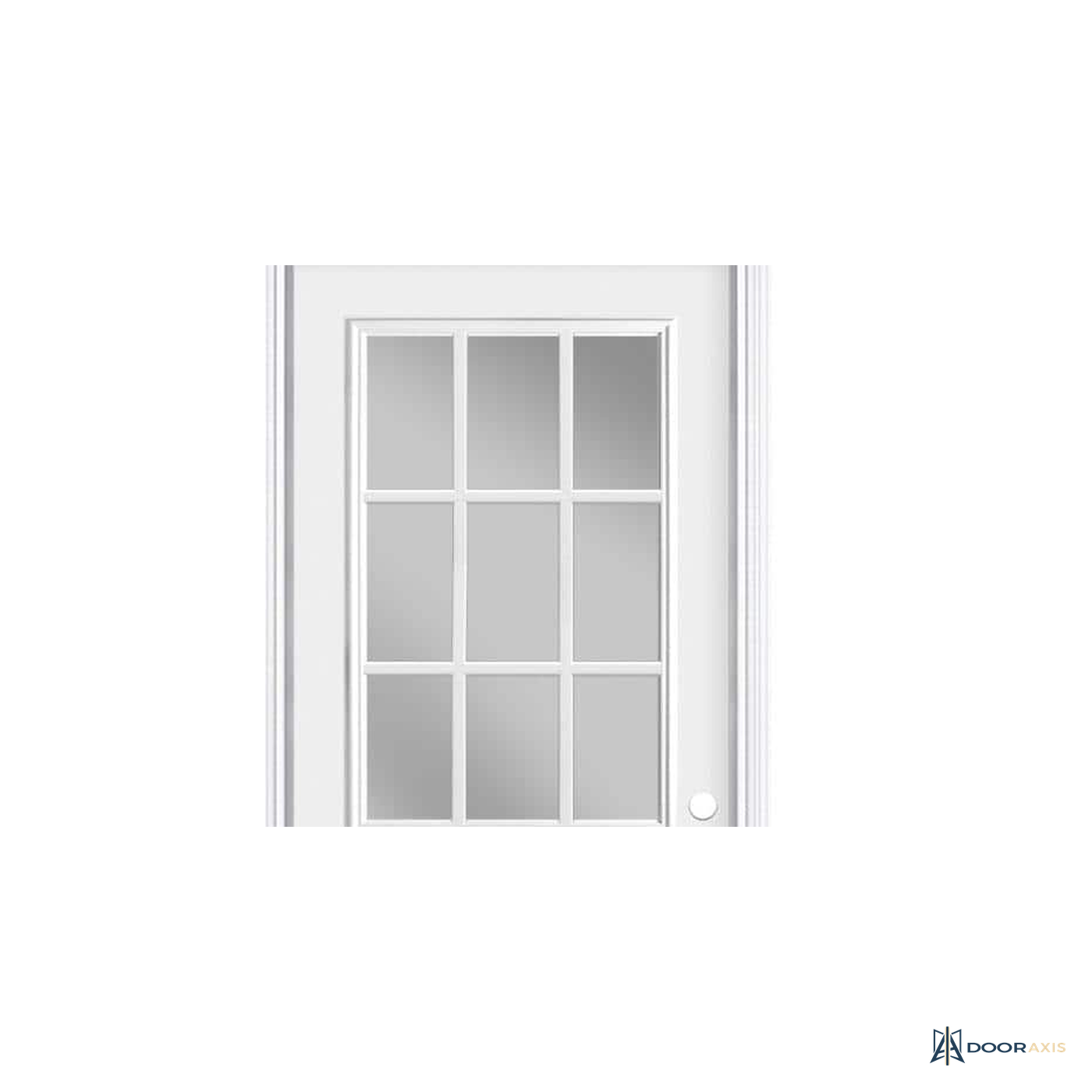

| Glazing | 9-lite clear glass, triple pane insulated, tempered, half lite layout |
| Panel profile | 2-panel base below the glazed half |
| Handing | Left-Hand Inswing or Right-Hand Inswing |
| Hardware prep | Double bore for lockset and deadbolt; 3 nickel-finish hinges |
| Weatherstripping | Perimeter compression weatherstripping with aluminum sill |
| Finish | Primed white, paint ready |
| Weight | 115 lb (32 in x 80 in unit); other widths scale with slab area |
| Warranty | Limited lifetime manufacturer-backed warranty, confirmed during quote review |
Included Components
- Steel slab with factory-glazed 9-lite triple pane clear glass insert
- Primed wood frame with factory-applied brickmold
- Three nickel-finish hinges, factory installed
- Aluminum sill and perimeter compression weatherstripping
- Double bore lockset and deadbolt prep; lockset and deadbolt sold separately
Installation Notes
- Verify the rough opening is about 2.25 in wider and 2 in taller than the nominal slab size and check plumb, level, and square before setting the unit.
- Set the sill in sealant over a sill pan and shim at hinge and strike points; a glazed steel slab must hang square to avoid binding.
- Fasten the hinge-side jamb into framing first, then adjust the strike side for an even reveal.
- Integrate the brickmold with housewrap and flashing tape and seal the exterior perimeter, keeping the sill weep path clear.
- Finish paint all primed surfaces, including slab edges, promptly after installation.
Warranty and Support
- Limited lifetime manufacturer-backed warranty, confirmed during quote review.
- Glazing and prep drawings are available with the quote package.
Frequently Asked Questions
What does triple pane glass do for the entry?
Three glass layers with two insulating cavities cut conducted heat loss and outside noise compared with single or dual pane inserts, keeping the glazed half from becoming the weak point of an insulated steel door.
What sizes and handings are offered?
Nominal 30, 32, and 36 in widths at 80 in height, each hung left- or right-hand inswing on a 4-9/16 in jamb.
How do I confirm handing?
Stand outside facing the door: hinges on the left with an inward swing is left-hand inswing, hinges on the right is right-hand inswing.
Is a lockset included?
No. The slab is double bored for a standard lockset and deadbolt, ordered separately so you can match your hardware finish.
Documents
- Type Steel Entry Door
- SKU DA-DR-EXT-STL9L-TP-32LH
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
