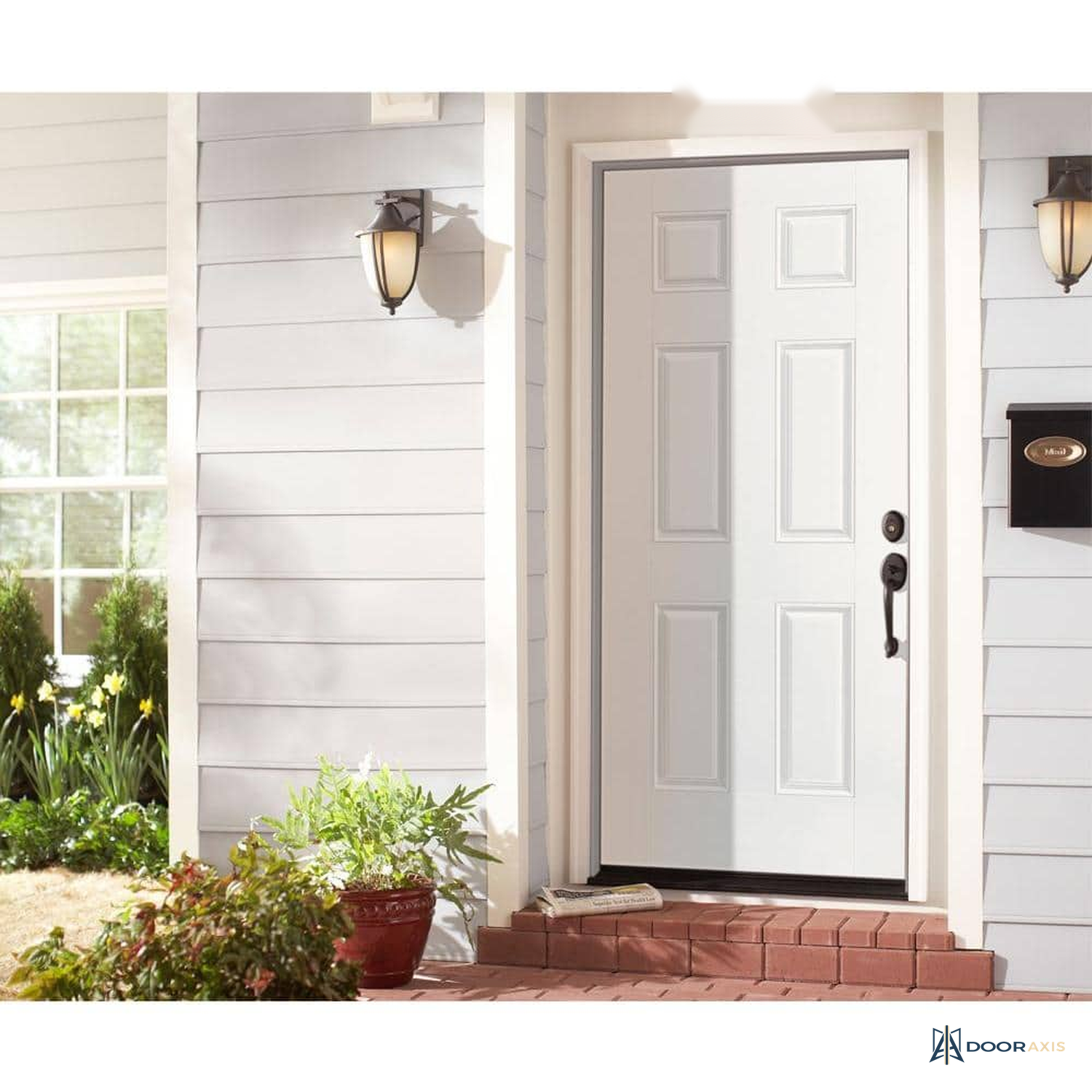

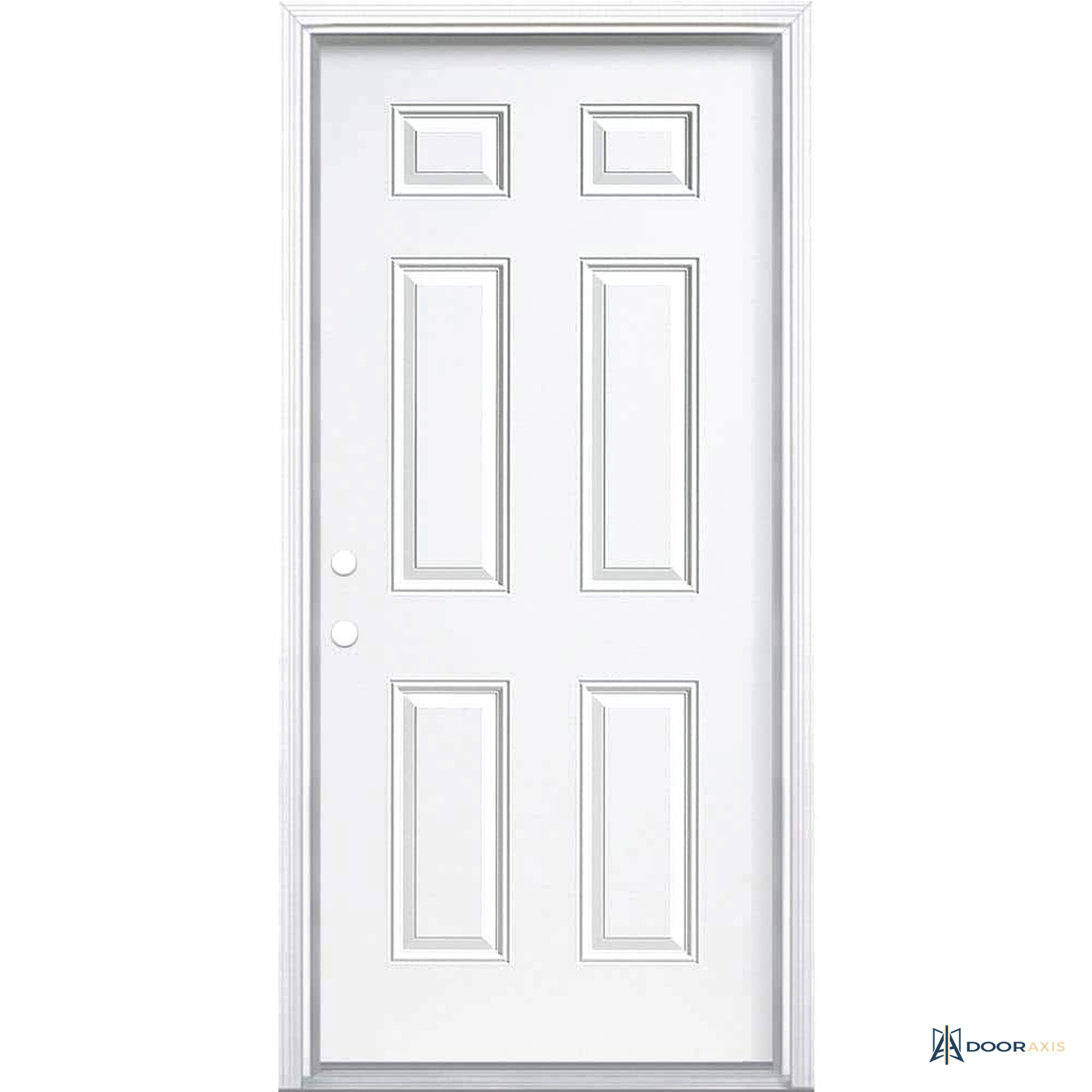

Door Axis 36 in x 80 in 6-Panel Steel Prehung Front Door with Brickmold
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
The Door Axis 6-Panel Steel Prehung Front Door is a complete entry unit that pairs an embossed 6-panel steel slab with a weatherstripped primed wood frame, aluminum sill, and factory-applied brickmold. It serves homeowners, remodelers, and builders who need a dependable, paint-ready front, side, or utility entry in standard 30, 32, and 36 in widths.
The slab is formed from steel over a wood-edge engineered interlocking core with grooved stiles for structural rigidity, and the lock area is reinforced so residential locksets and deadbolts mount on a solid substrate. A steel security plate in the frame backs the strike area to help resist forced entry, high performance compression weatherstripping seals the perimeter, and a rot-resistant composite bottom rail rides over the aluminum sill for long service at grade. Each unit arrives fully assembled on a primed wood frame with three nickel-finish hinges and exterior brickmold, double bored for a lockset and deadbolt, with a smooth primed white face that is ready for field paint. Inswing units are stocked left- and right-handed in all three widths, and a right-hand outswing version is offered in the 36 in width.
Highlights
- Embossed 6-panel steel slab, 1.75 in thick, over a wood-edge engineered interlocking core
- Prehung on a 4-9/16 in primed wood frame with factory-applied exterior brickmold
- Steel security plate at the frame strike area helps resist forced entry
- Reinforced lock area, double bored for lockset and deadbolt, hardware sold separately
- Compression weatherstripping, aluminum sill, and rot-resistant composite bottom rail
- Three nickel-finish hinges, hung left- or right-hand inswing; 36 in right-hand outswing offered
- Smooth primed white surface ready for paint; ENERGY STAR qualified construction
Specification Table
| Configuration | Single door, prehung with brickmold |
| Nominal slab size | 30, 32, or 36 in x 80 in |
| Slab thickness | 1.75 in |
| Unit dimensions | 37.5 in x 81.5 in overall (36 in x 80 in size) |
| Rough opening | 38.25 x 82 in (36 in); 34.25 x 82 in (32 in); 32.25 x 82 in (typical, 30 in) |
| Jamb | 4-9/16 in primed wood jamb |
| Panel profile | 6-panel embossed, smooth face |
| Core | Wood-edge engineered interlocking core with grooved stiles |
| Handing | Left-Hand Inswing, Right-Hand Inswing; Right-Hand Outswing in 36 in width |
| Hardware prep | Double bore for lockset and deadbolt; 3 nickel-finish hinges |
| Weatherstripping | Perimeter compression weatherstripping with aluminum sill and composite bottom rail |
| Finish | Primed white, paint ready |
| Weight | 100 lb (36 in x 80 in unit); smaller widths weigh proportionally less |
| Warranty | Limited lifetime manufacturer-backed warranty, confirmed during quote review |
Included Components
- Steel slab, factory hung on a primed wood frame
- Three nickel-finish hinges, factory installed
- Exterior brickmold, factory applied
- Aluminum sill with rot-resistant composite bottom rail
- Perimeter compression weatherstripping
- Double bore lockset and deadbolt prep; lockset and deadbolt sold separately
- Installation instructions
Installation Notes
- Verify the rough opening is about 2.25 in wider and 2 in taller than the nominal slab size, and check plumb, level, and square before setting the unit.
- Set the sill in a continuous bed of sealant over a sill pan, then shim at hinge and strike points so reveals stay even and the slab does not bind.
- Fasten through the hinge-side jamb into framing first, checking plumb in both planes before securing the strike side.
- Integrate the brickmold with housewrap and flashing tape and seal the exterior perimeter; do not block the sill weep path.
- Confirm handing viewed from outside, swing direction, and lockset backset before ordering; locksets are field installed.
Warranty and Support
- Limited lifetime manufacturer-backed warranty, confirmed during quote review.
- Quote packages include bore and hinge prep drawings on request.
Frequently Asked Questions
How do I confirm handing?
Stand outside facing the door. Hinges on the left with the door swinging into the home is a left-hand inswing; hinges on the right is a right-hand inswing. The 36 in width is also offered as a right-hand outswing that opens toward you.
What rough opening do I need?
Frame the opening about 2.25 in wider and 2 in taller than the nominal door size: 38.25 x 82 in for the 36 in door and 34.25 x 82 in for the 32 in door. Verify plumb and level before ordering.
Is a lockset included?
No. The slab is double bored for a standard lockset and deadbolt, which are ordered separately so you can match your hardware finish.
Can I paint it?
Yes. The slab, frame, and brickmold arrive primed white and should be finish painted on all six sides of the slab promptly after installation.
Documents
- Type Steel Entry Door
- SKU DA-DR-EXT-STL6P-PH-36LH
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
