Door Axis 36 in x 80 in Steel Surface Mount Security Screen Door with Expanded Metal Screen
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

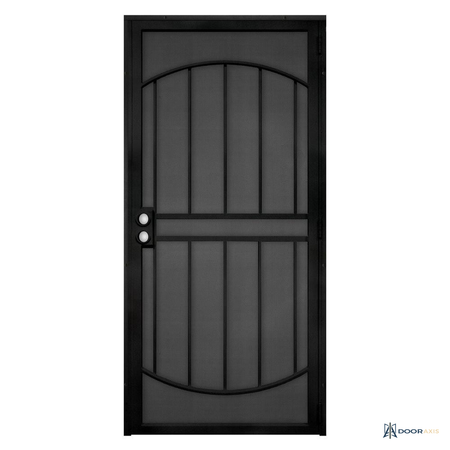

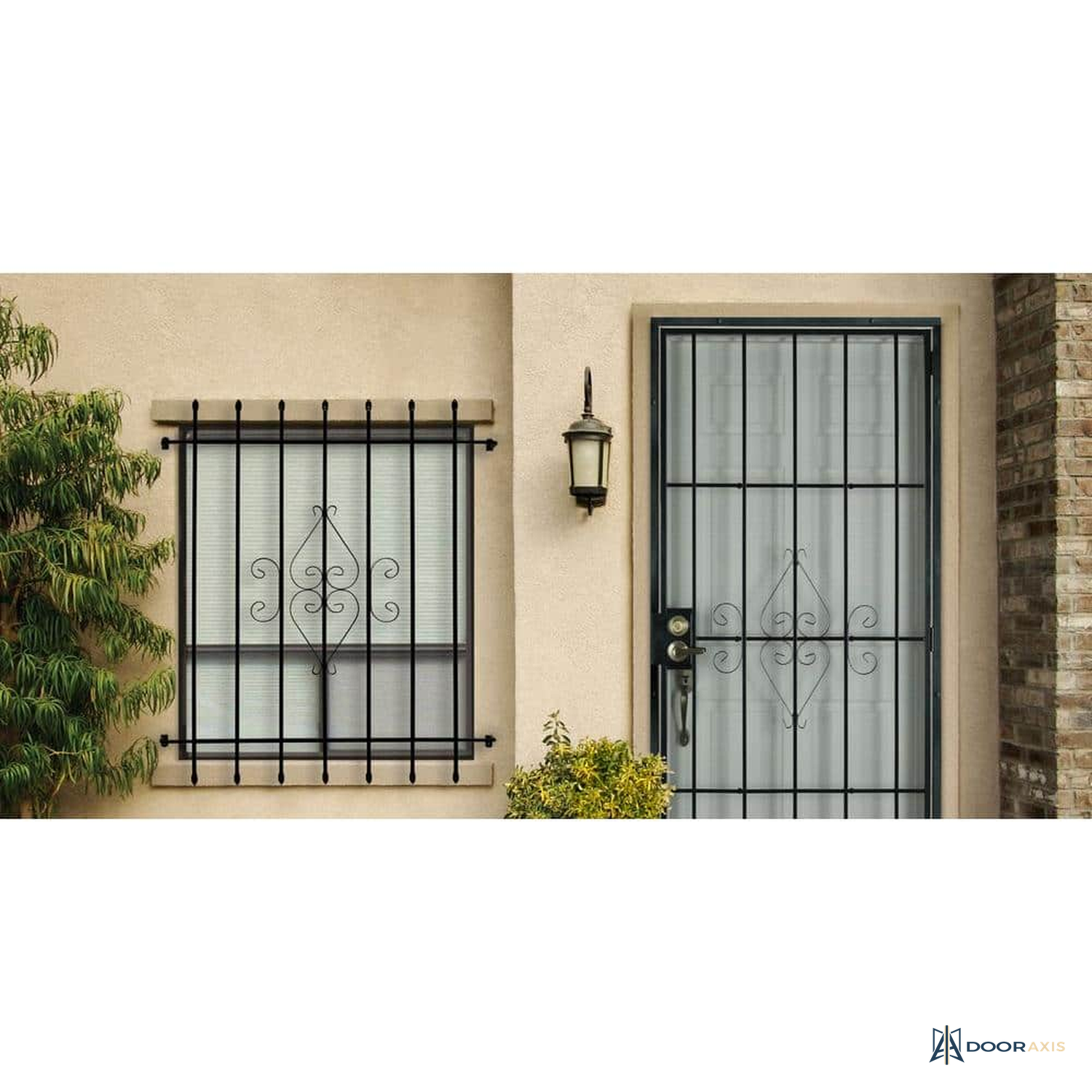

The Door Axis Steel Surface Mount Security Screen Door adds a welded steel barrier with forged pickets and an expanded metal screen in front of an existing entry door. It serves households that want to leave the main door open for airflow while keeping a locked, see-through layer of forced-entry resistance at the opening.

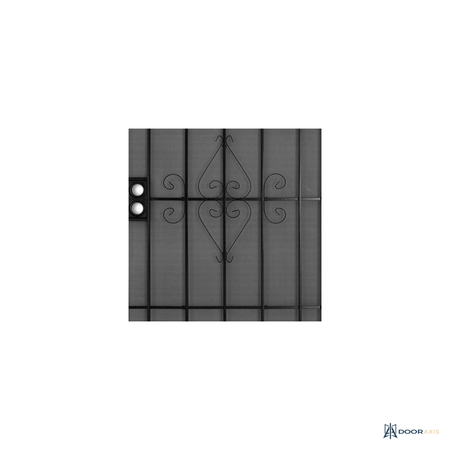

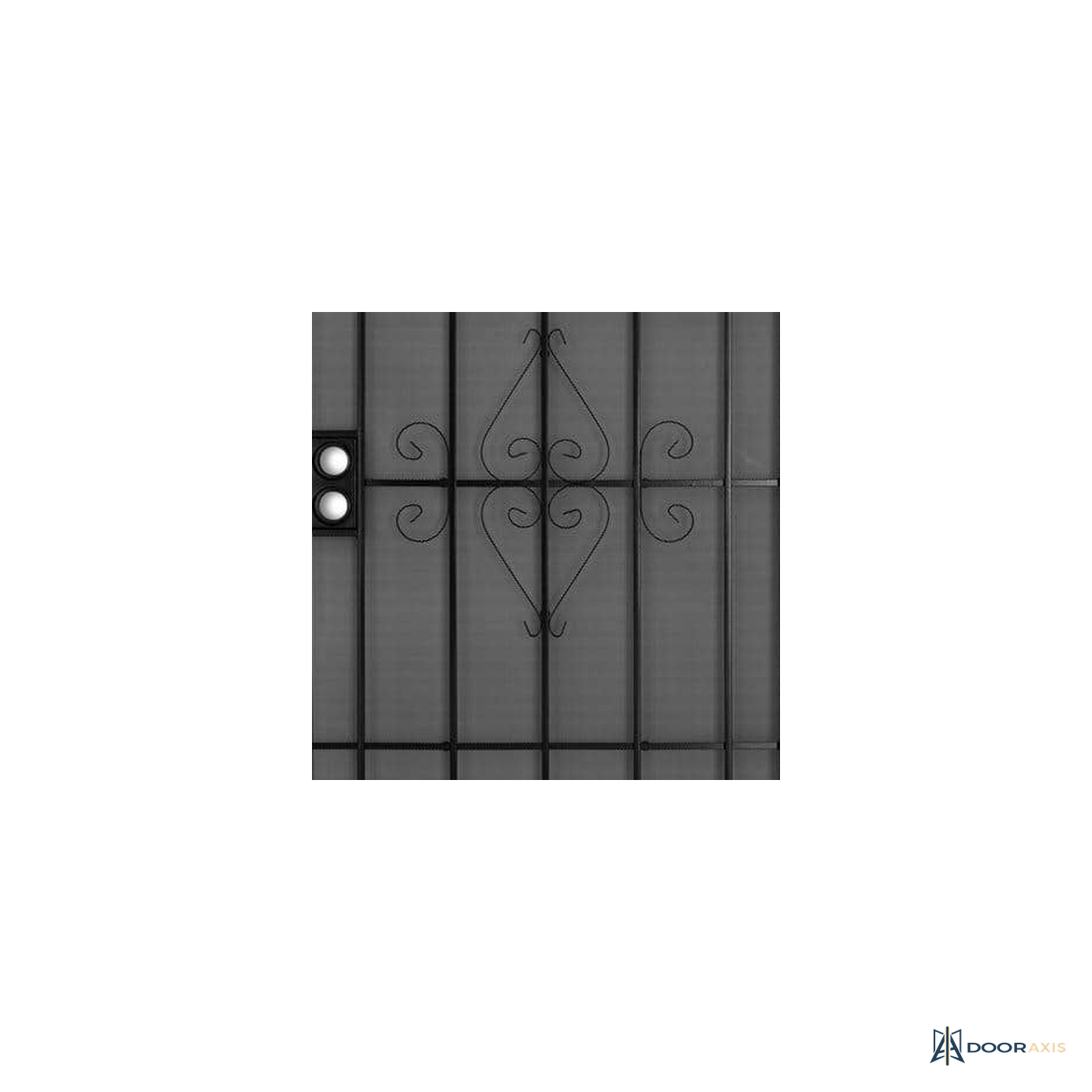

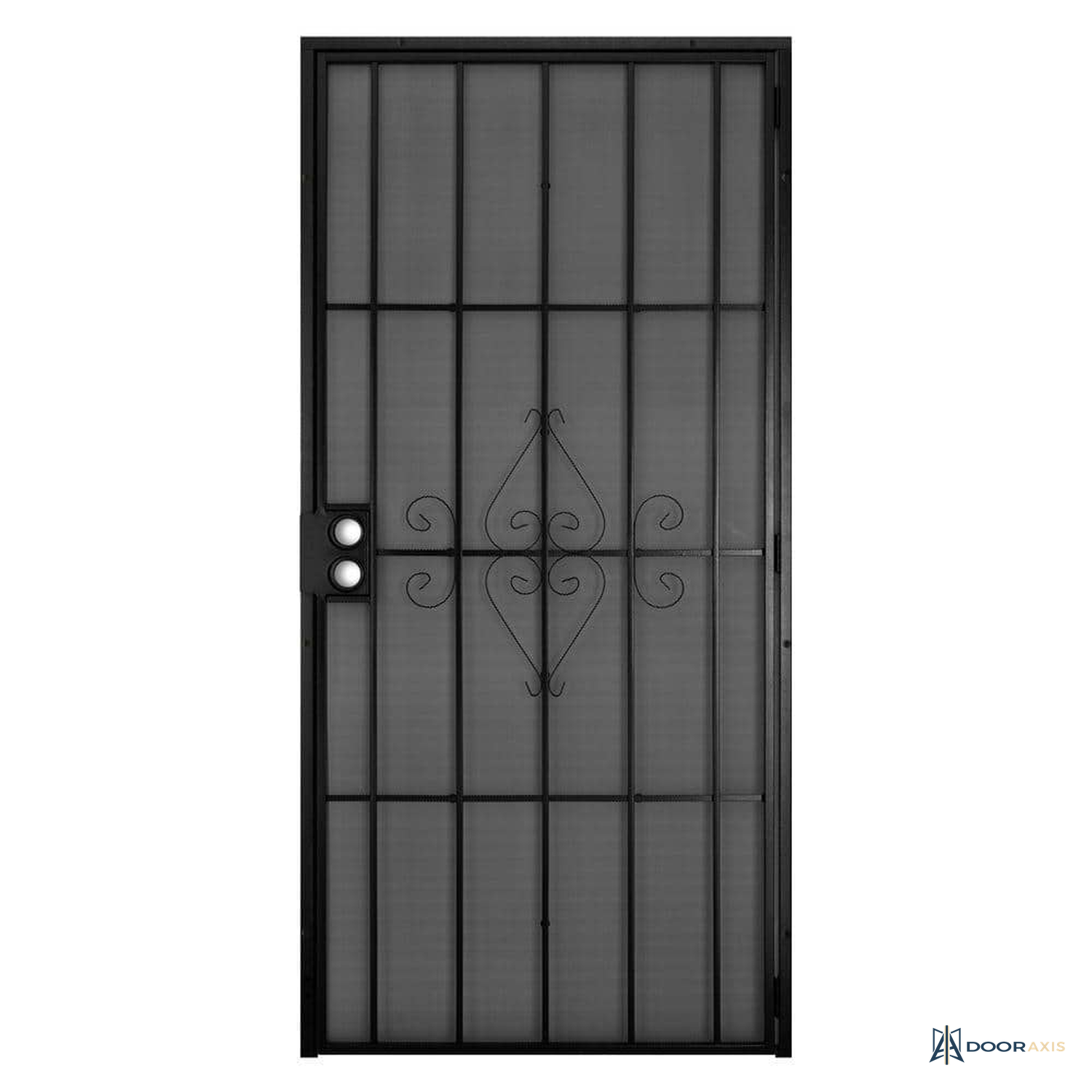

The perimeter is a 3/4 x 3/4 in welded steel tube frame carrying 1/2 in square-tube forged steel pickets in a decorative scroll pattern, with expanded steel mesh backing the grille to keep insects out while air and light pass through. A heavy-duty lockbox with a 2-3/8 in backset accepts a standard lockset or keyed deadbolt, and the reversible build hangs left- or right-handed to match the entry behind it. The door surface mounts to the face of the entry trim, anchored with the included 4 in one-way screws and single-use driver bit so the fasteners cannot be backed out from outside, and the whole assembly wears a protective powder-coat finish in Black, White, or Navajo White.
Highlights
- 3/4 x 3/4 in welded steel tube frame with 1/2 in square-tube forged steel pickets
- Expanded steel mesh screen passes air and light while blocking insects
- Heavy-duty lockbox with 2-3/8 in backset accepts a standard lockset, sold separately
- Universal reversible build hangs left- or right-handed
- Surface mounts to the entry trim face; 4 in one-way security screws and driver bit included
- Protective powder-coat finish in Black, White, or Navajo White
- Nominal 30, 32, and 36 in widths cover standard entries
Specification Table
| Configuration | Single security screen door, surface mount |
| Nominal sizes | 30, 32, or 36 in x 80 in, matched to the entry door behind |
| Overall dimensions | 38.5 x 81-9/16 in including frame (36 in size) |
| Door thickness | 3/4 in frame depth |
| Frame | 3/4 x 3/4 in welded steel tube |
| Grille | 1/2 in square-tube forged steel pickets with decorative scroll work |
| Screen | Expanded steel mesh, full coverage behind the grille |
| Mounting | Surface mount to the face of the entry trim; requires a 1 in flat mounting surface |
| Handing | Universal Reversible, hangs left- or right-handed |
| Hardware prep | Heavy-duty lockbox, 2-3/8 in backset; lockset sold separately |
| Fasteners | 4 in one-way screws with single-use driver bit, included |

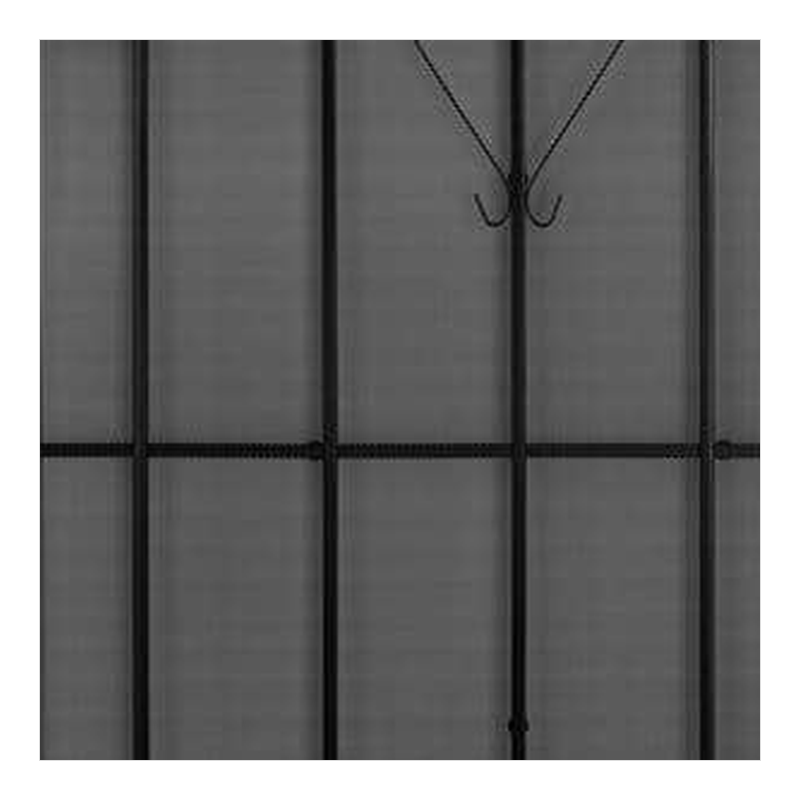

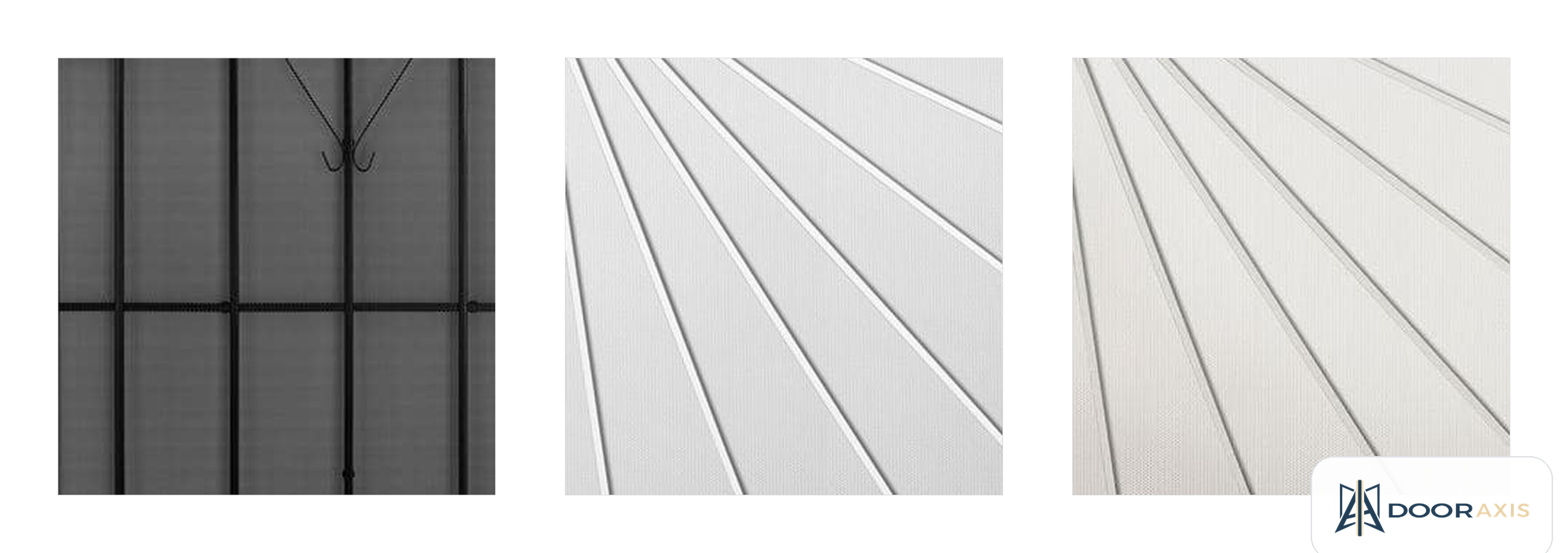

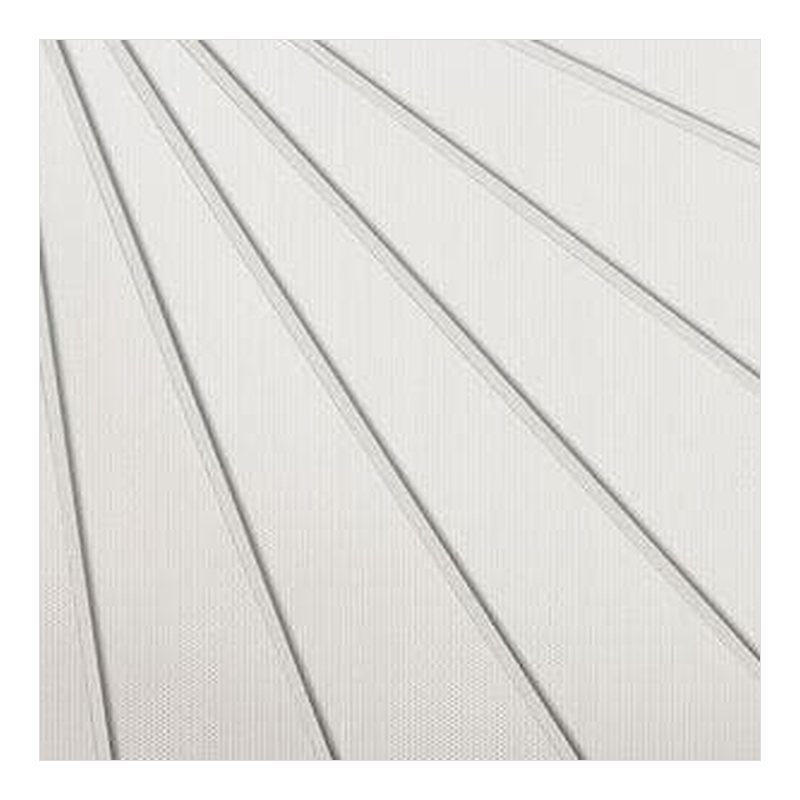

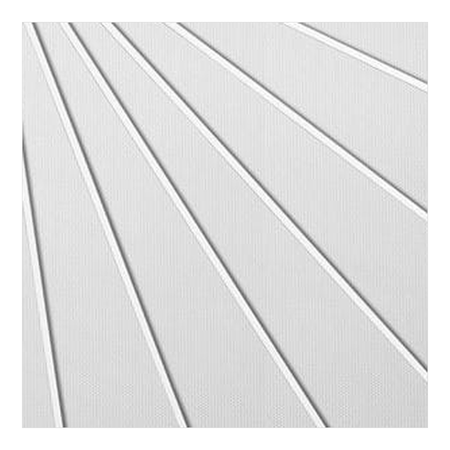

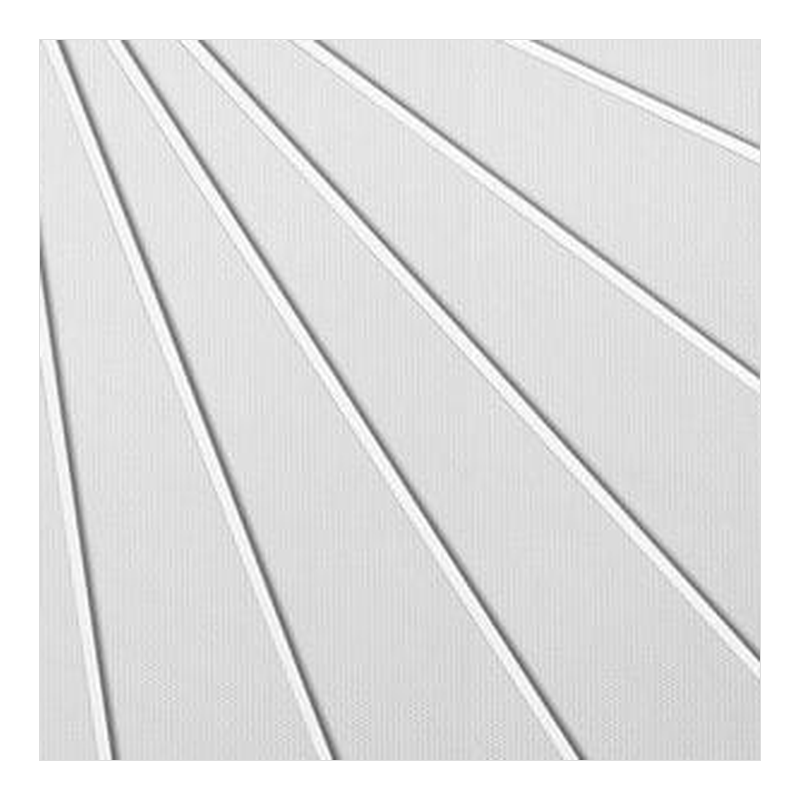

| Finish | Powder-coat: Black, White, or Navajo White |
| Weight | About 50 lb (36 in unit, engineering estimate) |
| Warranty | 5 year manufacturer-backed warranty against manufacturing defects, confirmed during quote review |
Included Components
- Welded steel security screen door with factory-fitted expanded metal screen
- Heavy-duty lockbox prepped at 2-3/8 in backset; lockset and deadbolt sold separately
- 4 in one-way mounting screws and single-use one-way driver bit
- Installation instructions
- Hinge hardware for reversible left- or right-hand mounting
Installation Notes
- Confirm the entry behind the door measures the matching nominal size and that the trim face offers a continuous 1 in flat mounting surface around the opening.
- Decide handing before drilling: the reversible build mounts hinges on either side, and the lockbox must land opposite the hinge line of the entry door behind it.
- Mount level and square to the trim face using the included 4 in one-way screws; once driven, one-way fasteners resist removal from outside.
- Install a standard lockset or keyed deadbolt at the 2-3/8 in backset lockbox before first use.
- Check swing clearance over the threshold and add a door closer or wind chain where gusts could slam the steel frame.
Warranty and Support
- 5 year manufacturer-backed warranty against manufacturing defects, confirmed during quote review.
- Touch-up guidance for the powder-coat finish ships with the quote package.
Frequently Asked Questions
Will it fit my entry?
Order the nominal size that matches the entry door behind it: 30, 32, or 36 in x 80 in. The frame overlays the trim face, so the 36 in unit measures 38.5 x 81-9/16 in overall and needs a 1 in flat mounting surface.
Does it come with a lock?
No. The heavy-duty lockbox is prepped at a 2-3/8 in backset for a standard lockset or keyed deadbolt, ordered separately so the security layer can be keyed to your entry.
Can I hang it on either side?
Yes. The build is universal reversible, hinging left or right so the screen door and your entry door open in a compatible pattern.
Are other grille designs or a double-door width available?

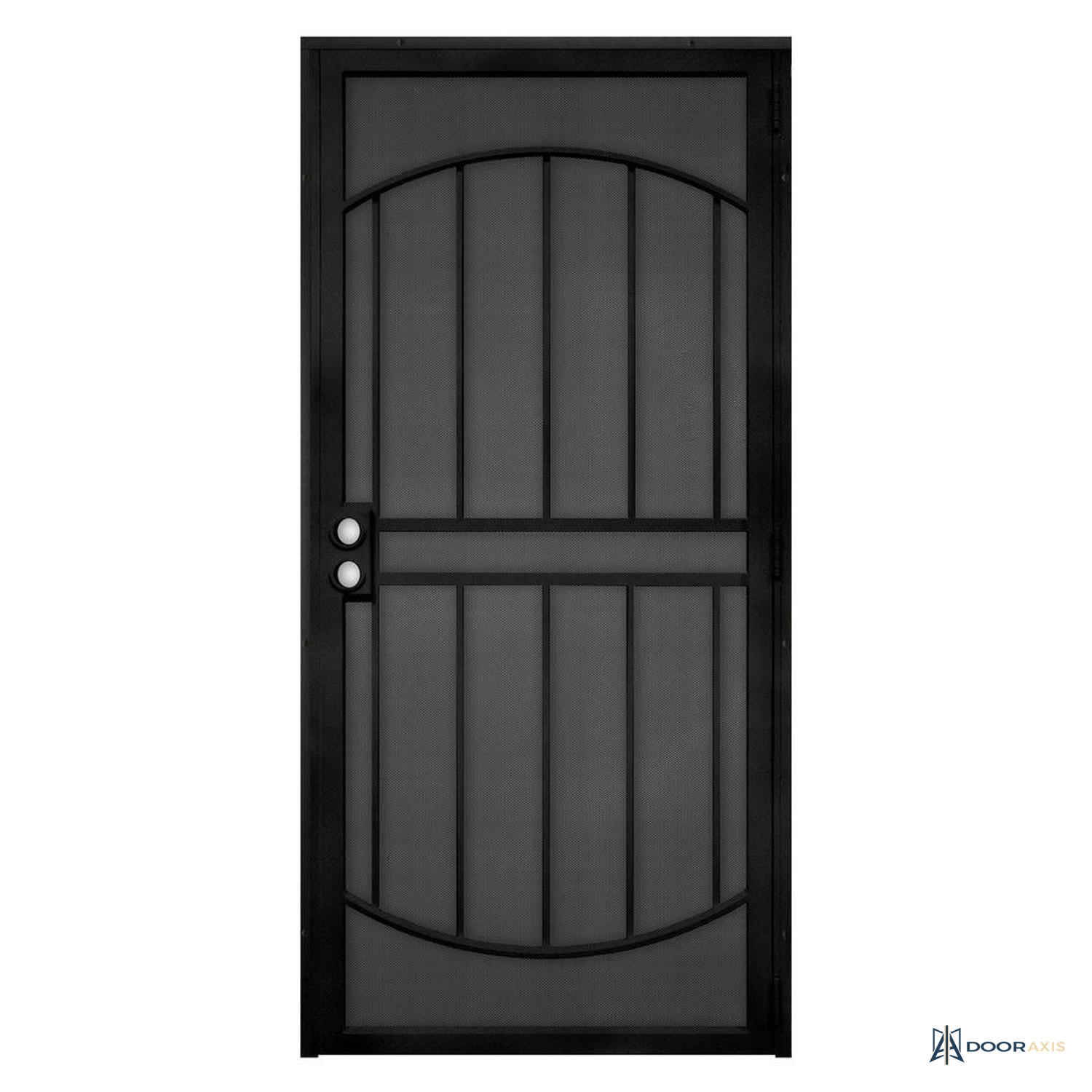

Yes. Arched and perforated-screen grille programs, fine-mesh high-visibility screens, and a 72 in double configuration are quoted on request from the same platform family.
Documents
- Type Security Screen Door
- SKU DA-DR-SCR-SEC-STL-36-BK
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
