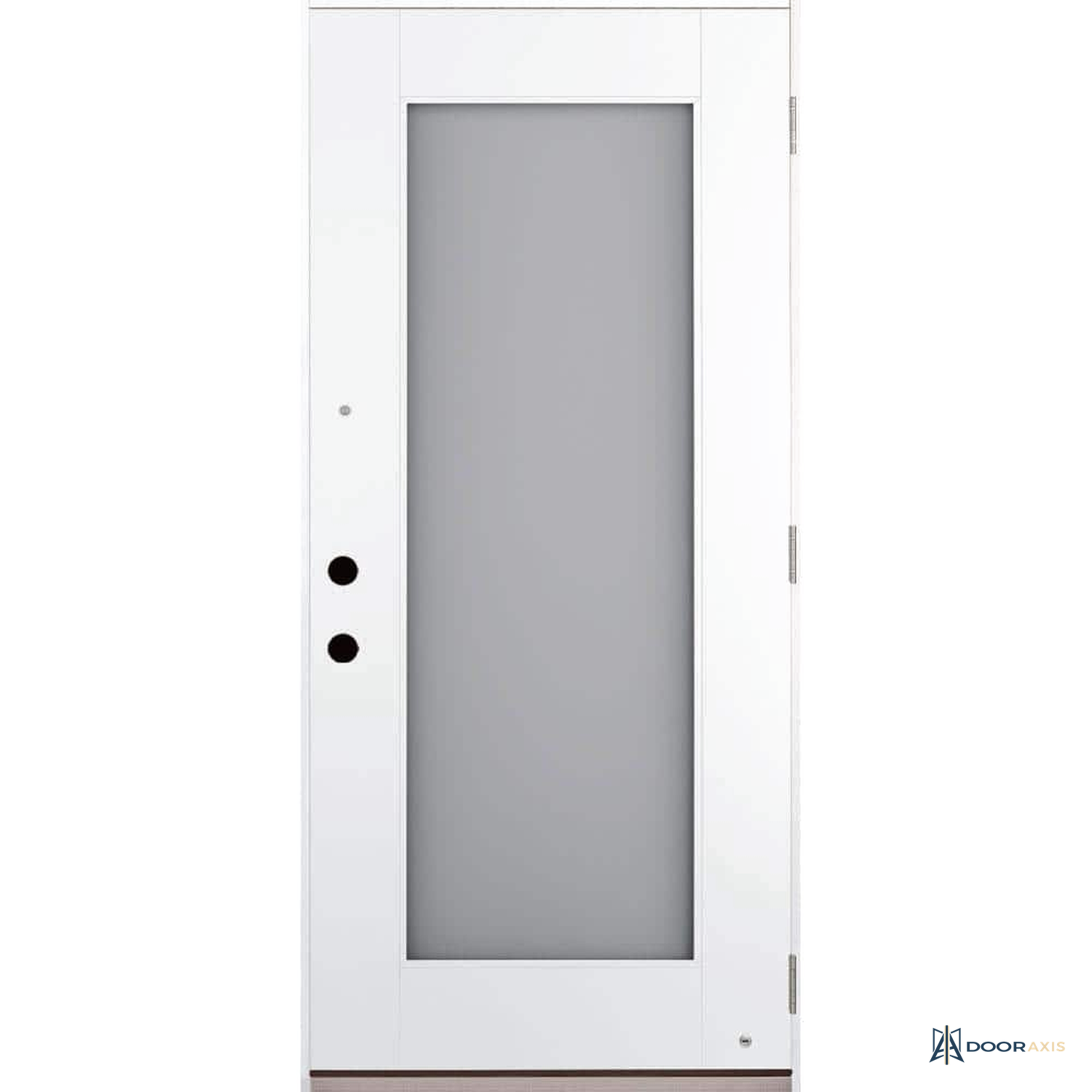

Door Axis 36 in x 80 in Switchable Privacy Glass Full Lite Fiberglass Prehung Front Door
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
The Door Axis Switchable Privacy Glass Full Lite Fiberglass Prehung Front Door carries a floor-to-header pane that flips from frosted privacy to clear glass at the press of a button or a voice command. It serves entries that want maximum daylight without living behind a curtain, backed by an impact-protective laminated glass package and a paint-ready fiberglass slab.

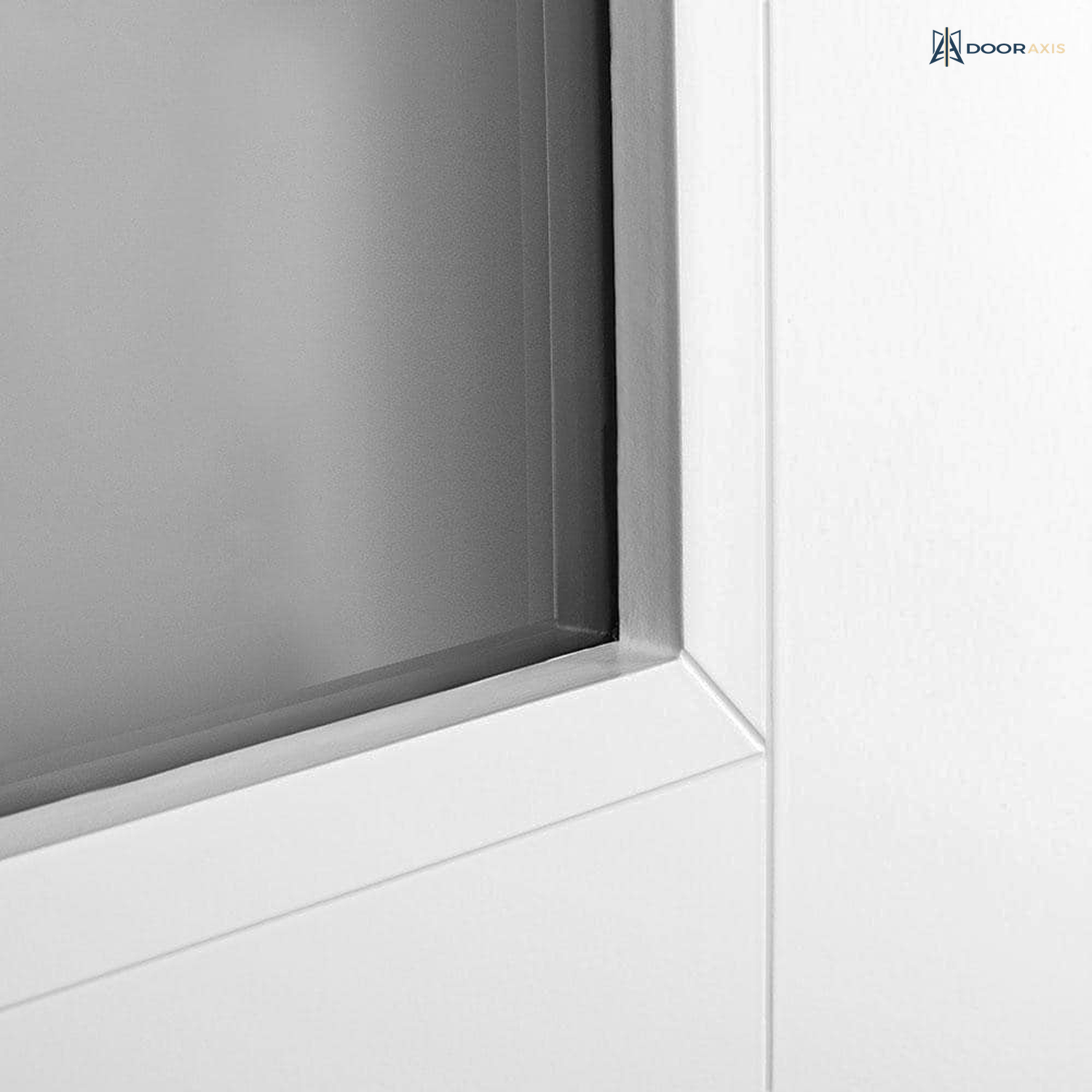

The full lite is direct glazed into the slab with no lite frame or plug caps, giving the door a clean modern face, and the switchable film is sealed between Low-E laminated panes that stay frosted with the power off and turn clear on demand. The laminated assembly adds security and impact protection over ordinary tempered units while the Low-E coating and high density polyurethane foam core keep the opening efficient, with ENERGY STAR qualified construction. Power comes from included rechargeable batteries or a plug-in supply, control runs by button, app, or leading voice assistant platforms over Bluetooth and Wi-Fi with no hub required, and the kit ships with two batteries, a control box, charger, and cords. The unit hangs on a rot-proof PVC composite jamb with zinc ball bearing hinges, a composite adjustable threshold, compression weatherstripping, and a 16 in wood lock block behind the double bore.
Highlights
- Full lite glass switches from frosted privacy to clear by button, app, or voice command
- Low-E laminated dual pane assembly adds security and impact protection
- Direct glazed modern face with no lite frame or door plugs
- Battery or plug-in power with Bluetooth and Wi-Fi control, no hub required; two batteries, control box, and charger included
- High density polyurethane foam core; ENERGY STAR qualified in northern and central climate zones, 0.25 U-factor
- Rot-proof PVC composite jamb with composite adjustable threshold
- Zinc ball bearing hinges and a 16 in wood lock block behind the double bore
- Smooth unfinished fiberglass face ready for field paint
Specification Table
| Configuration | Single door, prehung with brickmold |
| Nominal slab size | 36 in x 80 in |
| Slab thickness | 1.75 in |
| Unit dimensions | 37.5 in x 81.625 in overall |
| Rough opening | 38.25 x 82.125 in |
| Jamb | 4-9/16 in PVC composite jamb |
| Material | Smooth fiberglass skin over high density polyurethane foam core |
| Glazing | Full lite switchable privacy glass; Low-E laminated dual pane, tempered, flush glazed |
| Glass control | Button, app, or voice over Bluetooth and Wi-Fi; no hub required |
| Power | Two rechargeable batteries (included) or plug-in supply |
| Thermal performance | U-factor 0.25; solar heat gain coefficient 0.25 |
| Handing | Left-Hand Inswing or Right-Hand Inswing |
| Hardware prep | Double bore over a 16 in wood lock block; zinc ball bearing hinges |
| Threshold | Composite adjustable threshold with compression weatherstripping |
| Weight | 154 lb |
| Warranty | Limited lifetime slab; staged glass and electronics coverage, confirmed during quote review |
Included Components
- Fiberglass slab with factory-glazed switchable privacy full lite
- PVC composite jamb frame with factory brickmold
- Zinc ball bearing hinges, factory installed
- Composite adjustable threshold and compression weatherstripping
- Two rechargeable batteries, control box, battery charger, and two charging cords with plug
- Double bore lockset and deadbolt prep; lockset and deadbolt sold separately
Installation Notes
- Verify the rough opening at 38.25 x 82.125 in and check plumb, level, and square before setting; at 154 lb this unit needs two installers.
- Set the threshold in sealant over a sill pan and shim at hinge and strike points so the glazed slab hangs square and the adjustable threshold seats evenly.
- Integrate the brickmold with housewrap and flashing tape and seal the exterior perimeter.
- Route the control box and charging leads per the quote package before closing interior trim, and charge both batteries before first operation.
- Paint the unfinished fiberglass face and edges promptly after installation, masking the glass and control hardware.
Warranty and Support
- Limited lifetime manufacturer-backed warranty on the fiberglass slab and composite components, confirmed during quote review.
- Staged coverage on the glass seal, switchable glass electronics, and batteries is itemized in the quote package.
Frequently Asked Questions
How does the switchable glass work?
An electronic film laminated between the panes aligns when powered, turning the glass clear; with power off it rests frosted for privacy. Switching runs from the button, the app, or voice assistants over Bluetooth or Wi-Fi, with no hub required.
What happens if the batteries die?
The glass simply rests in its frosted privacy state and the door keeps working as a normal insulated entry. Recharge either included battery or run the plug-in supply to restore switching.
Is the glass secure?
The lite is a laminated Low-E assembly, so the glass holds together under impact like a windshield rather than shattering clear of the opening, and the double bore sits over a 16 in wood lock block.
Can I paint the door?
Yes. The smooth fiberglass face ships unfinished and takes standard exterior paint; the PVC composite jamb paints to match your trim.
