Door Axis 36 in x 80 in White Vinyl Self-Storing Storm Door, 3/4 Light Tempered Glass
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
The Door Axis White Vinyl Self-Storing Storm Door adds a weather barrier and instant ventilation in front of any entry door, with a 3/4 tempered glass view and a lower glass panel that slides up behind a permanent insect screen. It serves homeowners who want storm protection that never needs painting and switches from full glass to screened airflow in seconds, year round.
The frame and panels are vinyl over a reinforced core, one inch thick, so the door shrugs off rain and coastal air without the corrosion or repainting that aluminum and wood storm doors invite. The upper lite is fixed and the lower lite is self-storing: raise it behind the permanent screen for ventilation, lower it for a full weather seal, with no seasonal panels to swap or store. Both lites are thermally tempered safety glass. The door is universal reversible, hinging from either side to match your entry, and the black push button handle set with a night latch comes in the box along with a door sweep and perimeter weatherstripping. A water management system at the sill directs runoff back outside the frame.
Highlights
- Vinyl construction never needs paint and will not rust or pit
- Self-storing lower glass raises behind a permanent insect screen for ventilation
- Thermally tempered safety glass in both lites
- Universal Reversible: hinges mount left or right at installation

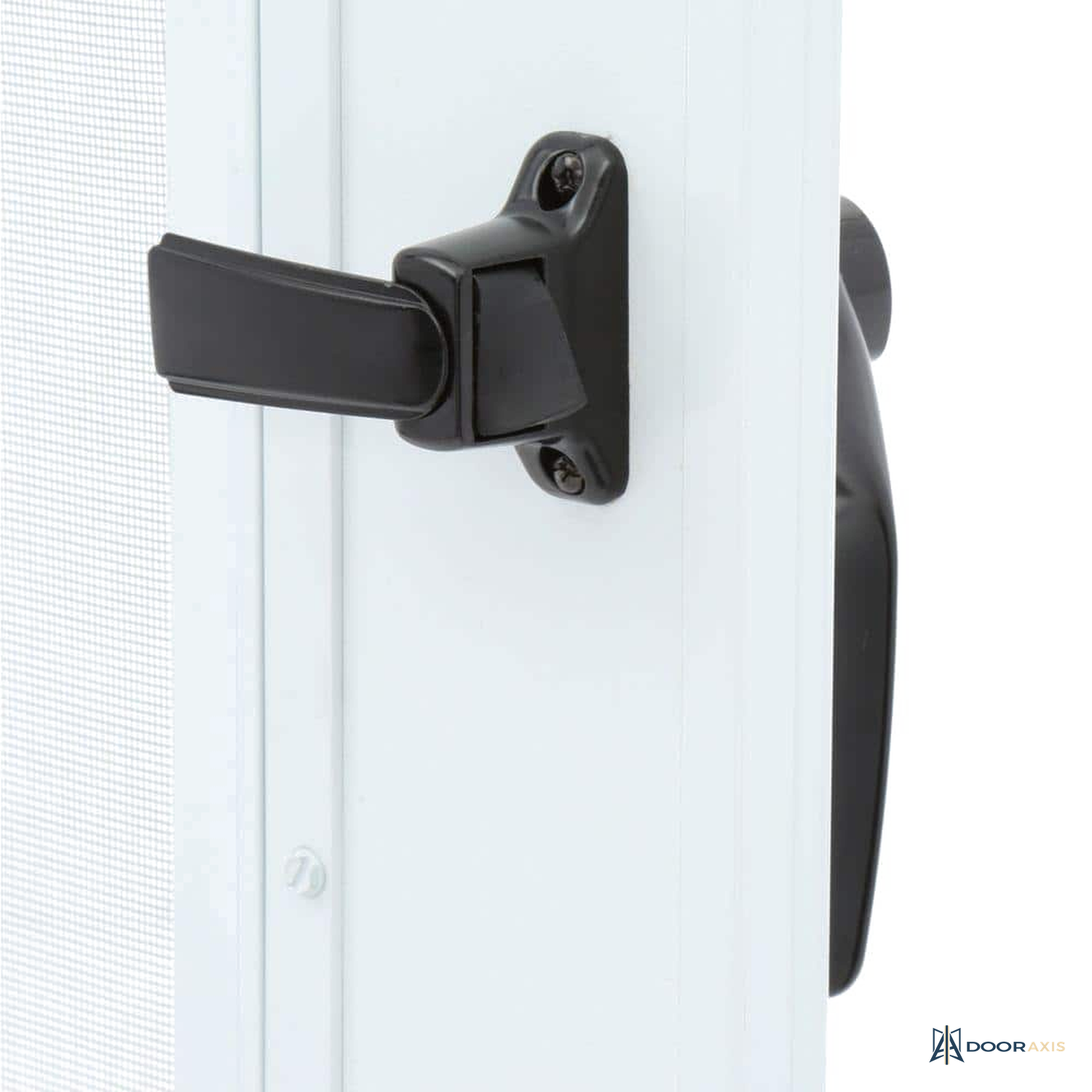

- Black push button handle set with night latch, included
- Tamper-proof hinge rail and door sweep
- Single layer perimeter weatherstripping seals the frame
- Water management detail directs runoff outside the frame
Specification Table
| Configuration | Single storm door, 3/4 light with self-storing lower glass |
| Nominal sizes | 30, 32, 34, 36 in wide; 78 or 80 in tall (see size list) |
| Fits opening | 35-3/4 to 36-3/8 in x 80 to 80-7/8 in at the 36 in x 80 in size; other sizes hold the same tolerance from nominal |
| Thickness | 1 in |
| Material | Vinyl frame and panels over a reinforced core |
| View | 3/4 light, mid-view, solid kick panel below |
| Glazing | Thermally tempered safety glass, fixed upper lite and self-storing lower lite |
| Screen | Permanent insect screen, exposed when the lower glass is raised |
| Handing | Universal Reversible, set at installation |
| Hardware | Black push button handle set with night latch, included |
| Hinges | Tamper-proof hinge rail |
| Weatherstripping | Single layer perimeter weatherstripping with door sweep |
| Weight | About 60 lb at 36 in x 80 in |
| Warranty | Limited manufacturer-backed warranty, confirmed during quote review |
Included Components
- Vinyl storm door with fixed upper lite and self-storing lower lite
- Permanent insect screen, factory fitted
- Black push button handle set with night latch lock
- Tamper-proof hinge rail and mounting hardware
- Door sweep and perimeter weatherstripping
- Installation instructions
Installation Notes
- Measure the existing entry opening width and height at three points each and order the size whose fits-opening range brackets the smallest measurements.
- Check the mounting surface: the entry door frame face must be flat, sound, and deep enough for the hinge rail along its full height.
- Decide the hinge side before starting; the door is universal reversible and the handle and hinge rails mount to either side per the instructions.
- Set the door sweep against the sill after hanging, then verify the night latch and handle strike engage without slamming.
- Raise and lower the self-storing glass through its full travel after installation to confirm smooth tracking and full weather seal at the bottom rail.
Warranty and Support
- Limited manufacturer-backed warranty, confirmed during quote review.
- Quote review includes an opening measurement check against the fits-opening ranges before release.
Frequently Asked Questions
How do I measure for a storm door?
Measure the existing opening width between the inside faces of the entry door frame at the top, middle, and bottom, and the height at both sides and the center. Order the size whose fits-opening range brackets your smallest width and height.
What does self-storing mean?
The lower glass panel slides up inside the door behind the permanent insect screen. You get screened ventilation any time without removing, swapping, or storing seasonal panels.
Can I hinge it on either side?
Yes. The door is universal reversible, so the hinge rail and handle set mount to whichever side matches your entry during installation.
Why vinyl instead of aluminum?
Vinyl will not corrode, pit, or show scratches through paint, which makes it a strong choice in coastal and high moisture climates, and it never needs repainting.
Documents
- Type Vinyl Storm Door
- SKU DA-DR-STM-VNL-34L-3680
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
