Door Axis 36 in x 84 in 3-Lite Frosted Glass White Composite Sliding Barn Door with Track Hardware Kit
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

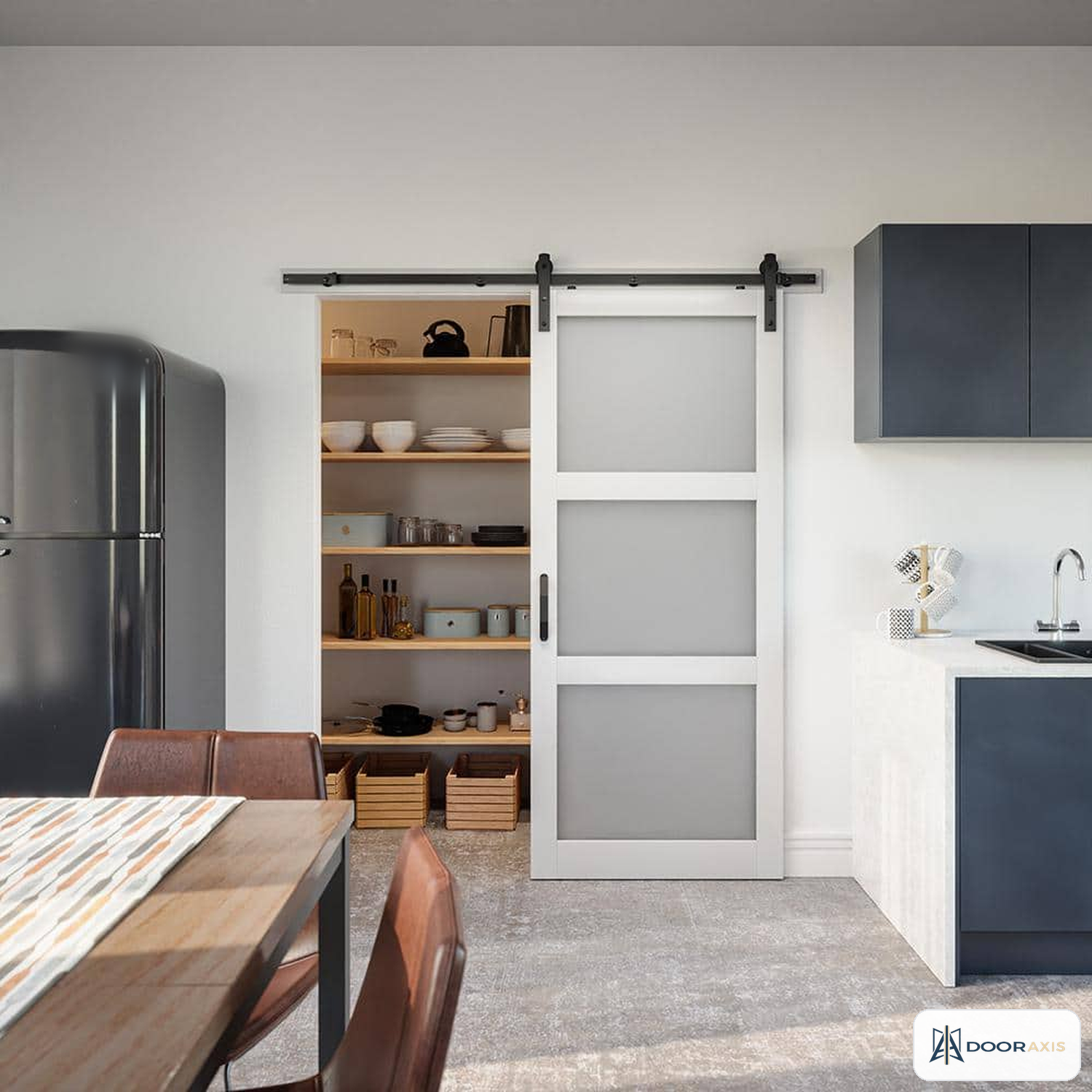

The Door Axis 36 in x 84 in 3-Lite Frosted Glass White Composite Sliding Barn Door brings borrowed light to a pantry, home office, laundry, or bathroom opening while keeping the contents private. It serves homeowners and remodelers who want a modern glass barn door as a complete kit, slab and matte black track hardware in one box.

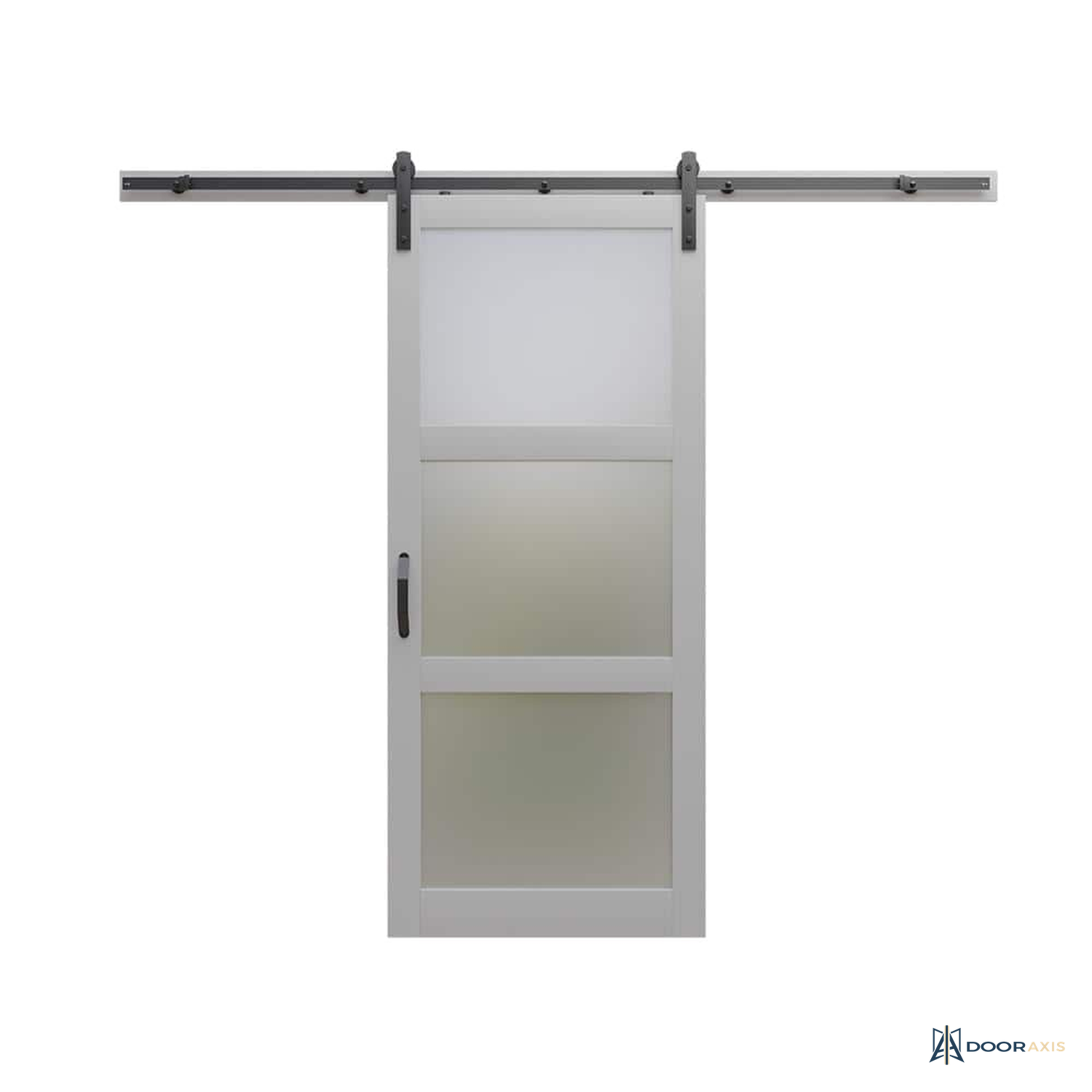

The slab is a 1.38 in thick solid core composite door, factory finished in white with a smooth paint-grade face that needs no site finishing. Three equal frosted glass lites stack the full width of the door between flat rails, passing daylight through the opening in both directions while obscuring shapes for privacy. The kit includes a 78.75 in matte black flat rail that mounts at 85.75 in above the floor, two top-mount roller hangers, end stops, anti-jump blocks, an adjustable floor guide, a matching pull handle, and lag fasteners with anchors for installation into a blocked header. At about 100 lb hung weight, the glass slab rides on the same contractor grade rollers as the solid slab kits in this family. This size is stocked as the 36 in x 84 in slab; additional sizes are quoted on request.
Highlights
- 36 in x 84 in x 1.38 in solid core composite slab, about 100 lb hung weight
- Three full-width frosted glass lites pass light while keeping privacy
- Factory finished white face, no site painting required
- Complete matte black track kit: 78.75 in flat rail, roller hangers, stops, floor guide, pull handle
- Track mounts at 85.75 in above finished floor into a blocked header
- Covers clear openings up to 32.5 in wide without casing, 30.5 in with casing
- Universal reversible: slides from either side of the opening
- Additional sizes are quoted on request
Specification Table
| Configuration | Single sliding barn door slab with surface mount track hardware kit |
| Slab size | 36 in W x 84 in H x 1.38 in thick |
| Opening coverage | Up to 32.5 in wide clear opening without casing; up to 30.5 in with standard casing (typical) |
| Door height rule | Door height equals opening height plus 1 in; about 1 in gap at floor |
| Core | Solid core |
| Material | Composite, factory finished white |
| Glazing | 3 frosted privacy glass lites, full width |
| Handing | Universal reversible |
| Track length | 78.75 in (6.56 ft) flat rail |
| Track mounting height | 85.75 in above finished floor |
| Hardware finish | Matte black |
| Included hardware | Rail, two roller hangers, end stops, anti-jump blocks, floor guide, pull handle, fasteners and anchors |
| Weight | 100 lb |
| Warranty | 1 year limited manufacturer-backed warranty, confirmed during quote review |

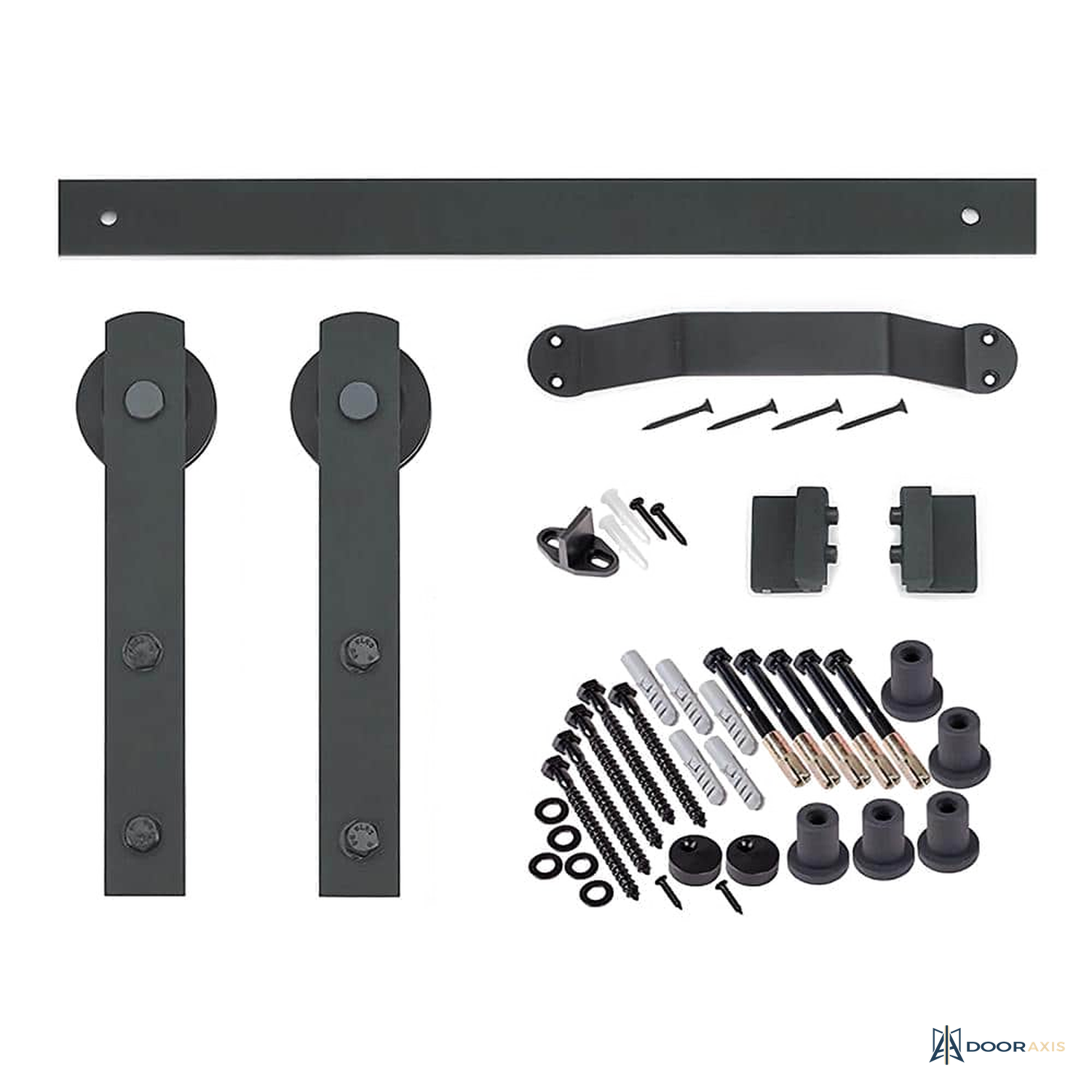

Included Components
- 3-lite frosted glass composite barn door slab, factory finished white
- Matte black flat rail, 78.75 in, with standoff spacers
- Two top-mount roller hangers with anti-jump blocks
- Rail end stops and adjustable floor guide
- Matte black pull handle
- Lag fasteners, wall anchors, and printed installation instructions
Installation Notes
- Measure the clear opening and casing before ordering: the 36 in slab overlaps the opening about 1 in per side and covers up to a 32.5 in clear opening without casing, 30.5 in with standard casing; door height should equal opening height plus 1 in.
- Fasten the rail through the wall finish into a continuous wood header board or solid blocking lagged into studs; drywall anchors alone will not carry a 100 lb glass slab. The rail centerline sets at 85.75 in above finished floor.
- Handle the slab by its stiles and rails, not the glass, and keep it fully supported until it hangs from both rollers; then set the end stops and anti-jump blocks and adjust the hangers so the door glides level.
- Install the floor guide plumb under the door path at the jamb line so the slab tracks straight without contacting the wall, and hold about a 1 in gap between the door bottom and finished floor.
- Do not trim the slab to size; trimming voids the warranty. Alternate slab sizes are quoted on request.
Warranty and Support
- 1 year limited manufacturer-backed warranty, confirmed during quote review.
- Quote packages include hardware adjustment guidance and glass care notes.
Frequently Asked Questions
How private is the frosted glass?
The lites are frosted privacy glass: they pass diffused light in both directions but obscure shapes and detail, which suits pantries, offices, laundries, and bathroom openings paired with a lock alternative reviewed at quote.
What opening sizes does the 36 in door cover?
Plan on about 1 in of overlap per side. Without casing the slab covers clear openings up to 32.5 in wide; with standard casing it covers openings up to 30.5 in. Door height should equal opening height plus 1 in.
Is the track hardware included?
Yes. The kit ships with the 78.75 in matte black rail, two roller hangers, end stops, anti-jump blocks, an adjustable floor guide, a pull handle, and the lag fasteners and anchors. Soft-close dampers are not included; alternates are reviewed during quote review.
Does the door need painting?
No. The face arrives factory finished in white. Wipe the glass and face with non-abrasive cleaner; no site finishing is required.
Documents
- Type Composite Barn Door
- SKU DA-DR-BRN-3L-FROST-36
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
