Door Axis 36 in x 84 in Fire-Rated Steel Commercial Door Kit with Panic Bar, Left Hand
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

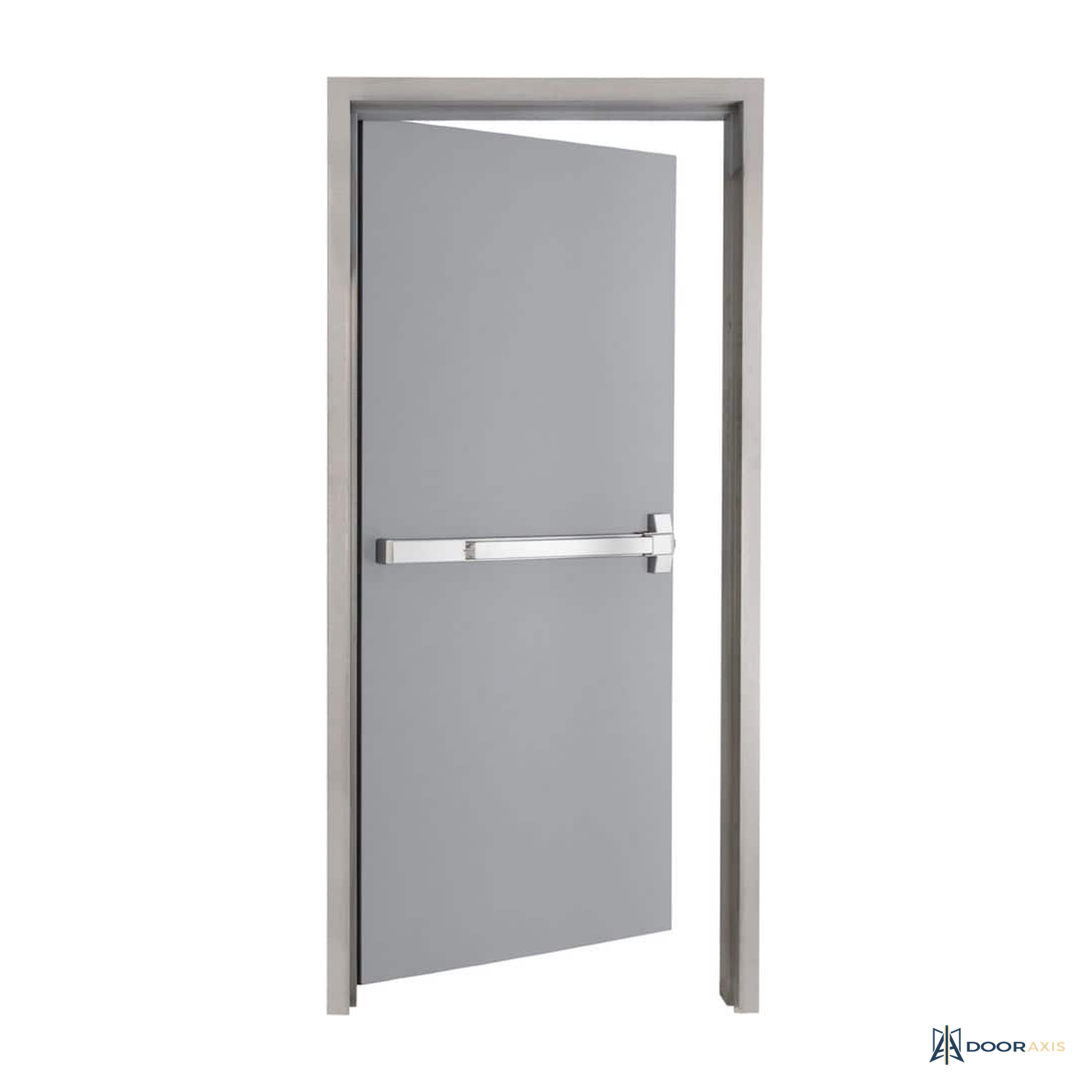

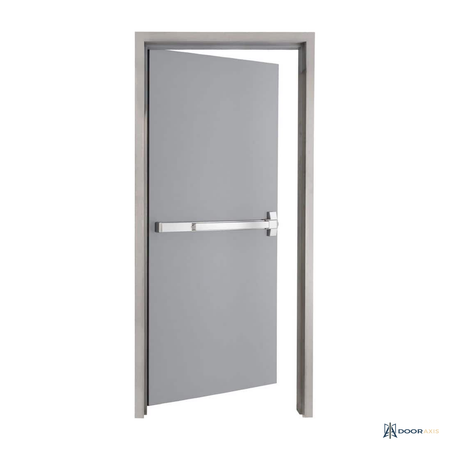

The Door Axis Fire-Rated Commercial Door Kit arrives as a complete opening: 36 x 84 in galvanneal steel slab, adjustable steel frame, spring hinges, and a factory-fitted panic bar. One order closes a 90 minute rated egress opening.
The galvanneal skin takes field paint over its mill-primed surface, the adjustable frame wraps common commercial wall depths, and self-closing spring hinges plus the included panic device satisfy the closing-and-latching chain fire openings require. Handing is left hand outswing with a single lockset bore for exterior trim. Published fire rating is 90 minutes; rough opening runs 38 x 85.5 in.
Highlights
- Complete kit: slab, adjustable frame, spring hinges, panic bar
- 90 minute published fire rating
- 36 x 84 in galvanneal steel slab, mill primed
- Left hand outswing, single lockset bore
- Rough opening 38 x 85.5 in
- 150 lb assembly
Specification Table
| Configuration | Single door kit, left hand outswing |
| Slab | 36 x 84 in, galvanneal steel |
| Rough opening | 38 x 85.5 in |
| Fire rating | 90 minute (published) |

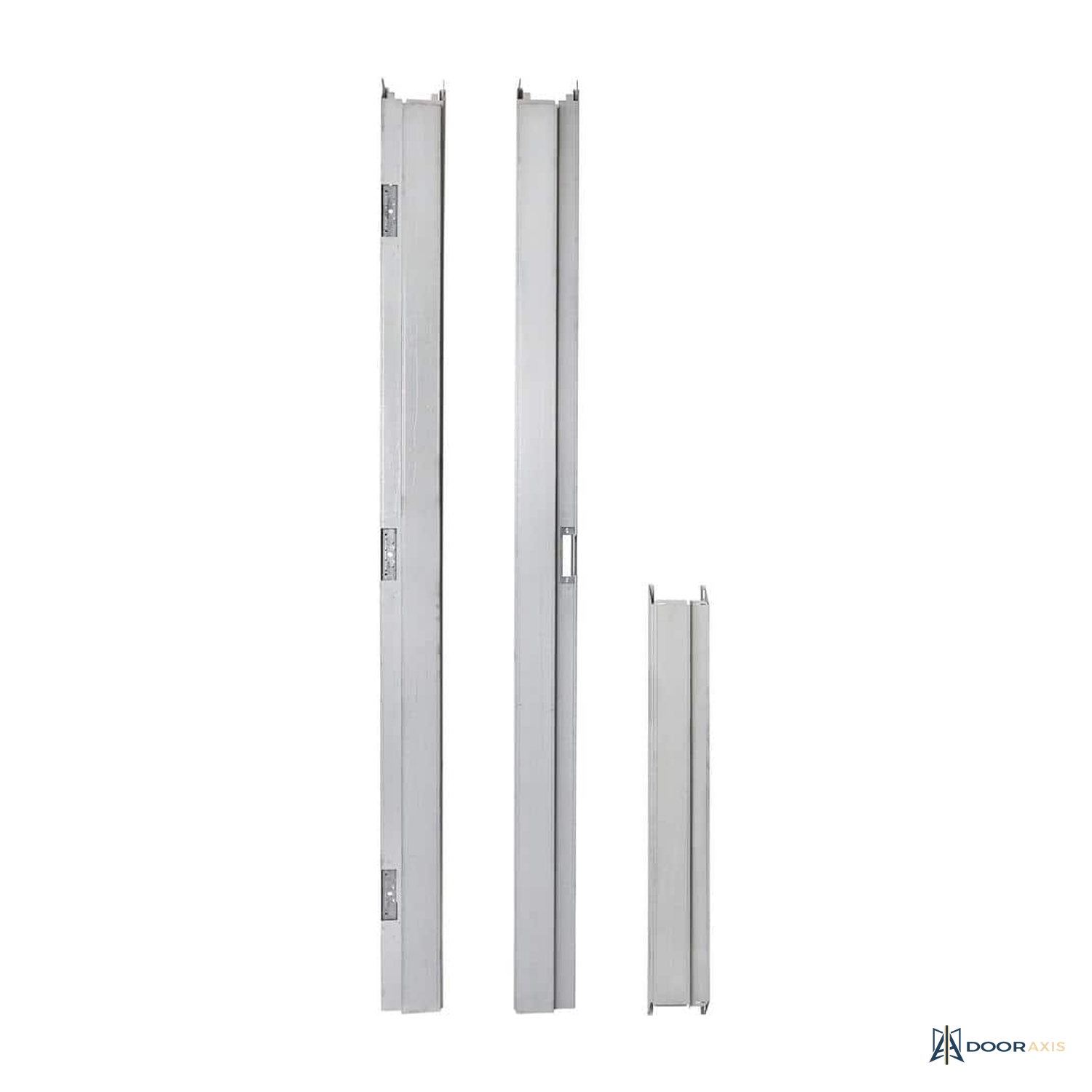

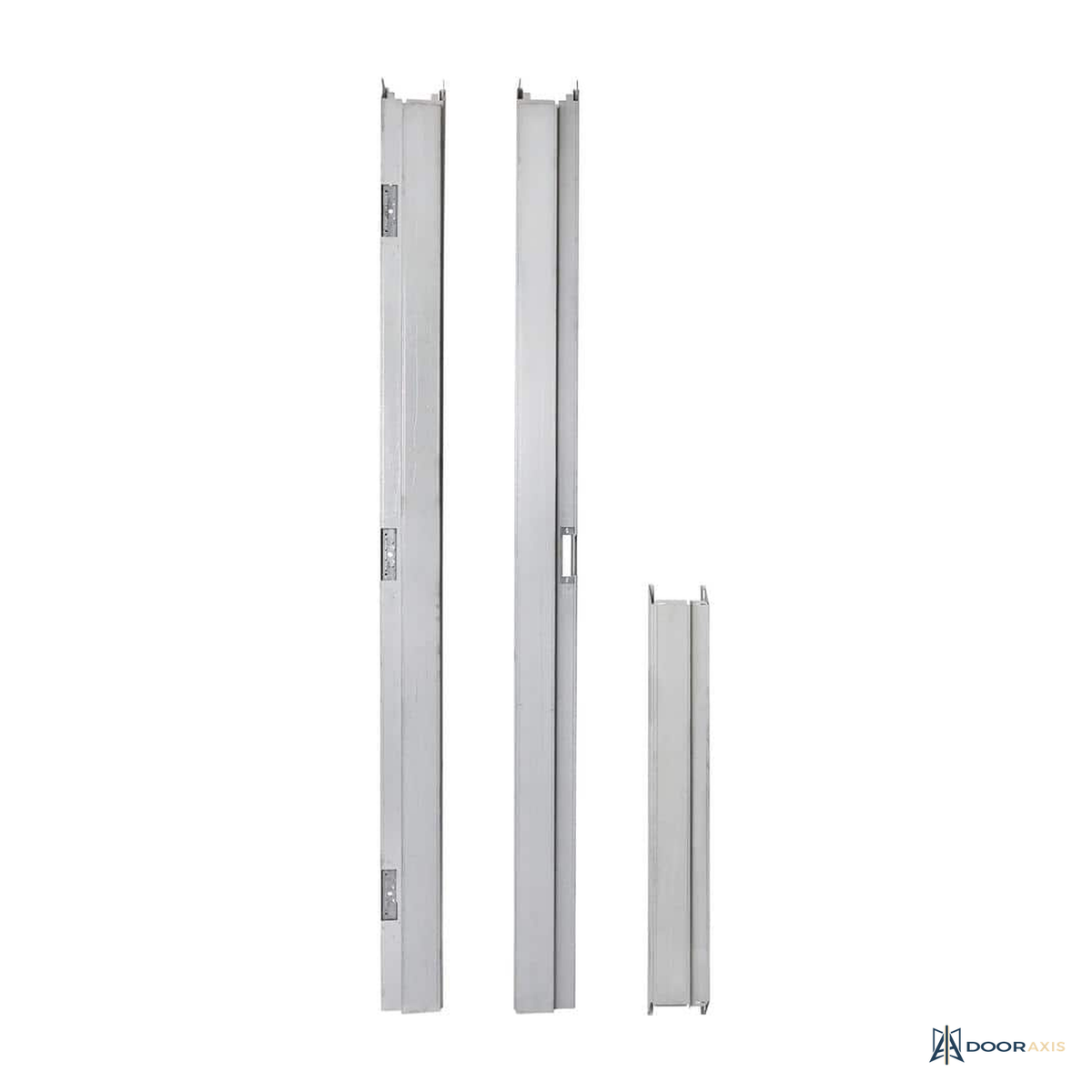

| Frame | Adjustable steel |

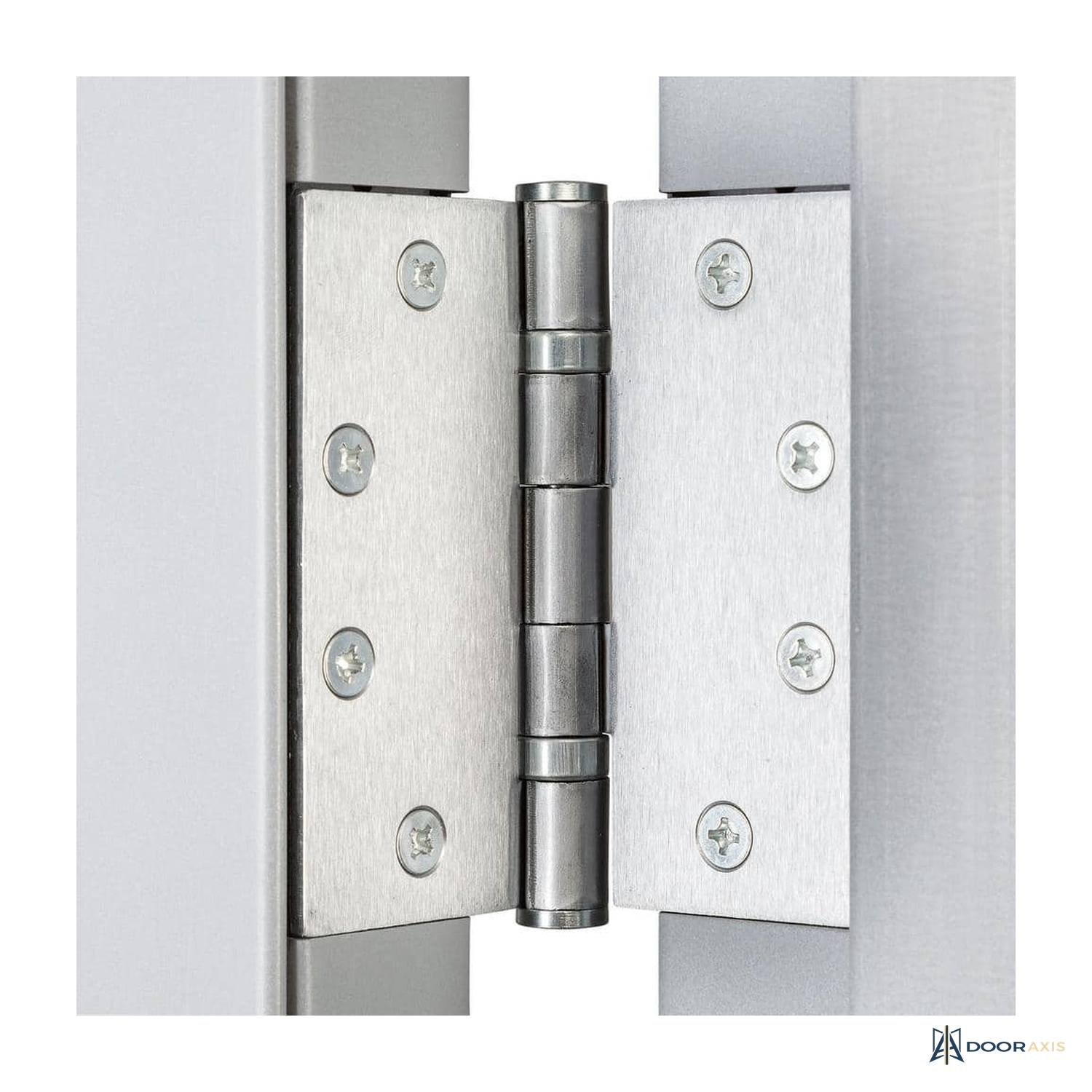

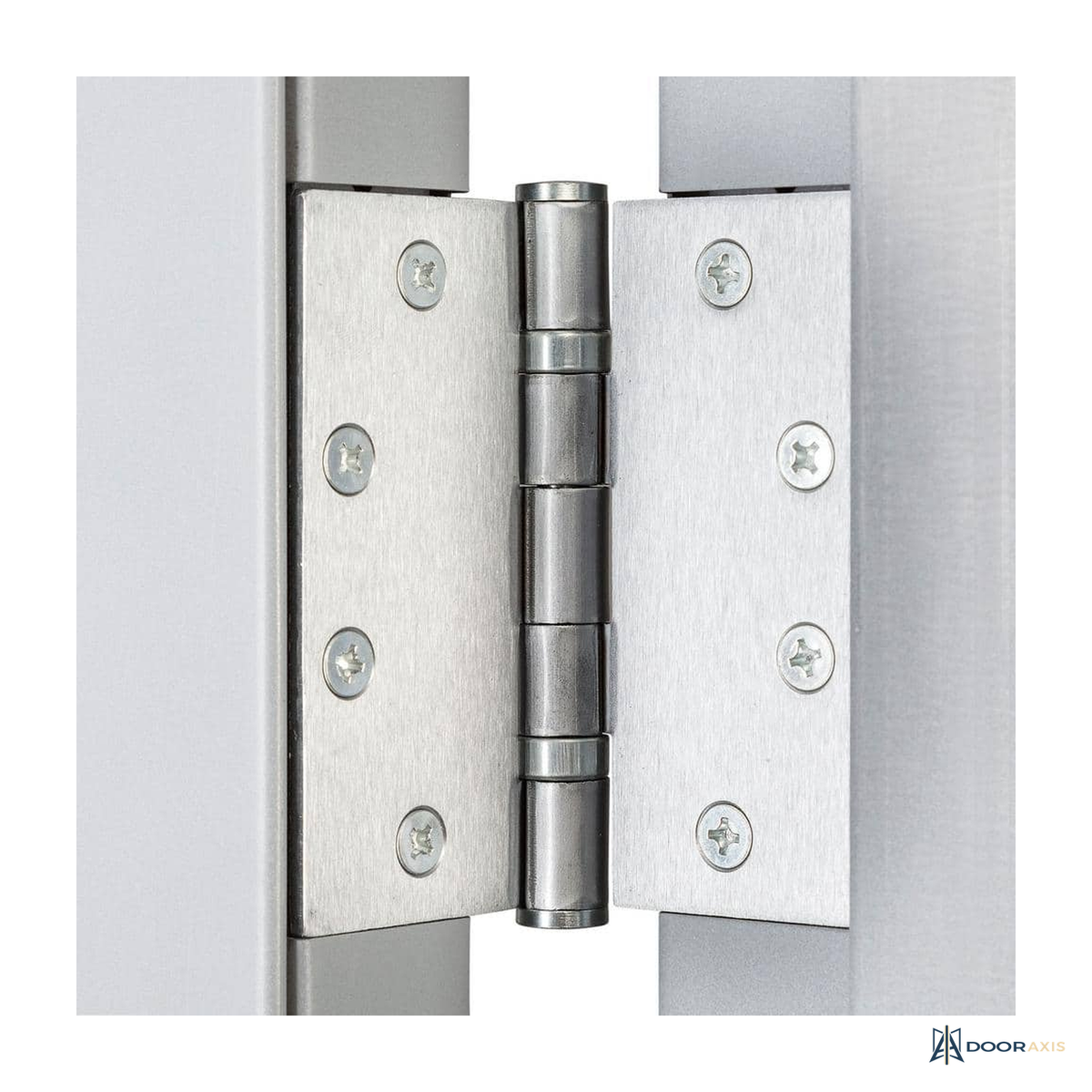

| Hinges | Spring, self-closing |
| Panic hardware | Included, factory fitted |
| Bore | Single lockset bore |
| Finish | Steel mill primed |
| Weight | 150 lb |
| Warranty | 1 year limited |
Included Components
- Galvanneal steel slab, 36 x 84 in
- Adjustable steel frame
- Self-closing spring hinges
- Panic bar exit device
- Installation fasteners
Installation Notes
- Verify the 38 x 85.5 in rough opening plumb and square before setting the frame.
- Anchor the adjustable frame per the released instructions to preserve the fire listing.
- Field paint the mill-primed surfaces after hanging.
- The opening must self-close and positively latch to hold its rating; do not disable the spring hinges.
Warranty and Support
- 1 year limited coverage, confirmed during quote review.
Frequently Asked Questions
Is right hand available?
This kit ships left hand outswing. Right hand kits from the same line are quoted on request.
Can I add a closer instead of spring hinges?
The kit's listing pairs the rating with its spring hinges; alternate closing hardware is reviewed during quoting to keep the listing intact.
