Name: Door Axis 40 Series Aluminum Glass Swing Entry Door, European Profile
Brand: Door Axis
SKU: DA-DR-EXT-ALUSWING40-SL-GO

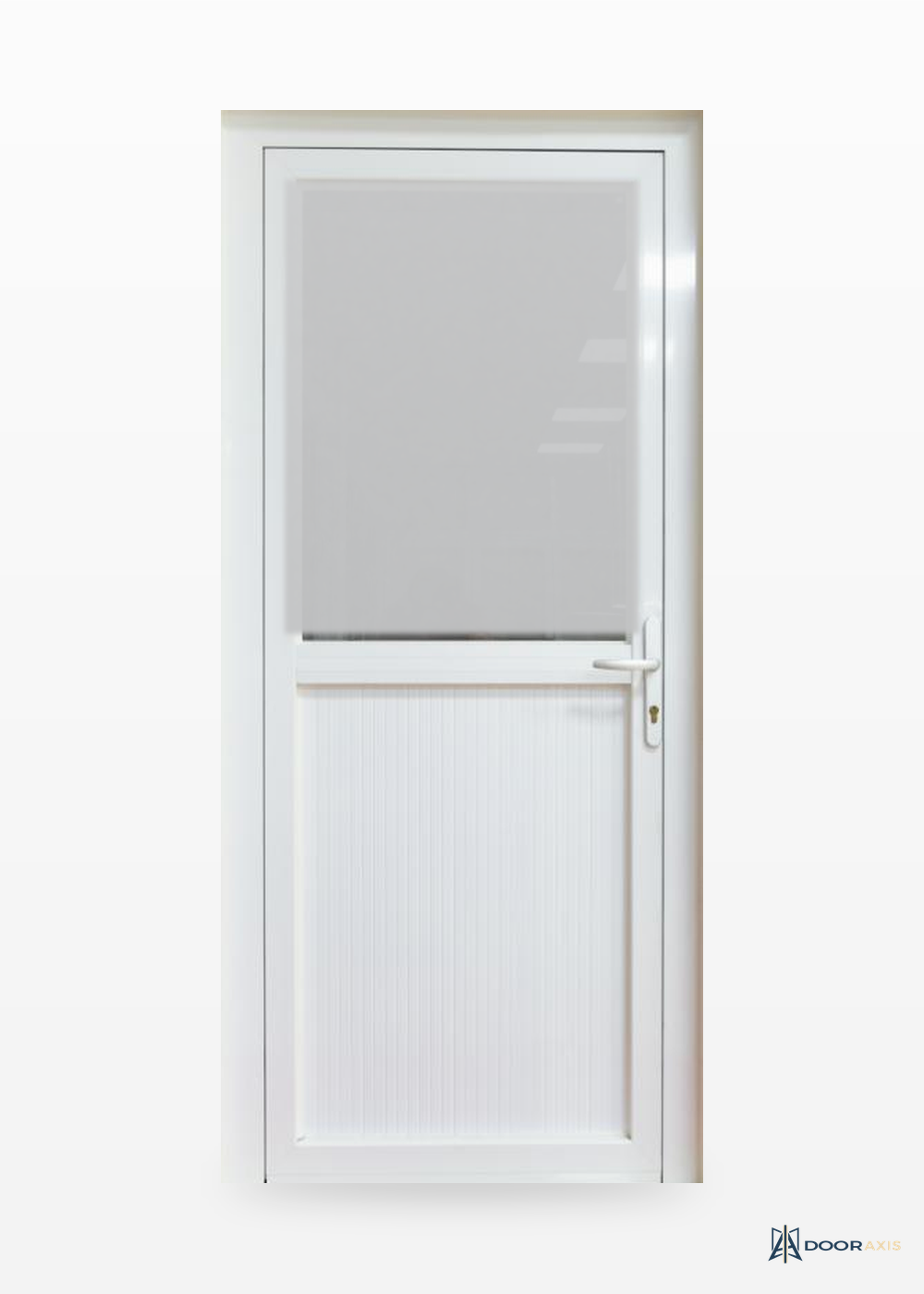

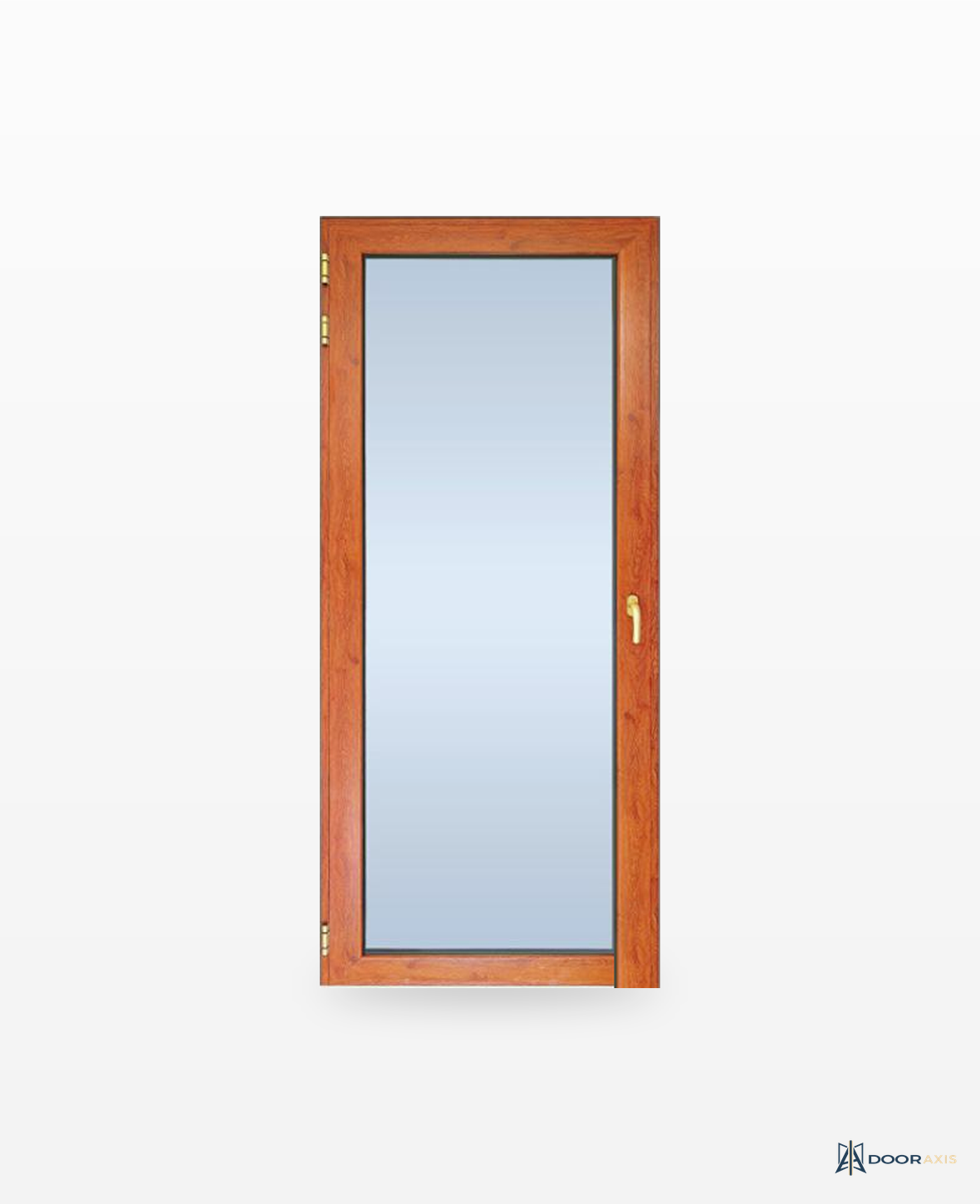

The Door Axis 40 Series Aluminum Glass Swing Entry Door is a European profile glass entry with a slim 1.57 in (40 mm) frame and a reinforced 3.50 in (89 mm) bottom rail. It serves homes, offices, and shops that want a glazed swing entrance with woodgrain or solid color finishes and a proper mortise lockset.

The leaf hangs on adjustable barrel hinges and closes on a European lever handle set with a mortise lock body and keyed cylinder. Glazing seats in a 0.98 in (25 mm) groove and can be ordered single or insulated, and a fixed sidelite extends the glass line for wider entries. Leaves run 27.5 to 37.4 in wide (700 to 950 mm) at heights to about 94.5 in (2400 mm), fabricated to the opening with inswing or outswing handing confirmed at order. Eight standard PVDF fluorocarbon and woodgrain film finishes match the rest of the Door Axis aluminum line.

Highlights

Slim 1.57 in (40 mm) European aluminum profile
Reinforced 3.50 in (89 mm) bottom rail
Single or insulated glazing in a 0.98 in (25 mm) groove

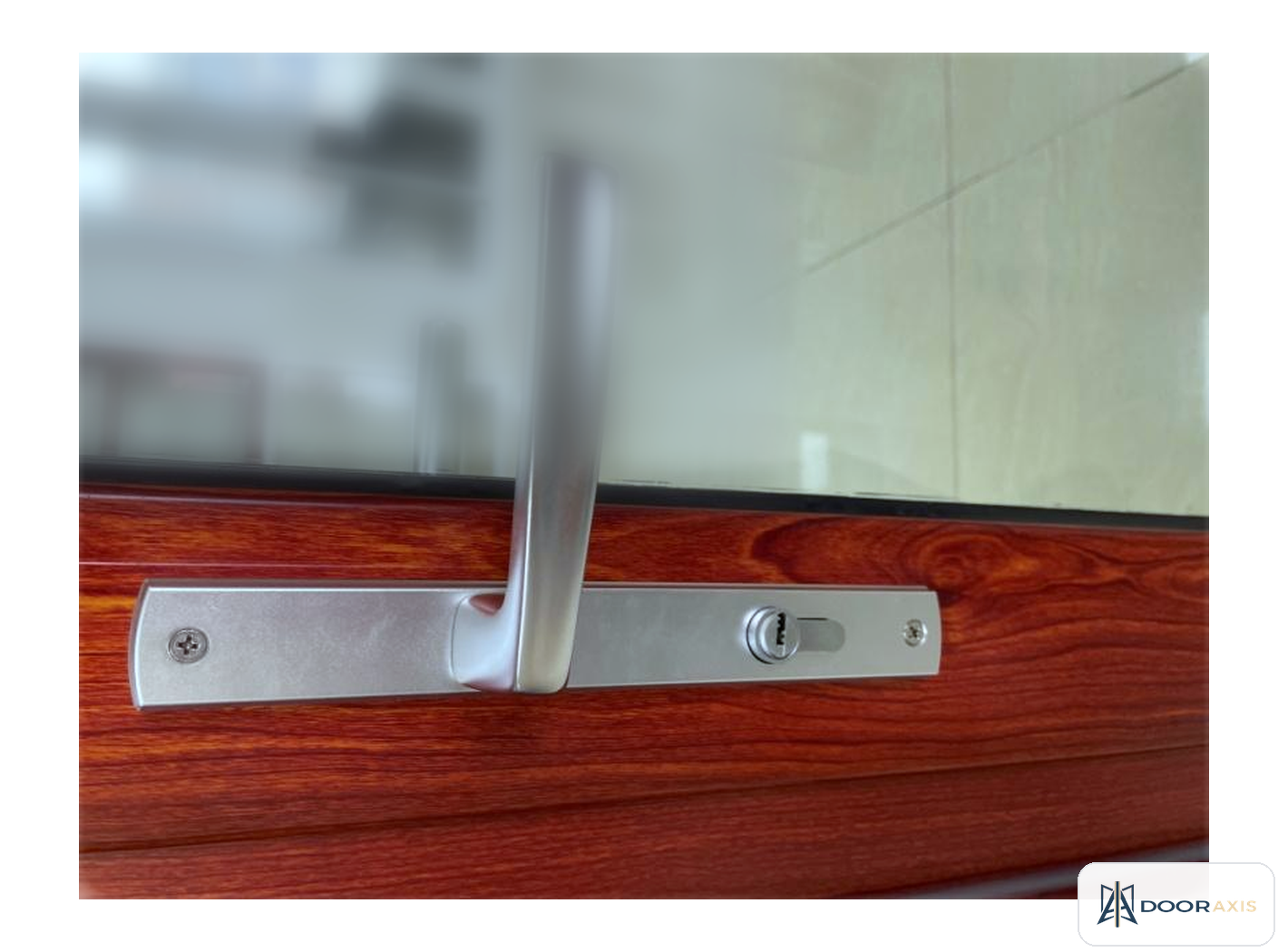

European lever handle set with mortise lock body and keyed cylinder
Single leaf or single with fixed sidelite
Inswing or outswing, left or right handing confirmed at order
Eight standard PVDF fluorocarbon and woodgrain film finishes

Specification Table

Configuration	Single leaf, or single leaf with fixed sidelite
Leaf sizing	Leaf widths 27.5 to 37.4 in (700 to 950 mm); heights to about 94.5 in (2400 mm); fabricated to opening size
Frame section	1.57 in (40 mm)
Bottom rail	3.50 in (89 mm) reinforced kick rail
Profile wall thickness	0.055 in (1.4 mm) standard configuration, confirmed during quote review
Material	Extruded aluminum profiles

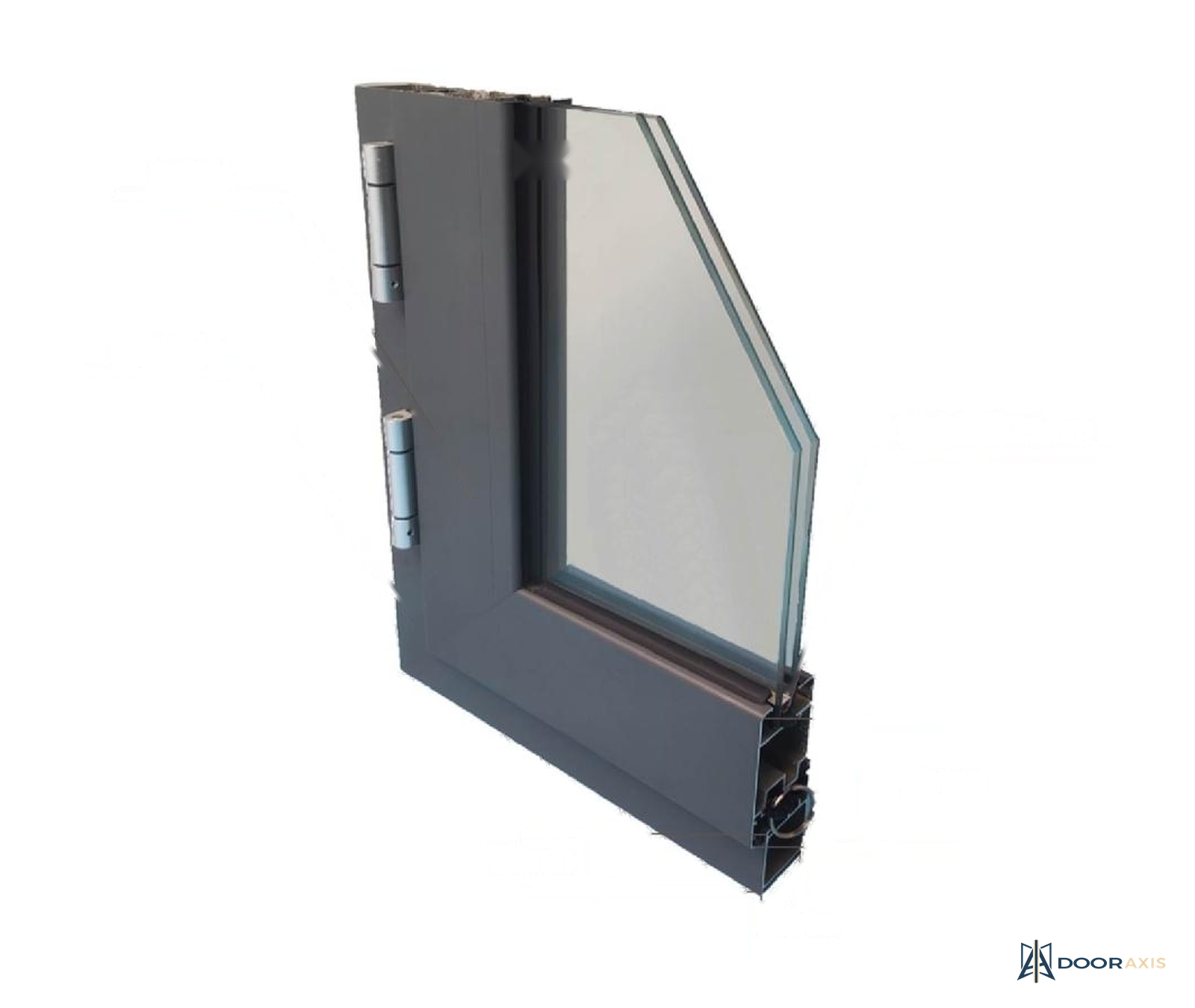

Glazing	Single or insulated glass, 0.98 in (25 mm) groove; Low-E options quoted on request
Handing	Inswing or outswing, left or right, confirmed at order
Hinges	Adjustable barrel hinges
Hardware	European lever handle set, mortise lock body, keyed cylinder
Weatherstripping	Perimeter gaskets and bottom seal
Finish system	PVDF fluorocarbon and woodgrain film finishes in eight standard colors
Representative weight	About 234 lb (106 kg) as a single leaf at 35.4 x 86.6 in (engineering estimate)
Warranty	Confirmed during quote review

Included Components

Aluminum frame set with weatherstripping
Glazed swing leaf, prehung with adjustable barrel hinges
Fixed sidelite frame and glazing (sidelite configuration)
European lever handle set with mortise lock body, cylinder, and keys
Perimeter gaskets and bottom seal
Installation fasteners and shim guidance

Installation Notes

Verify the rough opening, header, and sill condition before release, and confirm handing from the push side.
On exterior openings install a sill pan and integrate flashing and waterproofing with the wall assembly.
Set the frame plumb, level, and square, shim at hinge points, and adjust hinges for even reveals.
Installation should be completed by a licensed contractor.
Final leaf size, handing, and sidelite width are confirmed during quote review.

Warranty and Support

Warranty coverage is confirmed during quote review before release.
Quote packages include hardware adjustment guidance and finish care notes.

Frequently Asked Questions

Is the door prehung?
Yes. The leaf ships hung in its aluminum frame with hinges and lockset fitted, ready to set into the prepared opening.

Can I choose inswing or outswing?
Yes. Handing and swing direction are confirmed at order, left or right, inswing or outswing.

Which finishes are available?
Eight standard finishes: Sand Black, Sand Gray, Snow Gray, Pure White, Fluorocarbon Champagne, Red Cherry, Golden Oak, and Black Walnut, applied as PVDF fluorocarbon or woodgrain film over extruded aluminum.

Is insulated glass available?
Yes. The 25 mm glazing groove accepts single or insulated glass, and Low-E options are quoted on request.
