Name: Door Axis 50 Series Compact Aluminum Folding Door System, Servery and Corner Sets
Brand: Door Axis
SKU: DA-DR-PAT-FOLD50-22-SB

The Door Axis 50 Series Compact Aluminum Folding Door System brings folding glass to kitchen pass throughs, servery counters, corner openings, and other compact spans on a slim 1.97 in (50 mm) frame. It serves remodelers and hospitality projects that want an opening glass wall where a full size folding system would overpower the space.

The 50 Series folds on stainless folding hardware with slim sightline profiles and a choice of single or insulated glazing. Standard sets cover a 2+2 panel run, a 3 panel corner set that folds around a corner post for wraparound openings, and a counter height servery set for kitchen and bar pass throughs. Each set is fabricated to the opening size, finished in one of eight standard PVDF fluorocarbon or woodgrain film colors, and shipped as a complete frame, panel, and hardware kit.

Highlights

Slim 1.97 in (50 mm) aluminum frame section for compact openings
2+2 panel, 3 panel corner, and counter height servery sets

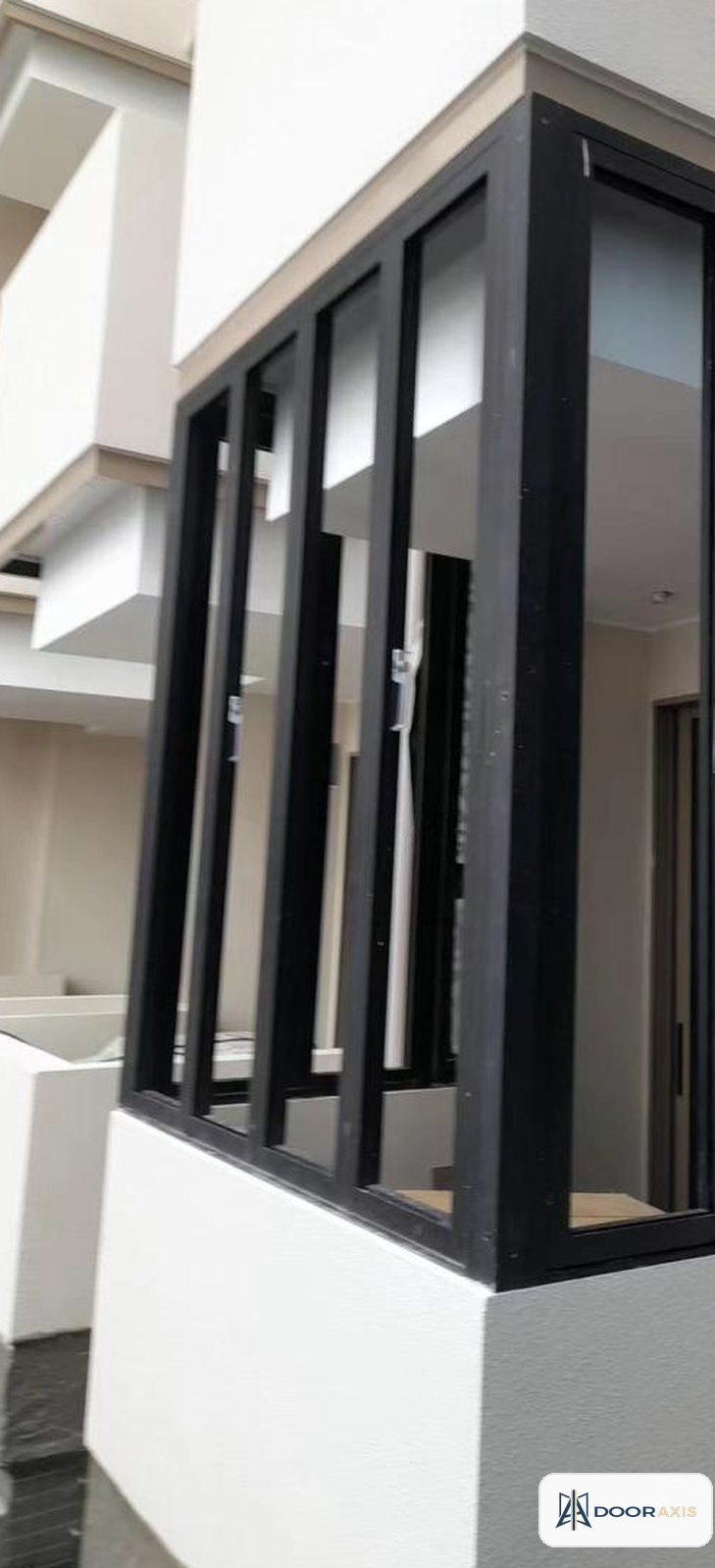

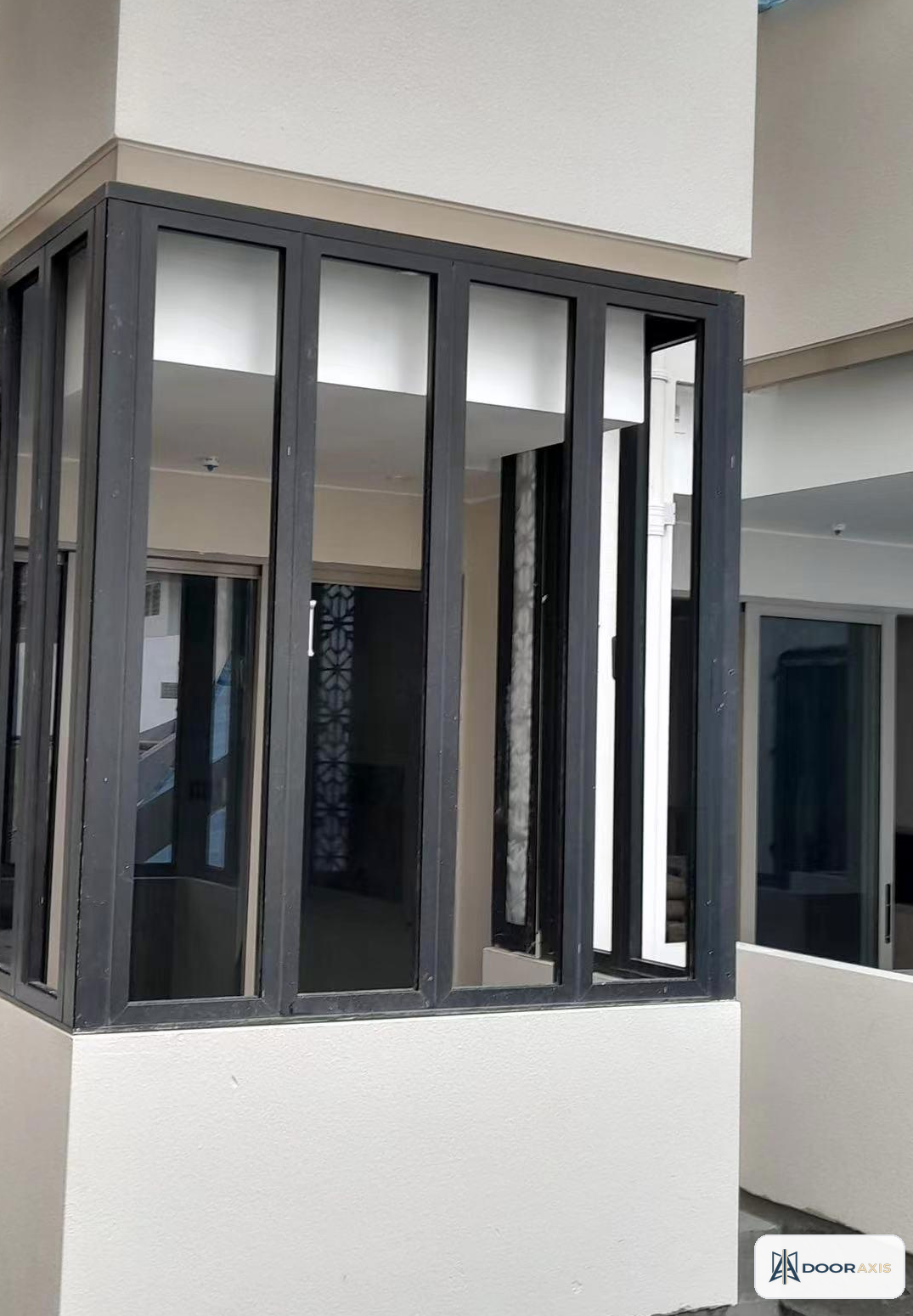

Corner sets fold around a corner post for wraparound openings
Single or insulated glazing with slim sightlines

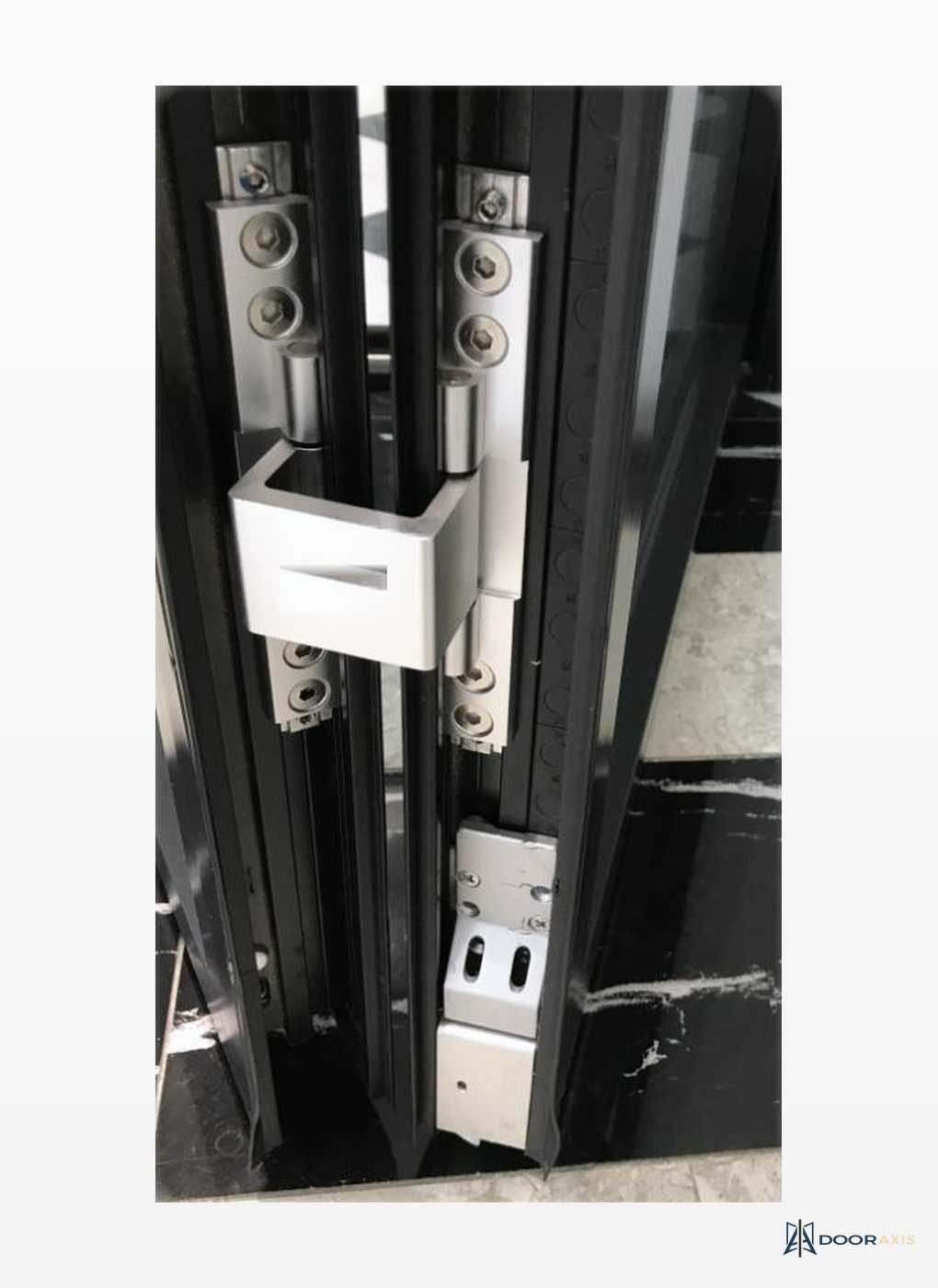

Stainless folding hardware with pivots, carriers, and drop bolts
Eight standard PVDF fluorocarbon and woodgrain film finishes
Fabricated to opening size; final dimensions confirmed during quote review

Specification Table

Configuration	2+2 panel, 3 panel corner, or servery folding set (selected at order)
System sizing	Compact openings; panel widths about 23.6 to 35.4 in (600 to 900 mm); fabricated to opening size
Typical system widths	About 89 in for 3 panel and servery sets, about 118 in for 2+2 sets
System height	Typically up to 94.5 in (2400 mm); servery sets built to counter height openings
Frame section	1.97 in (50 mm)
Profile wall thickness	0.055 in (1.4 mm) standard configuration, confirmed during quote review
Material	Extruded aluminum profiles
Glazing	Single or insulated glazing; Low-E options quoted on request

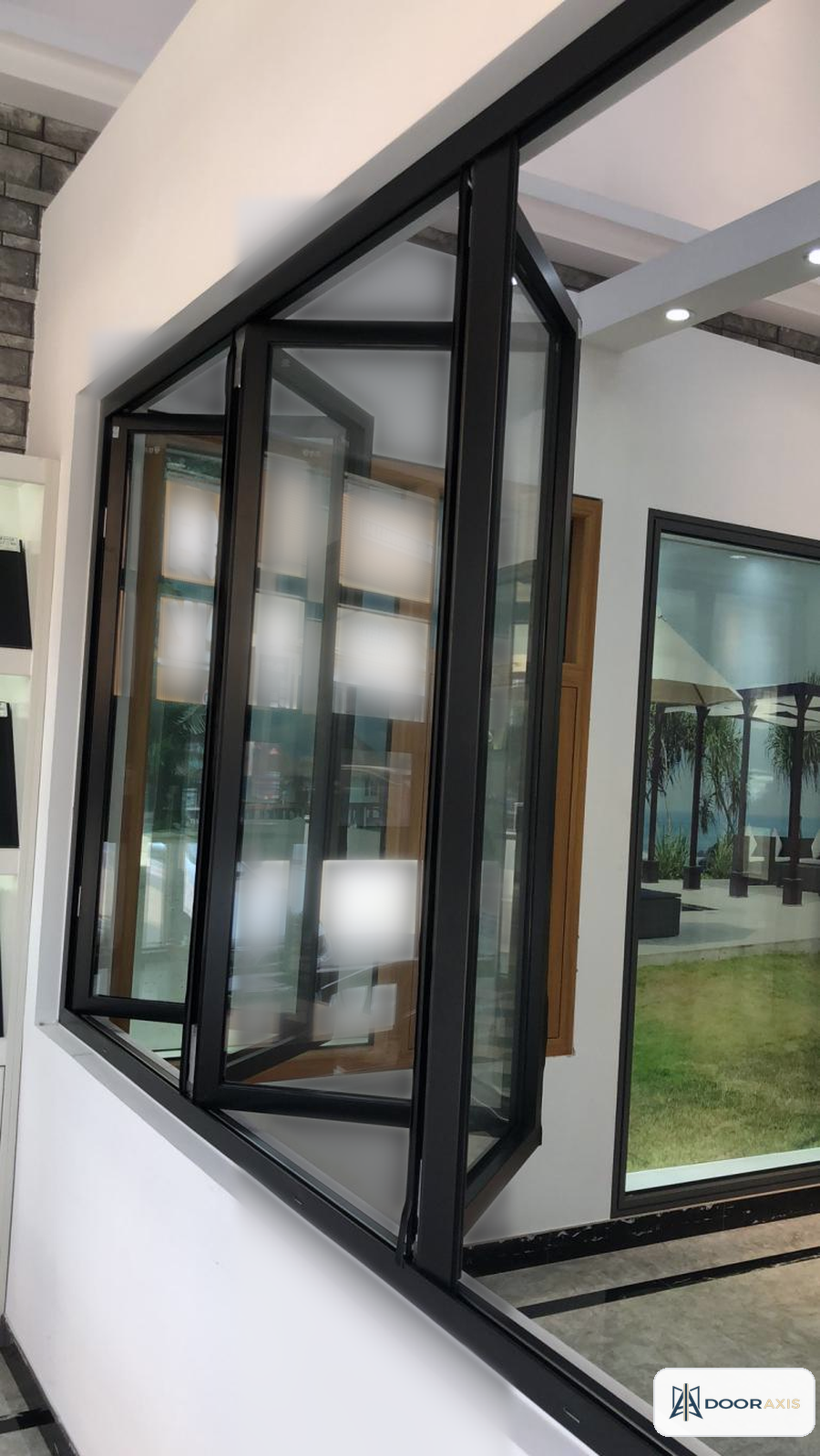

Operation	Panels fold and stack to one side; corner sets fold around a corner post
Hardware	Stainless folding hardware: pivots, carriers, drop bolts, flush pulls
Finish system	PVDF fluorocarbon and woodgrain film finishes in eight standard colors
Representative weight	About 786 lb (356.5 kg) as a 2+2 set at 29.5 x 82.7 in panels (engineering estimate)
Warranty	Confirmed during quote review

Included Components

Aluminum frame set: head, jambs, and bottom track (corner post included on corner sets)
Folding panel set with selected glazing
Stainless folding hardware set: pivots, carriers, and drop bolts
Flush pulls and latch hardware
Perimeter gaskets, interlock seals, and weatherstripping
Installation fasteners and shim guidance

Installation Notes

Verify the header, counter, or opening structure before release; servery sets bear on the counter structure below.
On exterior openings install a sill pan and integrate flashing and waterproofing with the wall assembly.
Set the frame plumb, level, and square, and confirm the corner post is vertical on corner sets before hanging panels.
Installation should be completed by a licensed contractor or an experienced finish carpenter.
Final opening dimensions and stacking direction are confirmed during quote review.

Warranty and Support

Warranty coverage is confirmed during quote review before release.
Quote packages include hardware adjustment guidance and finish care notes.

Frequently Asked Questions

What is a servery set?
A counter height folding set that opens a kitchen or bar pass through to a patio or dining space. Panels fold to one side and clear the full counter opening.

Can the corner set open both walls of a corner?
Yes. The 3 panel corner set folds around a corner post so both legs of the corner open. Leg lengths are configured during quote review.

Which finishes are available?
Eight standard finishes: Sand Black, Sand Gray, Snow Gray, Pure White, Fluorocarbon Champagne, Red Cherry, Golden Oak, and Black Walnut, applied as PVDF fluorocarbon or woodgrain film over extruded aluminum.

Is insulated glass available?
Yes. Sets are glazed single or insulated, and Low-E options are quoted on request. Exterior installations are typically specified with insulated glazing.
